57541 | Rough Country 6 Inch Lift Kit For Ford F-150 4WD | 2014-2013 | M1 Struts With M1 Rear Shocks

6 Inch Lift Kit For Ford F-150 4WD | 2014-2013 | M1 Struts With M1 Rear Shocks

57541
Pricing: $2,318.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Give your Ford F-150 an aggressive new look and unparalleled off-road performance with Rough Country's 6-inch Suspension Lift. This all-inclusive kit features everything needed to take your Ford off the freeway and into the fields. Featuring a set of durable lifted knuckles and strut spacers or N3 lifted struts, you'll gain enough ride height to run up to 35-inch tires! A set of differential drop brackets, sway-bar drop brackets, brake line brackets, and a drive shaft spacer help keep everything at an optimum angle for a factory-like ride, even after lifting.

A 1/4-inch thick plate steel front and rear cross member bring uncompromised strength and good looks to your truck, featuring a laser-cut "RC" logo and an easy-to-install design. Our 4-inch Fabricated Rear Blocks offer considerably more strength than their cast iron counterparts, and were specifically engineered by Rough Country to prevent against axle-wrap. Improve your on and off-road ride quality with Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening.

FEATURES

  • Track width remains the same as factory
  • Increased ground clearance
  • Levels the front with the rear of the vehicle
  • Fabricated rear blocks are stronger and offer a longer lifespan than cast blocks.
  • Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
  • Optional Lifted front struts help maintain smooth, factory-like ride
  • Optional Front struts are structurally engineered for lifted applications
  • Optional Front struts are lifted 6-inches, eliminating the need for strut spacers

OPTIONAL N3 LOADED STRUTS

  • Includes pre-loaded coil
  • Maintains smooth, factory-like ride
  • Increased ground clearance
  • Engineered for lifted applications
  • Infinitely Variable Damping
  • Leak-proof piston seal
  • Massive 1 3/8in Bore
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

OPTIONAL V2 MONOTUBE SHOCKS

  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

OPTIONAL VERTEX

  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty

NOTES - IMPORTANT

  • Requires minor cutting and drilling.
  • 9-inch wide wheels are recommended.

Vehicle Applications

2011 - 2013 Ford F-150 Pickup

NOTES - IMPORTANT
Requies minor cutting and drilling.
9-inch wide wheels are recommended.

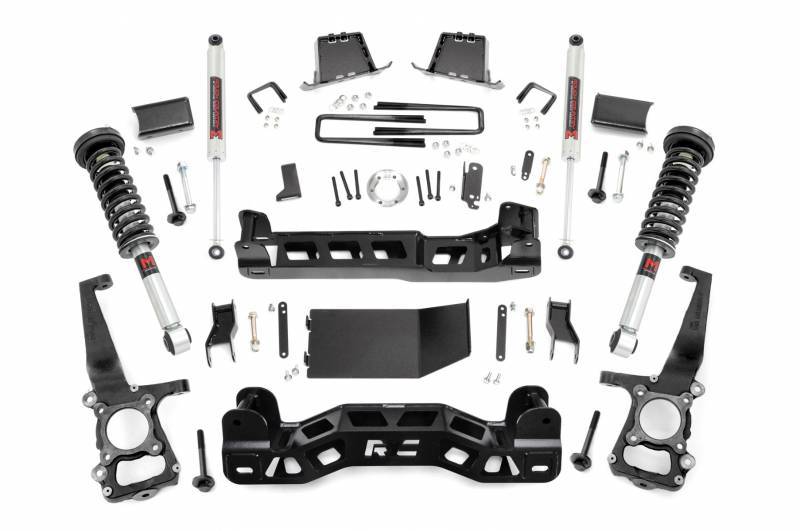

Components

FRONT
Lifted knuckles
Upper strut spacers
Front crossmember
Rear crossmember
Sway-bar drop brackets
Differential drop brackets
Brake line brackets
Driveshaft spacer
Hardware

REAR
5.5in fabricated anti-wrap lift blocks
Brake line relocation brackets
U-bolts
Hardware

SHOCKS
(2) Shocks

Tire & Wheels

35x12.50R18 18x8.5 6x135 +0 -
35x12.50R18 18x8.5 6x135 +1 -
35x12.50R18 18x9 6x135 -12 -
35x12.50R18 18x9 6x135 +0 -
35x12.50R18 18x9 6x135 +1 -
35x12.50R18 18x10 6x135 -25 -
35x12.50R18 18x10 6x135 -24 -
35x12.50R18 18x10 6x135 -19 -
35x12.50R18 18x10 6x135 -18 -
35x12.50R20 20x9 6x135 -12 -
35x12.50R20 20x9 6x135 +0 -
35x12.50R20 20x9 6x135 +1 -
35x12.50R20 20x10 6x135 -25 -
35x12.50R20 20x10 6x135 -24 -
35x12.50R20 20x10 6x135 -19 -
35x12.50R20 20x10 6x135 -18 -
35x12.50R20 20x12 6x135 -44 Trimming Required
35x12.50R22 22x10 6x135 -25 -
35x12.50R22 22x10 6x135 -24 -
35x12.50R22 22x10 6x135 -19 -
35x12.50R22 22x10 6x135 -18 -
35x12.50R22 22x12 6x135 -44 Trimming Required

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
