320001 | Baja Designs LP9 Pro LED Auxiliary Light Pod | Single, Spot Light Pattern, Clear, Universal

LP9 Pro LED Auxiliary Light Pod | Single, Spot Light Pattern, Clear, Universal - Check Specification Before Ordering

320001
Pricing: $858.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

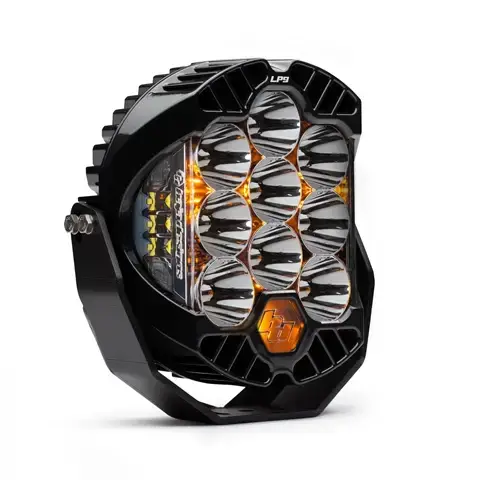

The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 Pro utilizes nine forward-projecting LEDs to produce 12,547 Lumens, and six LEDs for Integrated Peripheral Technology (IPT) which produce 2,302 lumens combined with the forward-facing LEDs provides an incredible 200-degree spread of usable light.

The housing provides exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power modes, the LP9 Pro will fulfill all your lighting needs. All Baja Designs feature uService® technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.

Variety of patterns to suit your needs:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3).

Spot: A longer and narrower 8-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5).

  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

SKU: 320001

Dimensions

Depth (in.) 3.250
Height (in.) 8
Length (in.) 8
Weight (lbs.) 6.500

Specifications

Amperage Rating (A) 9
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.200
Backlight Wattage (W) 2.800
Beam Pattern Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 12547
Description Spot; Clear
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 9
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP9 Pro LED Light Pod
Secondary Amperage Rating (A) 1.520
Secondary Brightness (Lumens) 2302
Secondary Light Quantity 6 LEDs
Secondary Lighting Type LED
Secondary Lighting Technology Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 21
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 124.200
Wiring Harness Included No

Standards & Compliance

Patent No. 5,504,603
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
