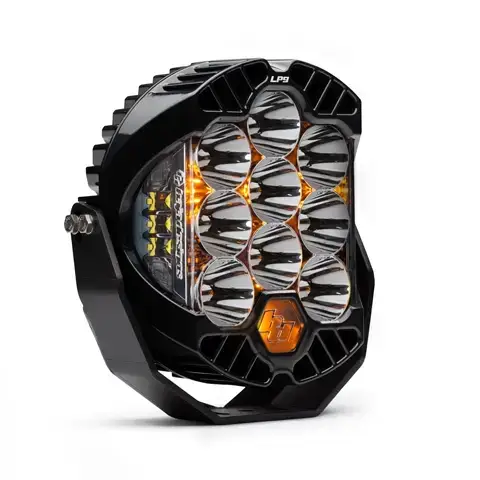

330001 | Baja Designs LP9 Racer Edition LED Auxiliary Light Pod | Single, Racer Spot Light Pattern, Clear, Universal
LP9 Racer Edition LED Auxiliary Light Pod | Single, Racer Spot Light Pattern, Clear, Universal - Check Specification Before Ordering
Description
Though the design was inspired by Baja Designs’ legendary 8-inch La Paz HID; The LP9 Racer Edition LED Pod features modern styling and performance, with some of the most advanced LED technologies available today.
The LP9 utilizes nine forward-projecting LEDS to produce 8,374 lumens and six LEDs for Integrated Peripheral Technology (IPT) which produce 2,302 lumens. The IPT sports an incredible 200-degree spread of usable light. The housing provides exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, high power mode, the LP9 racer easily takes care of all your lighting needs.
Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration perfect for the demands of high-speed driving. The Racer Edition has a similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService® technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 330001
Dimensions
Depth (in.) | 3.250 |
Height (in.) | 8 |
Length (in.) | 8 |
Weight (lbs.) | 6.500 |
Specifications
Amperage Rating (A) | 9.600 |
Average Rated Life (hr.) | 49,930 |
Backlight Amperage Rating (A) | 0.200 |
Backlight Wattage (W) | 2.800 |
Beam Pattern | Racer Edition Spot |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 8374 |
Description | Racer Edition Spot; Clear |
Housing Color | Black |
Housing Material | Hard Anodized Machined Aluminum |
Lens Color | Clear |
Lighting Modes | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lens Material | High Beam/Low Beam/Day-Time Running Backlighting |
Lighting Quantity | 9 |
Lighting Type | LED |
Lighting Technology | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | LP9 Racer Edition LED Light Pod |
Secondary Amperage Rating (A) | 1.520 |
Secondary Brightness (Lumens) | 2302 |
Secondary Light Quantity | 6 LEDs |
Secondary Lighting Type | LED |
Secondary Lighting Technology | Integrated Peripheral Technology (IPT) |
Secondary Wattage (W) | 21 |
Terminal Connector | DT06-4S Deutsch |
Terminal Type | Mating Connector |
Universal or Specific | Universal |
Wattage (W) | 132.480 |
Wiring Harness Included | No |
Standards & Compliance
Patent No. | 5,504,603 |
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
DISCLAIMER AND WARNING
Disclaimer
Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
Baja Designs California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
