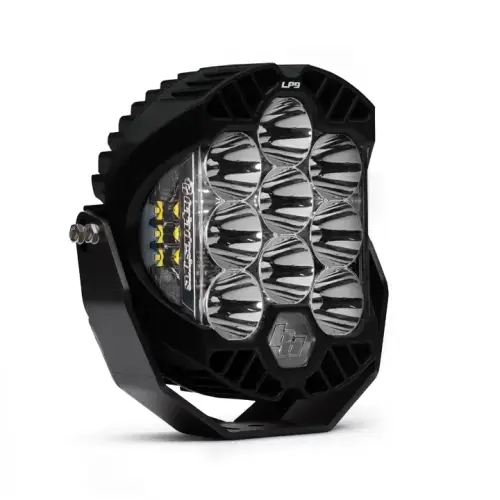

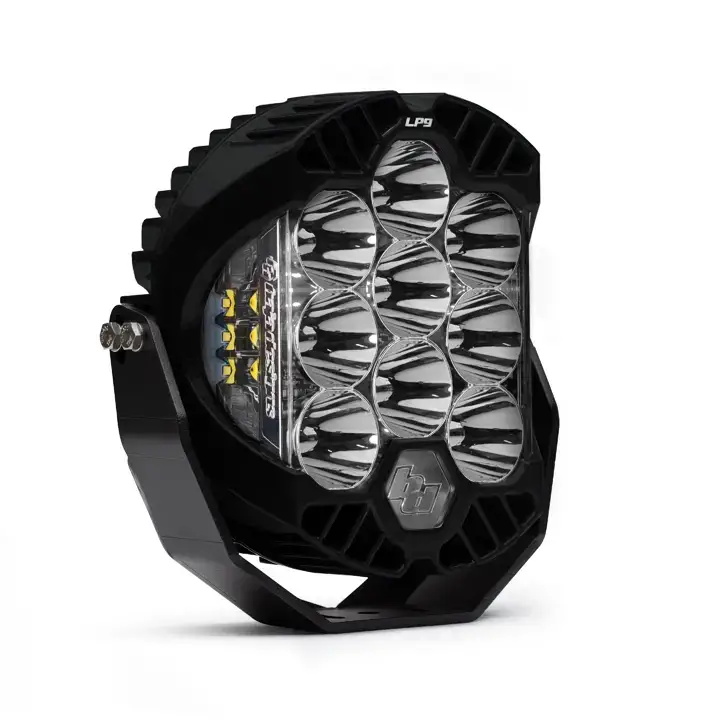

350001 | Baja Designs LP9 Sport LED Auxiliary Light Pod | Single, Spot Light Pattern, Clear, Universal
LP9 Sport LED Auxiliary Light Pod | Single, Spot Light Pattern, Clear, Universal - Check Specification Before Ordering
Description
The LP9 Sport is perfect for enthusiasts that want a full-size light with modern styling and advanced features. The Sport model includes all of the technology that makes the LP9 series so popular. From Direct Ducted Cooling – that keeps your light cool under stress – to Integrated Peripheral Technology (IPT), which produces an incredible 200-degree spread of usable light. The LP9 Sport utilizes nine forward-projecting LEDS to produce 9,421 Lumens, and six LEDs for Integrated Peripheral Technology (IPT) which produce 2,302 lumens of peripheral lighting.
As with all of LED offerings, this light features uService technology – allowing customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens. Note: The LP9 Sport is simple on/off (no hi/lo) and does not include the amber backlit feature. These features are available on the LP9 Pro and Racer Editions.
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 350001
Dimensions
Depth (in.) | 3.250 |
Height (in.) | 8 |
Length (in.) | 8 |
Weight (lbs.) | 6.500 |
Specifications
Amperage Rating (A) | 6.400 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Spot |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 9421 |
Description | Spot; Clear |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Lens Color | Clear |
Lighting Modes | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lens Material | Beam |
Lighting Quantity | 9 |
Lighting Type | LED |
Lighting Technology | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | LP9 Sport LED Light Pod |
Secondary Amperage Rating (A) | 1.520 |
Secondary Brightness (Lumens) | 2302 |
Secondary Light Quantity | 6 LEDs |
Secondary Lighting Type | LED |
Secondary Lighting Technology | Integrated Peripheral Technology (IPT) |
Secondary Wattage (W) | 21 |
Terminal Connector | DT06-4S Deutsch |
Terminal Type | Mating Connector |
Universal or Specific | Universal |
Wattage (W) | 88.320 |
Wiring Harness Included | No |
Standards & Compliance
Patent No. | 5,504,603 |
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
