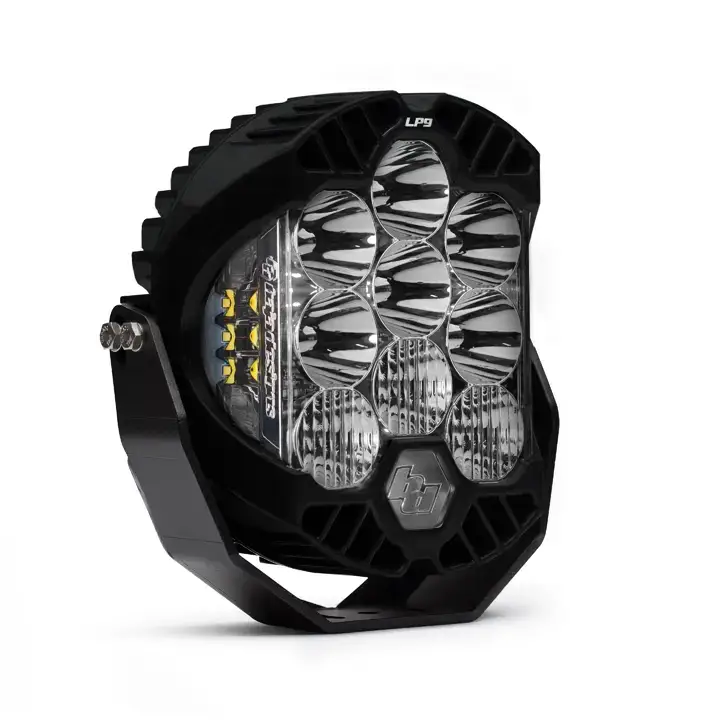

350003 | Baja Designs LP9 Sport LED Auxiliary Light Pod | Single, Driving/Combo Light Pattern, Clear, Universal

LP9 Sport LED Auxiliary Light Pod | Single, Driving/Combo Light Pattern, Clear, Universal - Check Specification Before Ordering

350003
Pricing: $644.89
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The LP9 Sport is perfect for enthusiasts that want a full-size light with modern styling and advanced features. The Sport model includes all of the technology that makes the LP9 series so popular. From Direct Ducted Cooling – that keeps your light cool under stress – to Integrated Peripheral Technology (IPT), which produces an incredible 200-degree spread of usable light. The LP9 Sport utilizes nine forward-projecting LEDS to produce 9,421 Lumens, and six LEDs for Integrated Peripheral Technology (IPT) which produce 2,302 lumens of peripheral lighting.

As with all of LED offerings, this light features uService technology – allowing customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens. Note: The LP9 Sport is simple on/off (no hi/lo) and does not include the amber backlit feature. These features are available on the LP9 Pro and Racer Editions.

  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

SKU: 350003

Dimensions

Depth (in.) 3.250
Height (in.) 8
Length (in.) 8
Weight (lbs.) 6.500

Specifications

Amperage Rating (A) 6.400
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 9421
Description Driving/Combo; Clear
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material Beam
Lighting Quantity 9
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP9 Sport LED Light Pod
Secondary Amperage Rating (A) 1.520
Secondary Brightness (Lumens) 2302
Secondary Light Quantity 6 LEDs
Secondary Lighting Type LED
Secondary Lighting Technology Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 21
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 88.320
Wiring Harness Included No

Standards & Compliance

Patent No. 5,504,603
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
