447506 | Baja Designs Squadron Sport / S8 Pillar/Cowl Mount 40 Inch Light Bar & Auxiliary LED Light Kit For Jeep Wrangler Gladiator/JL | 2018-2022 | Clear
Squadron Sport / S8 Pillar/Cowl Mount 40 Inch Light Bar & Auxiliary LED Light Kit For Jeep Wrangler Gladiator/JL | 2018-2022 | Clear
Description

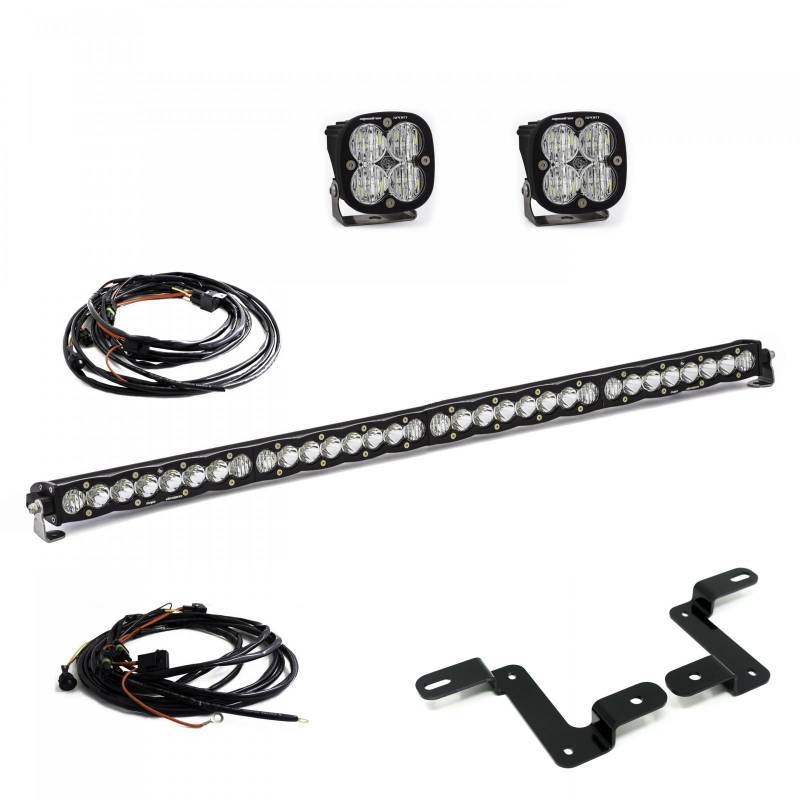

This is a serious light setup for people who take playing in the outdoors seriously. The Baja Designs Jeep JL / Gladiator Cowl Mounts are the ultimate mounting option for anyone that wants versatility. This bracket can mount one pair Squadron series lights with a 40-inch S8 light bar. This package includes two Squadron Sports that each feature four Cree LEDs to produce 3,150 lumens at 26 watts to produce crisp, clear light that pierces the darkness and improves visibility in any and all conditions.
If that wasn’t enough, you also get a 40-inch S8 Light Bar. It pumps out 25,400 lumens of Cree LED power. It does so with a low amp draw to put less strain on your battery, too. A clean aluminum frame with scalloped housing, machined aluminum bezel, and stainless steel hardware protects the circuity from water or debris.
The LEDs last nearly 50,000 hours while exceeding mil-spec testing for reliability, and the steel mounts are powdercoated to last the life of your Jeep.
NOTE: The cowl on the Mojave and 392 models is taller and requires longer M6 x 80mm flange bolts.
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
INCLUDED WITH KIT:
SKU: 704003
Dimensions
Depth (in.) | 3 |
Height (in.) | 1.6 |
Length (in.) | 40 |
Weight (lbs.) | 8.65 |
Specifications
Amperage Rating (A) | 16.0 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Driving/Combo |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 25,400 |
Description | Driving/Combo; Clear |
Housing Color | Black |
Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color | Clear |
Lighting Modes | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lens Material | Beam/Amber Backlit Feature |
Lighting Quantity | 32 |
Lighting Type | Cree LED |
Lighting Technology | Forward Projecting |
Mounting Hardware Description | Mounting Brackets |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | S8 40 Inch LED Light Bar |
Universal or Specific | Universal |
Wattage (W) | 240 |
Wiring Harness Included | No |
Standards & Compliance
Patent No. | D780,964 |
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 550005
Dimensions
Depth (in.) | 2.770 |
Height (in.) | 3.070 |
Length (in.) | 3.070 |
Weight (lbs.) | 0.750 |
Specifications
Amperage Rating (A) | 2.200 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Wide Cornering |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 3162 |
Description | Wide Cornering; Clear |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Lens Color | Clear |
Lighting Modes | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lens Material | Beam |
Lighting Quantity | 4 |
Lighting Type | LED |
Lighting Technology | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | Squadron Sport LED Light Pod |
Wattage (W) | 30.360 |
Wiring Harness Included | No |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
DISCLAIMER AND WARNING
Disclaimer
Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
Baja Designs California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Application List
Jeep Wrangler JL 2018-2022
Details
- 447506
- 447506
- 819314029276
- Baja Designs
- New
Categories
Shipping Information
- Item Requires Shipping
- 20.2 lbs.
- W8.7000” x H8.3000” x L60.8000”
- Free Ground Shipping | Exclusions Apply*
