447611 | Baja Designs S8 20 Inch Grille LED Light Bar Kit For Ford Ranger | 2019-2022

S8 20 Inch Grille LED Light Bar Kit For Ford Ranger | 2019-2022

447611
Pricing: $1,045.21
Qty:
Free Ground Shipping | Exclusions Apply*

Description

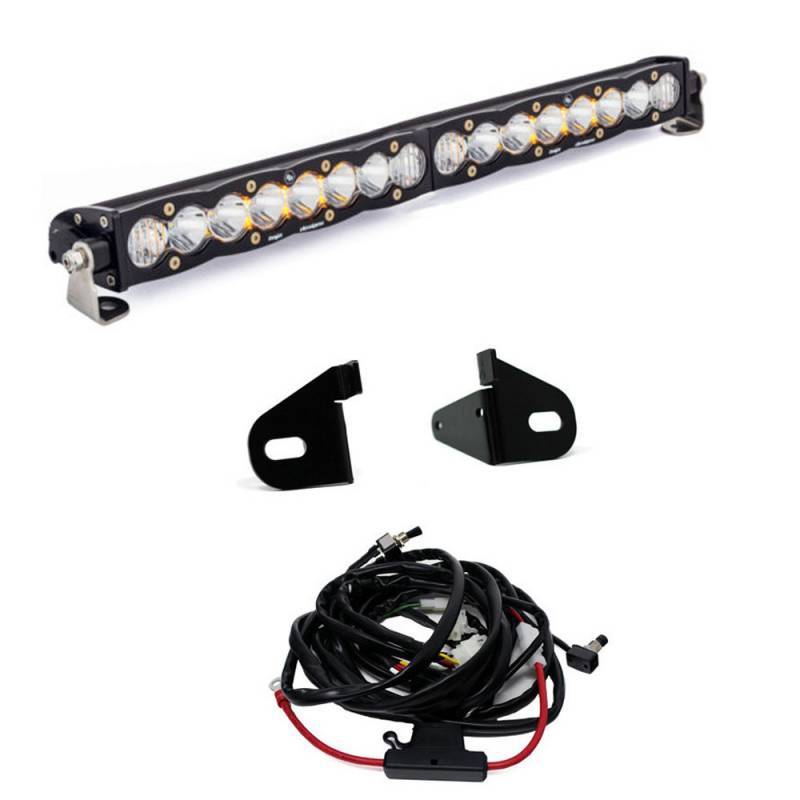

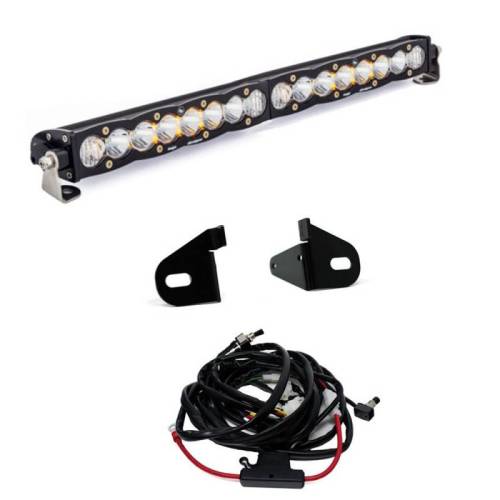

Looking for the ultimate lighting kit for your Ranger? Look no further! The 20-inch S8 kit with backlighting is the kit for you, it includes everything you need, the light, wiring harness, and mounts. The 20-inch S8 bar emits 12,700 brilliant lumens via 16 Cree LEDs. All with a low amp draw to put less strain on your battery. A clean aluminum frame with scalloped housing, machined aluminum bezel, and stainless steel hardware protects the circuity from water or debris. The LEDs last nearly 50,000 hours while being fully waterproof and exceeding mil-spec testing for reliability.

The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3).

This kit is mounted in the lower grille, and mounting the light doesn’t require any drilling or modifications to your vehicle. Note that vehicles equipped with the “Active Cruise Control” will NOT be able to run this kit without removing, or relocating the sensors.

  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

INCLUDED WITH KIT:

SKU: 702003

Dimensions

Depth (in.) 3
Height (in.) 1.6
Length (in.) 20
Weight (lbs.) 4.5

Specifications

Amperage Rating (A) 8.0
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 12,700
Description Driving/Combo; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material Beam/Amber Backlit Feature
Lighting Quantity 16
Lighting Type Cree LED
Lighting Technology Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S8 20 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 120
Wiring Harness Included No

Standards & Compliance

Patent No. D780,964
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

DISCLAIMER AND WARNING

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application List

Ford Ranger 2019-2022
