447663 | Baja Designs OnX6+ 20 Inch Grille LED Light Bar Kit For Subaru WRX / WRX STI | 2018-2021 | Amber

OnX6+ 20 Inch Grille LED Light Bar Kit For Subaru WRX / WRX STI | 2018-2021 | Amber

447663
Pricing: $1,323.21
Qty:
Free Ground Shipping | Exclusions Apply*

Description

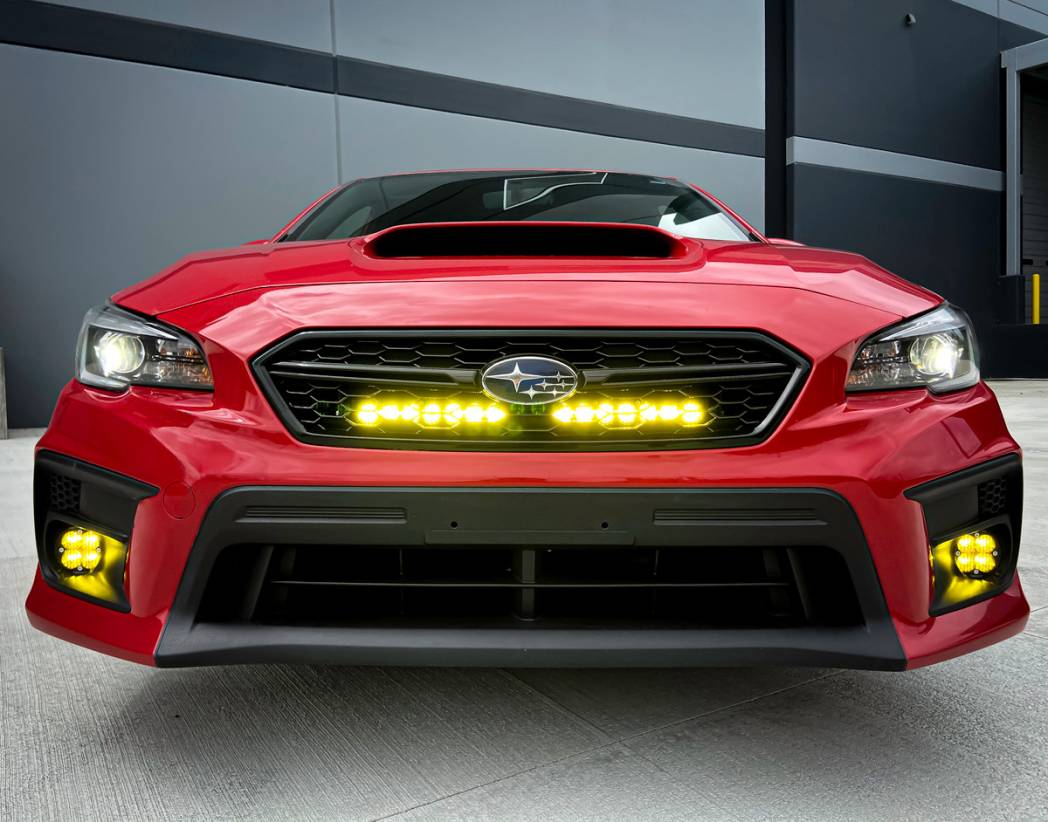

This kit is specifically designed for the Subaru Impreza WRX. It gives you stylish and clean mounting solution to fill the gap of the stock grille.

This kit includes the whole package to get an OnX6 plus 20-inch on your WRX all while utilizing the vehicle’s factory hardware. Some of the differentiating features in our OnX6 plus kit is a higher lumen count, a light bar containing varying LEDs to produce different illumination intensities, and deeper reflectors achieving more distance. This kit gives you the light you need when blasting down backroads in the late hours of the night and create an overall better driving experience.

  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

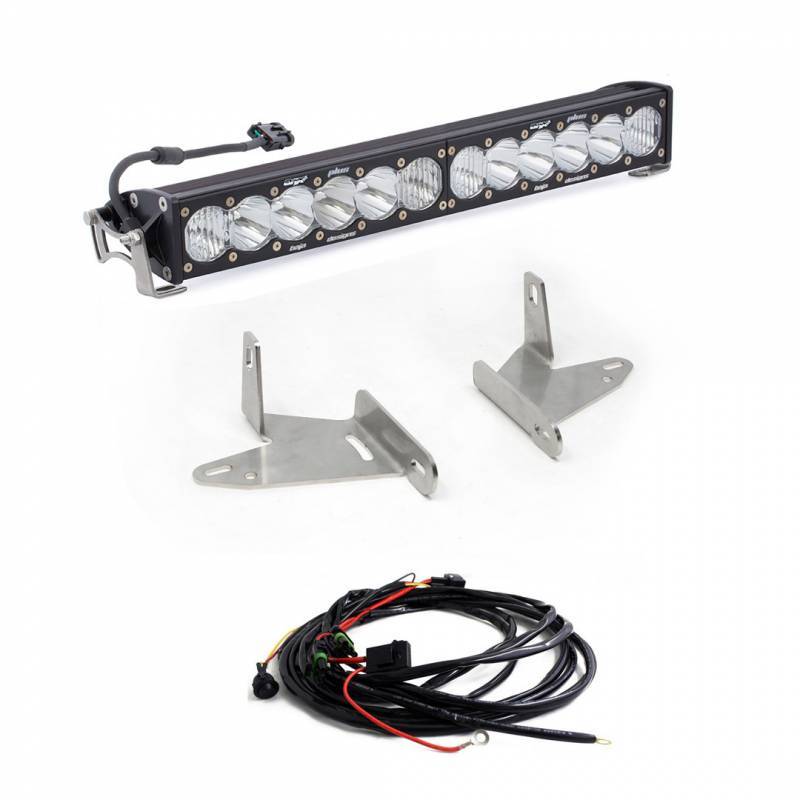

INCLUDED WITH KIT:

SKU: 452013

Dimensions

Depth (in.) 4.29
Height (in.) 2.69
Length (in.) 20
Weight (lbs.) 7.85

Specifications

Amperage Rating (A) 16.6 (High); 12.0 (Low)
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 24,920 (High); 18,460 (Low)
Description Straight; Driving/Combo; Amber
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Amber
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material High Beam/Low Beam
Lighting Quantity 12
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 20 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 216 (High); 160 (Low)
Wiring Harness Description Hi-Low Dongle
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)



DISCLAIMER AND WARNING

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application List

Subaru WRX 2018-2021
Subaru WRX STI 2018-2021

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 11.5 lbs.
  • W8.3000” x H8.3000” x L25.6000”
  • Free Ground Shipping | Exclusions Apply*
