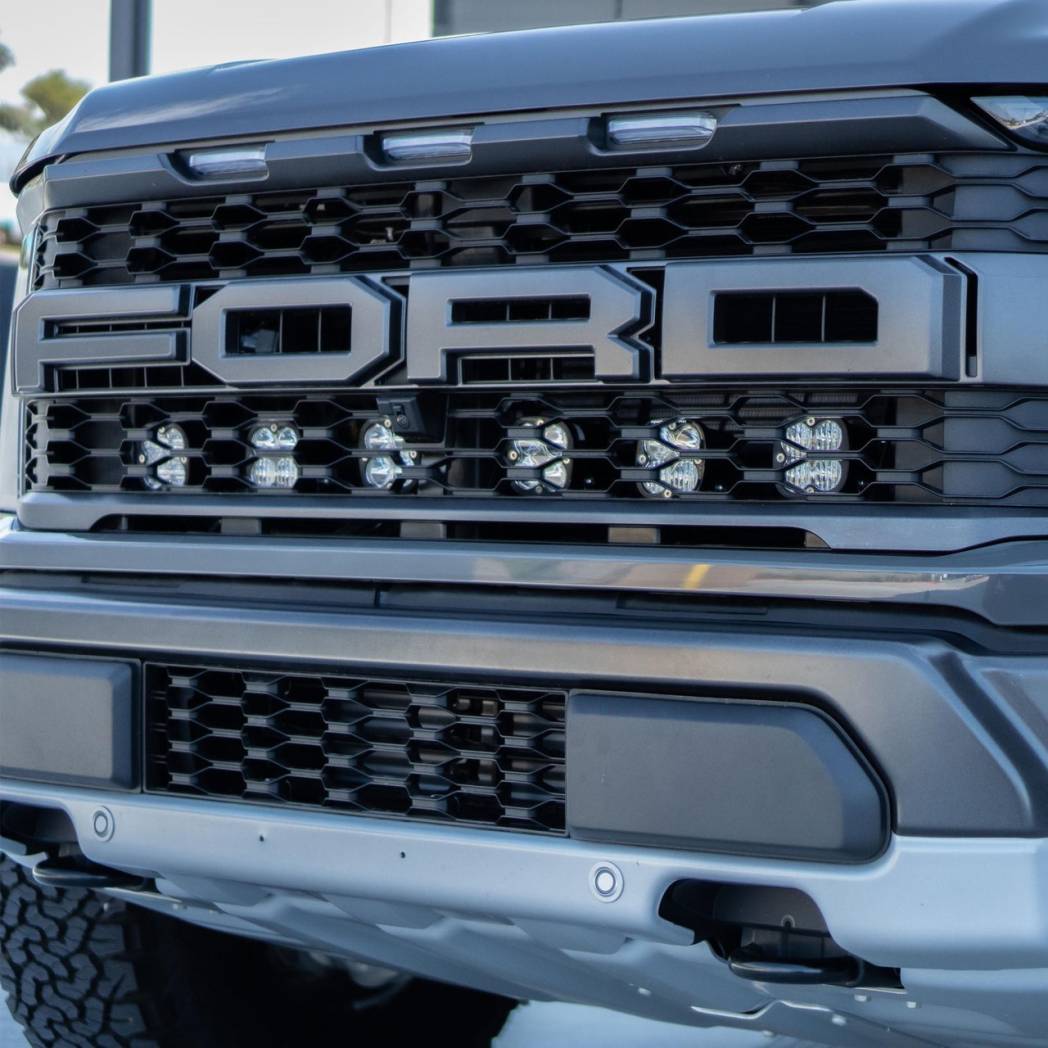

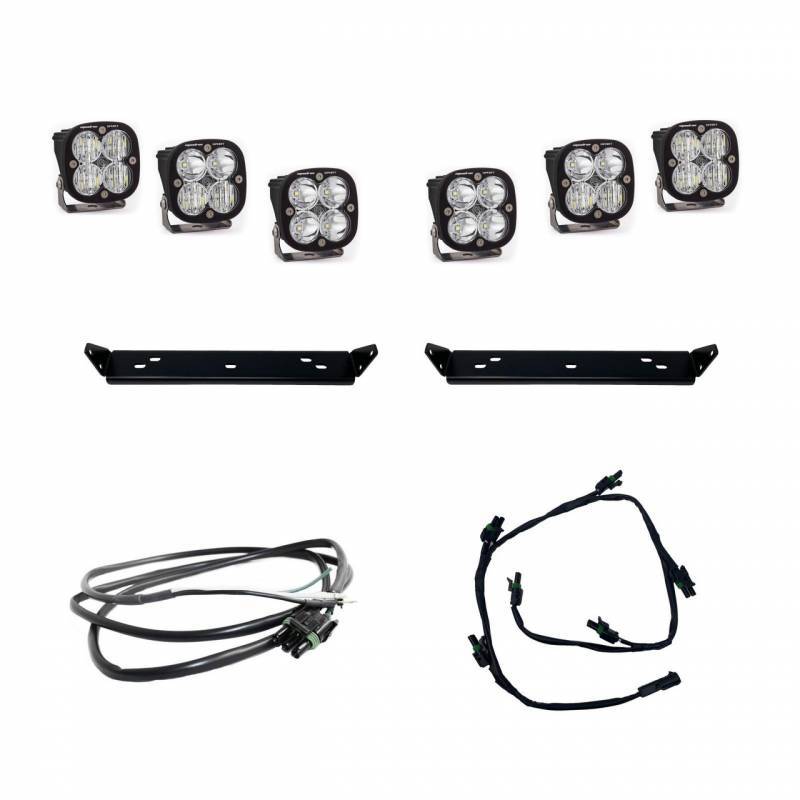

Baja Designs Ford Raptor Behind-the-Grill kits were designed with both functionality and visual appeal in mind. This kit offers six Squadron Sports, mounting brackets, and hardware. The Squadron Sport uses four Cree LEDs to produce 3,150 lumens at 26 watts, to produce crisp, clear light that power through the darkness and improve visibility in virtually any condition. Plus, the LED sport lights are energy-saving, so you can enjoy a brighter, longer-lasting light without draining your system.
To give these kits and easier wiring installation, each kit includes an up-fitter harness that allows you to tap your lights into the factory up-fitter switches. See and be seen any time, day or night, when you install Squadron Sport lights on your Ford.
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
INCLUDED WITH KIT:
SKU: 550003
Dimensions
| Depth (in.) |
2.770 |
| Height (in.) |
3.070 |
| Length (in.) |
3.070 |
| Weight (lbs.) |
0.750 |
Specifications
| Amperage Rating (A) |
2.200 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Driving/Combo |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
3162 |
| Description |
Driving/Combo; Clear |
| Housing Color |
Black |
| Housing Material |
Powder Coated Cast Aluminum |
| Lens Color |
Clear |
| Lighting Modes |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lens Material |
Beam |
| Lighting Quantity |
4 |
| Lighting Type |
LED |
| Lighting Technology |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
Squadron Sport LED Light Pod |
| Wattage (W) |
30.360 |
| Wiring Harness Included |
No |
Standards & Compliance
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Impact Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 550001
Dimensions
| Depth (in.) |
2.770 |
| Height (in.) |
3.070 |
| Length (in.) |
3.070 |
| Weight (lbs.) |
0.750 |
Specifications
| Amperage Rating (A) |
2.200 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Spot |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
3162 |
| Description |
Spot; Clear |
| Housing Color |
Black |
| Housing Material |
Powder Coated Cast Aluminum |
| Lens Color |
Clear |
| Lighting Modes |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lens Material |
Beam |
| Lighting Quantity |
4 |
| Lighting Type |
LED |
| Lighting Technology |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
Squadron Sport LED Light Pod |
| Wattage (W) |
30.360 |
| Wiring Harness Included |
No |
Standards & Compliance
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Impact Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 550005
Dimensions
| Depth (in.) |
2.770 |
| Height (in.) |
3.070 |
| Length (in.) |
3.070 |
| Weight (lbs.) |
0.750 |
Specifications
| Amperage Rating (A) |
2.200 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Wide Cornering |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
3162 |
| Description |
Wide Cornering; Clear |
| Housing Color |
Black |
| Housing Material |
Powder Coated Cast Aluminum |
| Lens Color |
Clear |
| Lighting Modes |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lens Material |
Beam |
| Lighting Quantity |
4 |
| Lighting Type |
LED |
| Lighting Technology |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
Squadron Sport LED Light Pod |
| Wattage (W) |
30.360 |
| Wiring Harness Included |
No |
Standards & Compliance
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Impact Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
