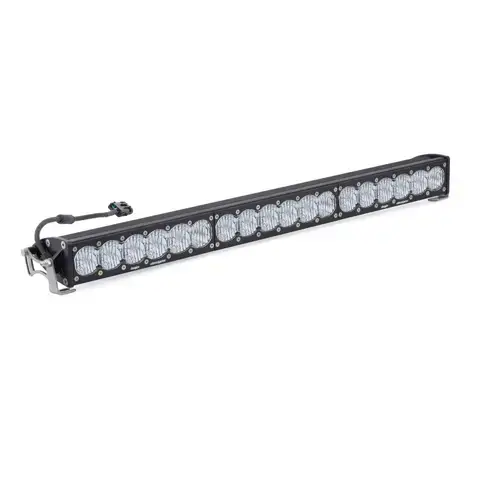

453004 | Baja Designs OnX6+ Straight LED Light Bar | Wide Cornering Light Pattern, Clear, 30 Inch, Universal

OnX6+ Straight LED Light Bar | Wide Cornering Light Pattern, Clear, 30 Inch, Universal - Check Specification Before Ordering

453004
Pricing: $1,574.80
Qty:
Free Ground Shipping | Exclusions Apply*

Description

With lumens starting at 12, 450, the brightest just got up to 69 percent brighter than our previous generation.

The OnX6 plus LED light bar integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest-projecting LED Light Bar on the planet. We use Cree LEDs that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. These light bars are completely weatherproof and have special battery management technology to save power.

In addition, the OnX6 plus LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry-first, 30-day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. Attach a high-power LED light bar to the front grille, hood, or roof of your off-road vehicle and see the night in a whole new way.

  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

SKU: 453004

Dimensions

Depth (in.) 4.29
Height (in.) 2.69
Length (in.) 30
Weight (lbs.) 11.45

Specifications

Amperage Rating (A) 21.7 (High); 17.1 (Low)
Average Rated Life (hr.) 49,930
Beam Pattern Wide Cornering
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 31,910 (High); 25,450 (Low)
Description Straight; Wide Cornering; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material High Beam/Low Beam
Lighting Quantity 18
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 30 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 281 (High); 225 (Low)
Wiring Harness Description Hi-Low Dongle
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
