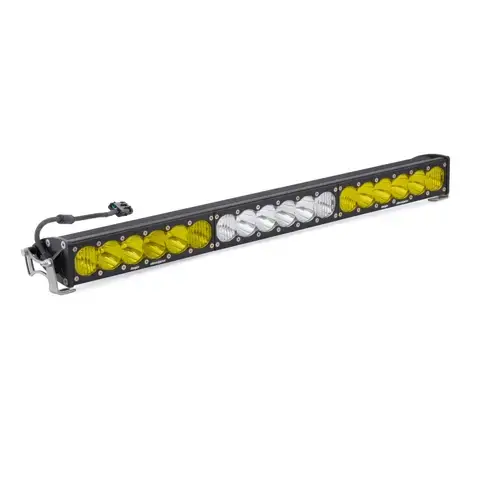

463014 | Baja Designs OnX6 Straight Dual Control LED Light Bar | Driving/Combo Light Pattern, Amber/Clear, 30 Inch, Universal

OnX6 Straight Dual Control LED Light Bar | Driving/Combo Light Pattern, Amber/Clear, 30 Inch, Universal - Check Specification Before Ordering

463014
Pricing: $1,647.08
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Now you can have the best of both worlds with the OnX6 Dual Control LED Light Bar. With the addition of another power cord and switch, you have the ability to control the inner and outer sections individually. This configuration provides a versatile package by allowing you to have one light bar with both amber and white light.

The wide/cornering pattern used on the OnX6 Dual Control provides a dedicated zone 1/2 option for near-field visibility while the spot lens also adds dedicated distance for zone 3/4 lighting. This combination allows drivers to use one light for multiple lighting zones.

The latest generation of the OnX series is brighter, bolder, and better so you have visibility for after-dark adventures.  We use Cree LEDs that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. These light bars are completely weatherproof and have special battery management technology to save power, eliminate flickering, and protect your vehicle’s wiring system. The OnX6 Dual Control LED Light Bar LED Light Bar is BRIGHTER, BOLDER, BETTER.

  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

SKU: 463014

Dimensions

Depth (in.) 4.290
Height (in.) 2.690
Length (in.) 30
Weight (lbs.) 11.450

Specifications

Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 28,938 (High); 23,150 (Low)
Description Straight; Driving/Combo; Amber/Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Amber/Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material High Beam/Low Beam
Lighting Quantity 18
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 30 Inch Dual Control LED Light Bar
Universal or Specific Universal
Wiring Harness Description Hi-Low Dongle
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)



DISCLAIMER AND WARNING

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application List

Universal - Check Specification Before Ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 12.3 lbs.
  • W6.5000” x H5.5000” x L35.6000”
  • Free Ground Shipping | Exclusions Apply*
