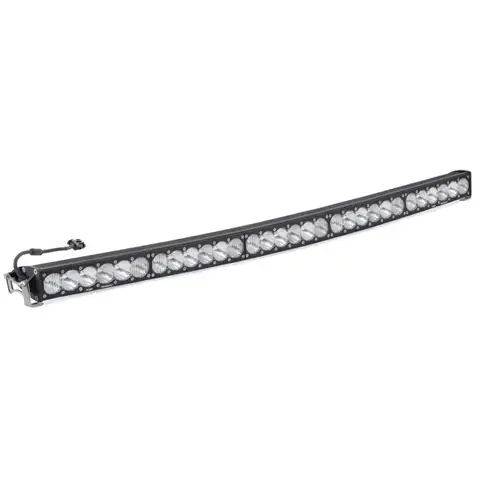

525003 | Baja Designs OnX6 Arc LED Light Bar | Driving/Combo Light Pattern, Clear, 50 Inch, Universal

OnX6 Arc LED Light Bar | Driving/Combo Light Pattern, Clear, 50 Inch, Universal - Check Specification Before Ordering

525003
Pricing: $2,863.33
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The OnX6 Arc Series is the perfect combination of performance and aesthetics. The latest generation of the OnX series is brighter, bolder, and better so you have the visibility for after-dark adventures. We use Cree LEDs that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar.

Variety of patterns available to suit your needs:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 8-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

SKU: 525003

Dimensions

Depth (in.) 4.290
Height (in.) 2.690
Length (in.) 50
Weight (lbs.) 18.65

Specifications

Amperage Rating (A) 28.2 (High)
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 39,910 (High)
Description Arc; Driving/Combo; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material High Beam/Low Beam
Lighting Quantity 30
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 50 Inch Arc LED Light Bar
Universal or Specific Universal
Wattage (W) 346 (High)
Wiring Harness Description Hi-Low Dongle
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
