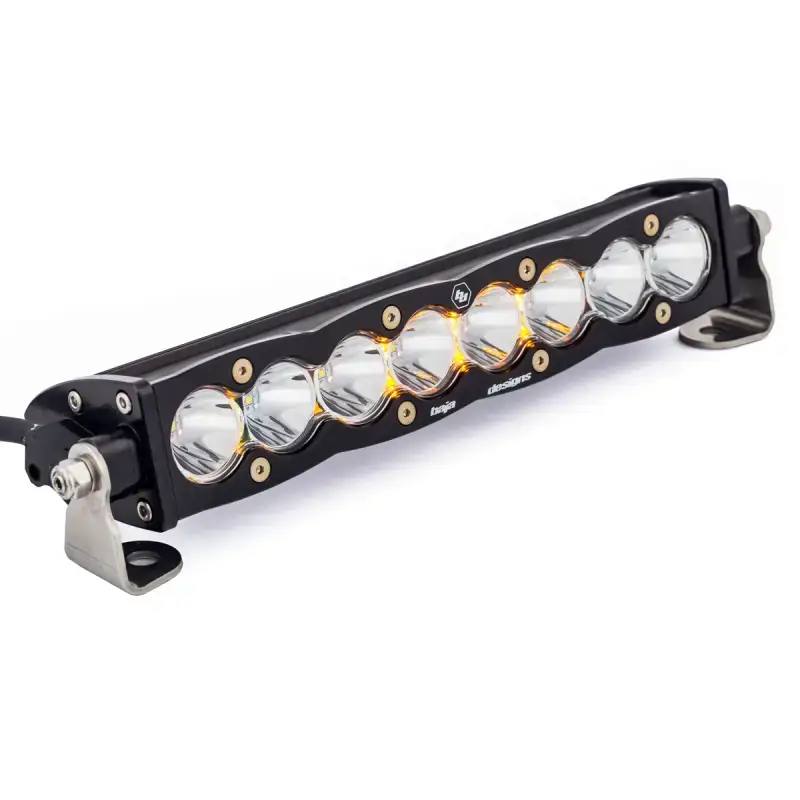

701001 | Baja Designs S8 Straight LED Light Bar | Spot Light Pattern, Clear, 10 Inch, Universal

S8 Straight LED Light Bar | Spot Light Pattern, Clear, 10 Inch, Universal

701001
Pricing: $471.14
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The S8 offers a slim and sleek design utilizing eight LEDs per 10-inch section. Lumens start at 6,324 for 10" section, the S8 is available from 10" to 50" and also features high-performance reflectors, and an amber backlit feature.

  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

DETAILED SPECS

SKU: 701001

Specifications

Dimensions

Depth (in.) 3
Height (in.) 1.600
Length (in.) 10
Weight (lbs.) 2.400

Specifications

Amperage Rating (A) 4.200
Average Rated Life (hr.) 49,930
Beam Pattern Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 6324
Description Spot; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material Beam/Amber Backlit Feature
Lighting Quantity 8
Lighting Type Cree LED
Lighting Technology Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S8 10 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 57.960
Wiring Harness Included No

Standards & Compliance

Patent No. D780,964
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application List

Universal - Check Specification Before Ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 3.6 lbs.
  • W6.5000” x H5.5000” x L16.0000”
  • Free Ground Shipping | Exclusions Apply*
