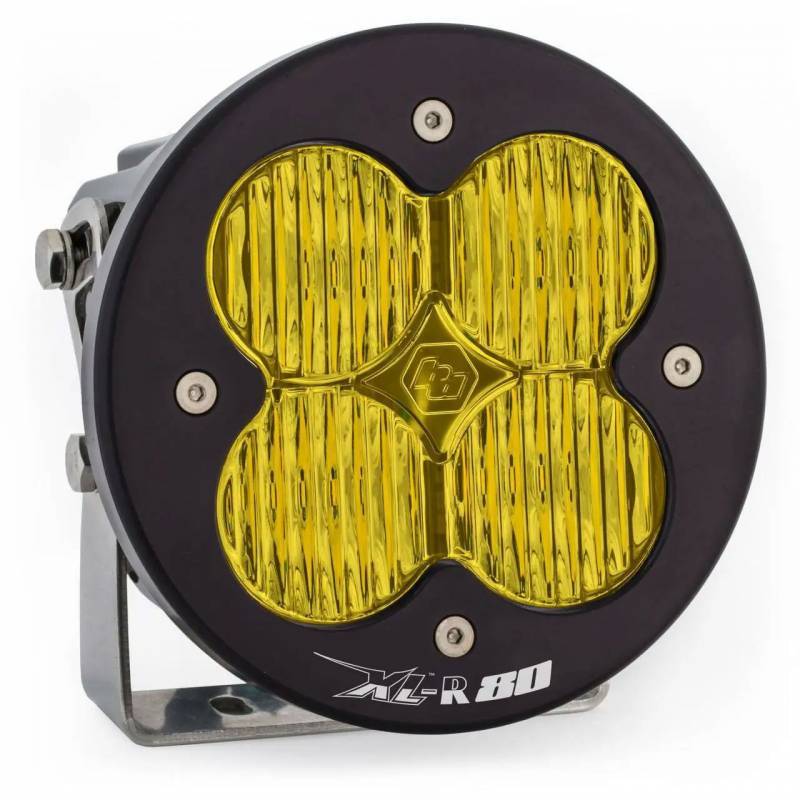

760015 | Baja Designs XL-R 80 Auxiliary LED Light Pod | Single, Wide Cornering Pattern, Amber, Universal

XL-R 80 Auxiliary LED Light Pod | Single, Wide Cornering Pattern, Amber, Universal

760015
Pricing: $587.90
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Choose to take your off-road lighting to the next level with BD’s 9,500 lumen XL80. Similar to BD’s XL Pro model, the XL80 offers a 20 percent dimming feature, a powder coated housing and an anodized bezel. However, this is where the similarities end. The XL80 features a very powerful LED for greater visibility and increased brightness.

  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

DETAILED SPECS

SKU: 760015

Dimensions

Depth (in.) 3.65
Height (in.) 5.24
Length (in.) 5.24
Weight (lbs.) 2.45

Specifications

Amperage Rating (A) 5.5
Average Rated Life (hr.) 49,930
Beam Pattern Wide Cornering
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 9,500
Description Round; Wide Cornering; Amber
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Amber
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Dimming Feature (20%)
Lighting Quantity 4
Lighting Technology Cree LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL-R 80 LED Light Pod
Universal or Specific Universal
Wattage (W) 80
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application List

Universal - Check Specification Before Ordering

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 3.9 lbs.
  • W9.8000” x H4.9000” x L12.0000”
  • Free Ground Shipping | Exclusions Apply*
