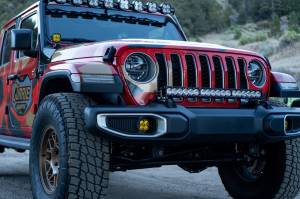

447657UP | Baja Designs OnX6+ 30 Inch Bumper LED Light Bar Kit For Jeep Gladiator JT / Wrangler JL | 2018-2022 | Driving/Combo Light Pattern, Clear, Upfitter Wiring, ONLY Fit OE Plastic Bumper

OnX6+ 30 Inch Bumper LED Light Bar Kit For Jeep Gladiator JT / Wrangler JL | 2018-2022 | Driving/Combo Light Pattern, Clear, Upfitter Wiring, ONLY Fit OE Plastic Bumper

447657UP
Pricing: $1,887.55
Qty:
Free Ground Shipping | Exclusions Apply*

Description

At an impressive 31,910 lumens, the brightest just got up to 69 percent brighter. The OnX6 plus LED light bar integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest-projecting LED Light Bar on the planet.

The OnX6 bar adopts industry-standard sizing and is compatible with aftermarket mounting systems. This lighting and wiring setup has been tested on the Jeep JL / JT with the plastic bumper to take the guess work out of installation! The wiring in this kit is specifically designed to run in conjunction with factory upfitter systems or sPOD / Switch Pros units.

  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

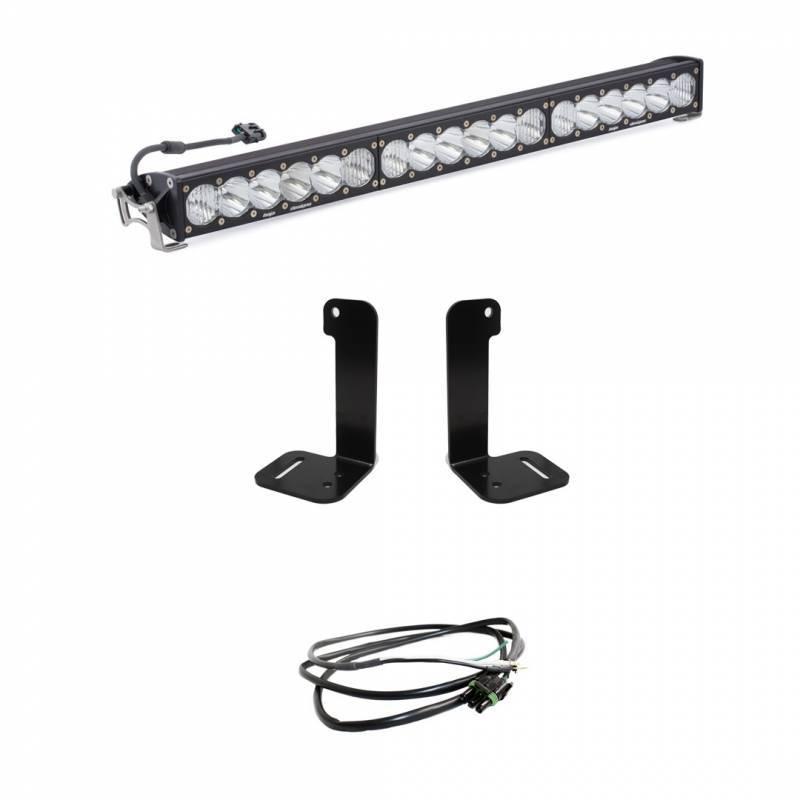

INCLUDED WITH KIT:

SKU: 453003

Dimensions

Depth (in.) 4.29
Height (in.) 2.69
Length (in.) 30
Weight (lbs.) 11.45

Specifications

Amperage Rating (A) 21.7 (High); 17.1 (Low)
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 31,910 (High); 25,450 (Low)
Description Straight; Driving/Combo; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material High Beam/Low Beam
Lighting Quantity 18
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 30 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 281 (High); 225 (Low)
Wiring Harness Description Hi-Low Dongle
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)



DISCLAIMER AND WARNING

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application List

Jeep Gladiator 2020-2022
Jeep Wrangler JL 2018-2022

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 13.0 lbs.
  • W12.0000” x H10.0000” x L24.0000”
