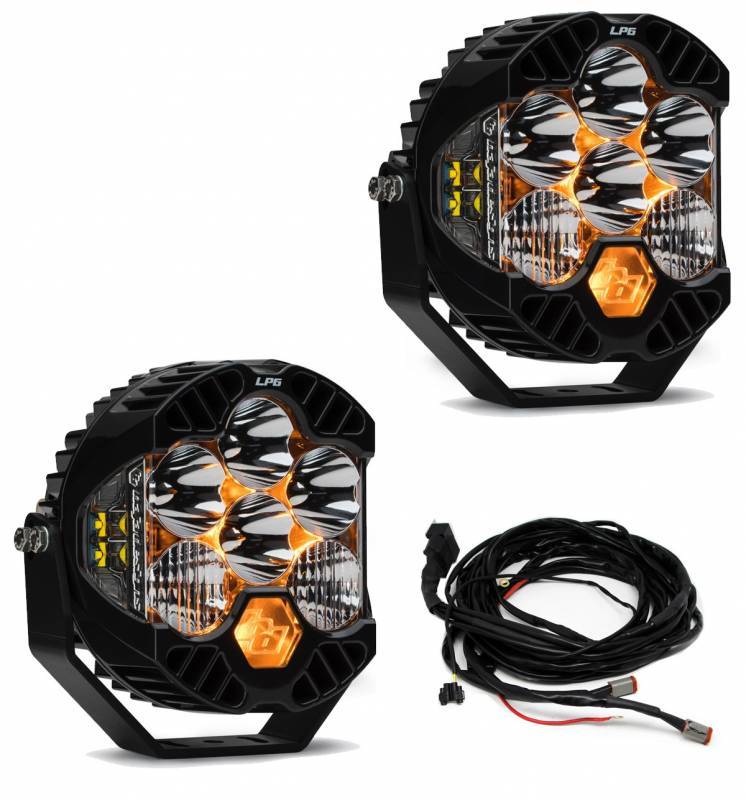

447671UP | Baja Designs LP6 Pro Bumper LED Pod Light Kit For Jeep Gladiator JT / Wrangler JL | 2018-2022 | Driving/Combo Light Pattern, Clear, Upfitter Wiring, With OE Steel Bumper
LP6 Pro Bumper LED Pod Light Kit For Jeep Gladiator JT / Wrangler JL | 2018-2022 | Driving/Combo Light Pattern, Clear, Upfitter Wiring, With OE Steel Bumper
Description

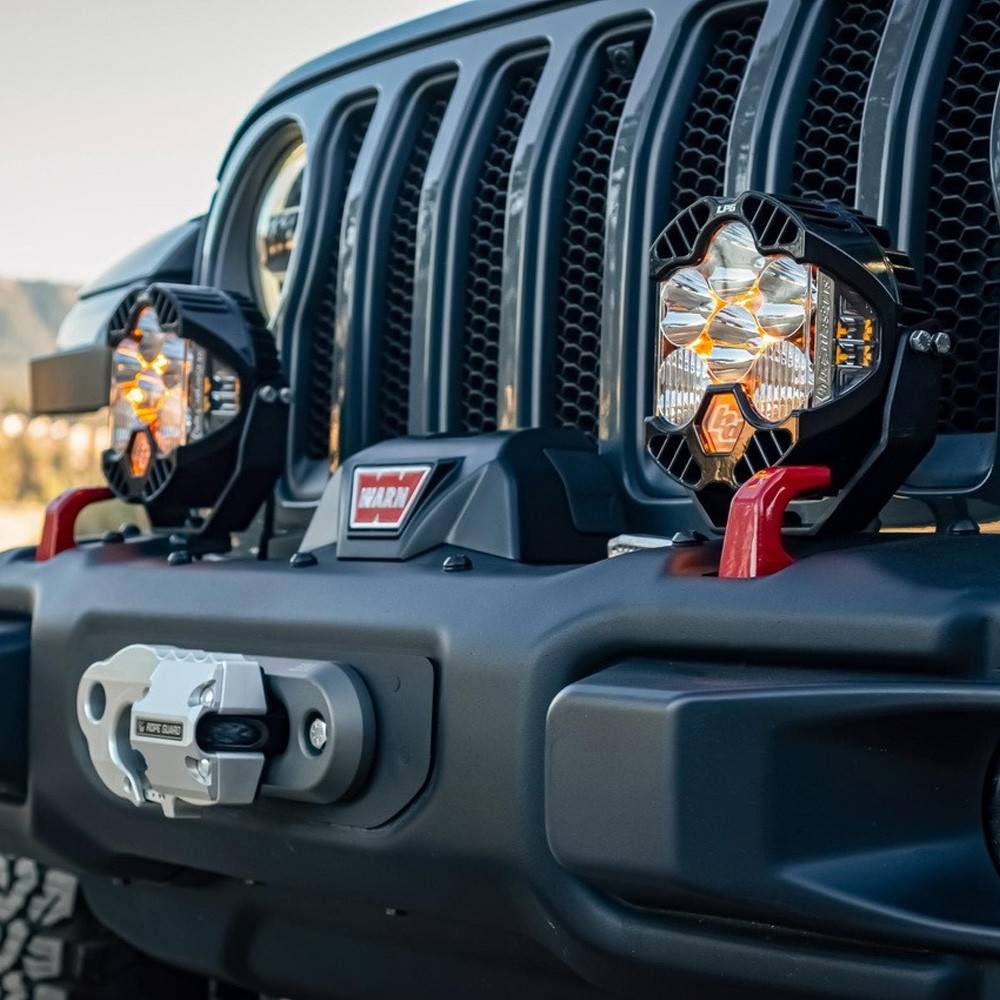

This lighting and wiring setup has been tested on the Jeep JL / JT with the Rubicon Steel bumper to take the guess work out of installation!
The wiring in this kit is specifically designed to run in conjunction with factory systems or sPOD / Switch Pros units. The LP6 Pro is a 6-inch powerhouse featuring a total of 10,300 lumens and a 200 degree spread of useable LED light. The LP6 features 8,600 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).
To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance. With an amber day-time running light, low power, and high power mode, the LP6 will fulfill all your lighting needs.
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 270003
Dimensions
Depth (in.) | 3.200 |
Height (in.) | 6.500 |
Length (in.) | 6.500 |
Weight (lbs.) | 4.200 |
Specifications
Amperage Rating (A) | 7.500 |
Average Rated Life (hr.) | 49,930 |
Backlight Amperage Rating (A) | 0.300 |
Backlight Wattage (W) | 4.140 |
Beam Pattern | Driving/Combo |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 11225 |
Description | Driving/Combo; Clear |
Housing Color | Black |
Housing Material | Hard Anodized Machined Aluminum |
Lens Color | Clear |
Lighting Modes | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lens Material | High Beam/Low Beam/Day-Time Running Backlighting |
Lighting Quantity | 6 |
Lighting Type | LED |
Lighting Technology | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | LP6 Pro LED Light Pod |
Secondary Amperage Rating (A) | 1.000 |
Secondary Brightness (Lumens) | 1972 |
Secondary Light Quantity | 4 LEDs |
Secondary Lighting Type | LED |
Secondary Lighting Technology | Integrated Peripheral Technology (IPT) |
Secondary Wattage (W) | 15 |
Terminal Connector | DT06-4S Deutsch |
Terminal Type | Mating Connector |
Universal or Specific | Universal |
Wattage (W) | 103.500 |
Wiring Harness Included | No |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
DISCLAIMER AND WARNING
Disclaimer
Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
Baja Designs California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Application List
Jeep Wrangler JL 2018-2022
