447759UP | Baja Designs OnX6+ 50 Inch Roof Mount Dual Control LED Light Bar Kit For Ford Bronco | 2021-2023 | Multi-pattern Light, Upfitter Wiring, Clear/Amber

OnX6+ 50 Inch Roof Mount Dual Control LED Light Bar Kit For Ford Bronco | 2021-2023 | Multi-pattern Light, Upfitter Wiring, Clear/Amber

447759UP
Pricing: $3,045.42
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Carefully designed to be the ultimate roof mounted light bar kit for Ford Bronco.

The 50 inch OnX6+ Dual Control combines far reaching, high speed spot reflectors with the Baja Designs Driving Combo lens for a smooth yet intense pattern that will light up the whole trail. The Dual Control functionality allows for you you to control the outer two sections and the inner three independently form each other.

With this functionality you will be able to meter your light bar for all situations. This kit includes a 50 inch OnX6+ Dual Control LED Light Bar, vehicle specific mounting brackets, hardware, and wiring harnesses to make installation a breeze. No cutting, trimming, or drilling is required and all wiring is pre-sized for your vehicle.

  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

Warning: Installation of any roof mounted lights will cause a degree of added wind noise depending on vehicle type and installed accessories.

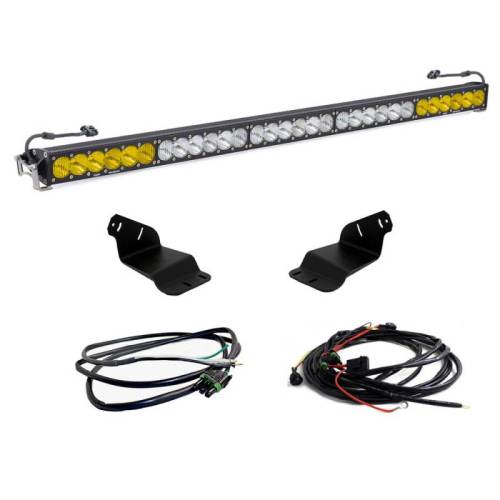

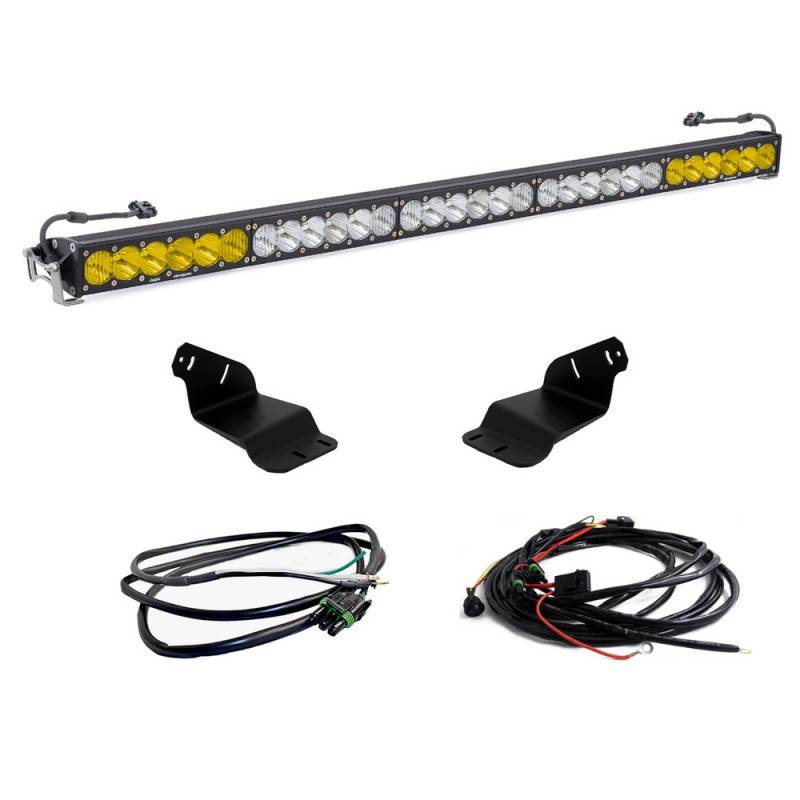

INCLUDED WITH KIT:

SKU: 465014

Dimensions

Depth (in.) 4.29
Height (in.) 2.69
Length (in.) 50
Weight (lbs.) 18.65

Specifications

Amperage Rating (A) 28.2 (High)
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 39,910 (high)
Description Straight; Driving/Combo; Amber/Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Amber/Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material High Beam
Lighting Quantity 30
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 50 Inch Dual Control LED Light Bar
Universal or Specific Universal
Wattage (W) 346 (High)
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)



DISCLAIMER AND WARNING

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application List

Ford Bronco 2021-2023

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 25.0 lbs.
  • W10.0000” x H8.0000” x L50.0000”
  • Free Ground Shipping | Exclusions Apply*
