28831 | Rough Country 3.5 Inch Lift Kit With Aluminum Control Arms N3 Struts / N3 Rear Shocks (2019-2025 Sierra 1500 2WD/4WD | Mono Leaf Spring)
2019-2025 GMC Sierra 1500 2WD/4WD | Mono Leaf Springs
Description
3.5 Inch Lift Kit With Aluminum Control Arm N3 Struts / N3 Rear Shocks | GMC Sierra 1500 2WD/4WD (2019-2025)
GMC’s fifth-generation Sierra 1500 features an impressive all-new design that’s built from the ground up, with aggressive angles and head-turning stylings. Put the finishing touch on your truck with Rough Country’s 3.5in Upper Control Arm Suspension Lift!
Rough Country's 3.5in lift features a set of forged aluminum upper control arms to provide the correct suspension geometry in our most durable control arm to date!
This perfect-height lift is a great choice for anyone who wants more than a simple level but doesn’t quite want the full height of a 6-inch option. This kit lifts and levels the front of the vehicle with the rear, offering enough increased ground clearance to run up to 295/55R20 tires with an improved, aggressive look.
This kit includes Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening. Features natural rubber bushings and an eye-catching metallic silver paint.
This kit also features upgraded ball joints that are easy to install and maintenance free. These POM ball joints offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design. Includes a Lifetime Replacement Guarantee!
Features
- Lifts and levels front of vehicle with rear.
- Front Lift: 3.5in.
- Rear Lift: 2in.
- Increased ground clearance.
- Includes forged aluminum control arms.
- Control arms include POM ball joints for greater range of motion and easier installation.
- Ball joints are pre-installed to ease installation.
Notes - Important
- Fits short bed models ONLY.
- Does NOT fit 2019 "Classic" models (2018 body style)
- Does NOT fit GMC AT4.
- Does NOT fit models with Adaptive Ride Control.
- Optional N3 struts/Vertex Coilovers do NOT fit 2.7L or 3.0L models.
Specs
SKU | 28831 |
---|---|
Est. Install Time | 5-6 hours |
Application List
2025-2025 GMC Sierra 1500 Denali 4WD
2025-2025 GMC Sierra 1500 Denali Ultimate 4WD
2019-2025 GMC Sierra 1500 Elevation 4WD
2019-2025 GMC Sierra 1500 Elevation RWD
2022-2025 GMC Sierra 1500 Pro 4WD
2022-2025 GMC Sierra 1500 Pro RWD
2019-2025 GMC Sierra 1500 SLE RWD
2019-2025 GMC Sierra 1500 SLE 4WD
2019-2025 GMC Sierra 1500 SLT 4WD
2019-2025 GMC Sierra 1500 SLT RWD

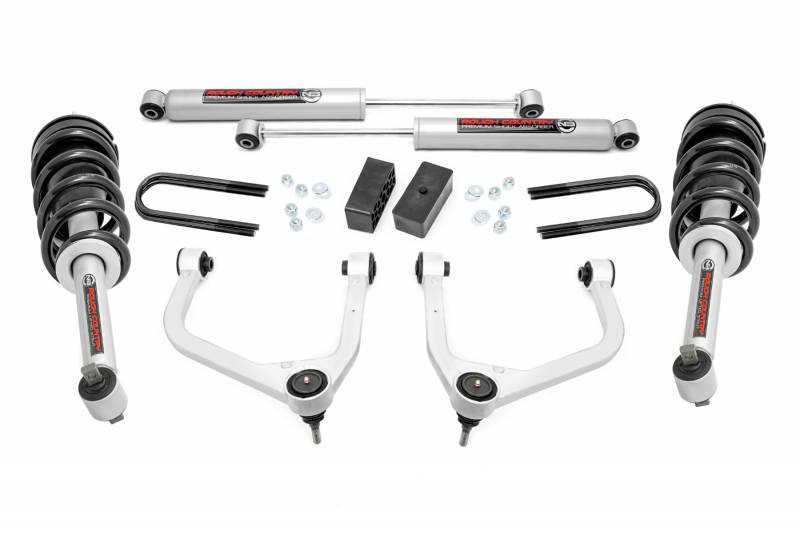

Components
N3 Loaded Struts
Forged Aluminum Upper Control Arms
Upper POM Ball Joints
Hardware
Rear
2in Fabricated Lift Blocks
U-bolts
Hardware
Shocks
(2) Rear Premium N3 Series
Tires & Wheels
Tire | Wheel | Bolt Pattern | Offset | Note |
---|---|---|---|---|
295/55R20 | Factory 20 | 6x5.5 | - | - |
285/60R20 | Factory 20 | 6x5.5 | - | - |
32x11.50R17 | 17x8.5 | 6x5.5 | +30 | - |
33x12.50R17 | 17x9 | 6x5.5 | -12 | Minor Trimming |
295/70R17 | 17x9 | 6x5.5 | -12 | - |
285/70R17 | 17x9 | 6x5.5 | -12 | - |
33x12.50R18 | 18x9 | 6x5.5 | -12 | - |
305/60R18 | 18x9 | 6x5.5 | -12 | - |
285/65R18 | 18x9 | 6x5.5 | -12 | - |
33x12.50R20 | 20x9 | 6x5.5 | -12 | Minor Trimming |
305/55R20 | 20x9 | 6x5.5 | -12 | Minor Trimming |
295/60R20 | 20x9 | 6x5.5 | -12 | Trimming Required |
285/55R20 | 20x9 | 6x5.5 | -12 | - |
33x12.50R20 | 20x10 | 6x5.5 | -25 | Trimming Required |
305/55R20 | 20x10 | 6x5.5 | -25 | Trimming Required |
285/55R20 | 20x10 | 6x5.5 | -25 | Minor Trimming |
33x12.50R22 | 22x10 | 6x5.5 | -25 | Trimming Required |
305/45R22 | 22x10 | 6x5.5 | -25 | - |
Details
- 28831
- 28831
- 840269927423
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 87.7 lbs.
- W14.0000” x H8.0000” x L26.0000”
