447854 | Baja Designs S8 Dual 30 Inch Grille LED Light Bar Kit For GMC Sierra 2500 HD / 3500 HD | 2020-2022 | Driving/Combo Light Pattern, Clear

S8 Dual 30 Inch Grille LED Light Bar Kit For GMC Sierra 2500 HD / 3500 HD | 2020-2022 | Driving/Combo Light Pattern, Clear | NOT Fit AT4

447854
Pricing: $2,799.39
Qty:
Free Ground Shipping | Exclusions Apply*

Description

This is a turn key solution for anyone that is interested in serious lighting performance with styling in mind.

This Dual S8 behind the grill kit will provide you with over 38,000 lumens and an amber backlit feature without cutting or drilling. This kit will include a wiring harness, 3-pin splitter, and amber backlit fuse tap kit. This combination will enable users to tap into their vehicle's ignition which will automatically trigger the amber backlit LEDs. This attractive safety feature is pleasing to the eye, while drawing minimal amps and keeping you visible while out on the trail.

This kit does not fit the GMC AT4 model due to grill being different.

  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

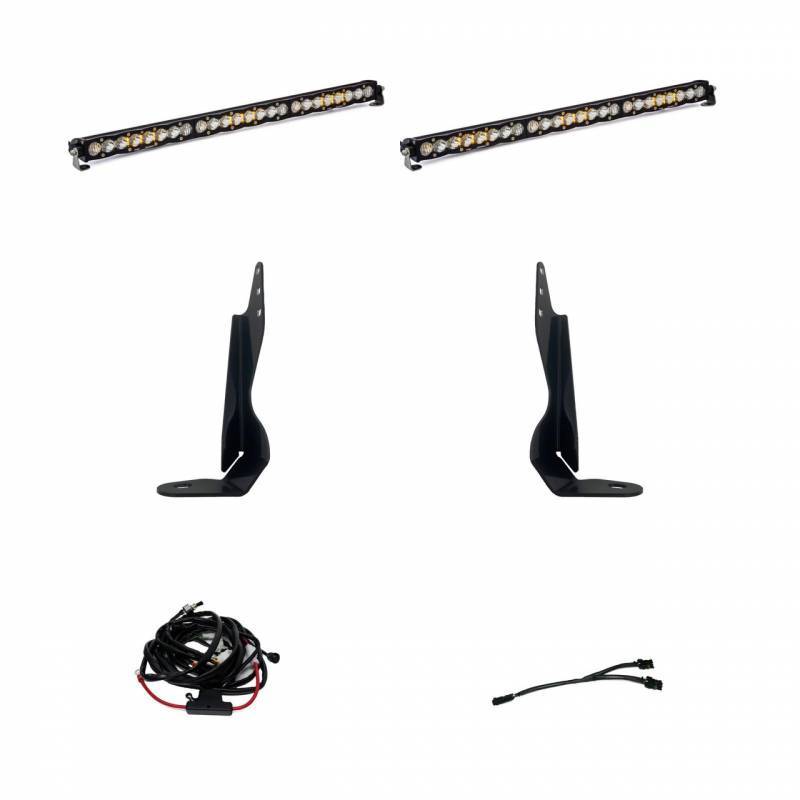

INCLUDED WITH KIT:

SKU: 703003

Dimensions

Depth (in.) 3
Height (in.) 1.600
Length (in.) 30
Weight (lbs.) 6.5

Specifications

Amperage Rating (A) 12.0
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 19,050
Description Driving/Combo; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material Beam/Amber Backlit Feature
Lighting Quantity 24
Lighting Type Cree LED
Lighting Technology Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S8 30 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 180
Wiring Harness Included No

Standards & Compliance

Patent No. D780,964
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

DISCLAIMER AND WARNING

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application List

GMC Sierra 2500 HD 2020-2022
GMC Sierra 3500 HD 2020-2022
