1325 | Rough Country 1.75 Inch Leveling Kit With Upper Control Arms (2019-2025 Sierra 1500 AT4 4WD)
2019-2025 GMC Sierra 1500 AT4 4WD
Description
1.75 Inch Leveling Kit | Forged Alum UCA | AT4 | GMC Sierra 1500 4WD (19-25)
The Easy Way to a Leveled Stance. Take your Sierra 1500 to new heights and add a more aggressive appearance with Rough Country's 1.75-inch Leveling Kit. From the factory, the GMC Sierra AT4 sits lower in the front than the rear, creating a nose-down look that leaves a lot to be desired. This leveling kit is the easiest way to lift the front of your ride 1.75 inches, providing a leveled look and additional clearance for larger tires, while maintaining factory ride quality.
Innovative Design and Construction. The Rough Country's 1.75" leveling kit includes two front pre-load strut spacers constructed from a proprietary composite material that is lightweight, durable, and 100% corrosion-resistant. Our kit includes upper control arms for improved ball joint angles and promotes better CV angles for off-road driving.
Easy Installation. With no cutting or drilling required, this easy bolt-on installation takes approximately 2-3 hours to complete.
Limited Lifetime Replacement Warranty. Rough Country's 1.75" Leveling Kit is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty give yourself peace of mind when using Rough Country's Suspension products!
Features
- Maintains factory ride quality.
- Increased ground clearance.
- Levels the front with the rear of the vehicle.
- Includes upper control arms for improved ball joint angles.
- Made of forged aluminum for unsurpassed strength and durability.
- No welding weak spots.
- Includes POM ball joints for a greater range of motion and easier installation.
- Ball joints are fully greaseable.
- Includes Clevite brand OEM-style rubber bushings.
Notes - Important
- ONLY fits GMC AT4 models.
- Does NOT fit models equipped with Multimatic DSSV suspension. (AT4X)
- Does NOT fit Chevy Trailboss models.
Specs
Est. Install Time | 2-3 hours |
---|
Application List

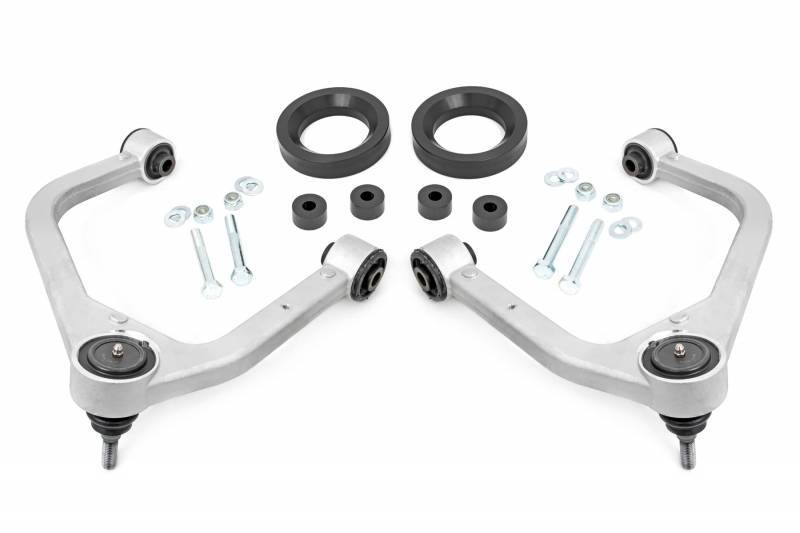

Components
(2) Upper Forged Control Arms
(2) Lower Strut Spacers
Hardware
Tires & Wheels
Tire | Wheel | Bolt Pattern | Offset | Note |
---|---|---|---|---|
275/65R20 | Factory 20 | 6x5.5 | - | - |
305/65R18 | 18x9 | 6x5.5 | +0 | - |
305/60R18 | 18x9 | 6x5.5 | +0 | - |
295/70R18 | 18x9 | 6x5.5 | +0 | - |
285/70R18 | 18x9 | 6x5.5 | +0 | - |
285/65R18 | 18x9 | 6x5.5 | +0 | Minor Trimming |
275/75R18 | 18x9 | 6x5.5 | +0 | - |
305/65R18 | 18x9 | 6x5.5 | +1 | - |
305/60R18 | 18x9 | 6x5.5 | +1 | - |
295/70R18 | 18x9 | 6x5.5 | +1 | - |
285/70R18 | 18x9 | 6x5.5 | +1 | - |
285/65R18 | 18x9 | 6x5.5 | +1 | Minor Trimming |
275/75R18 | 18x9 | 6x5.5 | +1 | - |
305/65R18 | 18x9 | 6x5.5 | +18 | - |
305/60R18 | 18x9 | 6x5.5 | +18 | - |
295/70R18 | 18x9 | 6x5.5 | +18 | - |
285/70R18 | 18x9 | 6x5.5 | +18 | - |
285/65R18 | 18x9 | 6x5.5 | +18 | Minor Trimming |
275/75R18 | 18x9 | 6x5.5 | +18 | - |
305/65R18 | 18x9 | 6x5.5 | +20 | - |
305/60R18 | 18x9 | 6x5.5 | +20 | - |
295/70R18 | 18x9 | 6x5.5 | +20 | - |
285/70R18 | 18x9 | 6x5.5 | +20 | - |
285/65R18 | 18x9 | 6x5.5 | +20 | Minor Trimming |
275/75R18 | 18x9 | 6x5.5 | +20 | - |
305/55R20 | 20x9 | 6x5.5 | +0 | Minor Trimming |
295/60R20 | 20x9 | 6x5.5 | +0 | Minor Trimming |
285/60R20 | 20x9 | 6x5.5 | +0 | - |
285/55R20 | 20x9 | 6x5.5 | +0 | - |
275/65R20 | 20x9 | 6x5.5 | +0 | - |
265/60R20 | 20x9 | 6x5.5 | +0 | - |
305/55R20 | 20x9 | 6x5.5 | +1 | Minor Trimming |
295/60R20 | 20x9 | 6x5.5 | +1 | Minor Trimming |
285/60R20 | 20x9 | 6x5.5 | +1 | - |
285/55R20 | 20x9 | 6x5.5 | +1 | - |
275/65R20 | 20x9 | 6x5.5 | +1 | - |
265/60R20 | 20x9 | 6x5.5 | +1 | - |
305/55R20 | 20x9 | 6x5.5 | +18 | Minor Trimming |
295/60R20 | 20x9 | 6x5.5 | +18 | Minor Trimming |
285/60R20 | 20x9 | 6x5.5 | +18 | - |
285/55R20 | 20x9 | 6x5.5 | +18 | - |
275/65R20 | 20x9 | 6x5.5 | +18 | - |
265/60R20 | 20x9 | 6x5.5 | +18 | - |
305/55R20 | 20x9 | 6x5.5 | +20 | Minor Trimming |
295/60R20 | 20x9 | 6x5.5 | +20 | Minor Trimming |
285/60R20 | 20x9 | 6x5.5 | +20 | - |
285/55R20 | 20x9 | 6x5.5 | +20 | - |
275/65R20 | 20x9 | 6x5.5 | +20 | - |
265/60R20 | 20x9 | 6x5.5 | +20 | - |
Details
- 1325
- 1325
- 840269928345
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 28.0 lbs.
- W14.0000” x H6.0000” x L16.0000”
- Free Ground Shipping | Exclusions Apply*
