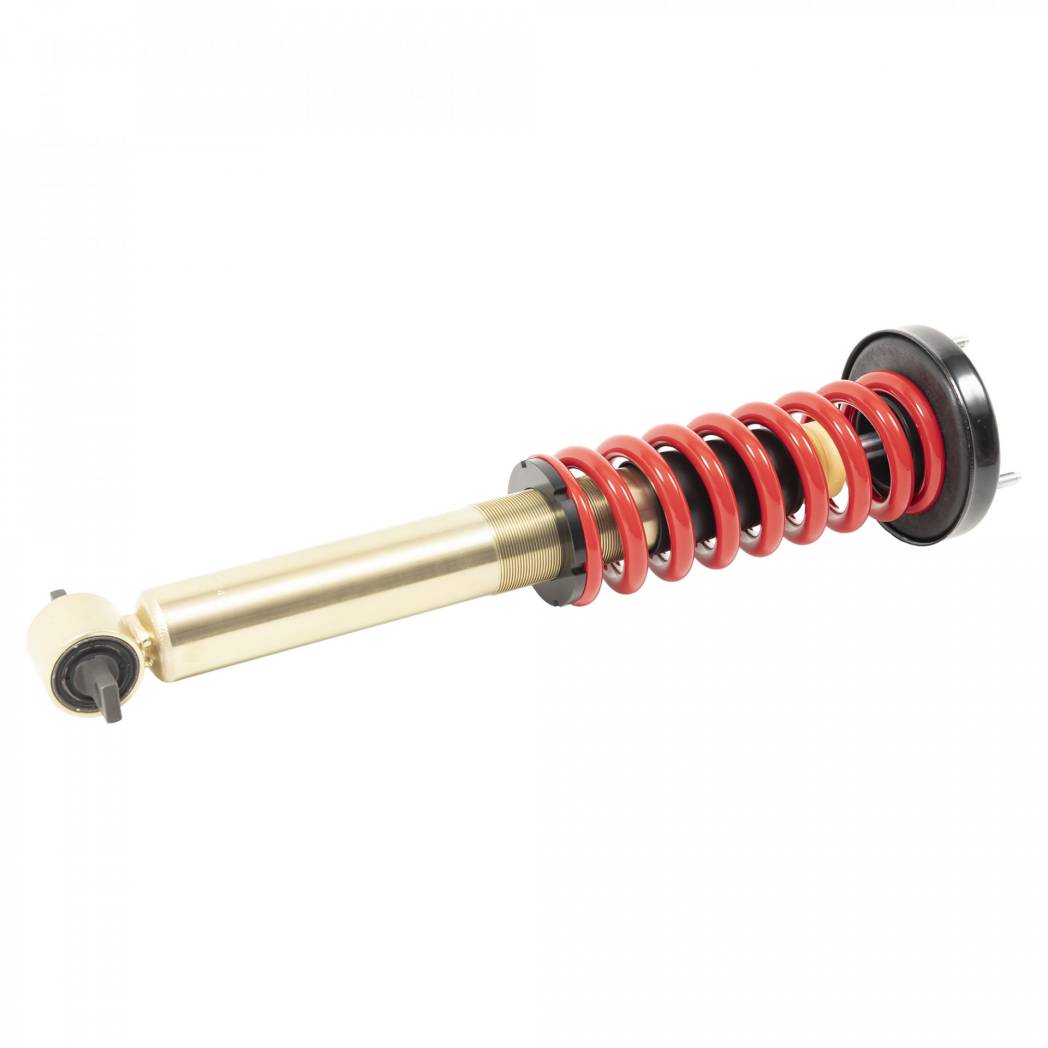

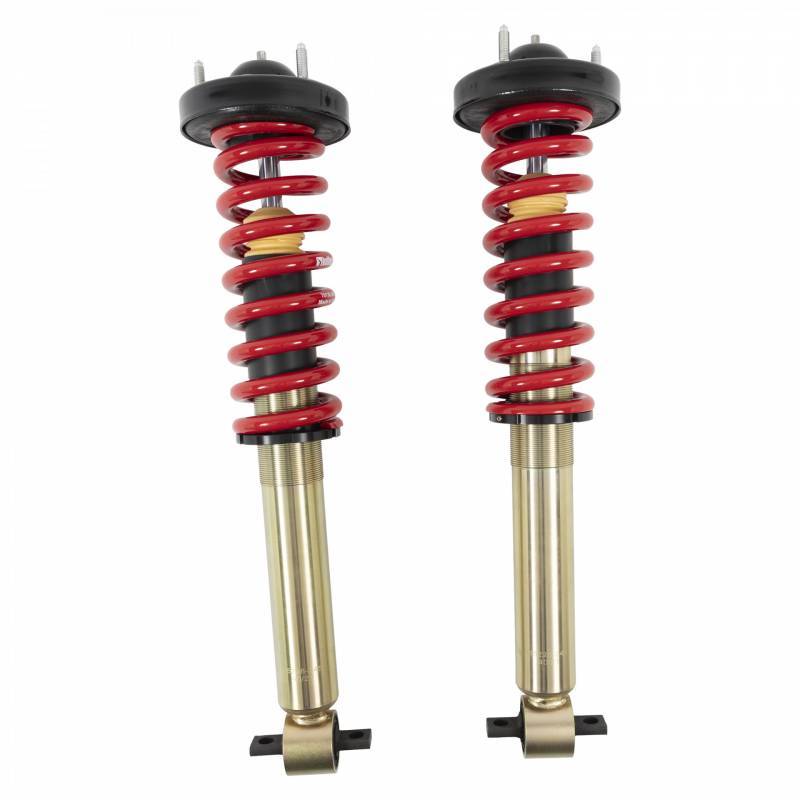

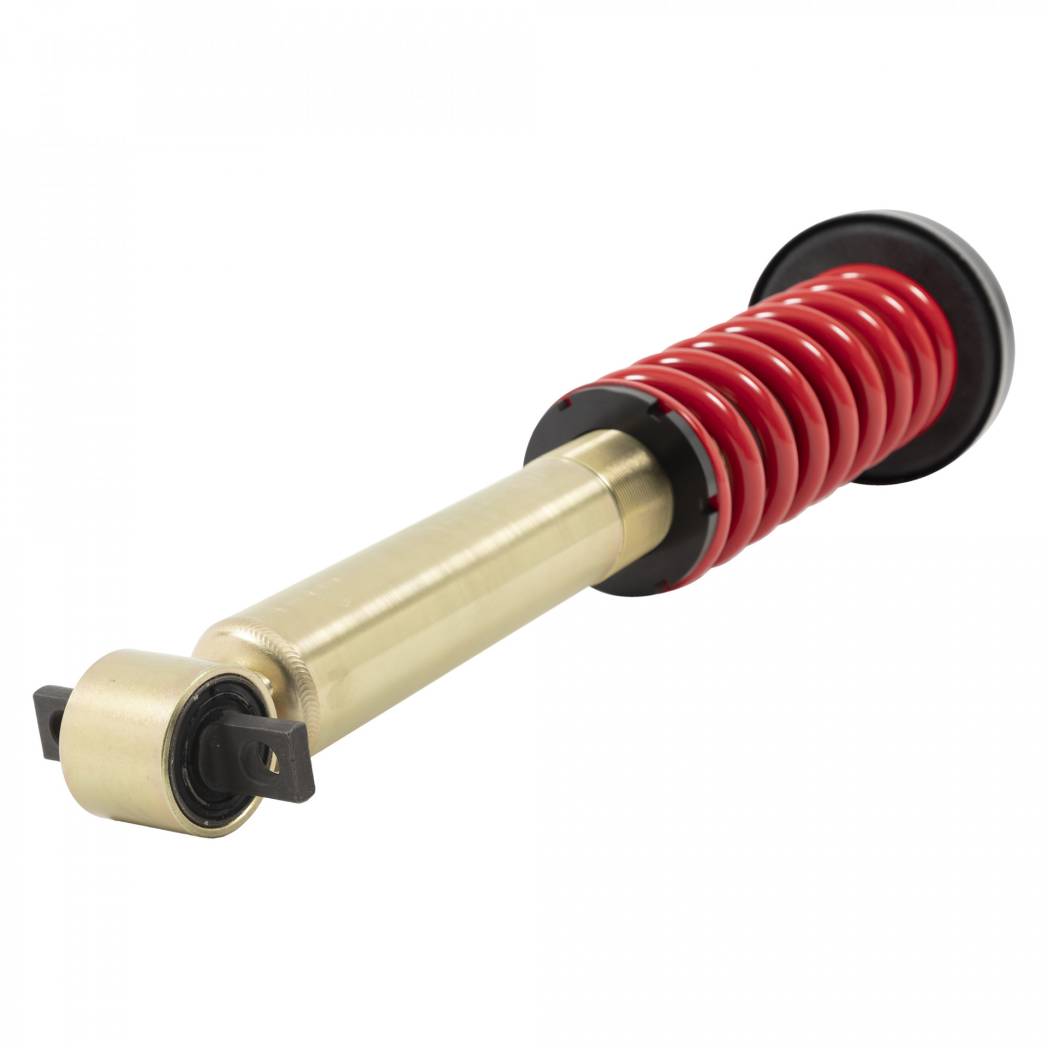

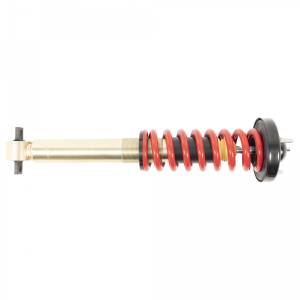

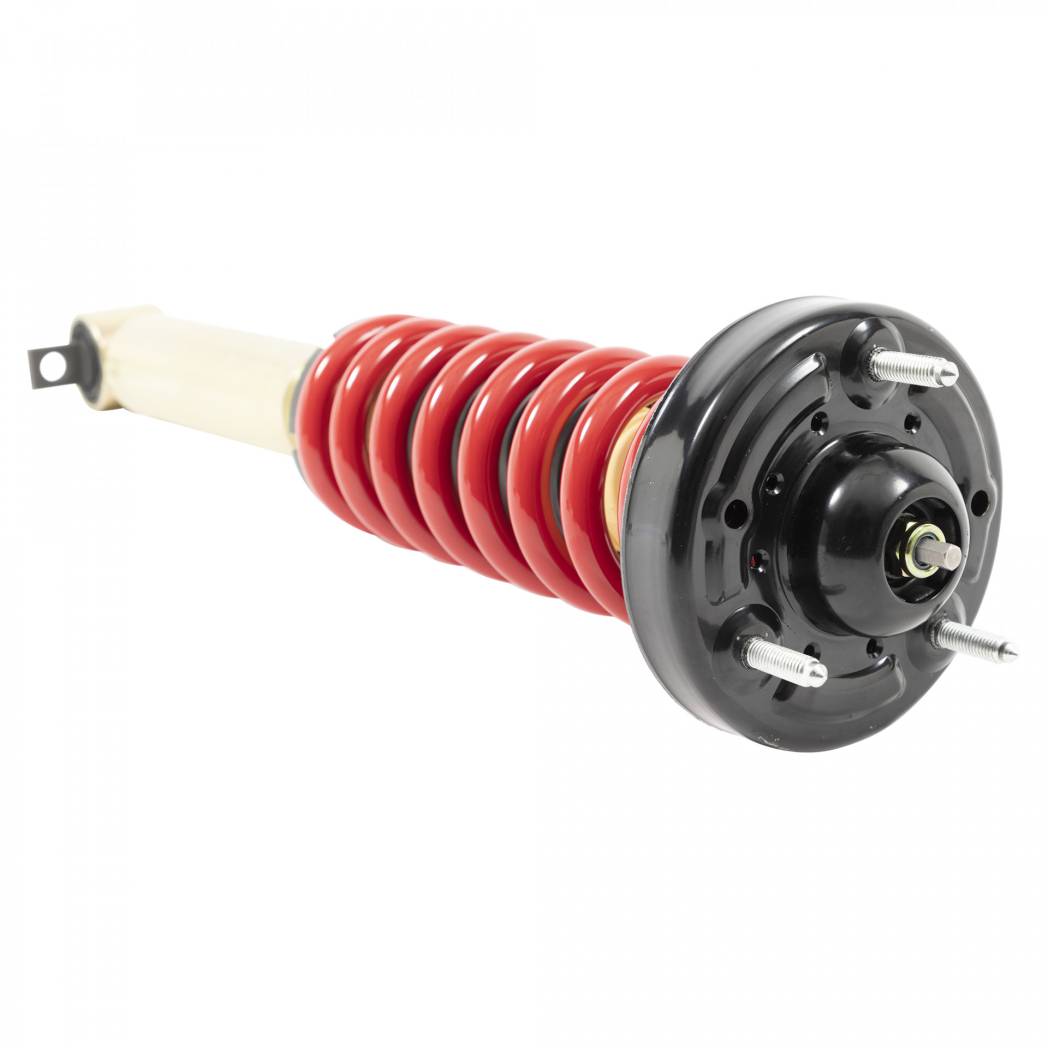

15228 | Belltech 3.5-4.0 Inch Height Adjustable Lifting Coilover Kit (2021-2023 F150 2WD)

Need the ultimate in ride quality, handling, and ride height adjustability? Belltech coilover systems are the answer, providing complete height adjustable replacement shocks and springs in an application specific complete coilover unit. Belltech now offers a complete solution for the front end of your strut equipped Truck or SUV. Increase grip, reduce body roll, all while retaining the daily driven comfort you require. Each kit consists of two threaded large 60mm body performance dampers with the option of independent compression and rebound damping force adjustability. Belltech coilovers come preassembled with matched performance coil springs, Aluminum spring perches, progressive rate open cell bump stops, and plastic dust boots.

Fits: 2021+ Ford F-150 2WD (All Cabs)

Choosing an exceptional suspension option is quite simple when you look to Belltech. We now offer improved vehicle appearance and performance in one package with our lifting coilover kit for your 2021+ Ford F-150 2WD. The kit gives your automobile exemplary potential, greater clearance, and superior performance while also providing an aggressive look. Lifting the front of your truck 3.5" to 4" adds room for larger tires and wheels, making driving on rocky, uneven roads quite effortless. A large portion of that simplicity is also owed to the Trail Performance dampers sitting at the core of each coilover. Our Trail Performance dampers are made with ideally preset damping forces to provide you with a top-quality suspension upgrade, constructed of galvanized steel and zinc-plated for longevity. They showcase large, 2.4" (60mm) bodies, 35mm independent rebound and compression valves, and 20mm hardened chrome piston rods. Together, the components add strength to the design and keep oil cool for damping that will not fade even under high stress. To create height adjustability Belltech uses a threaded damper and spring perch. The spring perch is designed to sit in place and not do any adjusting over time. Because the coilover height is customizable, we made sure the bump stop engagement was also able to be edited. Our use of a progressive rate polymer, open-cell, bump stop, and packers refines the arrangement and gives your vehicle the most ideal suspension results. The Belltech linear spring is made of cold-formed high tensile steel and is powder coated red to achieve an eye-catching yet protective layer. Belltech coilovers also use high durometer vulcanized rubber bushings to reduce any unwanted noise and vibrations. To keep the piston rod safe, we utilize a plastic dust boot, and easy installation is achieved by mimicking the OE top mounts. Belltech engineers designed these coilovers by looking into every detail possible to provide you with the most desirable suspension option on the market.

Height adjustable from +3.5" to +4"
Trail Performance dampers
2.4" (60mm) damper body
20mm hardened chrome piston rod
35mm independent rebound and compression valves
Increases clearance and allows room for larger tires/wheels
Enhances drive quality
Perfected and preset damping forces
Progressive rate polymer, open-cell, bump stop
Packers to perfect bump stop engagement
High tensile steel spring, powder coated for longevity
Easy installation
