152600BK | Belltech 6 Inch Compete Lift Kit with Front & Rear Strut Spacers (2021-2023 Bronco 4WD | W/O Sasquatch)

2021-2023 Ford Bronco 4WD | w/o Sasquatch Package

152600BK
Shipping: Free Ground Shipping Unavailable | This Product Does Not Qualify*
Pricing: $4,207.90
Qty:

Description

Elevate your truck or Jeep to new heights with Belltech's all new suspension lift kit systems from Belltech. Precision engineered in the USA to ensure every aspect was considered to provide you with the highest quality Lift Kit Suspension System that delivers on performance. Through innovative design with the focus on performance, these suspension lift kit systems are the best riding lift kits on the market - period. Built to ride, handle and tackle off road obstacles with ease!

Fits: 2021+ Ford Bronco 4WD w/o Sasquatch Package

The Ford Bronco is back! With Belltech’s new, brilliantly engineered, 6” complete lift kit, it is better than ever! Our kit enhances your Bronco’s ride quality, safety, performance, and out lifts other lift kits on the market.

The Belltech 2021+ Ford Bronco lift kits were introduced at SEMA 2021, and vehicle enthusiasts raved about their striking appearance and superior quality.

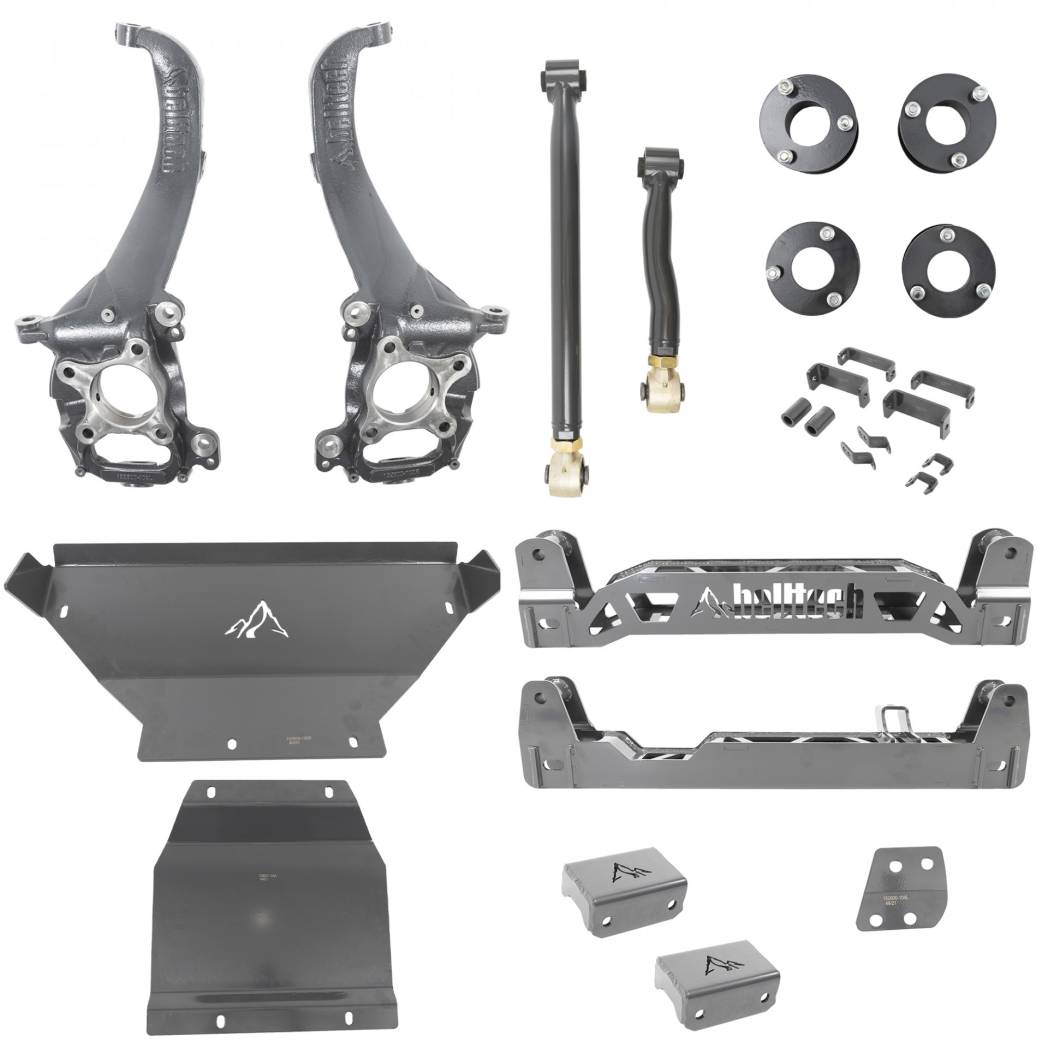

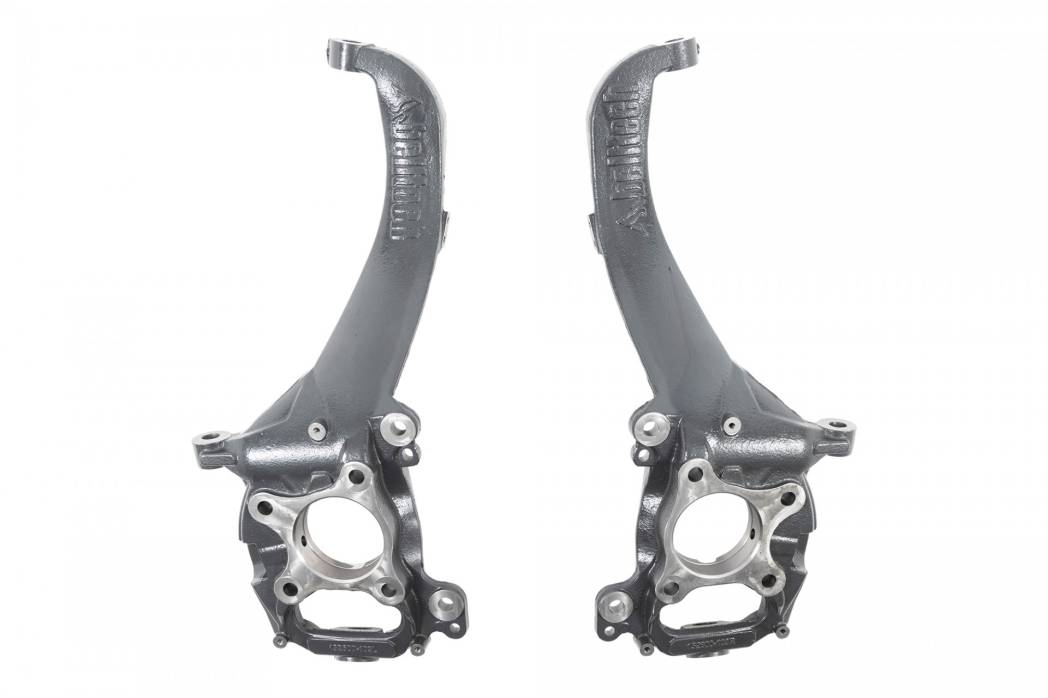

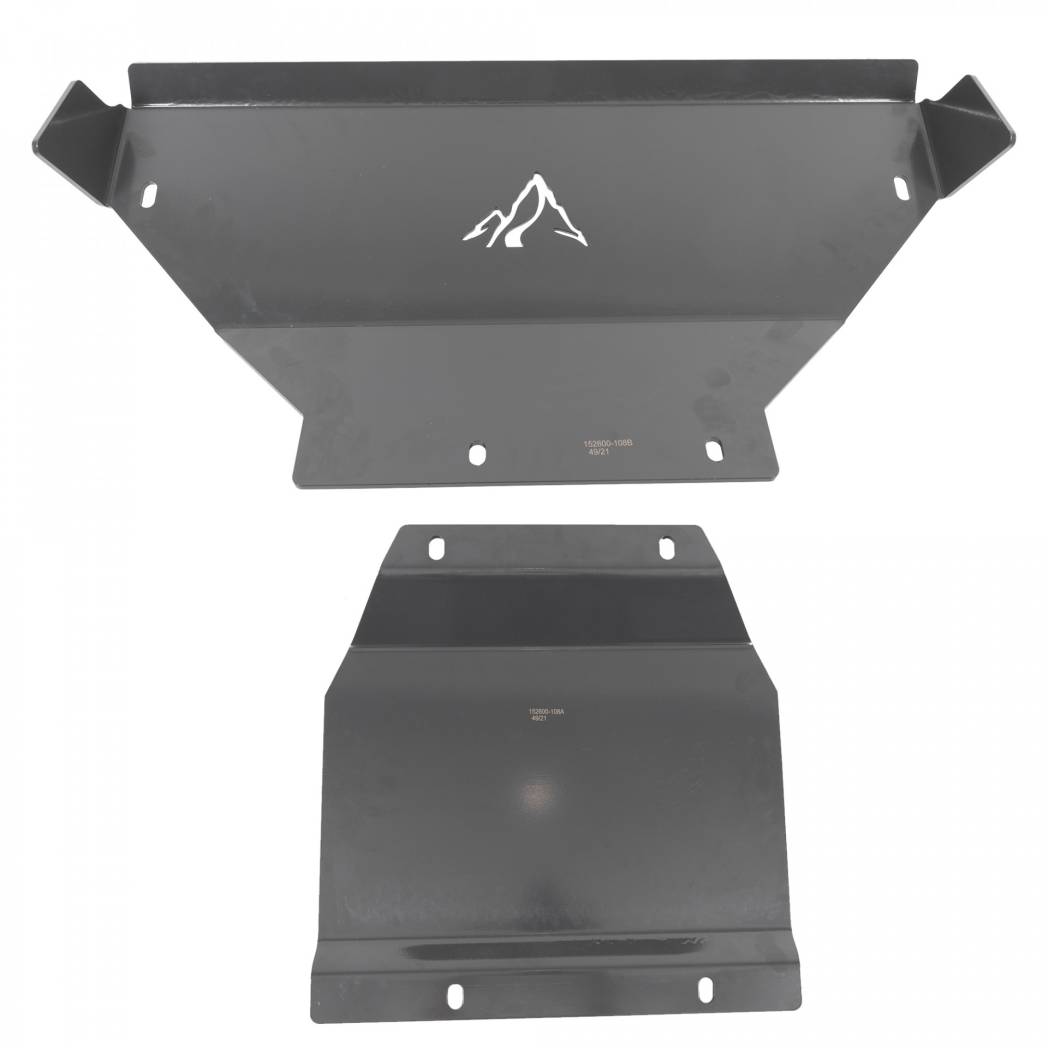

The front end of our kit includes two immensely durable powder coated steel strut spacers that lift 6”. We include two unique design ¼ inch thick skid plates. One plate protects the oil cooler and the other is built along with the Belltech crossmember to increase rigidity and shield the front differential without interfering with articulation. Belltech lift spindles are used in place of your OE spindles to retain factory suspension geometry. We retain proper suspension angles with our sway bar drop-down brackets and differential drop kit.

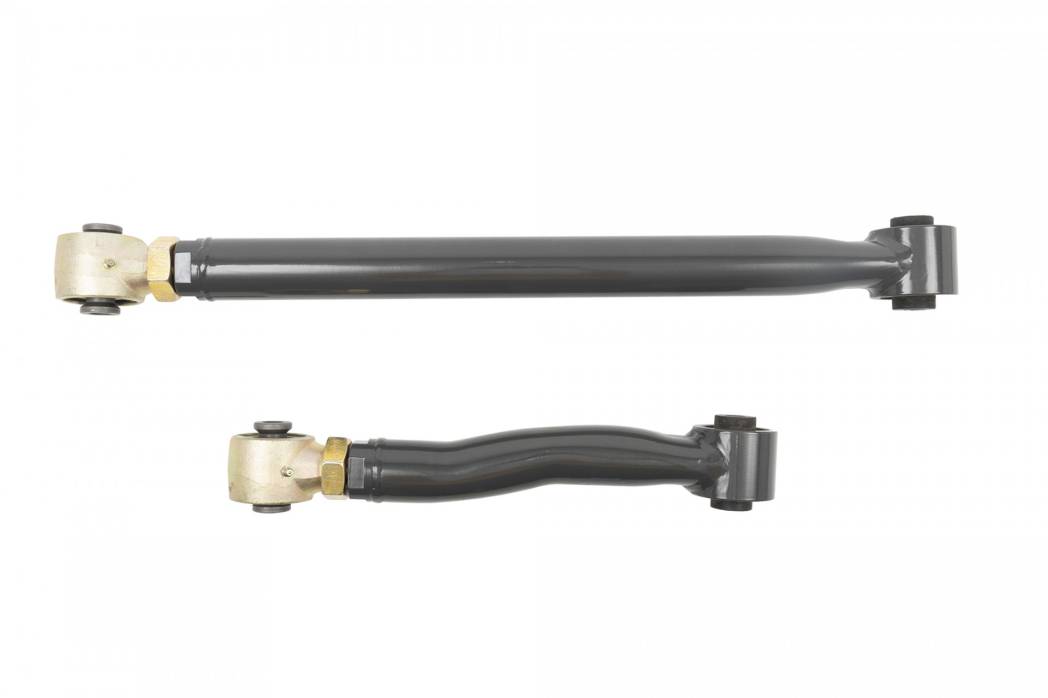

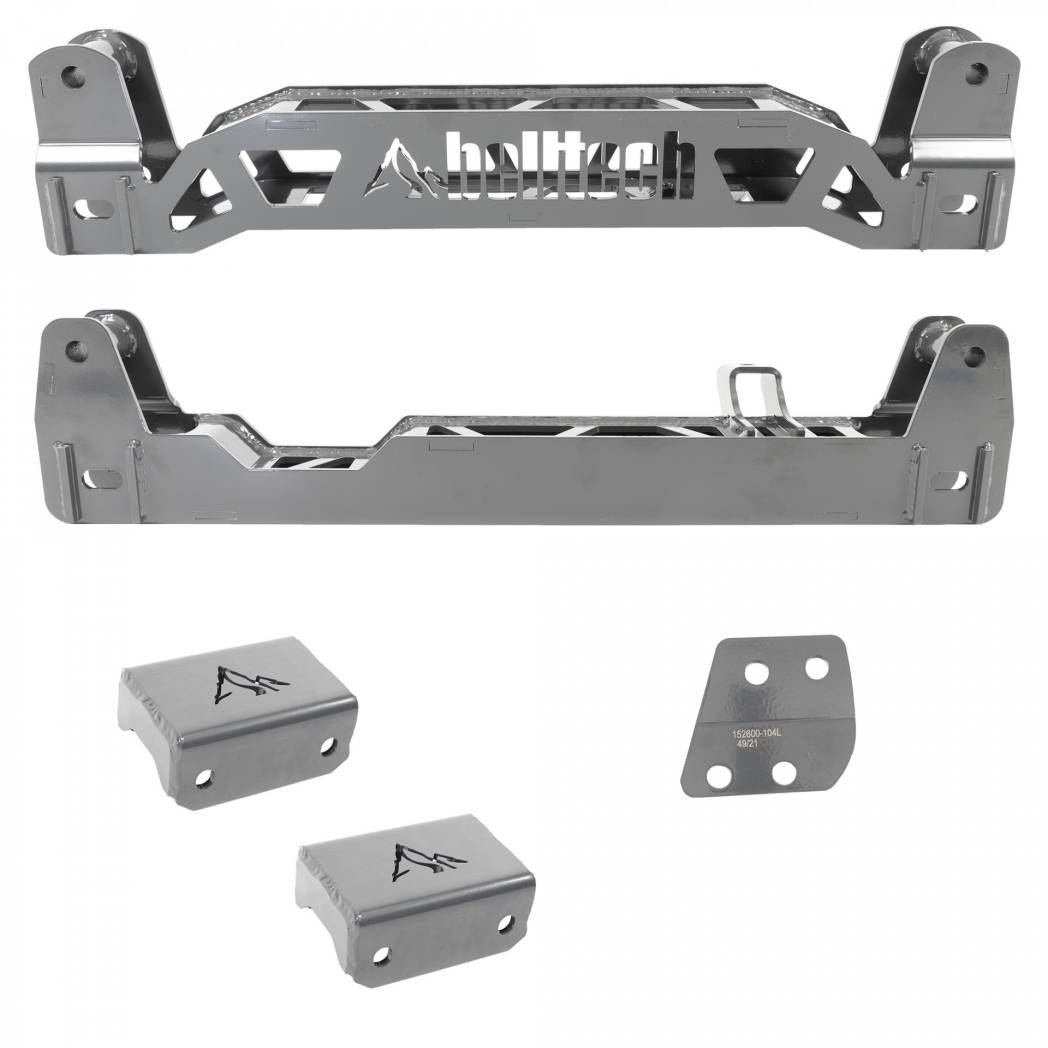

The rear end of our kit includes two vehicle-specific, precisely engineered rear strut spacers that complete the 6” lift. We use a robust, yet lightweight, roll center correction bracket that increases roll resistance and adds rigidity at the frame-side mounting point, which can be prone to flexing, thus preventing delay and discomfort. We include a track bar made to be exceptionally sturdy without adding too much weight with a measurement of 2” by ¼” wall. The Belltech Ford Bronco kit includes 2” by ¼” wall upper and lower control arms in the rear, with fully serviceable and rebuildable 1 ¼” rod ends.

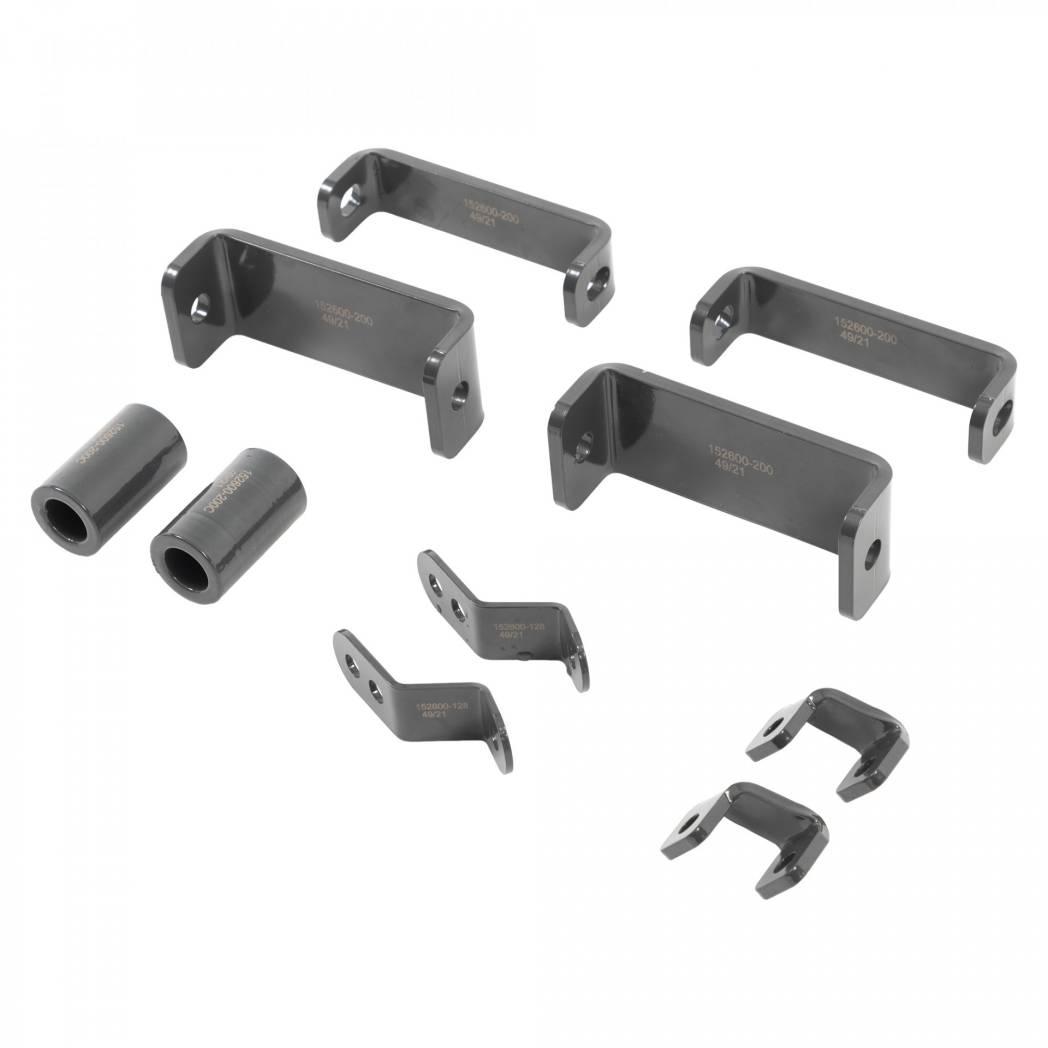

Both front and rear hardware kits contain high-grade hardware and brake-line relocation brackets that keep your brake lines safely out of the way of moving components. The kit retains factory track width and does not change your vehicle’s original turning radius. The result is improved handling, added clearance, and the option to use larger tires and wheels to increase your contact patch. Belltech Ford Bronco kits have undergone rigorous testing in the most extreme circumstances to provide you with the best high-performance, heavy-duty suspension option that is easy to install with minimal cutting and no welding. Our Belltech Suspension lift kits also feature a limited lifetime warranty – so you are covered, no matter what.

Precision designed and engineered in the USA
Uniquely engineered for your 2021+ Ford Bronco 4WD
Easy installation
Retains factory alignment specifications
Maintains OE front differential geometry
Improved ride quality over factory
Maintains factory turning radius and track width
Replacement spindles
Robust roll-center correction bracket to increase rigidity
Includes custom engineered front and rear strut spacers
Two ¼” thick skid plates to protect the vehicle undercarriage
2” by ¼” wall control arms and track bar
Limited Lifetime Warranty

Fitment Notes:

Excludes: First Edition, Wildtrak, Raptor, Heritage Edition and Heritage Limited Edition.
Max tire size: 37 x 12.5 Wheels (6” BS) – 7.5” lift
Trimming may be required
This kit will fit 40” tires, however inner fender and crash beam modification may be required, and it is not recommended.

Application List

2021 Ford Bronco Badlands 2.3l L4 99H 4WD Sport Utility
2021 Ford Bronco Badlands 2.7l V6 99P 4WD Sport Utility
2021 - 2023 Ford Bronco Base 2.3l L4 99H 4WD Sport Utility
2021 - 2023 Ford Bronco Base 2.7l V6 99P 4WD Sport Utility
2021 - 2023 Ford Bronco Big Bend 2.3l L4 99H 4WD Sport Utility
2021 - 2023 Ford Bronco Big Bend 2.7l V6 99P 4WD Sport Utility
2021 - 2023 Ford Bronco Black Diamond 2.3l L4 99H 4WD Sport Utility
2021 - 2023 Ford Bronco Black Diamond 2.7l V6 99P 4WD Sport Utility
2022 - 2023 Ford Bronco Everglades 2.3l L4 99H 4WD Sport Utility
2021 - 2023 Ford Bronco Outer Banks 2.3l L4 99H 4WD Sport Utility
2021 - 2023 Ford Bronco Outer Banks 2.7l V6 99P 4WD Sport Utility

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | This Product Does Not Qualify*

Documents
