K124FX | Superlift 4 Inch Dodge Suspension Lift Kit with Fox 2.0 Resi Shocks (2014-2018 Ram 2500 4WD | Diesel)

2014-2018 Ram 2500 Pickup 4WD | Diesel ONLY

K124FX
Pricing: $3,335.99
Qty:
Free Ground Shipping | Exclusions Apply*

Description

This is a complete radius arm drop bracket suspension Lift Kit for the 2014-2018 Dodge Ram 2500 4WD – diesel engine
Provides 4” lift height
Includes rear blocks and front and rear Fox® 2.0 ResiShocks

What does it include?

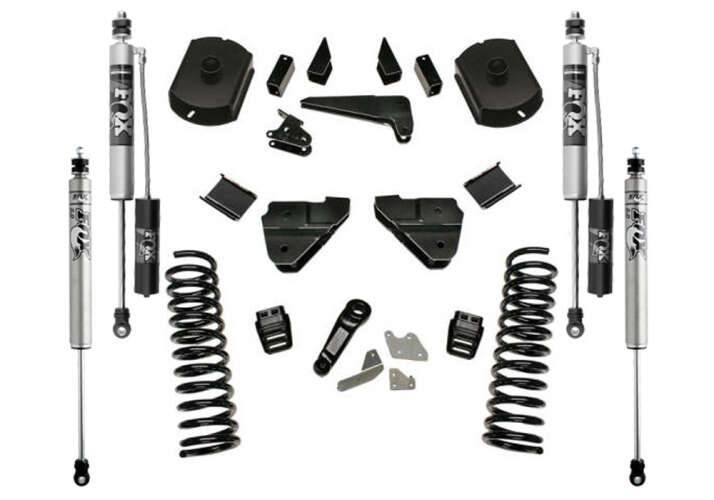

Front lift includes 4” coil springs, radius arm brackets, track bar bracket, pitman arm, sway bar correction, bump stops, brake line brackets, Superlift shocks OR Bilstein shocks, OR Fox Shocks and all required hardware
Rear lift includes a 2” block kit, Superlift shocks OR Bilstein shocks, OR Fox Shocks and all required hardware.
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Superlift Suspension Systems now available in Superlift Shocks, Bilstein Shocks, or Fox Shocks:

Superlift’s 4-Inch Lift kit for the 2014-2018 Dodge Ram 2500 HD radius arm drops and 3 different shock options.These radius arm drops use the factory radius arms to help locate the axle front-to-rear while allowing to maintain proper caster. Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer.

This kit includes rear coil spacers, radius arm drops, front and rear Shocks. All required parts are included to make sure your Ram 2500 HD handles and performs just like a stock truck!

Features:
Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
Radius Arm drops maintain proper caster
Track bar relocation bracket prevents stud bind and steering wheel kick
Pitman arm relieves drag link angle to prevent bump steer/wandering
Front and Rear – Superlift Shocks OR Bilstein® 5100 Series Shocks OR Fox® Performance Series 2.0 IFP Shocks
Backed by our limited lifetime warranty

Benefits:
Retains OEM caster and camber alignment specifications
Maintains ride quality and handling characteristics
Designed using Original Equipment (OE) CAD data for accuracy.

Notes:
Installation time: 7 hours
Difficulty level: 3 of 5

Does not fit Power Wagon Models
Does not fit models with factory air suspension

Application List

2014-2018 Ram 2500 Pickup 4WD

NOTE: Does not fit Power Wagon models.
NOTE: Does NOT fit Models with rear air suspension

Tires & Wheels

Tire Wheel Backspacing Offset
35 x 12.5 17 x 9 4.5 - 5 -
35 x 12.5 18 x 9 4.5 - 5 -
35 x 12.5 20 x 9 4.5 - 5 -



IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
