BAF131H | Morimoto Switched Power Harness For 2 Or 4Banger Bar | 10-12 Outputs

Switched Power Harness For 2 Or 4Banger Bar | 10-12 Outputs

BAF131H
Pricing: $357.00
Qty:
Free Ground Shipping | Exclusions Apply*

Description

POWER UP: The Morimoto BangerBar is a piece of equipment designed to set a new standard in in its segment, and the same goes for the wiring. This harness is designed to provide reliable power delivery to a row of our 2 or 4Banger pods linked together with ease.

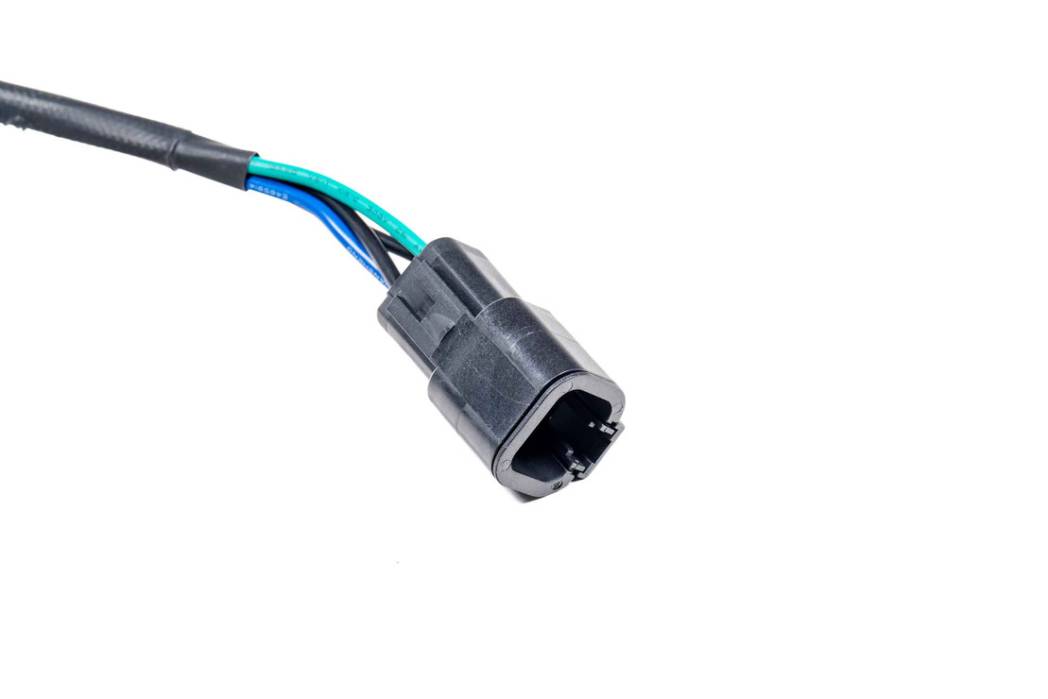

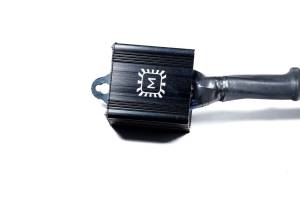

OEM+: Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relays with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with amber-LED backlight.

PROPER: All wiring is properly sized and relays rated for flicker-free, reliable power delivery. Every line of the 16 awg copper wiring is protected with black mesh insulation. Every connector has been over-molded, sealed, or protected with heavy duty heat shrink. Your factory wire harness will fall apart before this thing.

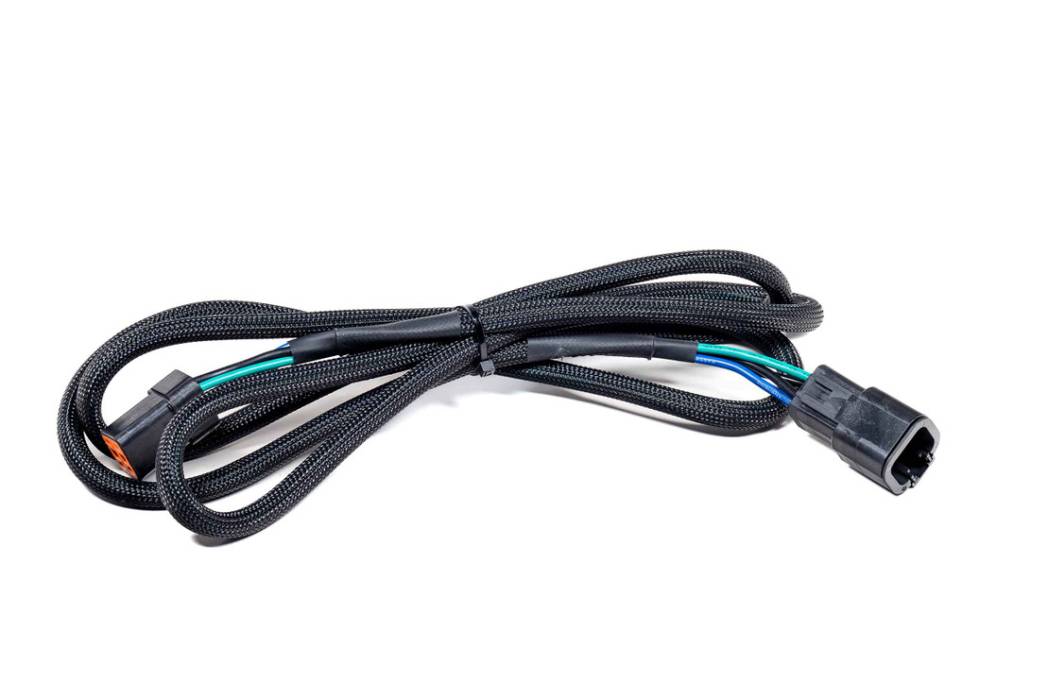

PLUG N PLAY: The connections on the harness have been laid out in a logical way to power up to eight Bangers linked together with the BangerBar links. The wiring for the in-cabin push button switch has an in-line barrel connector that drastically improves ease of installation, since you don't have to jam the switch mechanism through the firewall. The harness also includes an input line that's ideal for use with upfitter switches.

COMPATIBLE: This harness is a perfect match for Morimoto BangerBar setups with numerous pods linked together as a light bar. It is purposely designed to deliver enough power, and laid out with intention. There are two versions. One for 6-8 pods, and another for 10-12 pods.

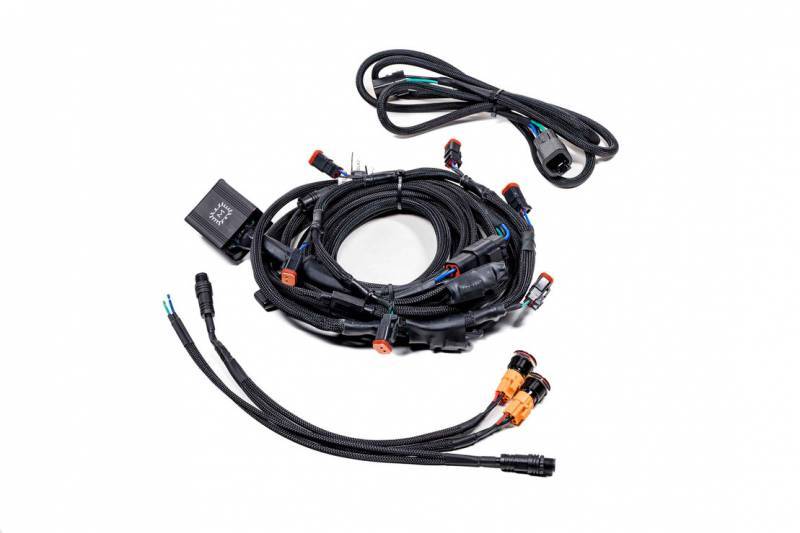

WHAT'S INCLUDED

  • HARNESS: 1x Morimoto BangerBar Multi-Pod Power Harness
  • SWITCH 1: 1x M-spec Push Button Switch Kit
  • SWITCH 2: Upfitter switch input adapter kit
  • OUTPUT CAPS: 6-12x (for un-used outputs)
  • WARRANTY: 5 Years

COMPATIBILITY

  • MORIMOTO OFFROAD: Morimoto 1,2,4 Banger
  • OTHER PODS: With 2P DT inputs
  • BANGERBAR SYSTEM: Yes

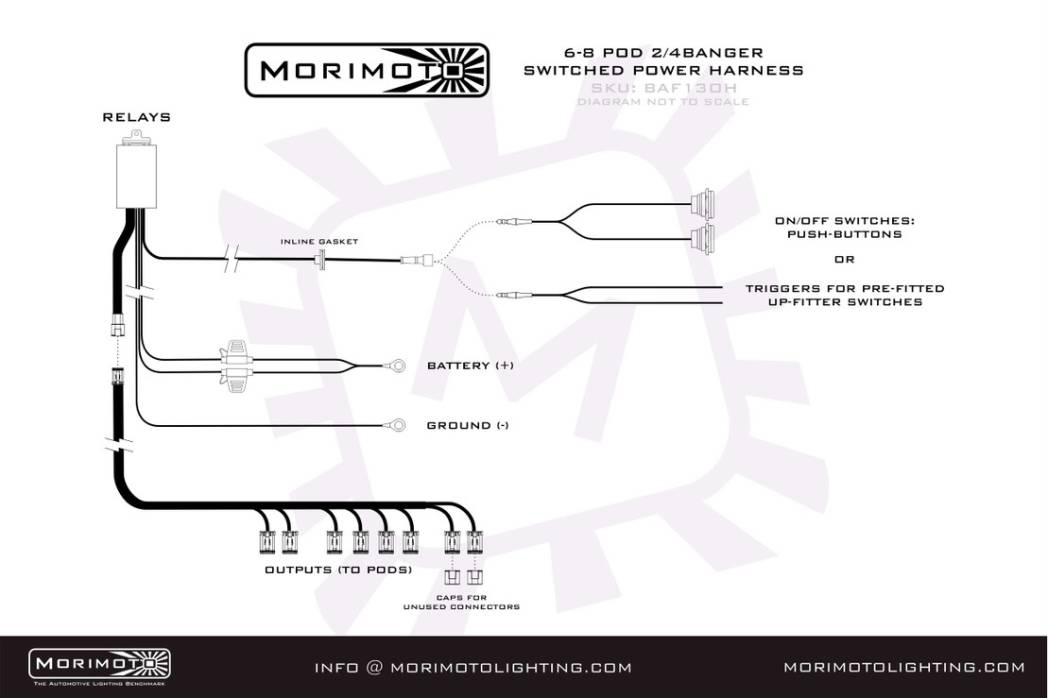

  • BAF130H POD QUANTITY: Min (6) Max (8)

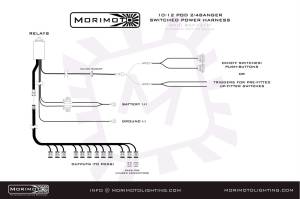

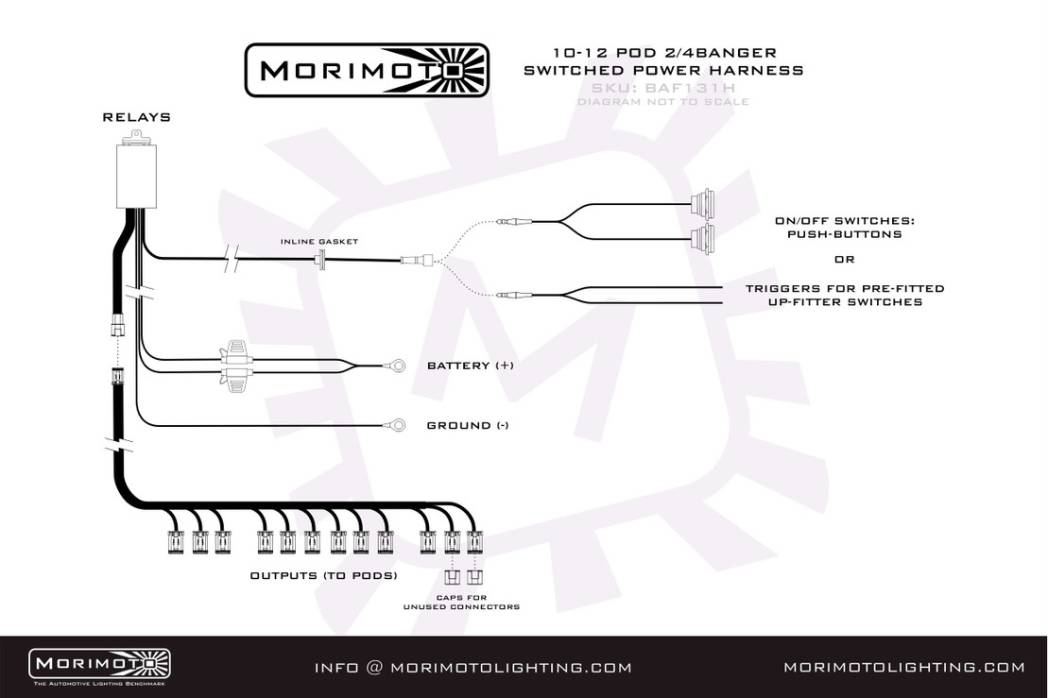

  • BAF131H POD QUANTITY: Min (10) Max (12)

TECH SPECS

  • RELAY: Triple Sealed 40A M-Spec
  • SWITCH: Normally off M-Spec w/ Amber backlight
  • OUTPUTS: DT06-2 Pin
  • MAIN INPUT: 12V+/- Battery Terminals
  • BACKLIGHT INPUT: Mini
  • or Micro fuse tap
  • WIRING: Insulated 16 AWG Copper

Application List

MORIMOTO OFFROAD: Morimoto 1,2,4 Banger
OTHER PODS: With 2P DT inputs
BANGERBAR SYSTEM: Yes
BAF130H POD QUANTITY: Min (6) Max (8)
BAF131H POD QUANTITY: Min (10) Max (12)
