K134 | Superlift 6 Inch Suspension Lift Kit with Shadow Shocks (2015-2022 Colorado, Canyon 2WD/4WD)

This is a lift kit for the Chevy Colorado and GMC Canyon
Provides 6” lift height

What does it include?

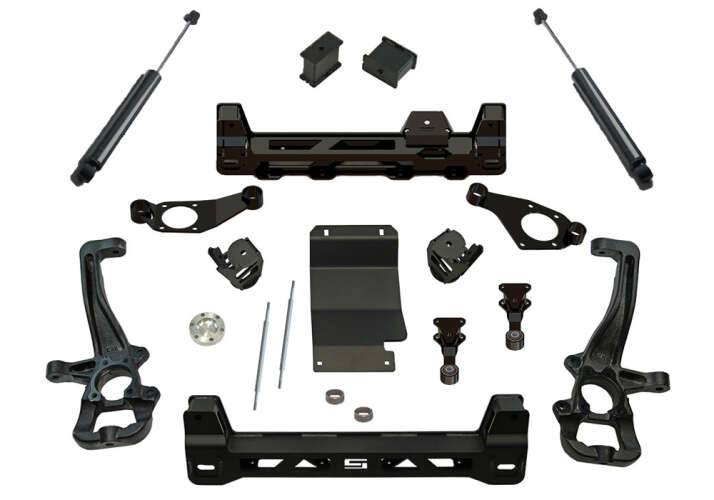

All brackets, cross-members, steering knuckles, strut extension, rear block and u-bolt kit, rear shocks and hardware specific to the 2015-2022 Colorado/Canyon
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

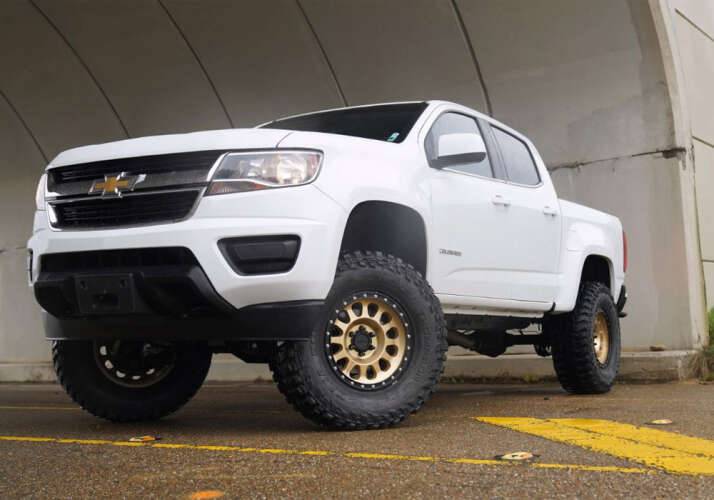

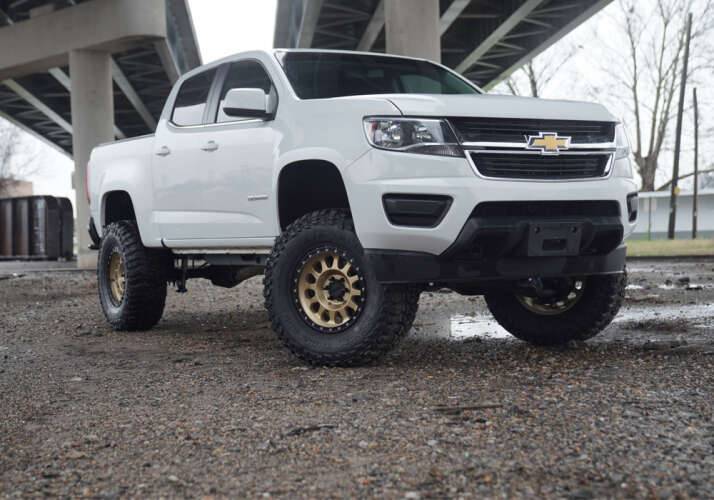

Superlift’s 6 inch lift kit for the 2015-2022 Chevy Colorado and GMC Canyon is the perfect way to add height to your Colorado/Canyon to fit those larger tires and drastically change the appearance for the better. Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer. ?

Superlift’s geometry, from steering timing and linkage angles to driveshaft and CV axle operating angles, yields optimal component service life and exceptional drivability. Our Lower Control arm cross-members are true to their height and are a one-piece, full-width, high-clearance design made of .25” steel plate. Front differential mounts secure the front axle housing unlike any kit on the market today. This kit moves the front axle mounts to our HD crossmembers providing more strength and prevents axle bind.

This kit includes front knuckles, front strut extensions, cross-members, a rear block and u-bolt kit and rear shocks. All require parts are included to make sure your Colorado or Canyon performs in all conditions.

Features:
HD ¼” Plate Crossmembers
HD Axle mounts
Cast steering knuckles
Fabricated rear lift blocks

Benefits:
Retains OEM caster and camber alignment specifications
Maintains ride quality and handling characteristics
Aligns to OEM Specifications
Designed using Original Equipment (OE) CAD data for accuracy
Corrects Front to rear Factory rake for a more level stance

Notes:
Installation time: 8 hours
Difficulty level: 3 of 5

Fits both gas and diesel engines
Requires minor cutting and drilling.
Does NOT fit ZR2 models
Factory wheels will NOT work.
Highly recommended that aftermarket wheels be hub-centric

Not recommended for AWD models
Not recommended for AWD models
Does NOT fit Auto Ride or Auto Leveling models.
Only fits vehicles with CAST STEEL Control arms.
This suspension kit WILL NOT WORK with any late model GM Truck or SUV equipped with MAGNERIDE from GM
