K160FX | Superlift 6.5in Suspension Lift Kit with Fox Coilover & Shocks (2014-2016 Silverado, Sierra 1500 4WD | OE Cast Steel Control Arms)

This is a complete knuckle style, FOX Coilover lift kit for the Chevy/GMC 2WD or 4WD – with OE Cast Steel upper control arms
Provides 6.5” lift height

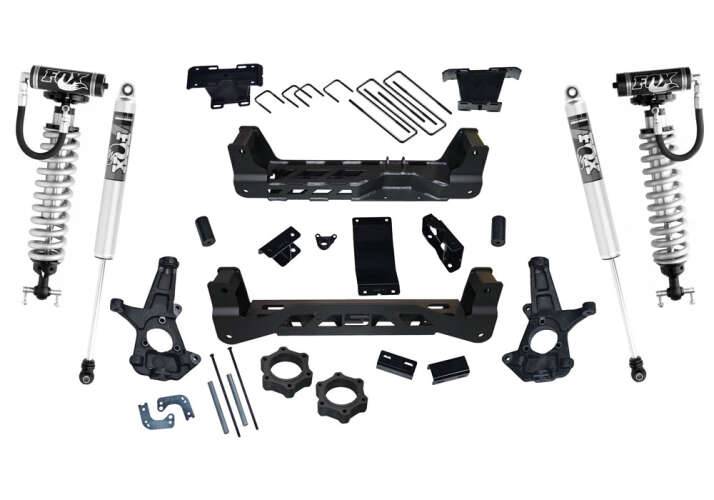

What does it include?
FOX Coilovers and rear shocks
All brackets, cross-members, steering knuckles, strut spacers, rear block and u-bolt kit, and hardware specific to the 2014-2016 Chevrolet Silverado or GMC Sierra 1500
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

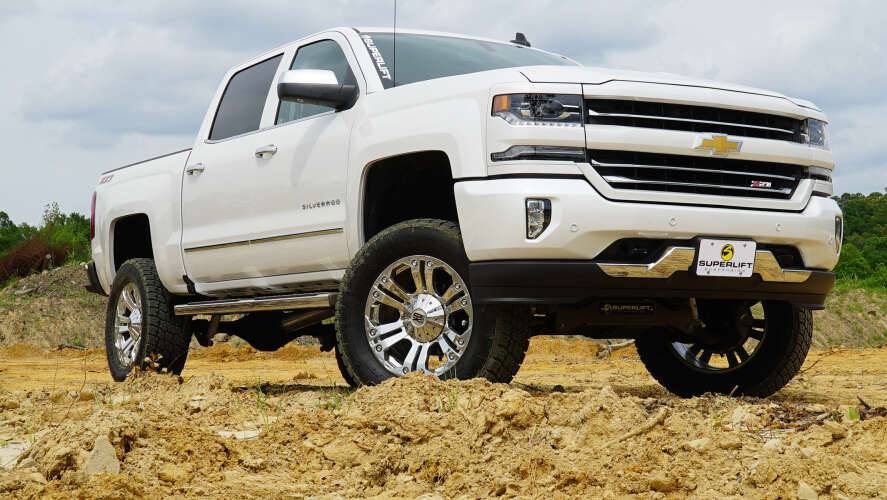

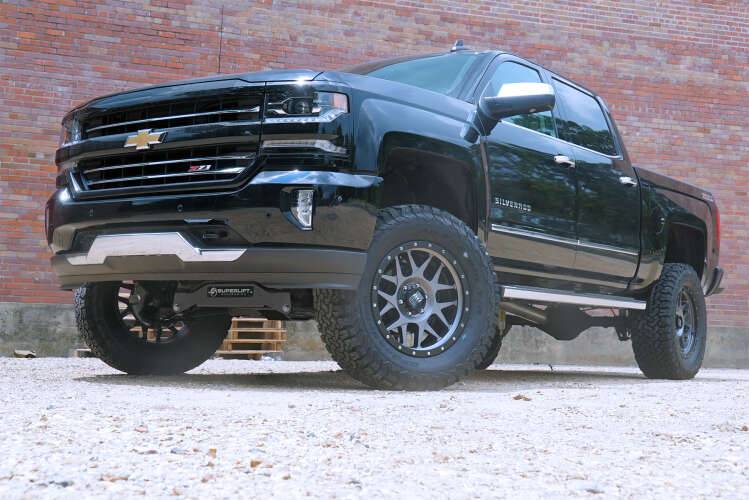

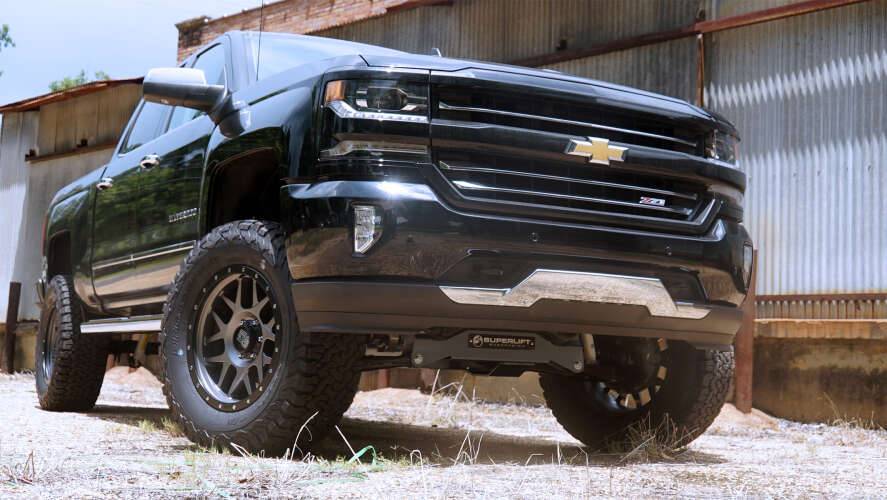

Superlift’s 6.5 FOX coil over lift kit for the 2014-2016 Chevrolet Silverado or GMC Sierra 1500 4WD and 2WD is a great way to add height to your overall GM 1500 appearance. Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer. This 6.5 inch Lift kit for the GM 1500 Pickup is a complete replacement knuckle kit.

Superlift’s geometry, from steering timing and linkage angles to driveshaft and CV axle operating angles, yields optimal component service life and exceptional drivability. Our Lower Control arm cross-members are true to their height and are a one-piece, full-width, high-clearance design made of .25” steel plate.

Features:
FOX Coilovers and rear shocks
Direct bolt-on (No Weld Design)
Adds clearance for up to 35” tires
Heavy duty, ¼” plate lower control arm crossmembers

Benefits:
Best in class ride quality and performance.
Retains OEM caster and camber alignment specifications
Maintains ride quality and handling characteristics
Aligns to OEM Specifications
Designed using Original Equipment (OE) CAD data for accuracy

NOTES:
Installation time: 7-8 hours
Difficulty level: 3 of 5
Not recommended for AWD models
Does not fit models with Auto Ride or Auto leveling
Only fits models with Cast Steel Control Arms
