43470 | Rough Country 3 Inch Suspension Lift Kit with V2 Monotube Shocks (2023-2024 F250 Super Duty 4WD)

2023-2024 Ford F250 Super Duty 4WD

43470
Pricing: $1,215.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

3 Inch Lift Kit | V2 Monotube Shocks | Ford Super Duty 4WD (2023-2024)

Give your 5th generation Ford Super Duty an impressive upgrade, front to back with Rough Country’s 3" Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and more aggressive appearance.

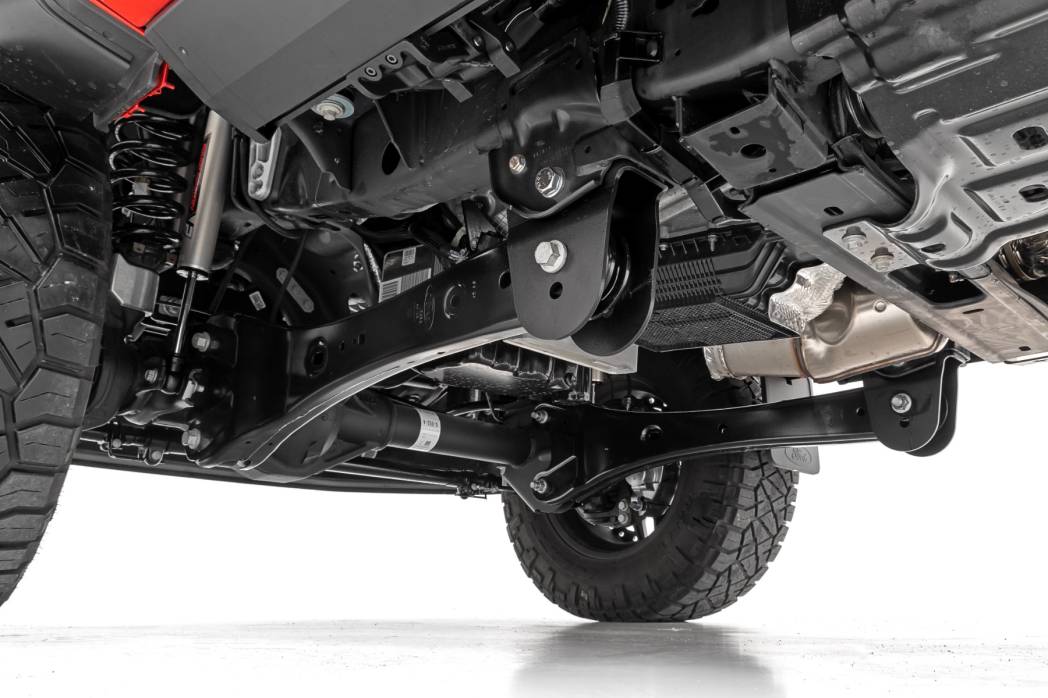

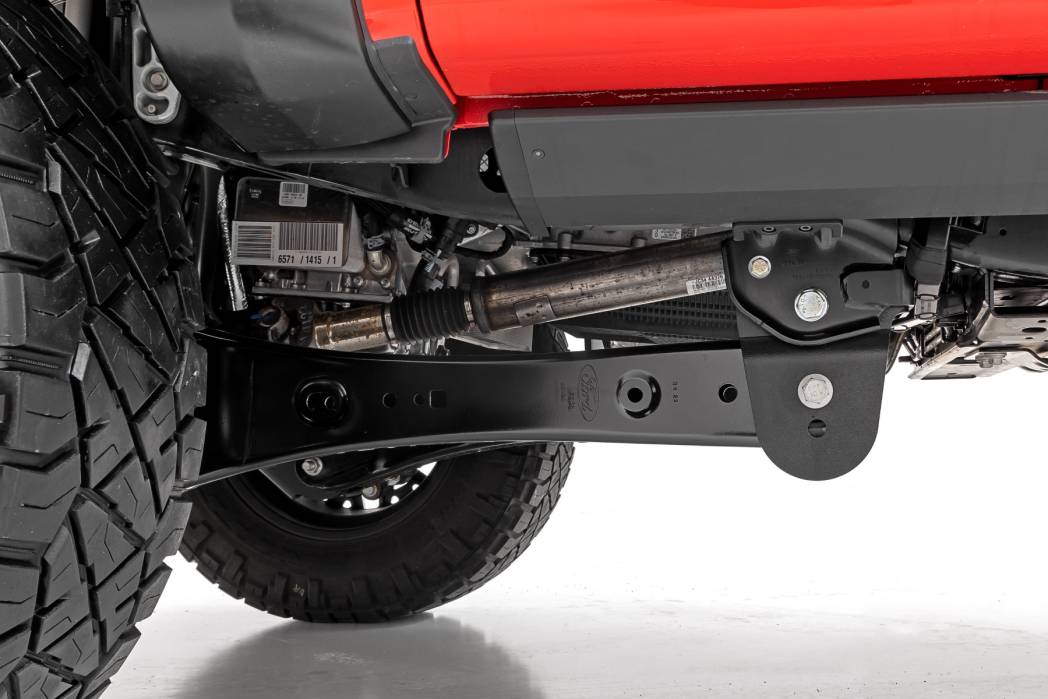

This kit features a set of front, lifted coil springs spacers allowing you gain additional ride height without sacrificing ride quality or performance. A set of radius arm drop brackets as well as a track bar drop bracket are provided to keep everything at optimum angles for a factory-like ride, even after lifting.

A set of Rough Country's premium N3 shocks are also included. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.

Get the wheels you want! Rough Country's 3" Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing.

Best of all, Rough Country's 3" Suspension Lift Kit is backed by our Limited Lifetime Replacement Warranty.

Features

  • Easy bolt-on installation.
  • Maintains factory ride quality.
  • Increased ground clearance.
  • Levels the front with the rear of the vehicle.
  • Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.

Notes - Important

  • Does NOT F-350 models.
  • Does NOT fit dually models.
  • Does NOT fit 4" rear axle tubes.
  • Does NOT work on models equipped with Tremor Factory Trim Package.
  • If equipped with factory top mount overload spring it will need to be removed.

Specs

Est. Install Time  3-4 hours

Application List

2023 2024 Ford F-250 Super Duty King Ranch 4WD
2023 2024 Ford F-250 Super Duty Lariat 4WD
2023 2024 Ford F-250 Super Duty Limited 4WD
2023 2024 Ford F-250 Super Duty Platinum 4WD
2023 2024 Ford F-250 Super Duty XL 4WD
2023 2024 Ford F-250 Super Duty XLT 4WD

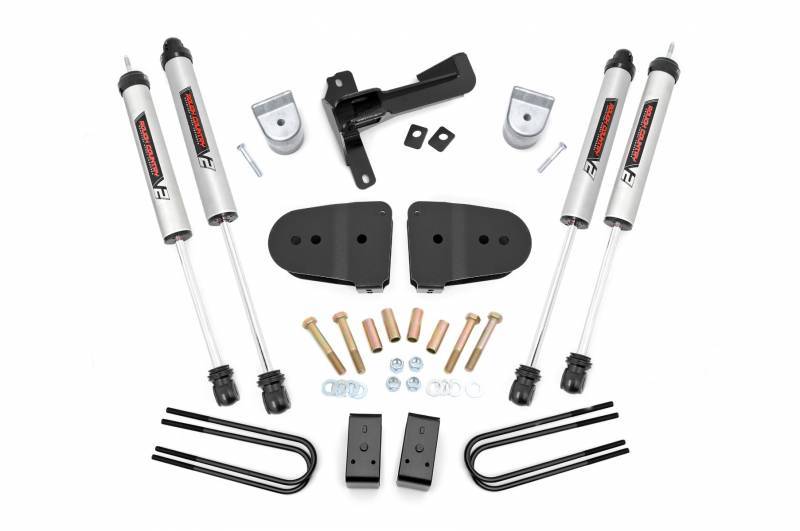

Components

FRONT
Coil spring spacers
Radius arm drop brackets
Track bar drop bracket
Hardware

REAR
4in lift blocks
U-bolts
Hardware

SHOCKS
(4) V2 Monotube Series

Tires & Wheels

TireWheelBolt PatternOffsetNote
35x12.50R20Factory 208x170--
35x12.50R18Factory 188x170--
35x12.50R17Factory 178x170--
35x12.50R1717x8.58x170+0Minor Trimming
35x12.50R1717x8.58x170+1Minor Trimming
35x12.50R1717x98x170-12-
315/70R1717x98x170-12-
305/70R1717x98x170-12-
285/75R1717x98x170-12-
35x12.50R1717x98x170+0Minor Trimming
35x12.50R1717x98x170+1Minor Trimming
35x12.50R1717x98x170+18Minor Trimming
35x12.50R1717x98x170+20Minor Trimming
35x12.50R1818x8.58x170+0Minor Trimming
295/70R1818x8.58x170+0-
35x12.50R1818x8.58x170+1Minor Trimming
295/70R1818x8.58x170+1-
35x12.50R1818x98x170-12-
305/65R1818x98x170-12-
295/70R1818x98x170-12-
285/75R1818x98x170-12-
285/70R1818x98x170-12-
35x12.50R1818x98x170+0Minor Trimming
305/65R1818x98x170+0-
295/70R1818x98x170+0-
285/75R1818x98x170+0-
285/70R1818x98x170+0-
35x12.50R1818x98x170+1Minor Trimming
305/65R1818x98x170+1-
295/70R1818x98x170+1-
285/75R1818x98x170+1-
285/70R1818x98x170+1-
35x12.50R1818x98x170+18Minor Trimming
295/70R1818x98x170+18-
35x12.50R1818x98x170+20Minor Trimming
295/70R1818x98x170+20-
295/70R1818x108x170-25-
295/70R1818x108x170-19-
295/70R1818x108x170-18-
35x12.50R2020x98x170-12-
35x11.50R2020x98x170-12-
295/65R2020x98x170-12-
295/60R2020x98x170-12-
285/60R2020x98x170-12-
35x12.50R2020x98x170+0Minor Trimming
35x12.50R2020x98x170+1Minor Trimming
35x12.50R2020x98x170+18Minor Trimming
35x12.50R2020x98x170+20Minor Trimming
35x12.50R2020x108x170-25Minor Trimming
35x12.50R2020x108x170-19Minor Trimming
295/60R2020x108x170-19Minor Trimming
285/60R2020x108x170-19-
35x12.50R2020x108x170-18Minor Trimming
295/60R2020x108x170-18Minor Trimming
285/60R2020x108x170-18-
35x12.50R2020x128x170-44Trimming Required
35x12.50R2222x108x170-25Minor Trimming
35x12.50R2222x108x170-19Minor Trimming
285/55R2222x108x170-19-
35x12.50R2222x108x170-18Minor Trimming
285/55R2222x108x170-18-
35x12.50R2222x128x170-44Trimming Required

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 95.6 lbs.
  • W24.0000” x H12.0000” x L48.0000”
