23640 | Rough Country 6 Inch Lift Kit For Chevrolet Silverado / GMC Sierra 1500 4WD | 2007-2013 | M1 Struts, M1 Rear Shocks
6 Inch Lift Kit For Chevrolet Silverado / GMC Sierra 1500 4WD | 2007-2013 | M1 Struts, M1 Rear Shocks | NOT fit 2007 Classic, Electric Steering & AWD Models Require Aftermarket Driveshaft
Description
Gain ride height at an incredible value with Rough Country's 6-inch Suspension Lift for 4WD '07 - '13 Chevy / GMC 1500 Pickups. This massive lift affords your truck the ability to run up to an impressive 295/60R-20 tire on factory wheels. Our beefy, 100% Laser-Cut lifted knuckles are designed to perfectly fit your vehicle. Includes a set of front and rear high-clearance cross members featuring the "RC" logo. This 6-inch Lift also comes with a set of durable, fabricated anti-wrap lift blocks that offer a huge boost while helping prevent axle wrap issues. Give your pickup a lifted and levelled stance easily, with no modification to the stock differential mounts, drivetrain or exhaust required to install! Includes Rough Country's Lifetime Replacement Warranty.
FEATURES
- Provides highly sought-level stance.
- High-clearance cross member design gives unmatched ground clearance.
- Requires no modification to the stock differential mounts, drivetrain or exhaust.
- 100% precision laser cut materials using the latest computer-aided design process.
- No need to disassemble your struts to install
- Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problems.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Includes application-valved N3 series shock absorbers that offer the best-balanced performance for on and off-road use.
OPTIONAL N3 LOADED STRUTS
- Maintains smooth, factory-like ride
- Increased ground clearance
- Nitrogen-charged
- Structurally engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty
OPTIONAL V2 MONOTUBE SHOCKS
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
NOTES - IMPORTANT
- Requires minor cutting and drilling.
- Does NOT fit 2007 "Classic" models.
- Does NOT fit models with electric steering.
- AWD models require a new aftermarket driveshaft SKU: 5083.1.
- 18" or larger wheels are required.
- Please view installation instructions for complete information on proper tire/wheel combinations.
SPECS
- Est. Install Time 8 - 10 hours
Vehicle Applications
2007 - 2013 GMC Sierra 1500
NOTES - IMPORTANT
Requires minor cutting and drilling.
Does NOT fit 2007 "Classic" models.
Does NOT fit models with electric steering.
AWD models will require driveline modifications.
(Must be converted to non-AWD).
18" or larger wheels are required.
Please view installation instructions for complete information on proper tire/wheel combinations.

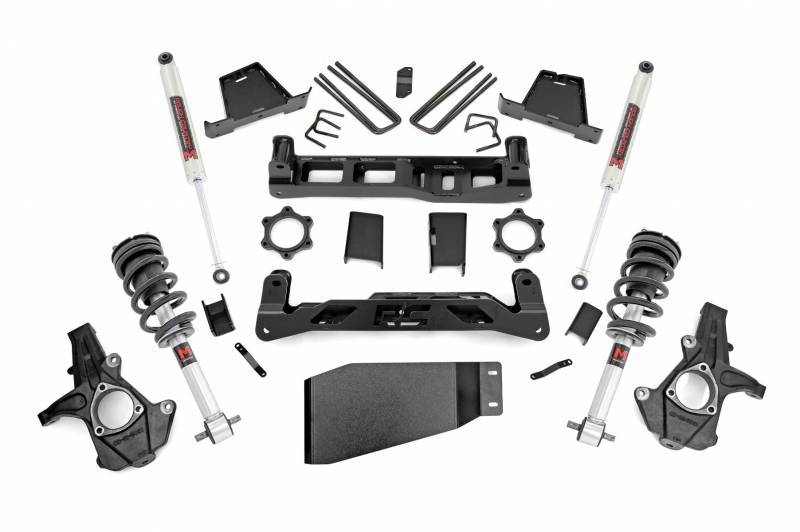

Components
Lifted knuckles
Front crossmember
Rear crossmember
Upper strut spacers
Brake line brackets
CV spacers
Differential drop brackets
Differential skid plate
Sway-bar drop brackets
Hardware
REAR
5.75" fabricated lift blocks
U-bolts
Hardware
SHOCKS
(2) Shocks
Tires & Wheels
35x12.50R18 18x8.5 6x5.5 +0 Minor Trimming
35x12.50R18 18x8.5 6x5.5 +1 Minor Trimming
35x12.50R18 18x9 6x5.5 +0 Minor Trimming
35x12.50R18 18x9 6x5.5 +1 Minor Trimming
35x12.50R18 18x9 6x5.5 +12 Minor Trimming
35x12.50R18 18x9 6x5.5 +18 Trimming Required
35x12.50R18 18x9 6x5.5 +19 Minor Trimming
35x12.50R18 18x9 6x5.5 +20 Trimming Required
35x12.50R20 20x9 6x5.5 +0 Minor Trimming
295/60R20 20x9 6x5.5 +0 -
35x12.50R20 20x9 6x5.5 +1 Minor Trimming
295/60R20 20x9 6x5.5 +1 -
35x12.50R20 20x9 6x5.5 +18 Minor Trimming
295/60R20 20x9 6x5.5 +18 -
35x12.50R20 20x9 6x5.5 +19 Minor Trimming
35x12.50R20 20x9 6x5.5 +20 Trimming Required
295/60R20 20x9 6x5.5 +20 Minor Trimming
35x12.50R20 20x10 6x5.5 -19 Minor Trimming
295/60R20 20x10 6x5.5 -19 Minor Trimming
35x12.50R20 20x10 6x5.5 -18 Minor Trimming
295/60R20 20x10 6x5.5 -18 Minor Trimming
35x12.50R22 22x10 6x5.5 -19 Minor Trimming
Details
- 23640
- 23640
- 840269917103
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
