This is a complete coil spring style suspension lift kit for the 2000-2002 Dodge Ram 2500/3500 4WD pickup
Provides 5” lift height
Includes replacement front link arms
Includes rear add-a-leafs and front and rear Fox Resi shock absorbers

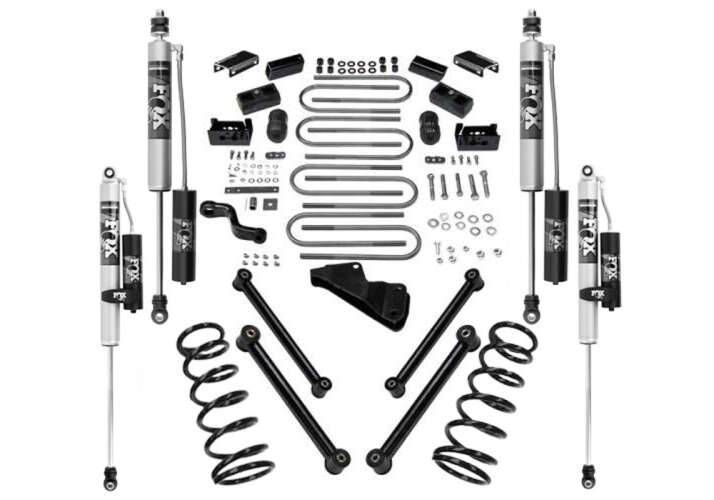

What does it include?
Front components: All brackets, shocks, coil springs, control arms, front track bar bracket, drop pitman arm, and all hardware required specific to the 2000-2002 Dodge Ram 2500/3500
Rear components: Shocks, add-a-leafs, degree shim and u-bolt kit
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
2000-2002 Ram 2500 | 3500 that provides 5 inches of lift height. This kit is available with either Superlift Shocks or Fox® Performance Series 2.0 IFP Shocks.
Front lift is via new, pre-set coil springs for Ram 2500 |3500. A drop pitman arm, for steering correction, works in concert with the track bar relocation bracket to ensure proper phasing. New Upper | Lower front axle-to-frame link arms restore factory alignment specifications. Front and rear suspension compression travel control is also addressed.
For rear lift, add-a-leafs are used in conjunction with blocks to strengthen the rear spring pack and control axle wrap. The lift kit is available with Superlift Shocks or Fox® Performance series 2.0 IFP Shocks.
Features | benefits:
Track bar relocation bracket prevents the steering wheel kick and stud bind
Fabricated Brackets constructed from .25” thick plate steel
Heavy-duty replacement upper and lower links maintain desired caster angle and feature greaseable Urethane Bushings
Front | Rear Compression travel stop brackets eliminate over-compression
Drop Pitman arm relieves drag link angle to prevent bump steer | wandering
Available in Superlift Shocks or Fox Performance Series 2.0 IFP Shocks (Front and Rear)
Add-a-leafs for rear
Aligns to OEM specifications
Backed by our Limited Lifetime Warranty
NOTES: (Additional Info)
Installation time: 7 hours
Difficulty level: 4 of 5
Minor cutting and/or welding required
Rear u-bolts fit vehicles with and without a top-mounted overload leaf. Those without overloads will have approximately 2” of excess u-bolt length that can be trimmed. Or for short u-bolts, refer to block chart and replace listed block kit with non-overload u-bolt application
2000-2002 Dodge Ram 2500 Pickup 4wd
2000-2002 Dodge Ram 3500 Pickup 4wd
