3030 | Superlift 4 Inch Rear Shackle Flip Kit (1973-1987 K10, K20 Pickup 4WD)

1973-1987 Chevrolet K10, K20 Pickup 4WD | 1973-1987 GMC K10, K20 Pickup 4WD

SKU: 3030

Pricing: $458.69

Description
Application List
Details
Shipping
Documents

Description

This is a rear shackle flip kit for 1973-1987 Chevy/GMC ½ and ¾ ton pickup 4WD, 1973-1991 Blazer/Jimmy/Suburban 4WD.
Give rear of vehicle 4” of lift.

What does it include?
Pair of shackle flip brackets with all hardware needed for installation.
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation.

Superlift's "flip kit" provides 4" of lift by converting the factory rear spring shackles from a tension style (pointing up) to a compression style (pointing down). This allows the custom builder to decrease block and/ or lift spring height for improved suspension flexibility.

The need to address pinion angle, via spring shims, varies depending on numerous factors.

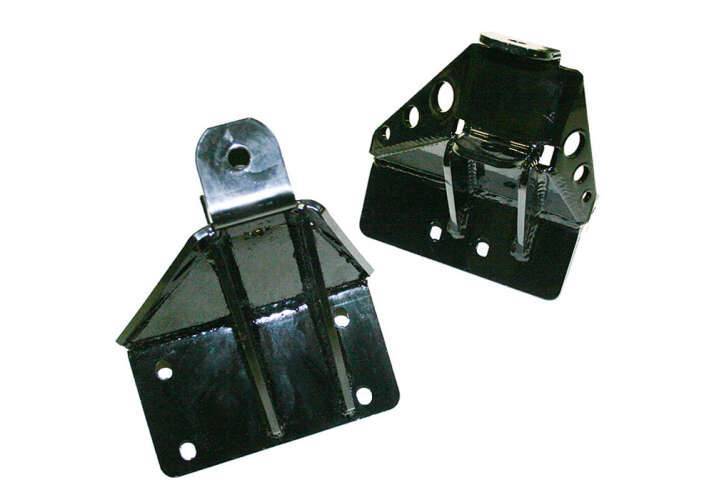

Kit includes a pair of new shackle hanger brackets, laser cut and constructed of .25" plate steel, and mounting hardware.

NOTE:
Installation time: 1 hour
Difficulty level: 1 of 5

will NOT work on a 1-ton frame.

Application List

1975-1986 Chevrolet K10
1973-1974 Chevrolet K10 Pickup
1975-1986 Chevrolet K20
1973-1974 Chevrolet K20 Pickup
1987 Chevrolet V10
1987 Chevrolet V20
1975-1978 GMC K15
1973-1974 GMC K15/K1500 Pickup
1979-1986 GMC K1500
1975-1978 GMC K25
1973-1974 GMC K25/K2500 Pickup
1979-1986 GMC K2500
1987 GMC V1500
1987 GMC V2500

Details

SKU: 3030
Item #: 3030
UPC #: 804260068332
Brand: SuperLift
Department: Suspension
Year Make Model: 1987 Chevrolet K-10 Pickup
Year Make Model: 1987 Chevrolet K-20 Pickup
Year Make Model: 1987 GMC K-10 Pickup
Year Make Model: 1987 GMC K-20 Pickup
Year Make Model: 1986 Chevrolet K-10 Pickup
Year Make Model: 1986 Chevrolet K-20 Pickup
Year Make Model: 1986 GMC K-10 Pickup
Year Make Model: 1986 GMC K-20 Pickup
Year Make Model: 1985 Chevrolet K-10 Pickup
Year Make Model: 1985 Chevrolet K-20 Pickup
Year Make Model: 1985 GMC K-10 Pickup
Year Make Model: 1985 GMC K-20 Pickup
Year Make Model: 1984 Chevrolet K-10 Pickup
Year Make Model: 1984 Chevrolet K-20 Pickup
Year Make Model: 1984 GMC K-10 Pickup
Year Make Model: 1984 GMC K-20 Pickup
Year Make Model: 1983 Chevrolet K-10 Pickup
Year Make Model: 1983 Chevrolet K-20 Pickup
Year Make Model: 1983 GMC K-10 Pickup
Year Make Model: 1983 GMC K-20 Pickup
Year Make Model: 1982 Chevrolet K-10 Pickup
Year Make Model: 1982 Chevrolet K-20 Pickup
Year Make Model: 1982 GMC K-10 Pickup
Year Make Model: 1982 GMC K-20 Pickup
Year Make Model: 1981 Chevrolet K-10 Pickup
Year Make Model: 1981 Chevrolet K-20 Pickup
Year Make Model: 1981 GMC K-10 Pickup
Year Make Model: 1981 GMC K-20 Pickup
Year Make Model: 1980 Chevrolet K-10 Pickup
Year Make Model: 1980 Chevrolet K-20 Pickup
Year Make Model: 1980 GMC K-10 Pickup
Year Make Model: 1980 GMC K-20 Pickup
Year Make Model: 1979 Chevrolet K-10 Pickup
Year Make Model: 1979 Chevrolet K-20 Pickup
Year Make Model: 1979 GMC K-10 Pickup
Year Make Model: 1979 GMC K-20 Pickup
Year Make Model: 1978 Chevrolet K-10 Pickup
Year Make Model: 1978 Chevrolet K-20 Pickup
Year Make Model: 1978 GMC K-10 Pickup
Year Make Model: 1978 GMC K-20 Pickup
Year Make Model: 1977 Chevrolet K-10 Pickup
Year Make Model: 1977 Chevrolet K-20 Pickup
Year Make Model: 1977 GMC K-10 Pickup
Year Make Model: 1977 GMC K-20 Pickup
Year Make Model: 1976 Chevrolet K-10 Pickup
Year Make Model: 1976 Chevrolet K-20 Pickup
Year Make Model: 1976 GMC K-10 Pickup
Year Make Model: 1976 GMC K-20 Pickup
Year Make Model: 1975 Chevrolet K-10 Pickup
Year Make Model: 1975 Chevrolet K-20 Pickup
Year Make Model: 1975 GMC K-10 Pickup
Year Make Model: 1975 GMC K-20 Pickup
Year Make Model: 1974 Chevrolet K-10 Pickup
Year Make Model: 1974 Chevrolet K-20 Pickup
Year Make Model: 1974 GMC K-10 Pickup
Year Make Model: 1974 GMC K-20 Pickup
Year Make Model: 1973 Chevrolet K-10 Pickup
Year Make Model: 1973 Chevrolet K-20 Pickup
Year Make Model: 1973 GMC K-10 Pickup
Year Make Model: 1973 GMC K-20 Pickup
Drivewheel: 4WD
Lift / Drop Height: 2.5-4.5 Inch*
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 27.0 lbs.
Package Dimensions: W12.0000” x H6.0000” x L20.0000”
Shipping: Free Ground Shipping | Exclusions Apply*

Documents

Instruction Manual
