510-P1213 | Cognito 3-Inch Ultimate Leveling Kit With Fox FRS 3.0 IBP Shocks (2019-2024 Silverado, Sierra 1500 2WD/4WD Includes AT4, AT4X, Trail Boss & ZR2)
2019-2024 Chevrolet Silverado 1500 2WD/4WD | 2019-2024 GMC Sierra 1500 2WD/4WD
Description

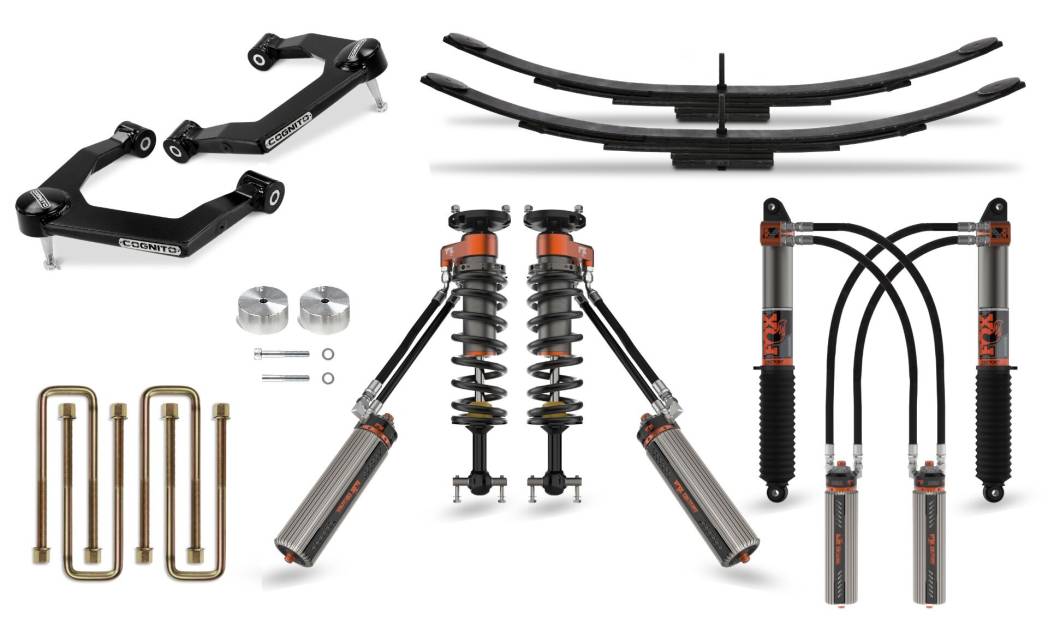

Cognito Ultimate Leveling Kit With Fox FRS 3.0 IBP Shocks 3-Inch 19-24 Silverado/Sierra 1500 & 1-Inch Including AT4, AT4X, Trail Boss, & ZR2 2WD/4WD
- Front lift 3” standard models, 1” AT4 and Trail Boss
- Cognito Ball Joint SM Series Upper Control Arm Kit
- Fox Factory Race Series 3.0 Internal Bypass Shocks with Recirculating Reservoirs
- Deaver mini packs, replace harsh stock overload and block (if equipped)
- Rear lift adjustable from 1-2” standard models, neg 1” -0” AT4/Trail Boss models
- Maintains proper droop travel to return optimal ride quality
- Fits 35x11.5” tire on 9” wide wheel with 5.75 in back spacing
- 7-hour DIY install time
- Made in the USA
Warning! This product requires bypassing the ARC Adaptive Ride Control system (1500 Denali models).
Warning! - Not compatible with trucks equipped with composite mono-leaf rear spring.
The Cognito Ultimate Leveling kit package is for those who have a large budget and want the absolute most flash and performance you can buy! This package includes everything needed to change the look, feel, and performance of your vehicle. For a standard model and Denali, this package will lift the front of the truck 3” and the rear lift is adjustable from 1”-2” depending on your taste in the trucks stance. If you have an AT4 or Trail Boss, you may already know that your truck is 2” taller front and rear than the standard model, so this package will lift the front 1”, and depending on your taste in stance you can set the rear to stay the same height or lower 1”, via the adjustability built into the mini-packs. Denali trucks, yes you have special stock shocks with Adaptive Ride Control (ARC), but we have you covered for that with an included hardware pack and instructions to easily bypass the ARC solenoids that connect to your stock shocks.
To properly level a truck and maintain the best ride possible, you must maintain a minimum of 3” of droop travel which Cognito does with its SM Series Upper Control Arm kit that has a corrected ball joint angle along with a high articulation joint. The Cognito control arm kit is a boxed sheet metal design, has maintenance free ball joints and pivot bushings, durable black powder coated finish, geometry to maximize performance, all pre-assembled and ready to bolt on. Along with the control arm kit, a proper length set of shocks is needed for that droop travel, and this package includes the no holds barred Fox Factory Race Series 3.0 Internal Bypass Shocks which have the recirculating reservoirs which help keep shock oil temperatures at bay, and they also feature Dual Speed Compression (DSC) adjusters. ‘But I don’t race my truck..’ you say, we understand but that is what these shocks are called because they have all of the Fox racing technology embedded in them, again these are for a large budget individual who just has to have the best you can buy.
The rear end of the truck will need to come up at minimum 1” to accommodate the longer rear shocks, and the height can come up to 2” or somewhere in between if you prefer, via the adjustable height Deaver mini packs that are included. Since The AT4 and Trail Boss models are already 2” taller, the stock overload spring will come out, as well as the stock 2” block and the 2” axle perch spacer for the bump stop. That will all get replaced with the included mini packs for a more plush ride on the bigger bumps, and the new 1.5” bump stop spacers in order to protect the shocks from bottom out. Longer u-bolts are included and round out the contents of the Ultimate Leveling kit.
Application List
2019-2023 GMC Sierra 1500 SLE
2022-2023 GMC Sierra 1500 Pro
2019-2023 GMC Sierra 1500 Elevation
2022-2023 GMC Sierra 1500 Denali Ultimate
2019-2023 GMC Sierra 1500 Denali
2022-2023 GMC Sierra 1500 AT4X
2019-2023 GMC Sierra 1500 AT4
2022-2023 Chevrolet Silverado 1500 ZR2
2019-2023 Chevrolet Silverado 1500 WT
2019-2023 Chevrolet Silverado 1500 RST
2019-2023 Chevrolet Silverado 1500 LTZ
2019-2023 Chevrolet Silverado 1500 LT Trail Boss
2019-2023 Chevrolet Silverado 1500 LT
2019-2023 Chevrolet Silverado 1500 High Country
2019-2023 Chevrolet Silverado 1500 Custom Trail Boss
2019-2023 Chevrolet Silverado 1500 Custom
2023 Chevrolet Silverado 1500 Base
2019-2021 GMC Sierra 1500 Base
Warning! This product requires bypassing ARC Adaptive Ride Control system (1500 Denali models).
Tires & Wheels
295/65R20 (35x11.8) on 9” wide wheel with 0 offset will require a lot of inner fender well trimming, +18mm offset less trimming negative offset not recommended.
35x12.5 on 9” wide wheel with +18mm offset will require a lot of inner fender well trimming, 0mm and negative offset not recommended.
295/60R20 (34x11.8) on 9” wide wheel with -12mm offset will require a lot of inner fender well trimming, 0 offset will require moderate inner fender well trimming, +18mm offset less trimming.
