BDS1520FPE | BDS Suspension 4 Inch Lift With Radius Arm Fox 2.5 Performance Elite Coil-over Conversion For Ford F-250 / F-350 Super Duty 4WD | 2017-2019 | Diesel, 5 Inch Block With 2 Leaf Main

4 Inch Lift With Radius Arm Fox 2.5 Performance Elite Coil-over Conversion For Ford F-250 / F-350 Super Duty 4WD | 2017-2019 | Diesel, 5 Inch Block With 2 Leaf Main

BDS1520FPE
Pricing: $7,234.34
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Built to outperform, upgrade your 2017-2019 Ford F250 and F350 Super Duty diesel powered truck with this 4-inch radius arm lift kit and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.

Features & Benefits

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Recommended Tires & Wheels

  • 37 x 12.5 with 17 x 9 and 5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5 in. Backspace

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Rear Lift Option

5 Inch Block

Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.

Leaf Springs

  • Reduces axle wrap and creates a more controlled and stable feel
  • Multi-leaf progressive design for smooth ride
  • Maintains factory payload weight ratings
  • Anti-friction pads provide a smooth and quiet ride

Important Notes

  1. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  2. 37 x 12.50 tires may require minor trimming.
  3. Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
  4. If your truck is equipped with a factory rear sway bar add: 123005

Installation

Est. Install Time :

4-5 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Cut-off Tool, Pitman Arm Puller

Specification

  • Front Lift Method : Coil-Over
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 4"
  • Rear Lift Height : 2"


Product Series

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2017FordF-250 Super DutyALL4WDDIESELALLALL
2017FordF-350 Super DutyKing Ranch4WDDIESELALLALL
2017FordF-350 Super DutyLariat4WDDIESELALLALL
2017FordF-350 Super DutyPlatinum4WDDIESELALLALL
2017FordF-350 Super DutyXL4WDDIESELALLALL
2017FordF-350 Super DutyXLT4WDDIESELALLALL
2018FordF-250 Super DutyALL4WDDIESELALLALL
2018FordF-350 Super DutyKing Ranch4WDDIESELALLALL
2018FordF-350 Super DutyLariat4WDDIESELALLALL
2018FordF-350 Super DutyLimited4WDDIESELALLALL
2018FordF-350 Super DutyPlatinum4WDDIESELALLALL
2018FordF-350 Super DutyXL4WDDIESELALLALL
2018FordF-350 Super DutyXLT4WDDIESELALLALL
2019FordF-250 Super DutyALL4WDDIESELALLALL
2019FordF-350 Super DutyKing Ranch4WDDIESELALLALL
2019FordF-350 Super DutyLariat4WDDIESELALLALL
2019FordF-350 Super DutyLimited4WDDIESELALLALL
2019FordF-350 Super DutyPlatinum4WDDIESELALLALL
2019FordF-350 Super DutyXL4WDDIESELALLALL
2019FordF-350 Super DutyXLT4WDDIESELALLALL
2020FordF-250 Super DutyALL4WDDIESELALLALL
2020FordF-350 Super DutyALL4WDDIESELALLALL
2021FordF-250 Super DutyALL4WDDIESELALLALL
2021FordF-350 Super DutyALL4WDDIESELALLALL
2022FordF-250 Super DutyALL4WDDIESELALLALL
2022FordF-350 Super DutyALL4WDDIESELALLALL

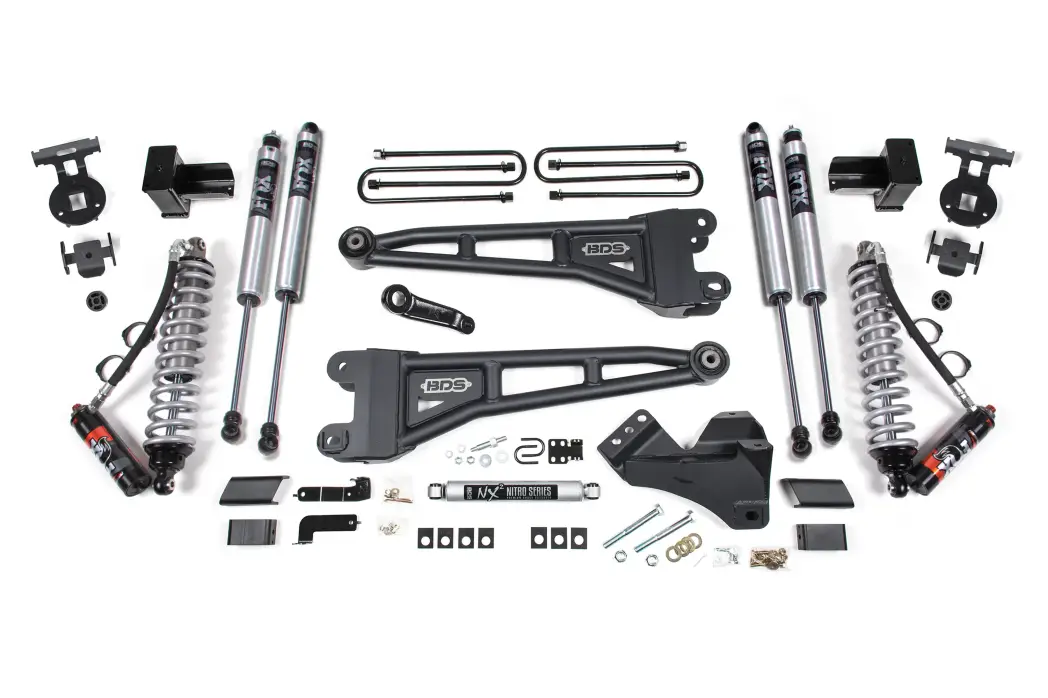

Components

1 BDS013414 2017-2023 Super Duty 4" Front Box Kit
1 BDS013517 2017-2019 F250 5" Rear Block Kit-2LeafMain
1 BDS123251 2005-2022 Ford F250/F350 Radius Arm Kit, Pair
1 BDS123613 2017-2022 Super Duty Coil-over Mount Kit
1 BDS85431 2017-2023 F250/F350 Single Stabilizer
1 FOX88406427 Kit: BDS 05-On Ford SD Front Coilover, 2.5 Truck PES, R/R 4" Lift, DSC
2 FOX98224700 Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
2 FOX98224718 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Tires & Wheels

37 x 12.5 with 17 x 9 and 5 in. Backspace
37 x 12.5 with 18 x 9 and 5 in. Backspace
37 x 12.5 with 20 x 9 and 5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
