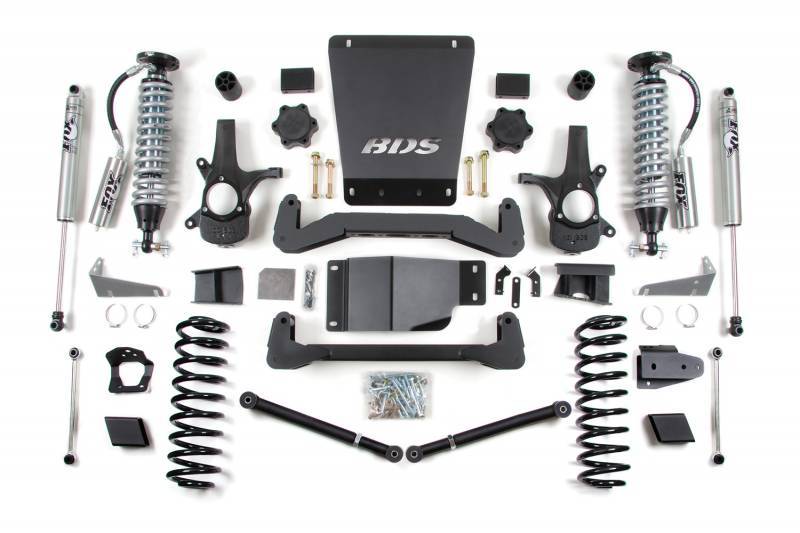

BDS178FDSC | BDS Suspension 6" Coil-over Lift Kit With Fox Shocks + DSC Adjuster For Chevrolet Avalanche/Suburban 1500, Tahoe / GMC Yukon, Yukon XL 1500 4WD | 2007-2014

Through a collaborative effort between BDS Suspension and Fox Racing, BDS now offers this 6" Chevy 1500 4WD suspension system featuring Fox 2.5" coil-over remote reservoir shocks. This system has been rigorously tested to maximize travel and performance on and off the pavement.

The unique BDS High Clearance design is a true blend of performance, appearance, and function.The suspension geometry of this 6" lift kit creates a factory-style ride with a desert racing appearance. The black powder-coated high-arched crossmembers blend perfectly with the angle of the factory-installed lower control arms for a completely integrated look while lifting your vehicle a full 6" and increasing ground clearance at the front crossmember by 91%.

This comprehensive IFS lift kit includes ductile steering knuckles correcting steering geometry to O.E. angles and BDS by Fox 2.5" remote reservoir coil-over shocks for maximum performance and killer looks. For those seeking additional coil-over compression tunability, Fox's DSC (dual speed compression) adjuster coil-overs are available as an upgrade (more DSC info below). A heavy-duty front differential skid plate is included for off-road protection as well as rear Fox 2.0 performance series gas shocks.

The rear lift kit includes new Pro-Ride coil springs for on-road ride quality as well as serious off-road performance, anti-sway bar links, track bar relocation system, and adjustable upper control arms allowing you to properly adjust pinion angle.

Tire & Wheel Combinations

• 33" x 12.50" w/17 x 8 and 4.5" back spacing
• 34" x 12.50 w/18 x 9 and 5" back spacing
• 35" x 12.50" w/20 x 9 and 5.75" back spacing
• *Trimming may be required*

Est. Installation:

• 8 hours

Difficulty Level (easy 1 - 5 complicated):

• 4

Important Kit Notes

• 1. Will not work with auto-ride equipped vehicles.
• 2. This system will only fit 2007 new body style.
• 3. Strut compressor required for installaion.
• 4. Minor premature engagement of the stabilitrak system may occur during certain driving manuevers.
• 5. Minor frame bracket modification and welding required.
• 6. 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
• 8. Add 121651 Auxillary Differential bracket for AWD models. Also may require front driveline modification.
