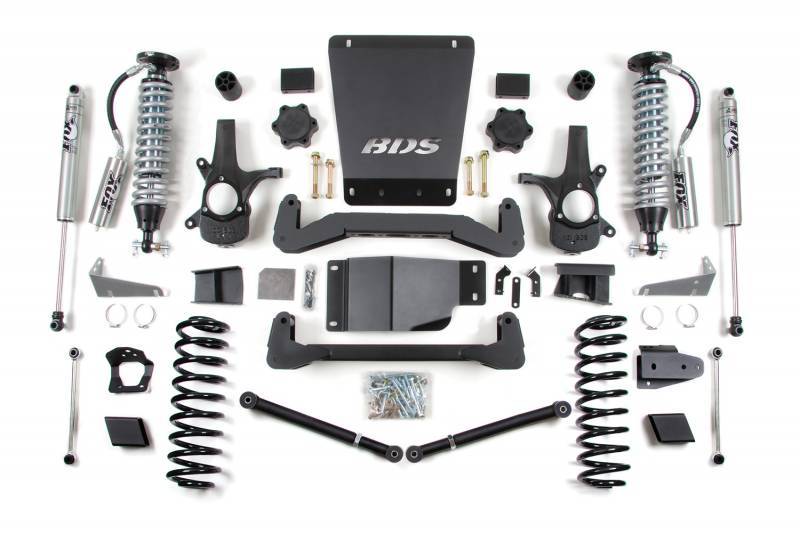

BDS178H | BDS Suspension 6" Lift Kit With BDS Struts For Chevrolet Avalanche/Suburban 1500, Tahoe / GMC Yukon, Yukon XL 1500 4WD | 2007-2014

The unique BDS High Clearance design is a true blend of performance, appearance, and function. The suspension geometry of this 6" lift kit creates a factory style ride with a desert racing appearance. The high arched crossmembers blend perfectly with the angle of the factory installed lower control arms for a completely integrated look while lifting your vehicle a full 6" and increasing ground clearance at the front crossmember by 91%.

This virtually indestructible 6" lift kit comes standard with shock absorbers, ductile steering knuckles correcting steering geometry to O.E. angles, custom valved front coil over strut cylinders with 18 mm shafts designed to handle increased tire & wheel weight without sacrificing ride quality. Heavy duty front and differential skid plates are also included for extreme off road protection.

Tire & Wheel Combinations

• 33" x 12.50" w/17 x 8 and 4.5" back spacing
• 34" x 12.50 w/18 x 9 and 5" back spacing
• 35" x 12.50" w/20 x 9 and 5.75" back spacing
• *Trimming may be required*

Est. Installation:

• 8 hours

Difficulty Level (easy 1 - 5 complicated):

• 4

Important Kit Notes

• 1. Will not work with auto-ride equipped vehicles.
• 2. This system will only fit 2007 new body style.
• 3. Strut compressor required for installaion.
• 4. Minor premature engagement of the stabilitrak system may occur during certain driving manuevers.
• 5. Minor frame bracket modification and welding required.
• 6. 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
• 8. Add 121651 Auxillary Differential bracket for AWD models. Also may require front driveline modification.
