CSK-G5-2 | CST Suspension 3.5 to 5.5 Inch Spindle Stage 2 Suspension System (2014-2018 Silverado, Sierra 1500 2WD | OE Cast Aluminum or Stamped Steel Control Arms)

PART# CSK-G5-2 IS A HIGH-CLEARANCE SPINDLE LIFT KIT THAT INCLUDES EVERYTHING NEEDED TO PROVIDE UP TO 5.5 INCHES OF LIFT TO THE FRONT & 3 INCHES IN THE REAR.
DESIGNED FOR THE 2014-18 GM 1500 2WD PICKUP, WITH THE Cast-Aluminum or Stamped Steel O.E. suspension.

THIS KIT ALLOWS THE INSTALLER THREE HEIGHT OPTIONS FOR ONE ECONOMIC PRICE.
SPINDLES ONLY 3.5” LIFT
SPINDLES AND 1” SPACERS FOR A 4.5” LIFT TO CLEAR 33” TIRES
SPINDLES AND TWO SPACERS FOR A 5.5” LIFT TO CLEAR 35” TIRES! (ON 8.5″ WIDE WHEELS)

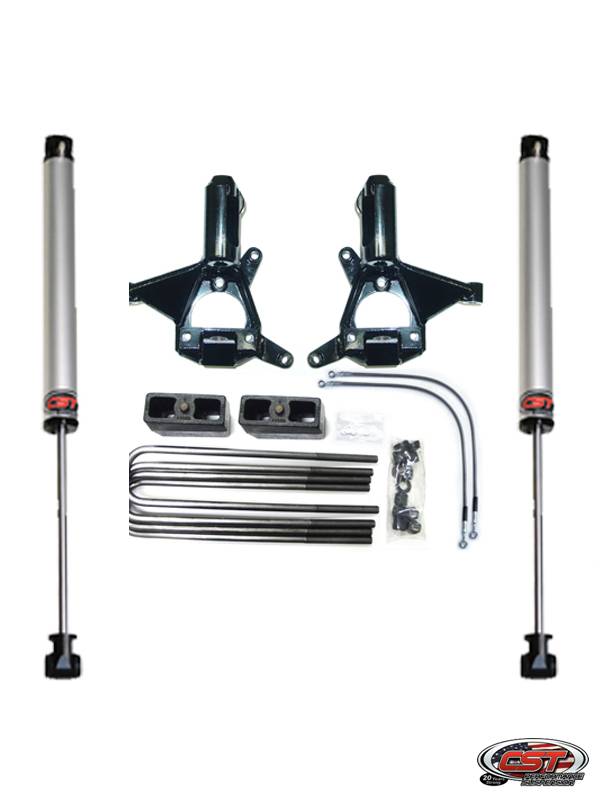

CSK-G5-2 KIT FEATURES
FABRICATED LIFT SPINDLES ARE CONSTRUCTED OF PRECISION LASER CUT 1/4″ (& THICKER) STEEL, CNC MACHINED BALL JOINT TAPERS, AND COMPLETELY MIG WELDED.
ENGINEERED, DESIGNED & FABRICATED IN HOUSE BY CST.
2 PAIRS OF SPACERS INCLUDED IN THIS KIT TO PROVIDE THREE LIFT HEIGHT OPTIONS.
STEEL BRAIDED D.O.T. APPROVED BRAKE LINES INCLUDED IN THE KIT.
O.E.M. HANDLING & RIDE QUALITY.
MINIMAL TRAC-WIDTH CHANGES.
HIGH GROUND CLEARANCE.
SELF CONTAINED KIT INCLUDES EVERYTHING NEEDED FOR 3.5-5.5″ LIFT (SHOCKS SOLD SEPARATE)
ALL MADE IN THE U.S.A.

SUGGESTED WHEEL & TIRE SIZES
32” x12.5” OR SIMILAR ON 8” WIDE WHEELS (3.5” LIFT)
33” x12.5” OR SIMILAR ON 9” WIDE WHEELS (4.5” LIFT)
315 / 70 / 17 ON 8 OR 9” WIDE WHEELS (5.5” LIFT)
35” X12.5” ON 8” WIDE WHEELS (TRIMMING REQUIRED / 5.5” LIFT)

ANYTHING LARGER, TALLER OR WIDER IS BEYOND CST RECOMMENDATIONS AND UP TO THE INSTALLER.
5″ MAXIMUM BACKSPACING
