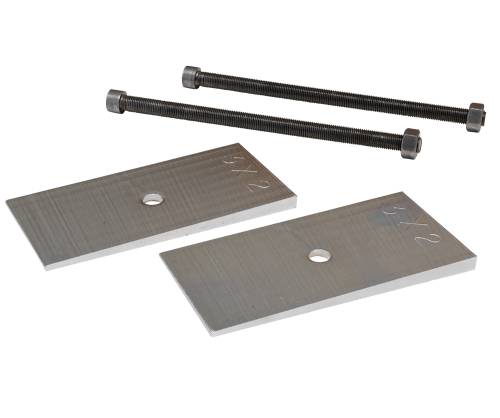

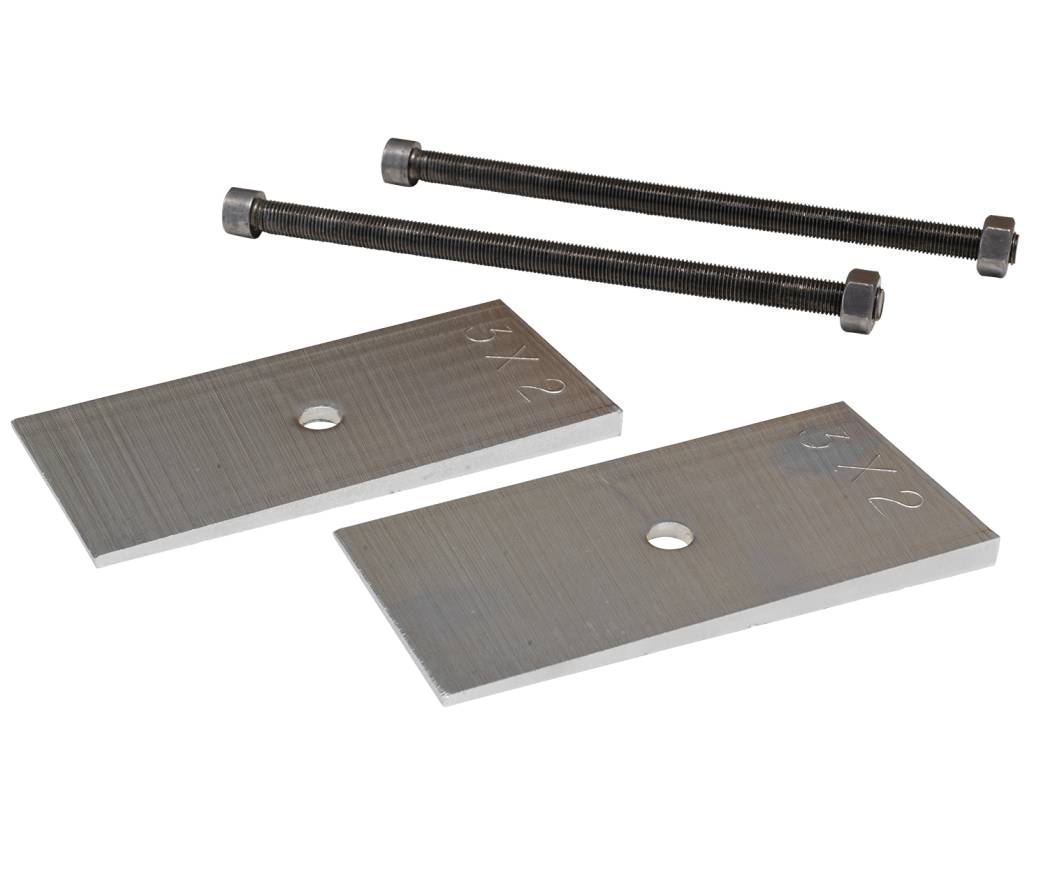

CS-FPSKIT-3X2 | Carli Suspension Pinion Shim Kit For Ford F-250/F-350 Super Duty 4WD | 2005-2023 | 2 Degree

Pinion Shim Kit For Ford F-250/F-350 Super Duty 4WD | 2005-2023 | 2 Degree

CS-FPSKIT-3X2
Pricing: $117.30
Qty:

Description

Ideal pinion angle is 1°-3° in stock applications; this is the guideline we’ve always used. We’ve had a few customers report a driveline vibration around 70mph when under power from the rear driveline. All have provided specs withing the 1°-3° range. We brought an affected vehicle into the shop and installed these 2° pinion shims which alleviated the issue.

The end pinion measurement on the two tested vehicles was 4° and 5°; both were perfectly smooth under power at all speeds. This caused us to toss the accepted 1°-3° spec out the window accepting the higher figure for lifted applications; after all, you can’t argue with results!

  • 2° Pinion Shim Kit
  • Includes new Center Pin

Application List

2005-2023 Ford F250/350 4×4

Details

Shipping Information

  • Item Requires Shipping
  • 4.0 lbs.
  • W3.0000” x H3.0000” x L9.0000”
