CSK-D12-1 | CST Suspension 3.5 Inch Stage 1 Suspension System (2009-2013 Ram 2500,3500 2WD)

THIS CST KIT CSK-D12-1 FOR THE 09-13 DODGE / RAM 2WD TRUCK WILL PROVIDE A LEVEL 3.5” LIFT. MEASURE THE VEHICLES STARTING HEIGHT, AS SOME TRUCKS MAY REQUIRE A TALLER REAR BLOCK KIT FOR A LEVEL STANCE. FRONT SHOCKS ARE NOT REQUIRED BUT THE REARS ARE OFFERED FOR THIS TRUCK TO IMPROVE OVERALL RIDE & PERFORMANCE.

Kit Features
DESIGNED TO FIT 33″ TIRES W/ 9″ WIDE WHEELS.
SPINDLES ARE CONSTRUCTED OF PRECISION LASER CUT ¼” OR BETTER STEEL.
MINIMAL TRAC WIDTH CHANGE, MAXIMUM GROUND CLEARANCE & STOCK RIDE!
3.5” FRONT LIFT AND 1” REAR.
MADE IN THE U.S.A.

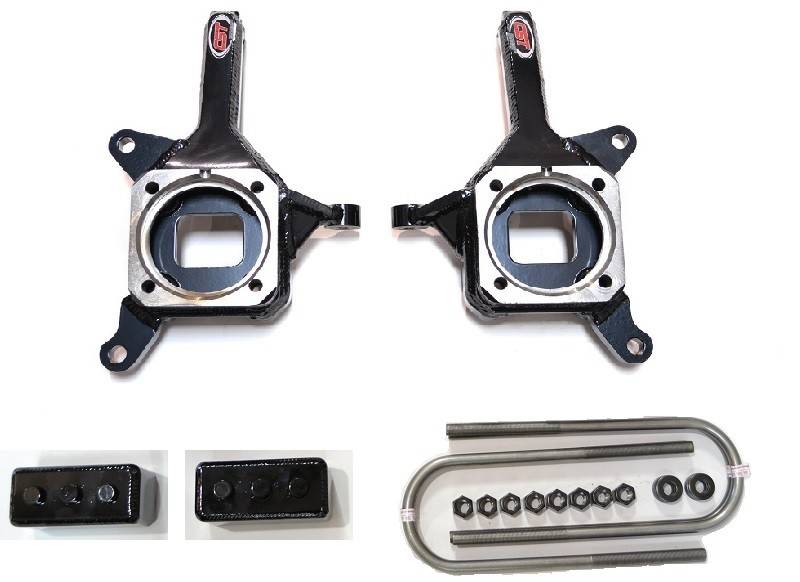

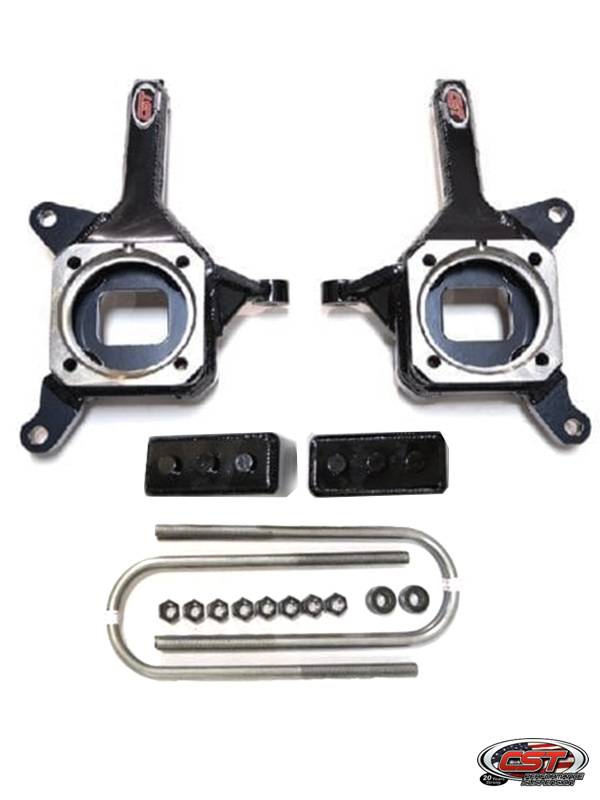

CSK-D12-1 STAGE 1 SUSPENSION BREAK DOWN

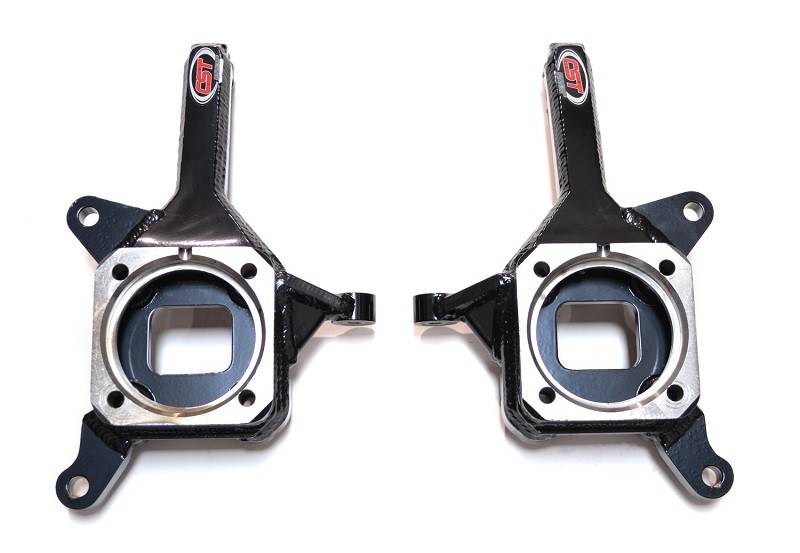

CSS-D1-4 | 3.5″ FABRICATED LIFT SPINDLE KIT
CSB-D14-1 | 1” FABRICATED LIFT BLOCKS (3 pin)
CSU-D15-1 | HEAVY DUTY PLATED U-BOLT KIT

Notes
KIT USES O.E.M. FRONT SHOCKS.
WHEELS CAN NOT HAVE MORE THAN 4.75″ BACKSPACING.
ALSO AVAILABLE WITH SPACERS AS A 6″ LIFT KIT.

Optional Kit Components
CSA-5533 / CST 2.0 REAR SHOCK (WITH 1″ REAR KIT) (SOLD EACH)

SUGGESTED WHEEL & TIRE SIZES
09-2013 Dodge RAM 2500
33” x12.5” OR SIMILAR ON 9” WIDE WHEELS (MINOR TRIMMING)
315 / 70 / 17 ON 8” WIDE WHEELS (MINOR TRIMMING)

ANYTHING LARGER, TALLER OR WIDER IS BEYOND CST RECOMMENDATIONS AND UP TO THE INSTALLER.
MAXIMUM BACKSPACING IS 4.75”
