CSK-D12-2 | CST Suspension 6 Inch Stage 1 Suspension System (2009-2013 Ram 2500, 3500 2WD)

THIS CST 6” KIT PART# CSK-D12-2 FOR THE 09-13 DODGE RAM 2WD TRUCK WILL PROVIDE A LEVEL 6” LIFT, WHILE RETAING THE STOCK RIDE, HANDLING & TOW RATING. FRONT SHOCKS ARE NOT REQUIRED, LONGER REAR SHOCKS ARE REQUIRED & OFFERED BY CST TO IMPROVE OVERALL RIDE & PERFORMANCE.

Kit Features
DESIGNED TO FIT 35″ TIRES W/ 9″ WIDE WHEELS.
CST SUPERIOR QUALITY FIT, FUNCTION, AND APPEARANCE
SPINDLES ARE CONSTRUCTED OF PRECISION LASER CUT ¼” OR BETTER STEEL
MINIMAL TRAC WIDTH CHANGE, MAXIMUM GROUND CLEARANCE & STOCK RIDE
6” FRONT / 3” REAR LIFT.
MADE IN THE U.S.A.

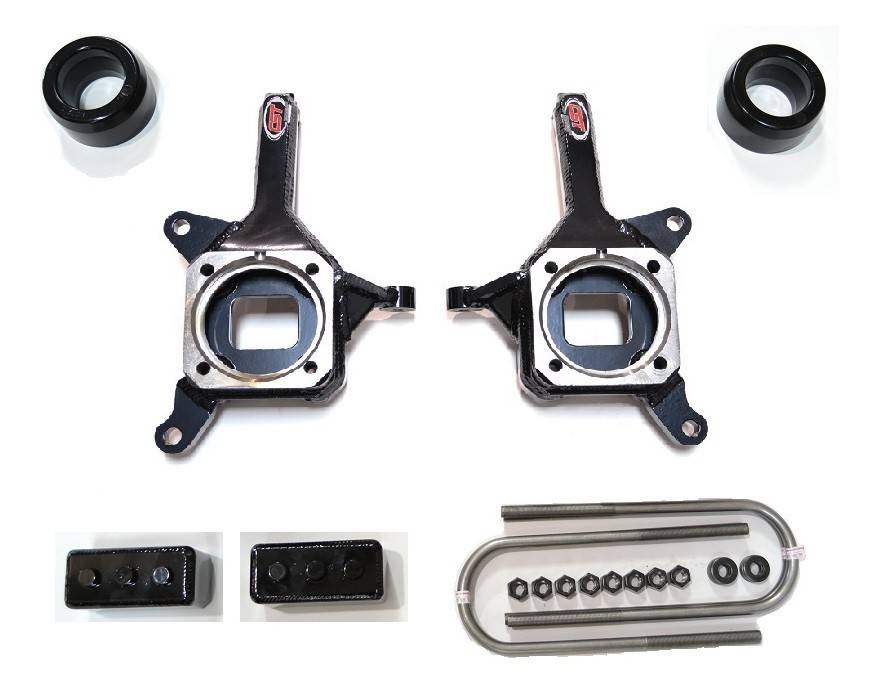

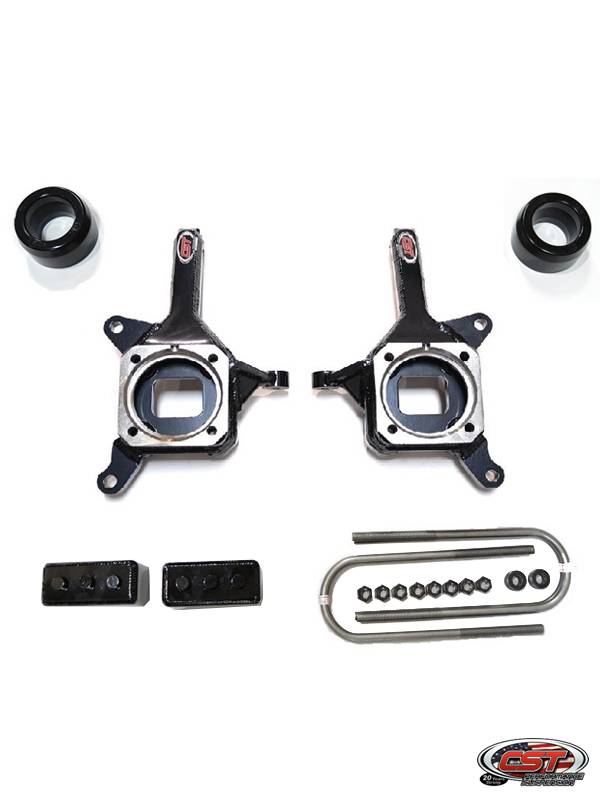

CSK-D12-2 STAGE 1 SUSPENSION BREAK DOWN

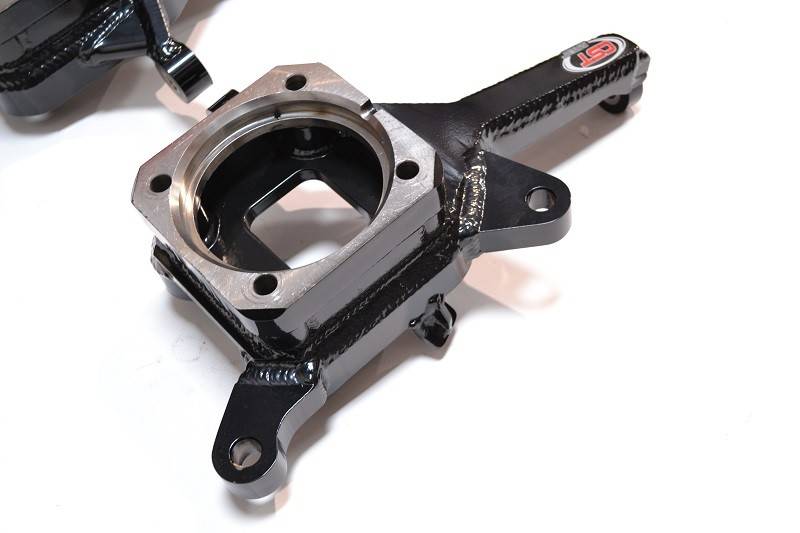

CSS-D1-4 | 3.5″ FABRICATED LIFT SPINDLE KIT
CSE-C16-4 | 2.5” URETHANE COIL SPACERS

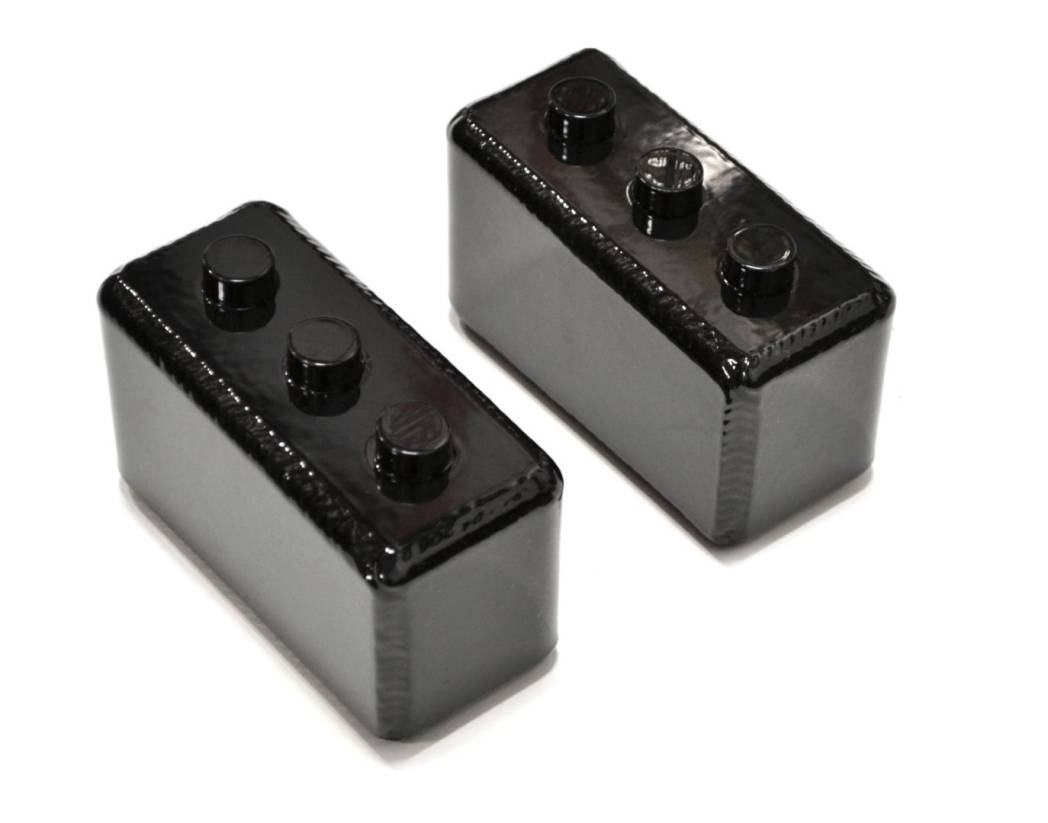

CSB-D14-3 | 3” FABRICATED LIFT BLOCKS (3 pin)
CSU-D15-2 | HEAVY DUTY PLATED U-BOLT KIT

Notes
KIT USES O.E.M. OR FACTORY LENGTH FRONT SHOCKS.
WHEELS CAN NOT HAVE MORE THAN A 4.75″ BACKSPACING.
3.5” LIFT KIT ALSO AVAILABLE.
APPROVED FOR GAS & DIESEL ENGINES.

Optional Kit Components
CSA-5526 | CST PERFORMANCE REAR SHOCK (USE WITH 3″ REAR KIT)

SUGGESTED WHEEL & TIRE SIZES
33” x12.5” OR SIMILAR ON 9” WIDE WHEELS (MINOR TRIMMING)
315 / 70 / 17 ON 8 OR 9” WIDE WHEELS
35” X12.5” OR 13” ON 8 OR 9” WIDE WHEELS (MINOR TRIMMING)

ANYTHING LARGER, TALLER OR WIDER IS BEYOND CST RECOMMENDATIONS AND UP TO THE INSTALLER.
MAXIMUM BACKSPACING IS 4.75”
