CSK-N2-2 | CST Suspension 4 Inch Stage 1 Suspension System (2005-2021 Frontier 2WD)

ONE OF THE NEWEST ADDITIONS TO THE CST PERFORMANCE SUSPENSION LINE OF FABRICATED LIFT SPINDLES, THIS KIT IS FOR THE 2005-2021 NISSAN FRONTIER 2WD.

PRECISE CNC MACHINED, HAND FABRICATED SPINDLES RESULT IN 4 INCHES OF LIFT FOR THE FRONT OF YOUR TRUCK. THIS SPINDLE LIFT KIT WILL PROVIDE ENOUGH CLEARANCE TO FIT A 32″ TIRES ON 8″ WIDE WHEELS WITH UP TO 5 INCHES OF BACK-SPACING WHILE KEEPING THE STOCK RIDE!

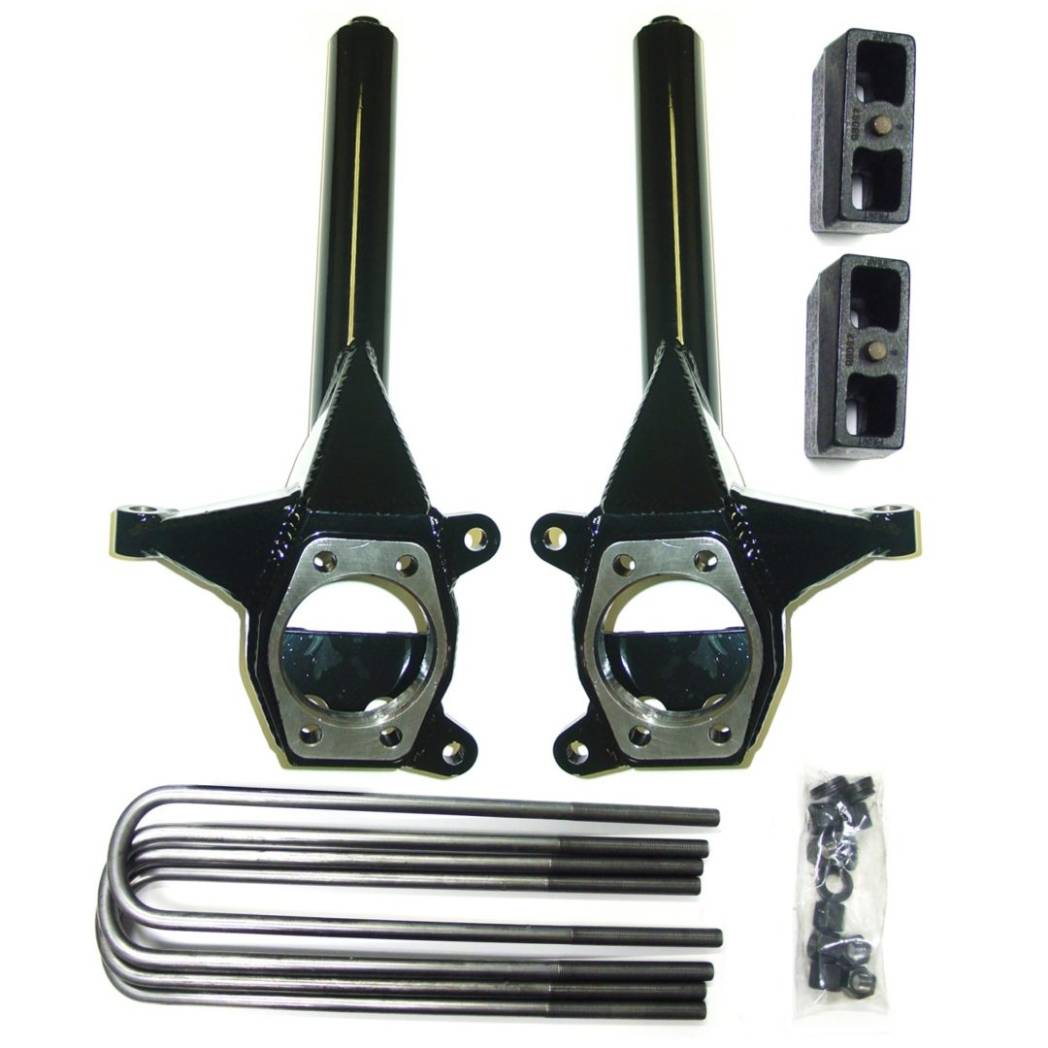

CSK-N2-2 STAGE 1 SUSPENSION INCLUDES

CSS-N1-2 | 4″ LIFT SPINDLE UPRIGHTS
CSB-C14-2 | 2″ LIFT BLOCK KIT
CSU-N15-8 | U-BOLT KIT W/ NUTS AND WASHERS

FEATURES
GRADE 8 INSTALL HARDWARE.
LIFT SPINDLES COVERED IN A HIGH QUALITY 2-STAGE GLOSS BLACK POWDER COAT FINISH.
ABILITY TO PUT TRUCK BACK TO STOCK.
SPINDLES ARE CONSTRUCTED OF PRECISION LASER CUT 1/4 STEEL, CNC MACHINED BALL JOINT TAPERS, AND COMPLETELY MIG WELDED.
FABRICATED REAR BLOCKS WITH ZINC-PLATED U-BOLTS.
FACTORY RIDE & HANDLING!
AFFORDABLE PRICE ON A QUALITY U.S. MADE FABRICATED LIFT SPINDLE KIT!

NOTES
4” FRONT / 2” REAR WILL PROVIDE A LEVEL STANCE ON MOST TRUCKS BUT YOU SHOULD ALWAYS MEASURE BEFORE ORDERING.
KIT REQUIRES A LONGER REAR SHOCK. 22.25 Extended – 13.9 Compressed, EYE to EYE Mounting.

SUGGESTED WHEEL & TIRE SIZES
32” x11” OR SIMILAR ON 8” WIDE WHEELS
285 / 70 / 17 ON 8 OR 9” WIDE WHEELS (MINOR TRIMMING)

ANYTHING LARGER, TALLER OR WIDER IS BEYOND CST RECOMMENDATIONS AND UP TO THE INSTALLER.
MAXIMUM BACKSPACING IS 5”
