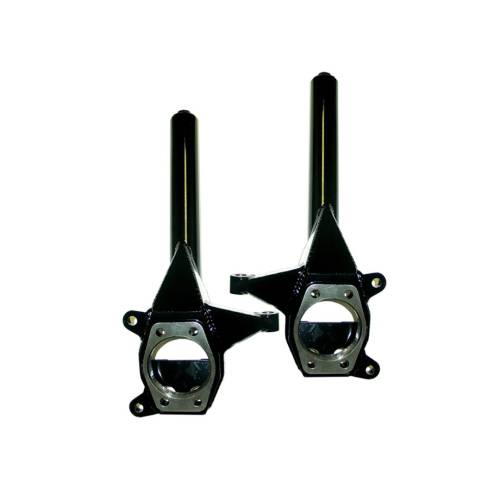

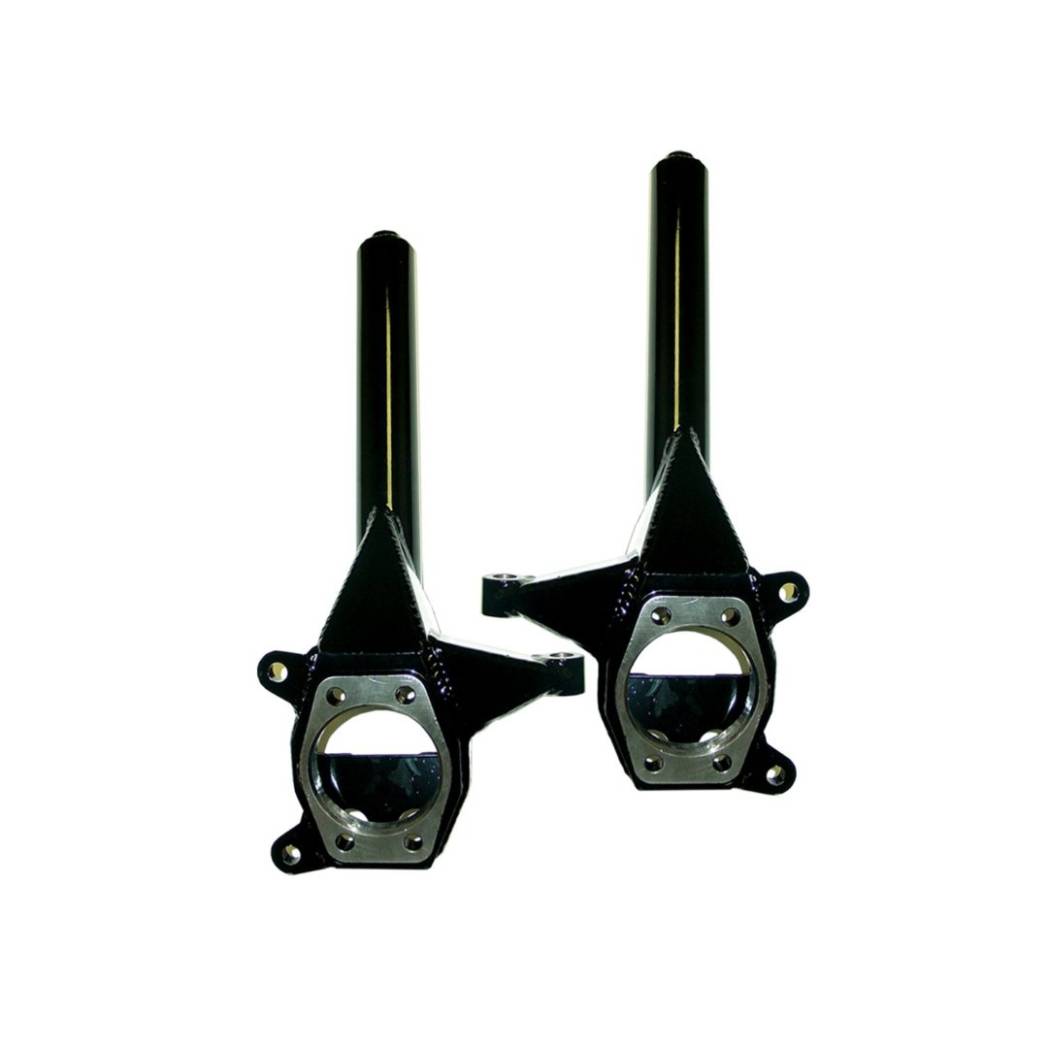

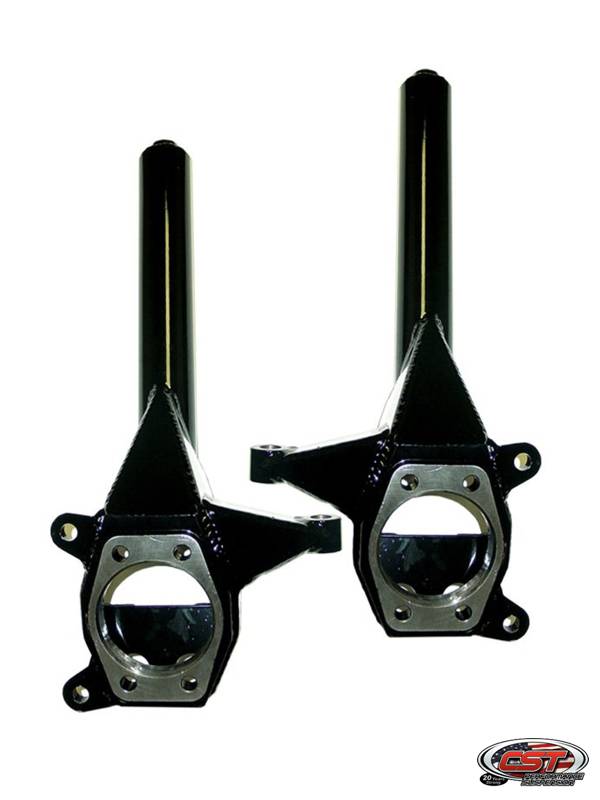

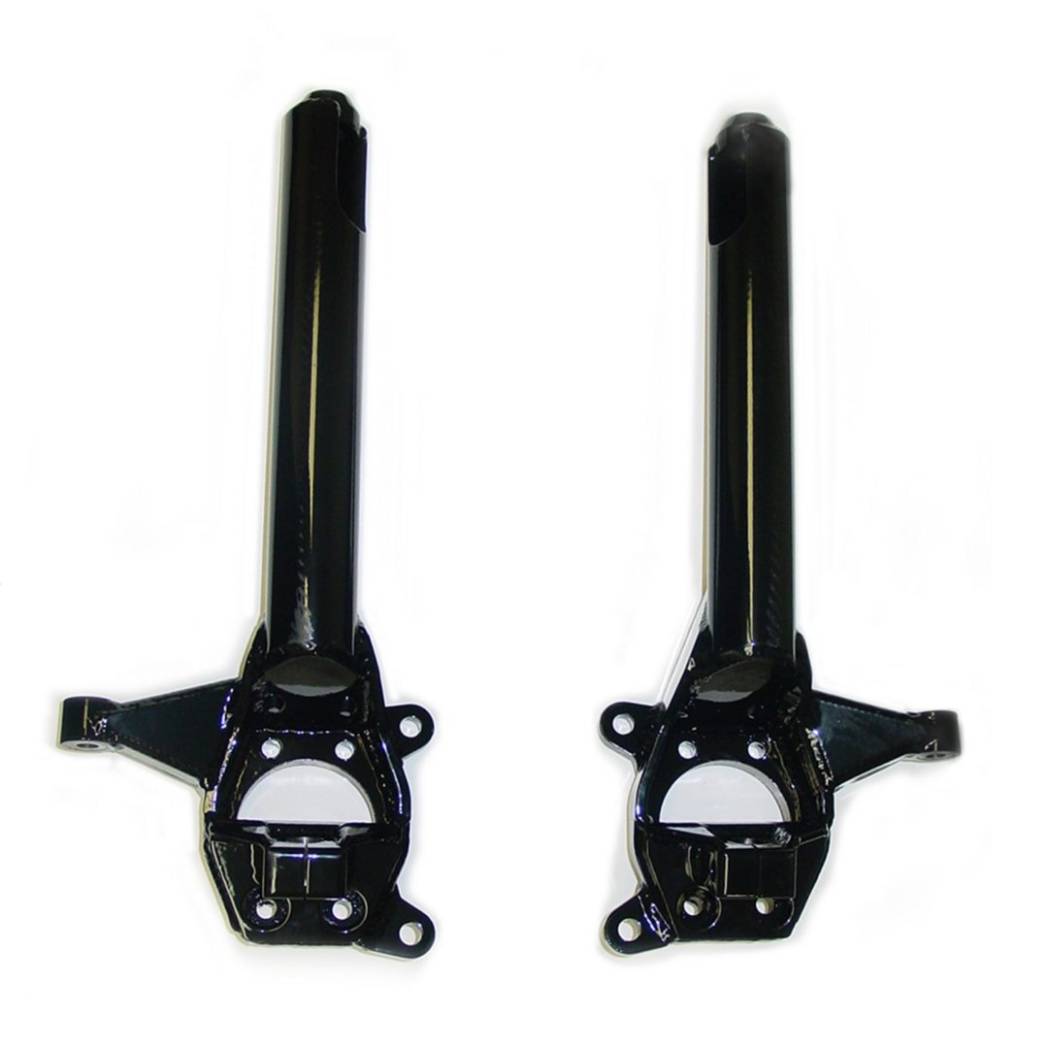

CSS-N1-2 | CST Suspension 4 Inch Fabricated Lift Spindle (2005-2021 Frontier 2WD)

PRECISE CNC MACHINED, HAND FABRICATED SPINDLES RESULT IN 4 INCHES OF LIFT FOR THE FRONT OF YOUR TRUCK. THIS SPINDLE LIFT KIT WILL PROVIDE ENOUGH CLEARANCE TO FIT 32″ TIRES ON AN 8″ WIDE WHEEL WITH UP TO 5 INCHES OF BACK-SPACING, WHILE KEEPING THE STOCK RIDE!

CSS-N1-2 LIFT SPINDLE FEATURES
GRADE 8 INSTALL HARDWARE.
LIFT SPINDLES COVERED IN A HIGH QUALITY 2-STAGE GLOSS BLACK POWDER COAT FINISH.
ABILITY TO PUT TRUCK BACK TO STOCK.
SPINDLES ARE CONSTRUCTED OF PRECISION LASER CUT 1/4 OR THICKER STEEL, CNC MACHINED BALL JOINT TAPERS, AND COMPLETELY MIG WELDED.
FACTORY RIDE & HANDLING!
DESIGNED TO FIT 32″ TIRES w/ 8-8.5″ WIDE WHEELS. (5″ MAX BACK-SPACING)
AFFORDABLE PRICE ON A QUALITY, U.S. MADE FABRICATED LIFT SPINDLE KIT!

NOTES
ADDITIONAL PARTS REQUIRED FOR LEVEL STANCE.
2WD ONLY*
SHOCKS SOLD SEPARATE*

SUGGESTED WHEEL & TIRE SIZES
2005-2019 NISSAN FRONTIER 2WD W/ 4″ CST LIFT SPINDLES
32” x11” OR SIMILAR ON 8” WIDE WHEELS
285 / 70 / 17 ON 8 OR 9” WIDE WHEELS (MINOR TRIMMING)

ANYTHING LARGER, TALLER OR WIDER IS BEYOND CST RECOMMENDATIONS AND UP TO THE INSTALLER.
MAXIMUM BACKSPACING IS 5”
