41540 | Rough Country 5 Inch Lift Kit M1R Reservoir Struts (2021-2024 Bronco 4WD)
2021-2024 Ford Bronco 4WD | Does NOT Fit with HOSS 3.0 or 4.0 Suspension System
Description
5 Inch Lift Kit | M1R Monotube Struts | Ford Bronco 4WD (2021-2024)

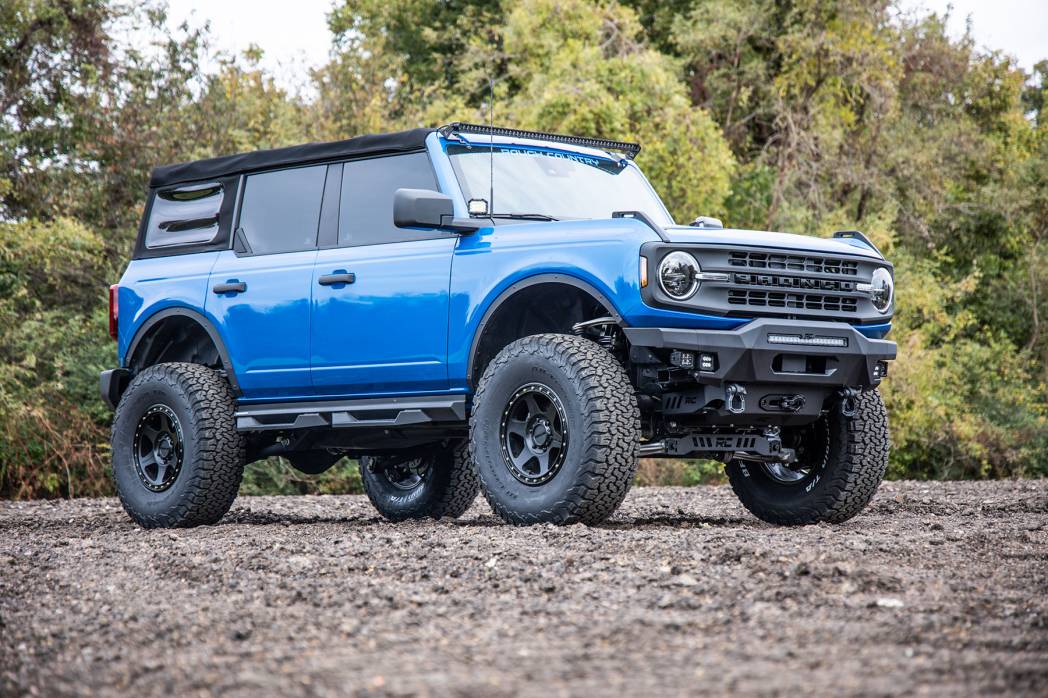

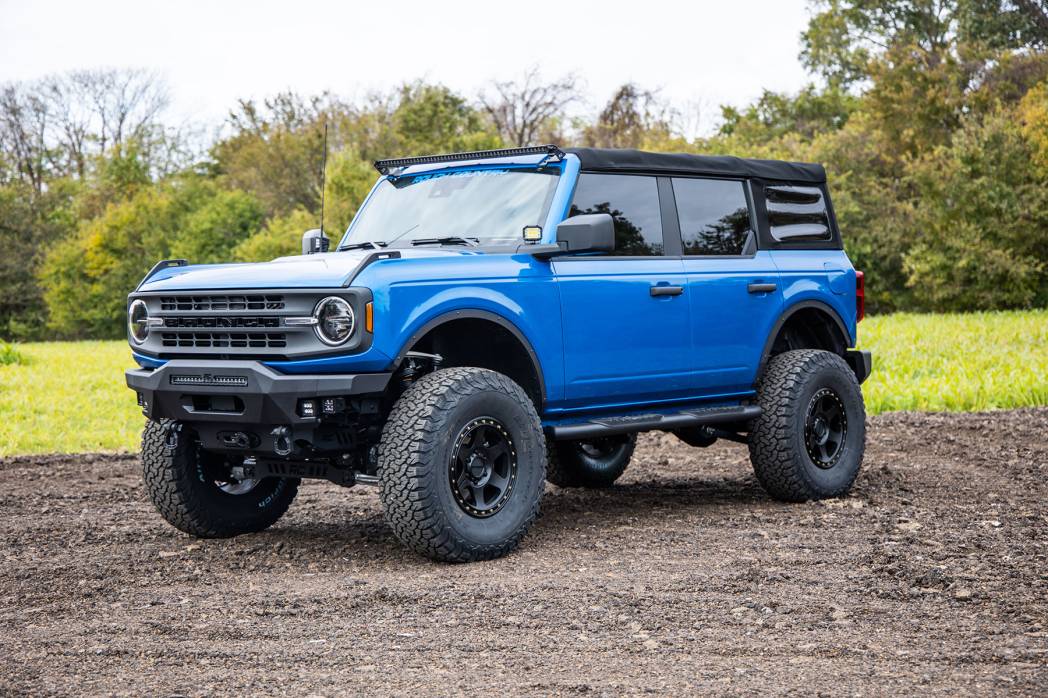

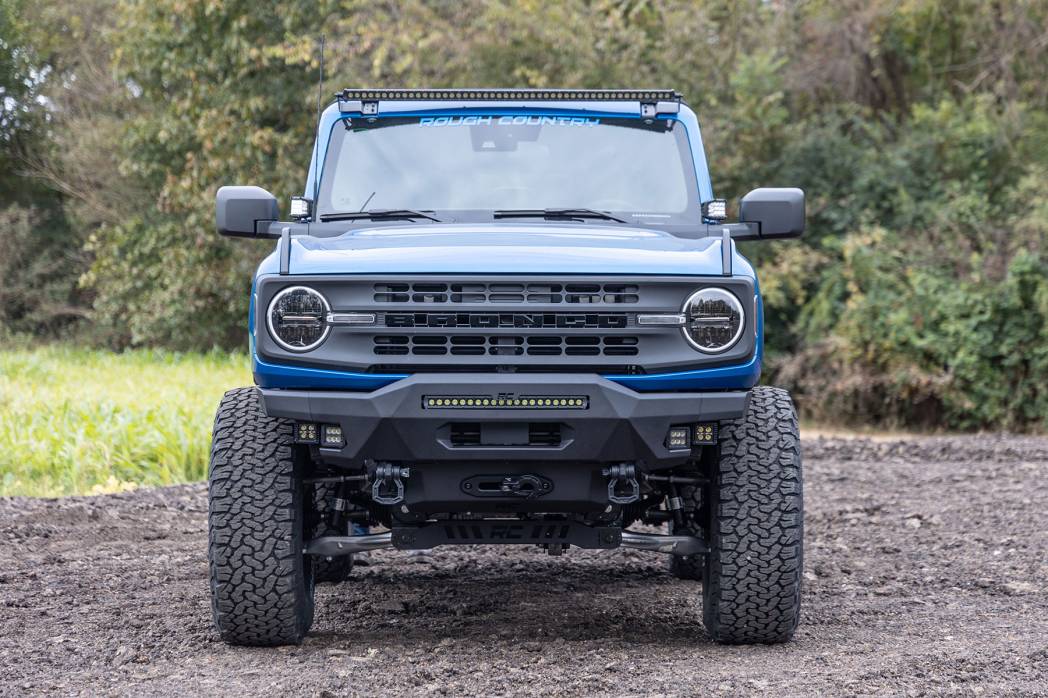

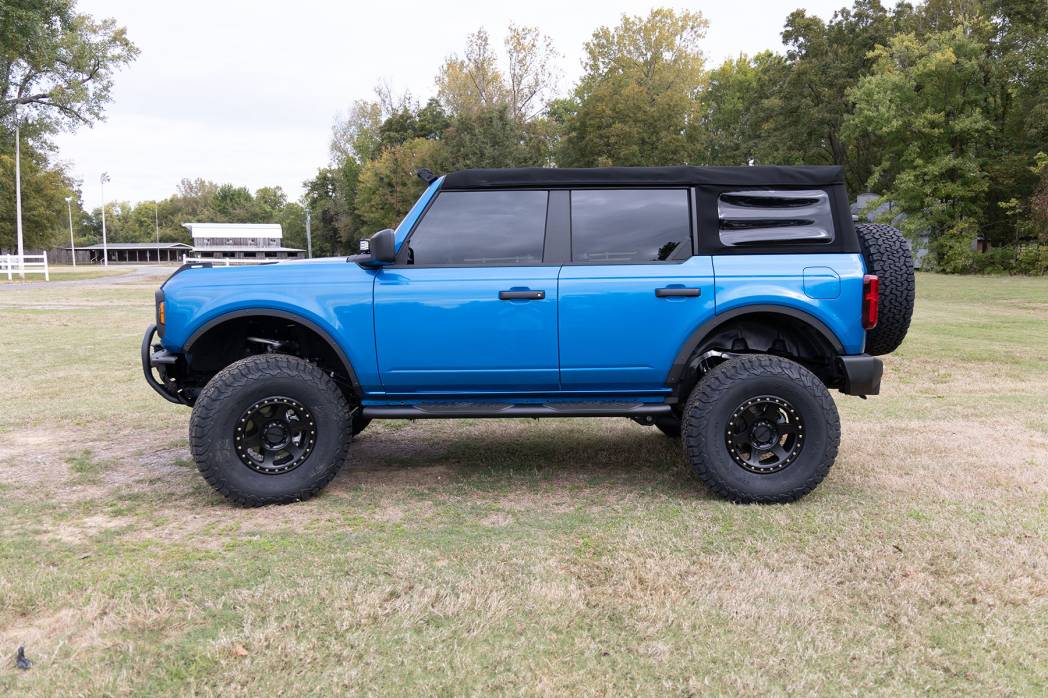

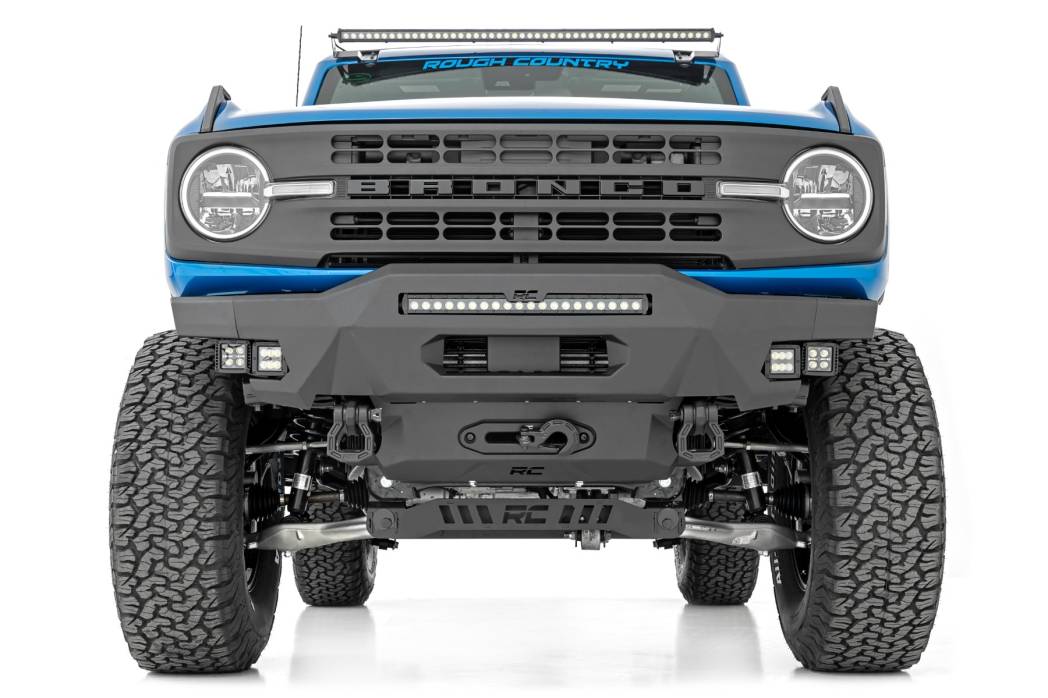

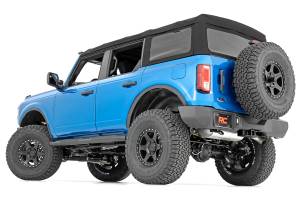

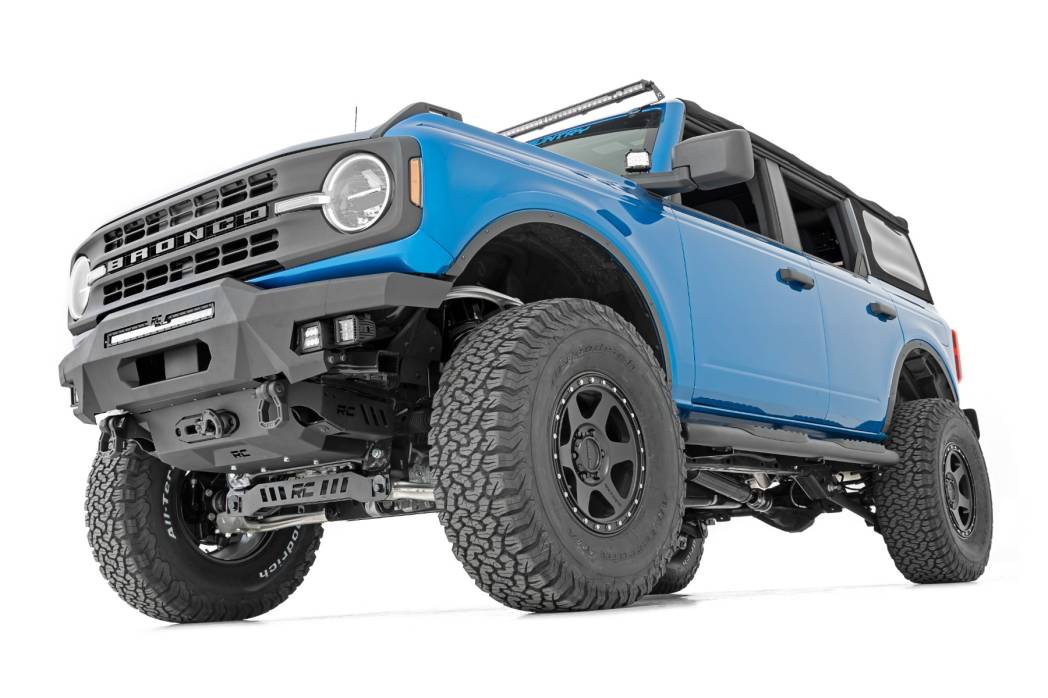

Improved Ground Clearance and Ride Quality. The Ford Bronco is back and better than ever! Rough Country has hit the ground running to give your Ford Bronco an improved, aggressive stance with a 5-inch lift kit! This suspension kit provides everything needed to lift your vehicle, giving you increased ground clearance to run larger tires while reducing the nose-down factory look for a commanding presence.
Innovative Design and Construction. This suspension kit combines the use of durable steel knuckles, differential brackets, and drop cross members to reduce cv angles and simulate factory angles all while achieving new heights. Featuring a set of upper strut spacers that offer uncompromised strength and rigidity, gaining lift height is no issue. Completing the rear of this suspension kit included is a rear track bar and brake line relocation brackets that allow you to retain factory-like geometry. This combined setup provides enough clearance to run 35" tires without additional modifications.
Installation. With minor cutting and a strut compressor required to install, an estimated timeframe of 6-8 hours is recommended to complete this full installation. This full kit can be installed at home and can be completed efficiently and quickly!
Limited Lifetime Replacement Warranty. Rough Country's 5" Suspension Lift Kit is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty give yourself peace of mind when using Rough Country's Suspension products!
Features
- Increased ground clearance.
- Aggressive, good looks.
- Levels the front with the rear.
- Allows use of factory capable bead lock wheel. (17x8.5 | +30 offset)
Notes - Important
- Does NOT fit factory 17x8 wheel with a +55 offset.
- Does NOT work with factory skid plate.
- Does NOT fit models equipped with HOSS 3.0 or 4.0 suspension system.
- Vertex/M1R kit does fit Badlands, Wildtrack, and First Edition models.
Application List
2021-2024 Ford Bronco Big Bend 4WD
2021-2024 Ford Bronco Black Diamond 4WD
2022-2024 Ford Bronco Everglades 4WD
2023-2024 Ford Bronco Heritage Edition
2023-2024 Ford Bronco Heritage Limited Edition 4WD
2021-2024 Ford Bronco Outer Banks 4WD
2021-2024 Ford Bronco Wildtrak 4WD
2021-2023 Ford Bronco Base 4WD
2021-2021 Ford Bronco First Edition 4WD

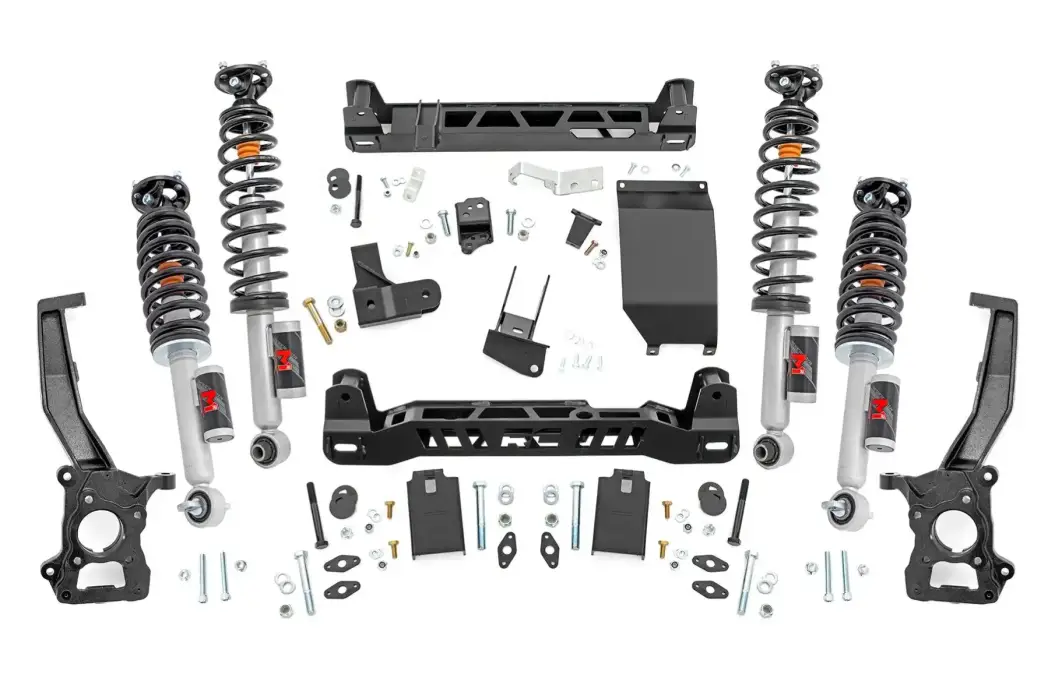

Components
M1R Reservoir Struts
Lifted Knuckles
Crossmember
Skid Plate
Differential Drop Brackets
Driveshaft Spacer
Hardware
Rear
M1R Reservoir Struts
Track Bar Bracket
Brake Line Relocation Bracket
Hardware
Tires & Wheels
Tire | Wheel | Bolt Pattern | Offset | Note |
---|---|---|---|---|
37x12.50R17 | 17x9 | 6x5.5 | -12 | - |
35x12.50R17 | 17x9 | 6x5.5 | -12 | - |
37x12.50R17 | 17x9 | 6x5.5 | +0 | - |
35x12.50R17 | 17x9 | 6x5.5 | +0 | - |
37x12.50R17 | 17x9 | 6x5.5 | +1 | - |
35x12.50R17 | 17x9 | 6x5.5 | +1 | - |
37x12.50R17 | 17x9 | 6x5.5 | +18 | - |
35x12.50R17 | 17x9 | 6x5.5 | +18 | - |
37x12.50R17 | 17x9 | 6x5.5 | +20 | - |
35x12.50R17 | 17x9 | 6x5.5 | +20 | - |
37x12.50R18 | 18x9 | 6x5.5 | -12 | - |
35x12.50R18 | 18x9 | 6x5.5 | -12 | - |
37x12.50R18 | 18x9 | 6x5.5 | +0 | - |
35x12.50R18 | 18x9 | 6x5.5 | +0 | - |
37x12.50R18 | 18x9 | 6x5.5 | +1 | - |
35x12.50R18 | 18x9 | 6x5.5 | +1 | - |
37x12.50R18 | 18x9 | 6x5.5 | +18 | - |
35x12.50R18 | 18x9 | 6x5.5 | +18 | - |
37x12.50R18 | 18x9 | 6x5.5 | +20 | - |
35x12.50R18 | 18x9 | 6x5.5 | +20 | - |
35x12.50R18 | 18x10 | 6x5.5 | -25 | - |
35x12.50R18 | 18x10 | 6x5.5 | -19 | - |
35x12.50R18 | 18x10 | 6x5.5 | -18 | - |
37x12.50R20 | 20x9 | 6x5.5 | -12 | - |
35x12.50R20 | 20x9 | 6x5.5 | -12 | - |
37x12.50R20 | 20x9 | 6x5.5 | +0 | - |
35x12.50R20 | 20x9 | 6x5.5 | +0 | - |
37x12.50R20 | 20x9 | 6x5.5 | +1 | - |
35x12.50R20 | 20x9 | 6x5.5 | +1 | - |
37x12.50R20 | 20x9 | 6x5.5 | +18 | - |
35x12.50R20 | 20x9 | 6x5.5 | +18 | - |
37x12.50R20 | 20x9 | 6x5.5 | +20 | - |
35x12.50R20 | 20x9 | 6x5.5 | +20 | - |
37x12.50R20 | 20x10 | 6x5.5 | -25 | Minor Trimming |
35x12.50R20 | 20x10 | 6x5.5 | -25 | Minor Trimming |
37x12.50R20 | 20x10 | 6x5.5 | -19 | Minor Trimming |
35x12.50R20 | 20x10 | 6x5.5 | -19 | Minor Trimming |
37x12.50R20 | 20x10 | 6x5.5 | -18 | Minor Trimming |
35x12.50R20 | 20x10 | 6x5.5 | -18 | Minor Trimming |
37x12.50R20 | 20x12 | 6x5.5 | -44 | Trimming Required |
35x12.50R20 | 20x12 | 6x5.5 | -44 | Trimming Required |
35x12.50R22 | 22x10 | 6x5.5 | -25 | Minor Trimming |
35x12.50R22 | 22x10 | 6x5.5 | -19 | Minor Trimming |
35x12.50R22 | 22x10 | 6x5.5 | -18 | Minor Trimming |
35x12.50R22 | 22x12 | 6x5.5 | -44 | Trimming Required |
Details
- 41540
- 41540
- 840269939464
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
