CS-FLVL-COM-CS-05 | Carli Suspension Carli Spec 2.0" IFP Front & Rear 2.5" Lift Commuter System For Ford F-250/F-350 4WD | 2005-2007 | Diesel

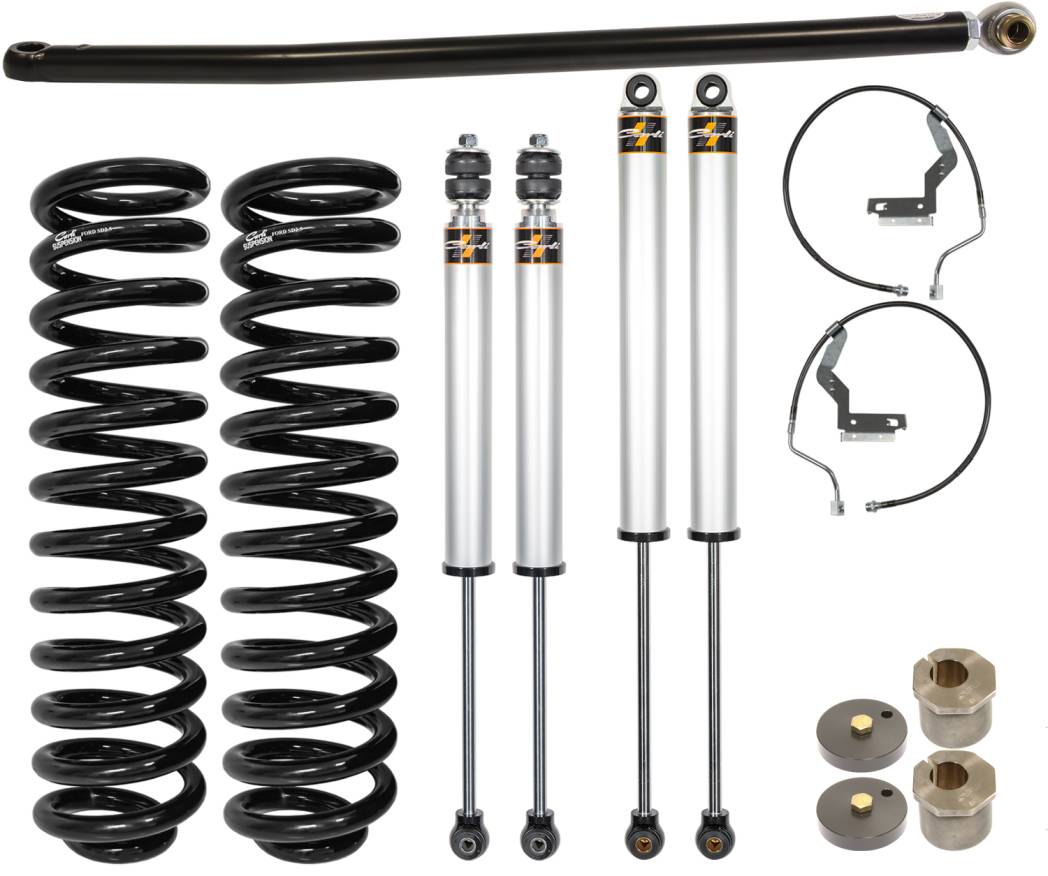

The Super Duty Commuter 2.0 system is designed for people seeking the best on-road ride quality that don’t plan to off-road their vehicle beyond low-speed trail driving. Utilizing Carli SPEC 2.0″ Diameter, Internal Reservoir shocks, we’ve developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling.

Lift Height: 2.5″ / Front Travel: 9″ /  Rear Travel: 13″ / Shock Type: 2″ Internal Reservoir / Tire Fitment: 37″ x 12.5″

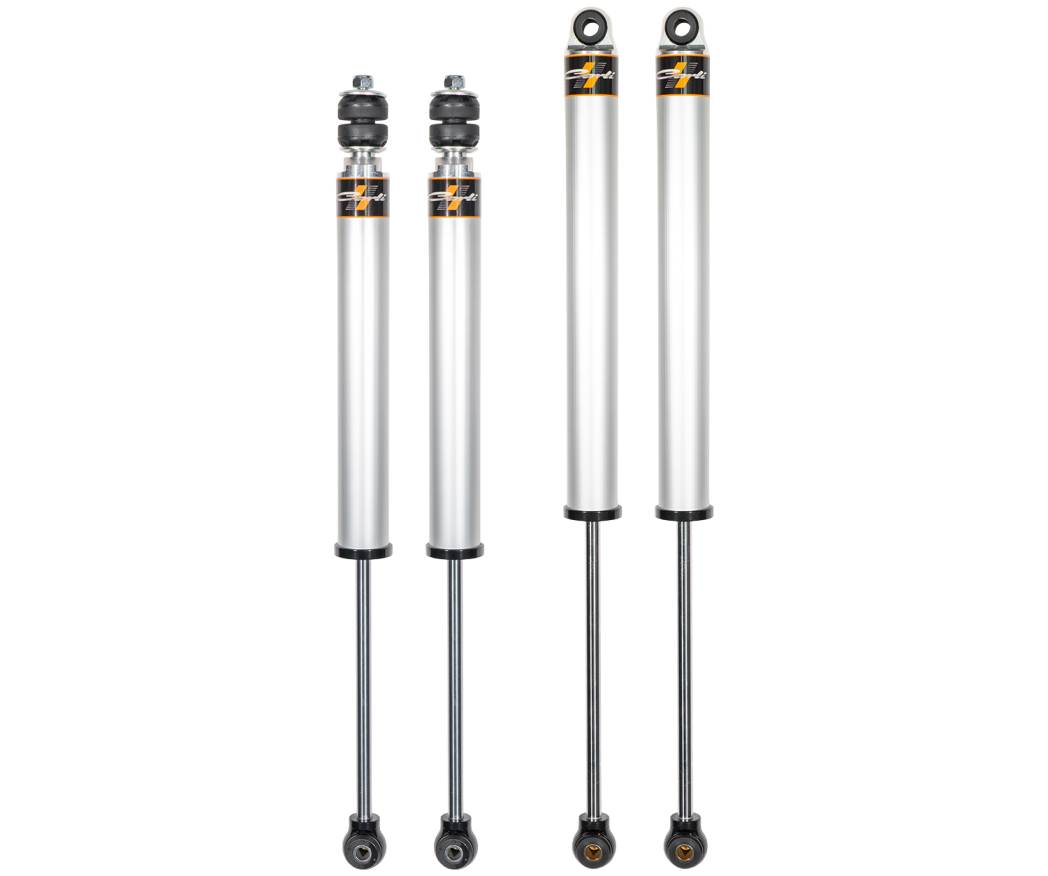

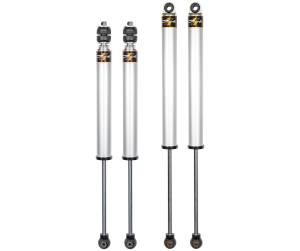

The mono-tube, internal reservoir, Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. We back these with a 1-year warranty, serviced by Carli.

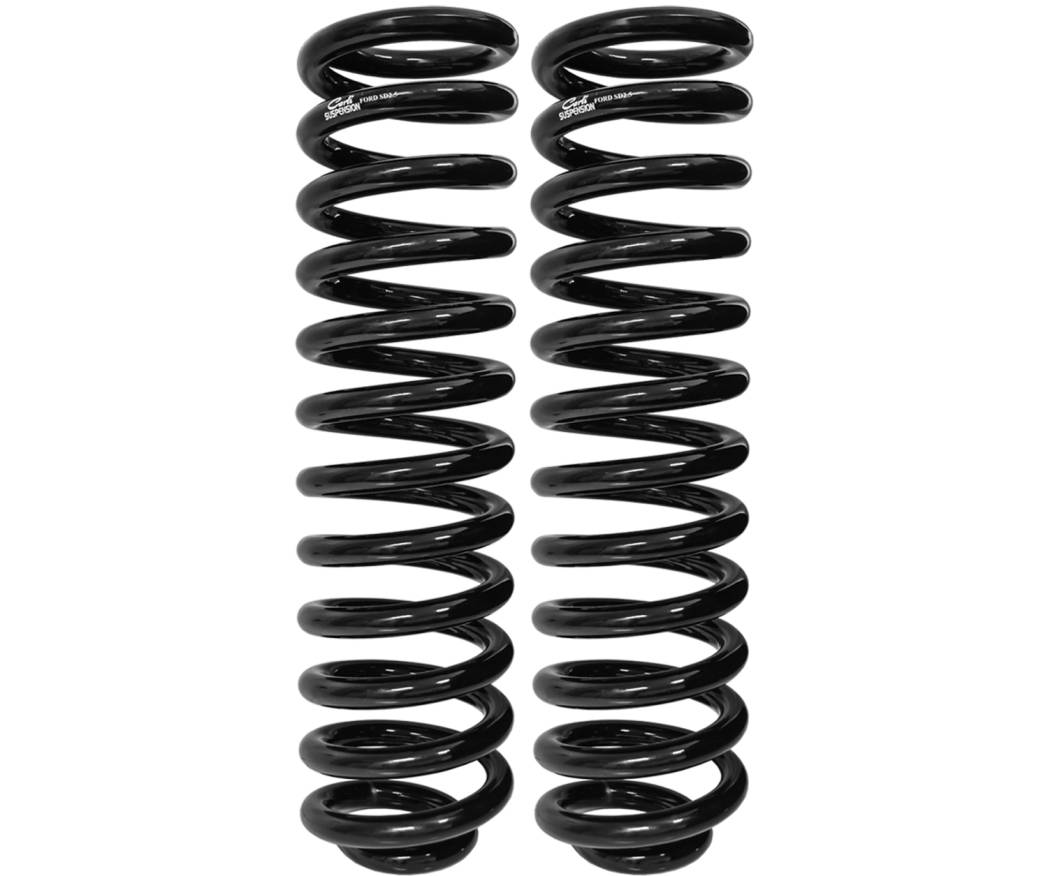

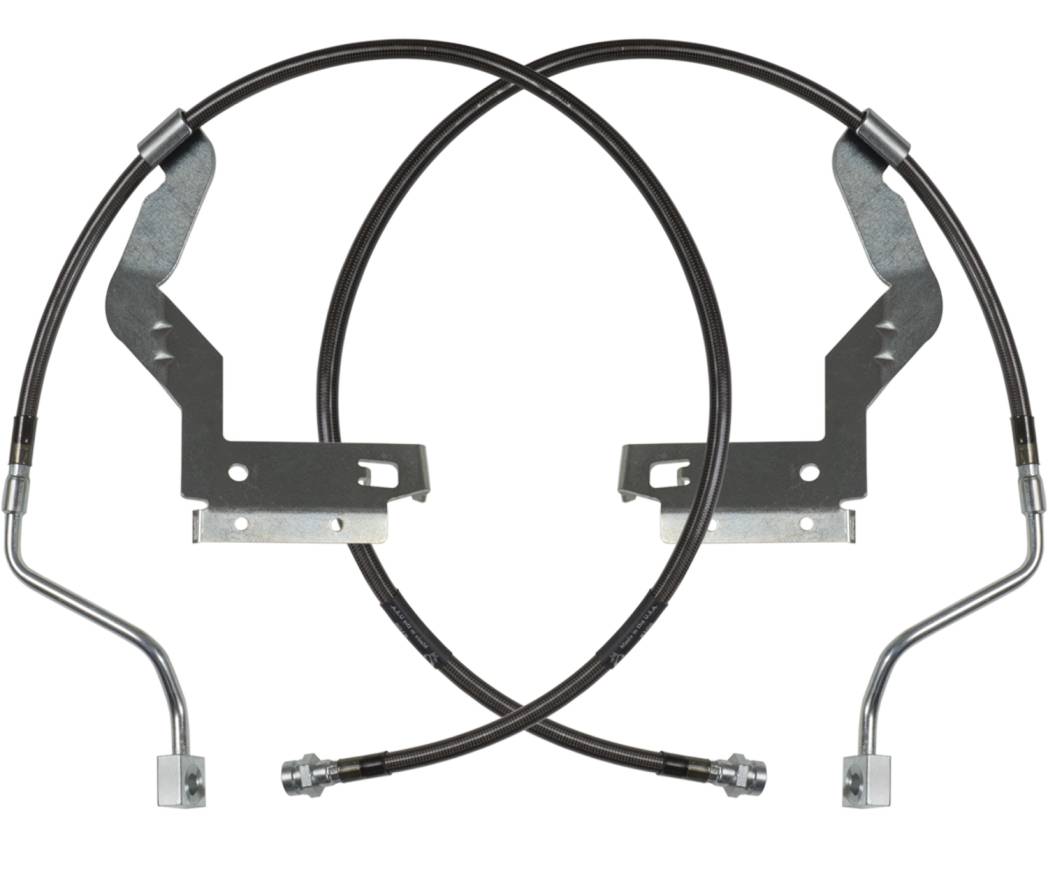

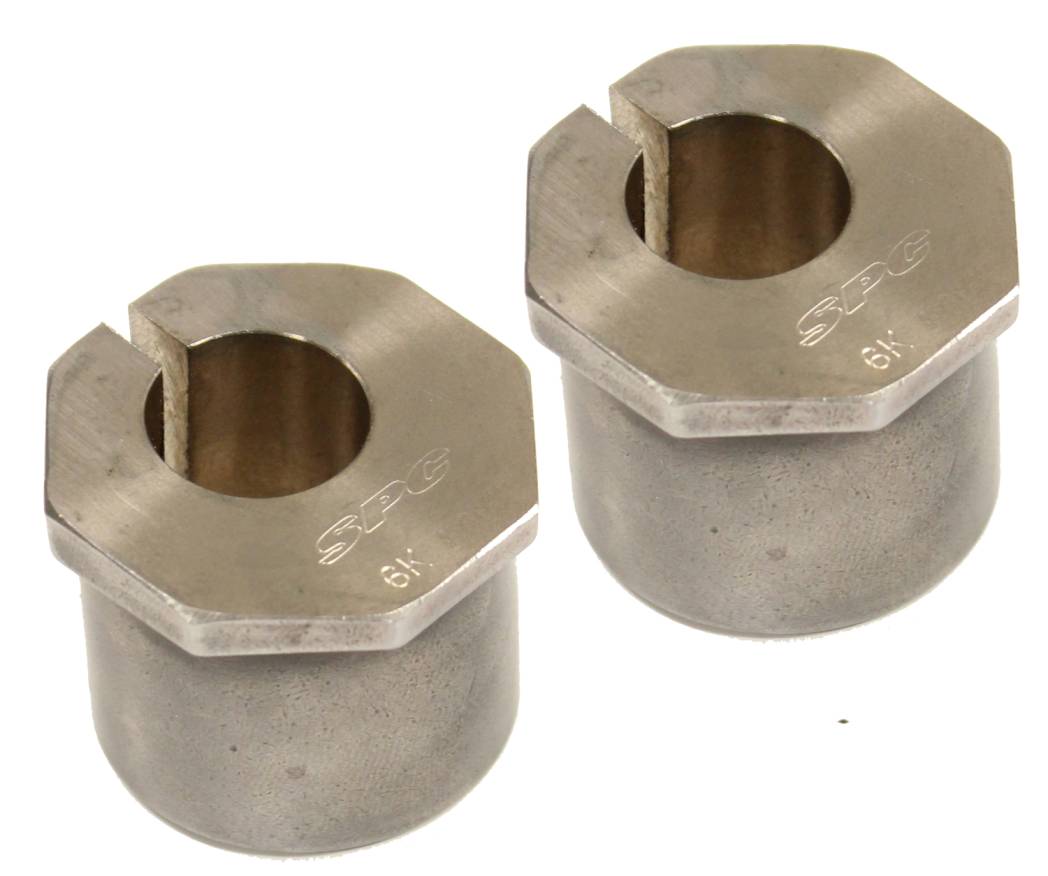

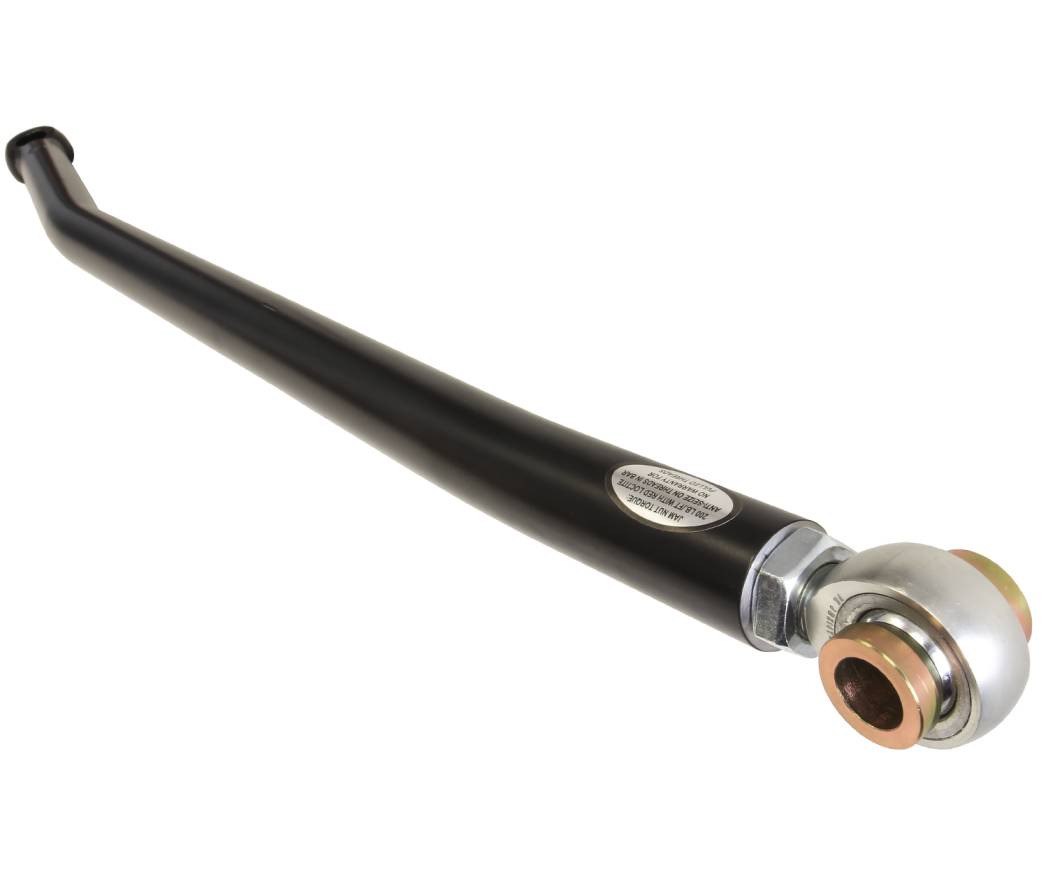

The truck will sit 2.5” higher in the front and have more wheel travel thanks to the taller, lighter rate coil springs. Stainless Brake Lines and an Adjustable Track Bar round off the front end geometry correction while Caster Shims improve on the stock handling.

The rear can be outfitted with a replacement Full Progressive Spring Pack (reduces capacity to a “light” ¾-ton) or factory leaf-pack modifying Progressive Add-a-Pack (maintains factory payload capacity and pairs with the factory 3-5/8” block). The Full Progressive Leaf Spring Pack offers the best ride and will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37” M/T at full compression. The Full Replacement Leaf Springs do not require any block (factory block is removed). The Add-a-Packs are designed to work with trucks equipped with the 2” rear block. Super Duties equipped with a 3-5/8″ tall block from the factory will require the factory 2″ tall Block to achieve a leveled stance with the Add-a-Pack. Part Number: 7C3Z-5598-L and 7C3Z-5598-K.

Wheel and Tire: Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar and most concerning – Brake Lines. Factory tires and factory wheels will work without issue but we DO NOT recommend running oversized tires on factory wheels. On our 2.5” Ford Systems, we recommend 17”-18” wheels, no more than 9” wide with 5.5” of backspacing with Carli Fabricated Radius Arms or 5” Backspace with factory arms; 5” will require a bit more trimming. Tires, 37×12.5” will fit with some trimming; 35” will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter. For more details, see our article on wheel and tire selection and tire pressures:

Tires and Wheels: How Do They Affect My Ride?

Customiziation Information

Rear Leaf Spring Option

*OPTIONAL*

New for the Carli-SPEC shocks, the Full Progressive Spring pack is now optional with the Commuter shocks for the best ride!

05-07 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK

SKU: CS-FPAP-05
- Built in the U.S.A. By Deaver Leaf Spring
- Smooth progressive design
- Supplied with U-bolts and hardware
- Provides 2.0" of lift
- O.E.M. load capacity maintained, improved ride
- Fitment: 2005-2007 F250/350 4x4, 3.5" Axle Tube

05-07 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 1" LIFT

SKU: CS-FFSP-LVL-05
- Block eliminating, Full Progressive Spring Pack
- Includes new U-Bolts and Rear Bump Stop Drops
- Provides a 1/2", rear high stance to Carli Leveling Suspension Systems
- 37" Tire Fitment
- Fitment: 2005-2007 F250/350 4x4, 3.5"
- Requires front hanger relocation Includes Conversion Hardware

05-07 FORD F250/350 4X4 HEAVY DUTY FULL PROGRESSIVE LEAF SPRING KIT - 1" LIFT

SKU: CS-FFSP-LVL-05-HD
- Block eliminating, Full Progressive Spring Pack
- Heavy Duty Full Replacement Leaf Springs designed for those with constant 1,000lbs in the bed
- Includes new U-Bolts and Rear Bump Stop Drops
- Provides a 1", rear high stance on Matching 2.5" Leveling Suspension Systems
- 37" Tire Fitment
- Fitment: 2005-2007 F250/350 4x4, 3.5"
- Requires front hanger relocation Includes Conversion Hardware

Radius Arm Option

*OPTIONAL*

05-22 FORD F250/350 4X4 FABRICATED RADIUS ARMS - 2.5"/3.5" LIFT

SKU: CS-FARA-LVL-05
- 0.5°-2.5° of adjustable Caster correction
- 3/16 Construction, Fully Internal Gusseted with 1/2" Additional Tire Clearance
- 12" Limit Straps Kit Included
- 17-4 Stainless Spherical Joint for longevity and bind free Cycling

Low Mount Steering Stabilizer

*OPTIONAL*

05-22 FORD F250/350 4X4 LOW MOUNT STEERING STABILIZER KIT - WITH DIFFERENTIAL GUARD

SKU: CS-FLMSS-05
- Custom Valved for Larger Tires, Adjustable Nitrogen Pressure
- Includes Differential Guard and Clamp
- Combines with High-Mount Stabilizer for Opposing Setup
- Optimized for Carli 2.5"-5.5" Systems
