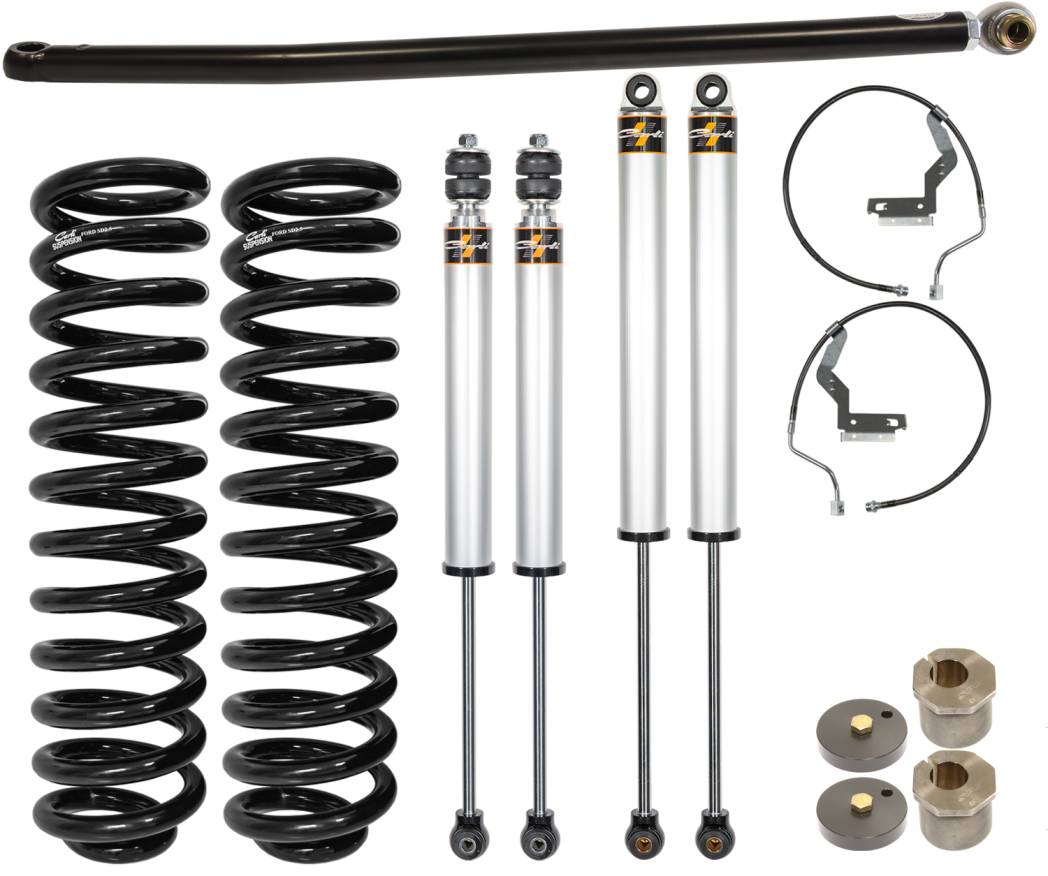

CS-FLVL-COM-CS-11 | Carli Suspension Carli Spec 2.0" IFP Front & Rear 2.5" Lift Commuter System For Ford F-250/F-350 4WD | 2011-2016 | Diesel

The Super Duty Commuter 2.0 system is designed for people seeking the best on-road ride quality that don’t plan to off-road their vehicle beyond low-speed trail driving. Utilizing Carli SPEC 2.0″ Diameter, Internal Reservoir shocks, we’ve developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling.

Lift Height: 2.5″ / Front Travel: 9″ /  Rear Travel: 13″ / Shock Type: 2″ Internal Reservoir / Tire Fitment: 37″ x 12.5″

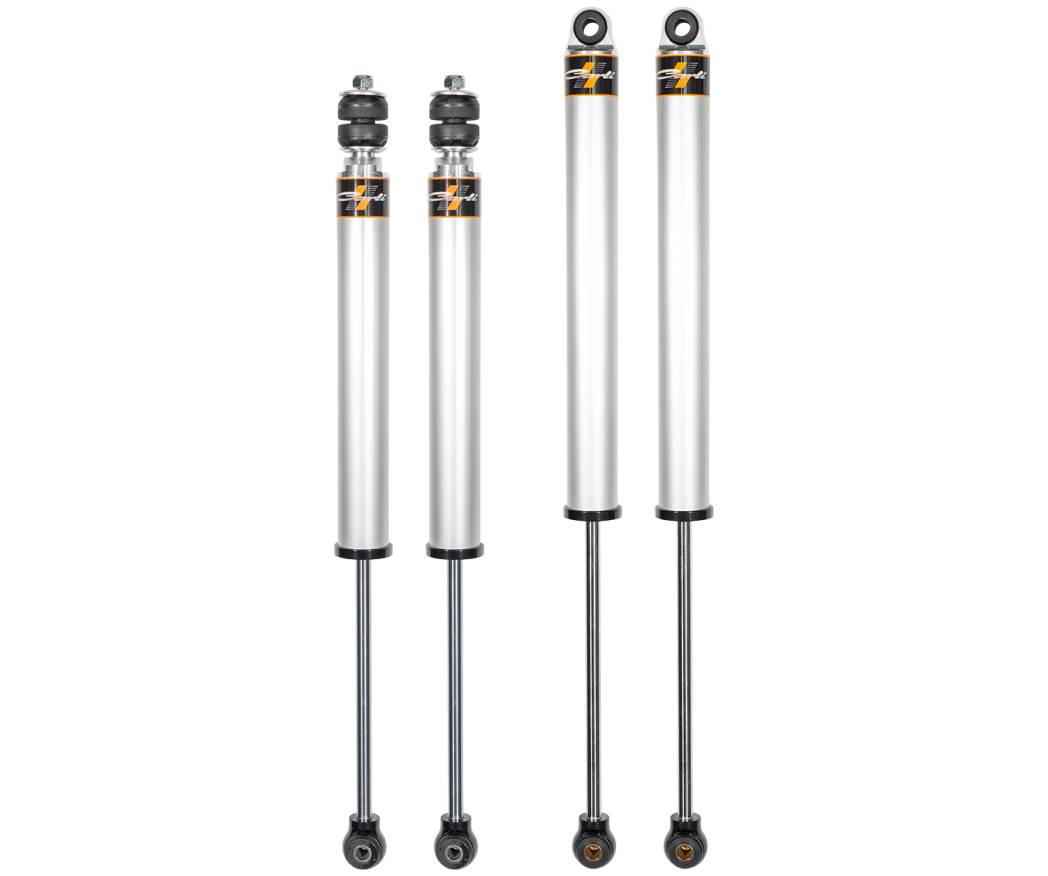

The mono-tube, internal reservoir, Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. We back these with a 1-year warranty, serviced by Carli.

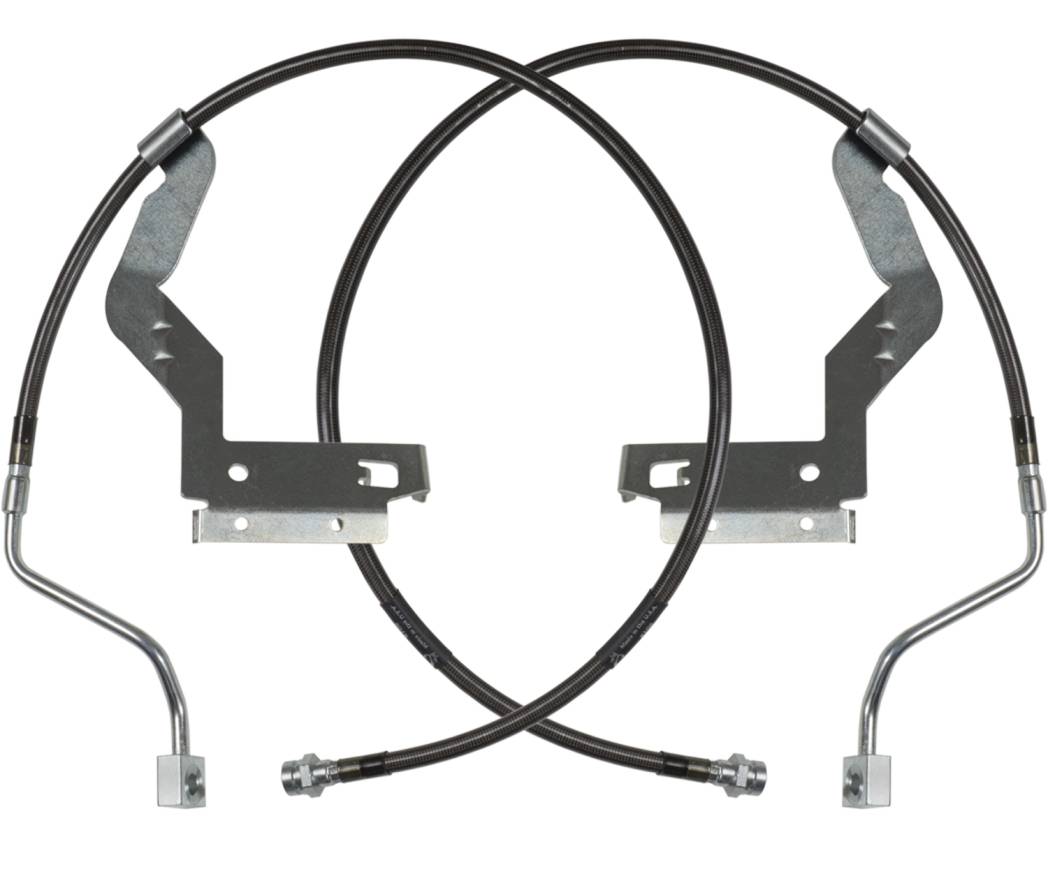

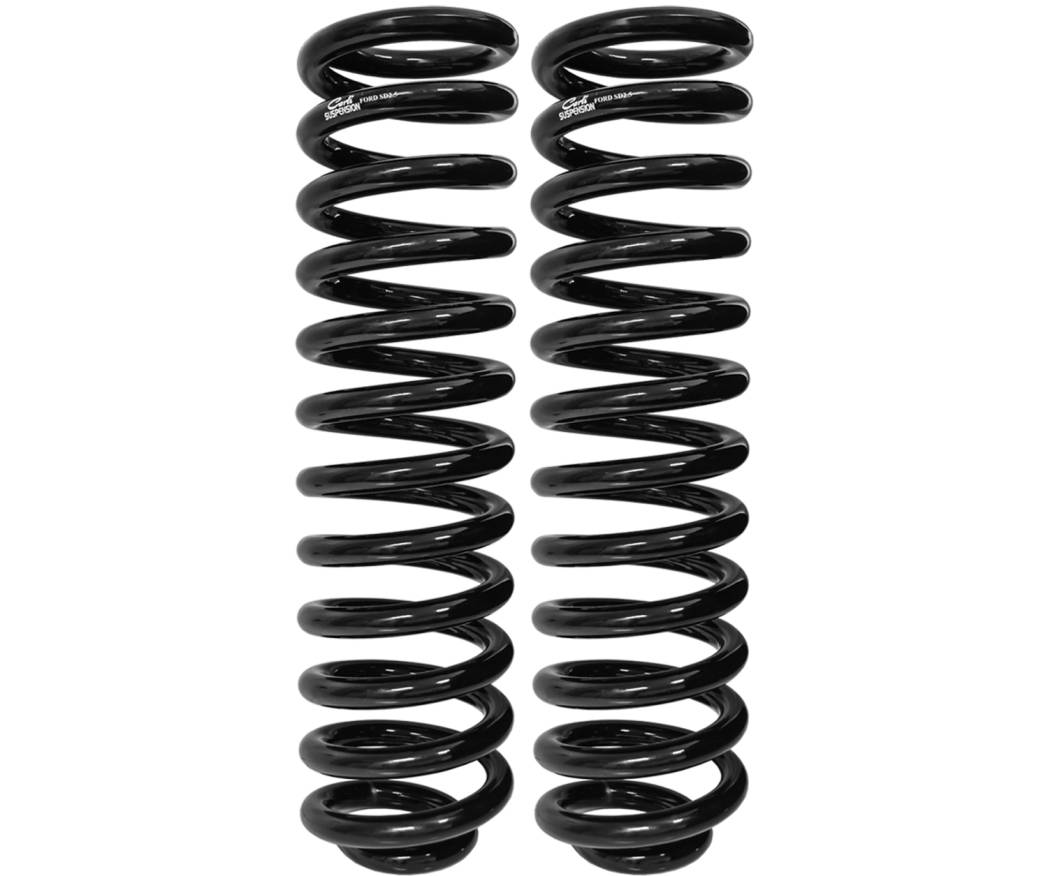

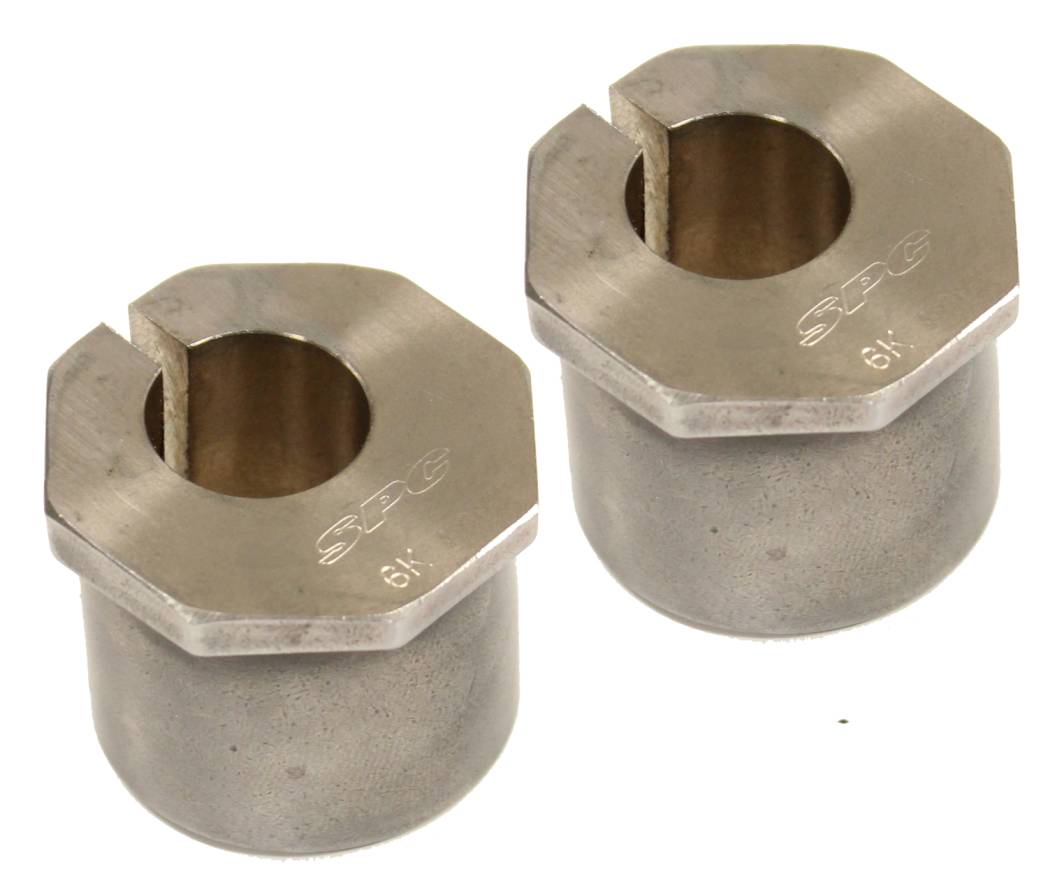

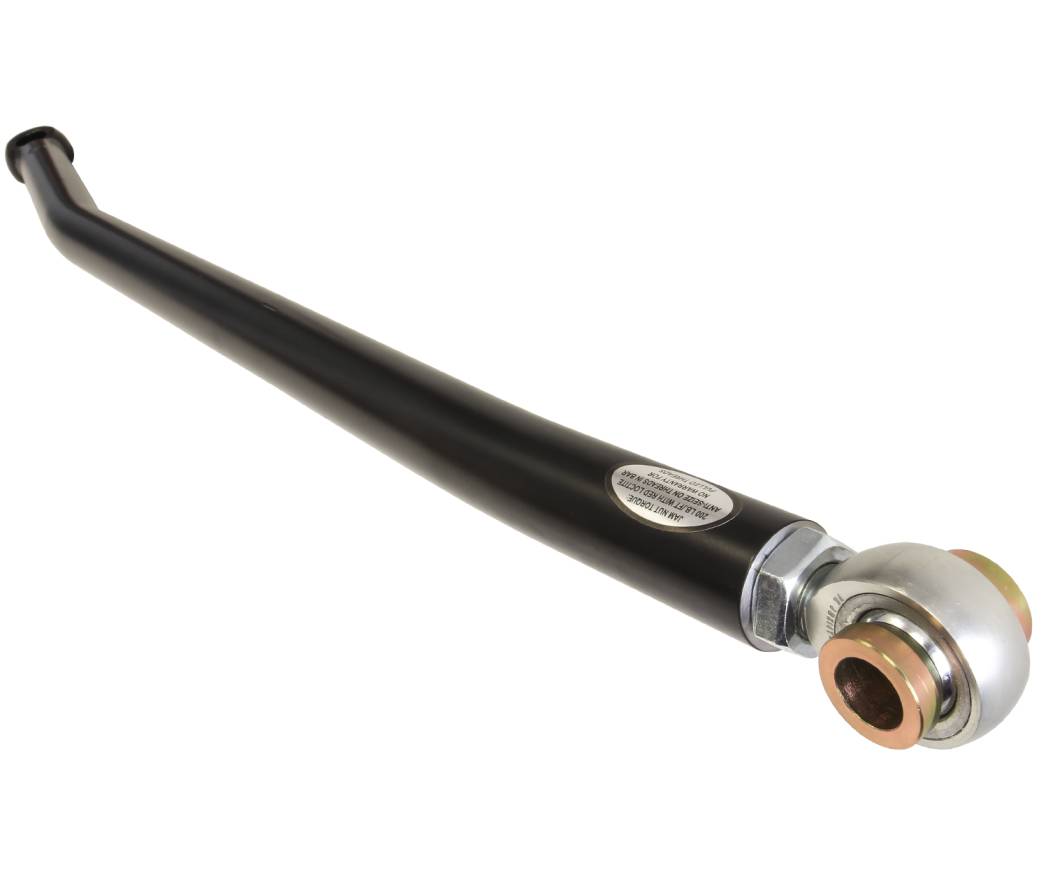

The truck will sit 2.5” higher in the front and have more wheel travel thanks to the taller, lighter rate coil springs. Stainless Brake Lines and an Adjustable Track Bar round off the front end geometry correction while Caster Shims improve on the stock handling.

The rear can be outfitted with a replacement Full Progressive Spring Pack (reduces capacity to a “light” ¾-ton) or factory leaf-pack modifying Progressive Add-a-Pack (maintains factory payload capacity and pairs with the factory 3-5/8” block). The Full Progressive Leaf Spring Pack offers the best ride and will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37” M/T at full compression. The Full Replacement Leaf Springs do not require any block (factory block is removed). The Add-a-Packs are designed to work with trucks equipped with the 2” rear block. Super Duties equipped with a 3-5/8″ tall block from the factory will require the factory 2″ tall Block to achieve a leveled stance with the Add-a-Pack. Part Number: 7C3Z-5598-L and 7C3Z-5598-K

Wheel and Tire: Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar and most concerning – Brake Lines. Factory tires and factory wheels will work without issue but we DO NOT recommend running oversized tires on factory wheels. On our 2.5” Ford Systems, we recommend 17”-18” wheels, no more than 9” wide with 5.5” of backspacing with Carli Fabricated Radius Arms or 5” Backspace with factory arms; 5” will require a bit more trimming. Tires, 37×12.5” will fit with some trimming; 35” will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter. For more details, see our article on wheel and tire selection and tire pressures:

Tires and Wheels: How Do They Affect My Ride?

Customization Information

Rear Leaf Spring Option

*REQUIRED*

This System has been optimized for use with the Full Progressive Leaf Springs. This system is also compatible with the Progressive Add-a-Packs but there will be a notable ride quality difference on and off-road. Selecting "NO Rear Leaf Spring Selection" will result in an unknown ride quality and height result as all Carli Systems are optimized to either the Add-a-Pack or Progressive Leaf Springs.

11-16 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK KIT

SKU: CS-FPAP-11
- Built in the U.S.A. By Deaver Leaf Spring
- Smooth progressive design
- Supplied with U-bolts and hardware
- Provides 2.0" of lift
- O.E.M. load capacity maintained, improved ride
- Fitment: 2011-2016 F250/350 4x4, 3.5" Axle Tube

11-16 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 1" LIFT

SKU: CS-FFSP-LVL-11
- Block eliminating, Full Progressive Spring Pack
- CLICK HERE FOR LOAD TESTING
- Includes new U-Bolts and Rear Bump Stop Drops
- Provides a 1/2", rear high stance to Carli Leveling Suspension Systems
- Fitment: 2011-2016 F250/350 4x4, Diesel - 3.5" Axle Tube

11-16 FORD F250/350 4X4 HEAVY DUTY FULL PROGRESSIVE LEAF SPRING KIT - 1" LIFT

SKU: CS-FFSP-LVL-11-HD
- Block eliminating, Full Progressive Spring Pack
- Heavy Duty Full Replacement Leaf Springs designed for those with constant 1,000lbs in the bed
- Includes new U-Bolts and Rear Bump Stop Drops
- Provides a 1", rear high stance on Matching 2.5" Leveling Suspension Systems
- 37" Tire Fitment
- Fitment: 2011-2016 F250/350 4x4, 3.5" Axle Tube

Torsion Sway Bar

*Optional*

For everyone that’s not loaded to the GVWR daily, the Carli Torsion Sway Bar provides the final link lightening the last spring on the truck maximizing the ride quality of the Super Duty Platform. Keeping your factory bar limits comfort, removing it completely makes for questionable control when hauling or emergency maneuvering. After several revisions and years in development, the Carli Torsion Sway Bar Splits the Difference perfectly allowing a small amount of differentiation side to side before progressively engaging to add the needed control as leverage is applied. Rip corners in the dirt with surgical precision knowing there’s exactly enough rate to hold the body steady while cutting your line through the dirt. Hit the tarmac and enjoy the benefit of the lighter rate bar cruising around town with it’s on-road feel reminiscent of an independent front suspension – no more chassis reverberation on small bumps and let the suspension dance in the level cab while hitting off-camber driveways.

11-16 FORD F250/350 4X4 TORSION SWAY BAR KIT - 2.5" LIFT

SKU: CS-FTSB-LVL-11
- Direct Fitment to Carli Leveling Lifts
- Replaces Immobile Factory Sway Bar with Custom Torsion Bar
- Huge Ride Quality Improvement

Leaf Spring Shackle

*OPTIONAL*

Much of the jarring ride of the Super Duty rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

05-23 FORD F350/350 4X4 FABRICATED LEAF SPRING SHACKLE

SKU: CS-FSHACKLE-11
- Greasable and Rebuildable
- Far Better Ride than Factory Shackle
- 1/4" Steel Construction
- Fits Factory and Carli Springs

Radius Arm Option

*OPTIONAL*

Icing on the cake, these arms add Additional Tire Clearance, Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Constructions, Serviceable 17-4 Stainless Spherical Bearings and Adjustable Caster Correction up to 3.5° over stock specs to leave Death-Wobble in the rear-view.

05-22 FORD F250/350 4X4 FABRICATED RADIUS ARMS - 2.5"/3.5" LIFT

SKU: CS-FARA-LVL-05
- 0.5°-2.5° of adjustable Caster correction
- 3/16 Construction, Fully Internal Gusseted with 1/2" Additional Tire Clearance
- 12" Limit Straps Kit Included
- 17-4 Stainless Spherical Joint for longevity and bind free Cycling

High Mount Steering Stabilizer

*OPTIONAL*

Bolt in replacement for the factory stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.

08-16 FORD F250/350 4X4 HIGH MOUNT STEERING STABILIZER - STAINLESS STEEL - 2.5" & 4.5" LIFT

SKU: CS-FHMSS-08
- Inside the Carli Stainless Stabilizer
- Bolt in Replacement for OEM Stabilizer
- Fitment: 2008-2016 F250/350 4x4
- Works on levelled and lifted trucks ONLY
- WILL NOT work with Dropped Pitman Arms

Low Mount Steering Stabilizer

*OPTIONAL*

Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

05-22 FORD F250/350 4X4 LOW MOUNT STEERING STABILIZER KIT - WITH DIFFERENTIAL GUARD

SKU: CS-FLMSS-05
- Custom Valved for Larger Tires, Adjustable Nitrogen Pressure
- Includes Differential Guard and Clamp
- Combines with High-Mount Stabilizer for Opposing Setup
- Optimized for Carli 2.5"-5.5" Systems
