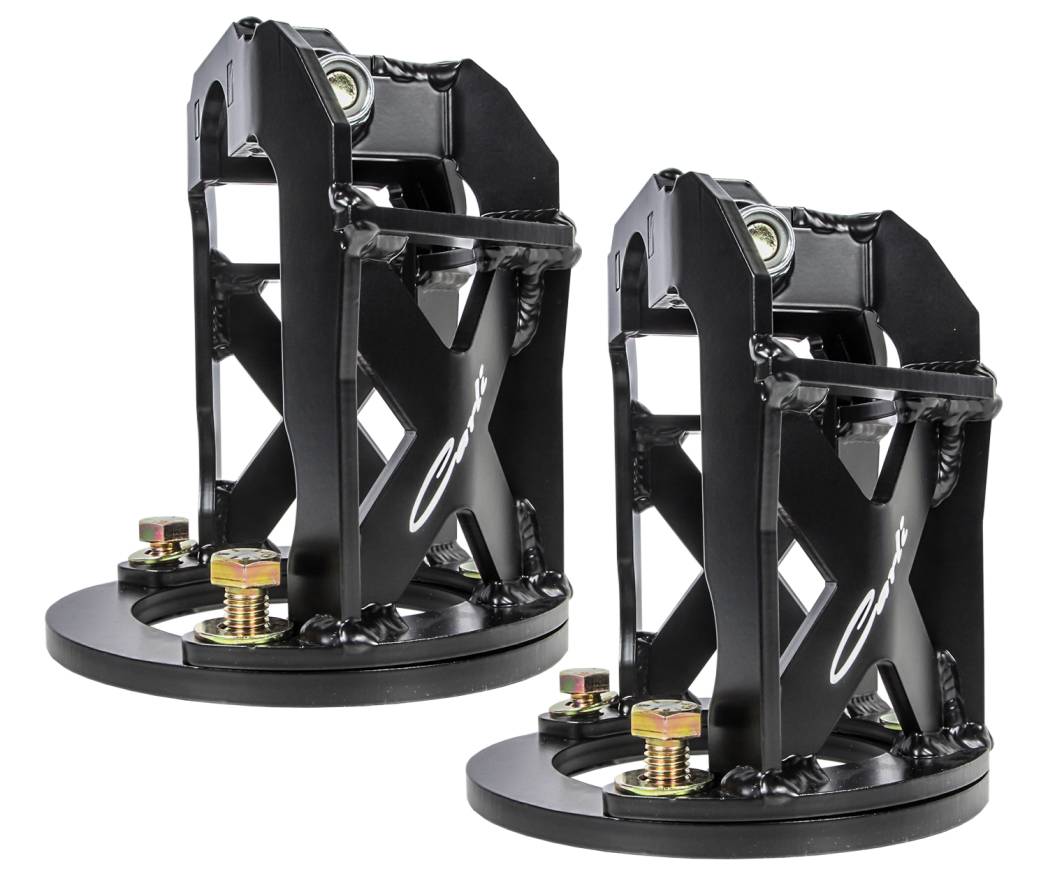

CS-DFST625 | Carli Suspension Fabricated Slide-Over Shock Tower For Ram 2500/3500 | 1994-2012 | 6.25" Tall, Extended Travel Application

Fabricated Slide-Over Shock Tower For Ram 2500/3500 | 1994-2012 | 6.25" Tall, Extended Travel Application

CS-DFST625
Pricing: $565.80
Qty:
Free Ground Shipping | Exclusions Apply*

Description

1.5″ Taller than the factory tower, this tower was designed with a “Slide Over” design for easy installation and maximum shock length. Specifically, it accommodates the short-body, long travel shocks in our 3″ Long-Arm equipped systems.

CAD-crafted and laser-cut from 1/4″ cold rolled steel, our Shock Towers are designed to accommodate Carli Performance, Dominator & Unchained Series shocks. Fully gusseted and expertly welded, these Shock Towers are engineered for work & play, delivering extreme strength and maximizing shock travel. Supplied with each tower is 3/8″ Cold Rolled Stud Ring, the largest in the industry, complemented with 1/2″ Grade 8 hardware. The stud ring was designed so that the towers could be easily removed without coil removal, making shock repairs easier. Finished in Black Powdercoat for long-lasting corrosion protection.

– 3″ Long Arm Kit Specific (for Short-Body 12″ Shocks)
– 1/4″ Cold Rolled Steel
– Slide Over Design
– Fully Gusseted and Braced
– 3/8″ Stud Ring for extreme durability
– Black Powdercoat Finish
– Height: 6.25″ from base to center of shock bolt.

Application List

1994-2002 Ram 2500/3500 4x4, Diesel - Extended Travel Application

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 20.0 lbs.
  • W11.0000” x H7.0000” x L21.0000”
  • Free Ground Shipping | Exclusions Apply*
