CS-FCOMKIT-0508 | Carli Suspension Coilover Conversion Bracket Kit For Ford F-250/F-350 4WD | 2005-2016

Coilover Conversion Bracket Kit For Ford F-250/F-350 4WD | 2005-2016

CS-FCOMKIT-0508
Pricing: $1,173.00
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The 05-16 Super Duty Platform has a riveted coil bucket from the factory. Punch these rivets, drill the frame holes to 1/2″ and bolt in a custom-spec Carli Coilover to allow for and amazing ride and infinite adjustability.

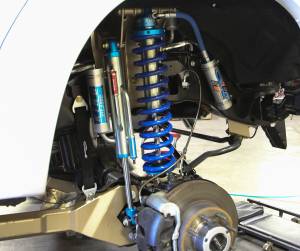

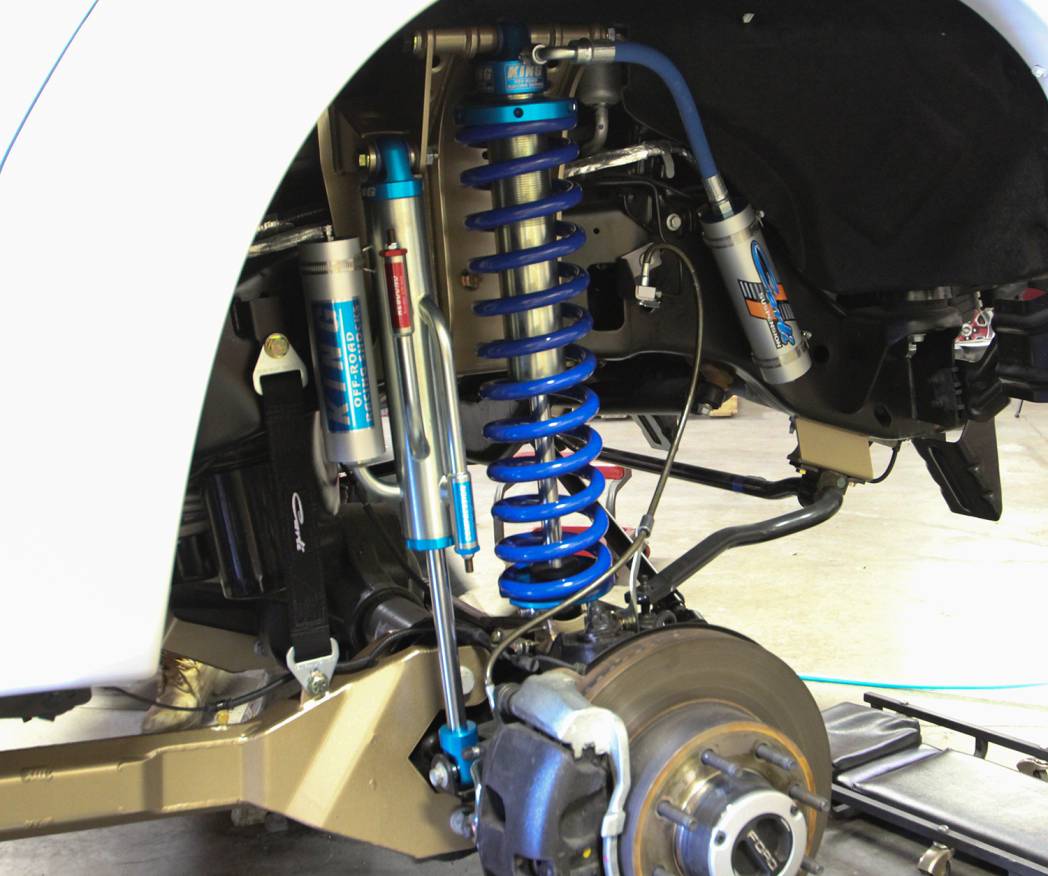

Each mount is constructed out of 1/4″ cold rolled steel for superior strength. These mounts bolt in place of the existing riveted coil bucket using 1/2″ Grade 8 fasteners. The coilover sits atop the axle in place of the coil-spring. The upper mount is lifted as high as possible to maximize travel length.

Bypass shock mounts are also incorporated into the brackets (positioned in the factory shock location) should go-fast desert shenanigans be in store.

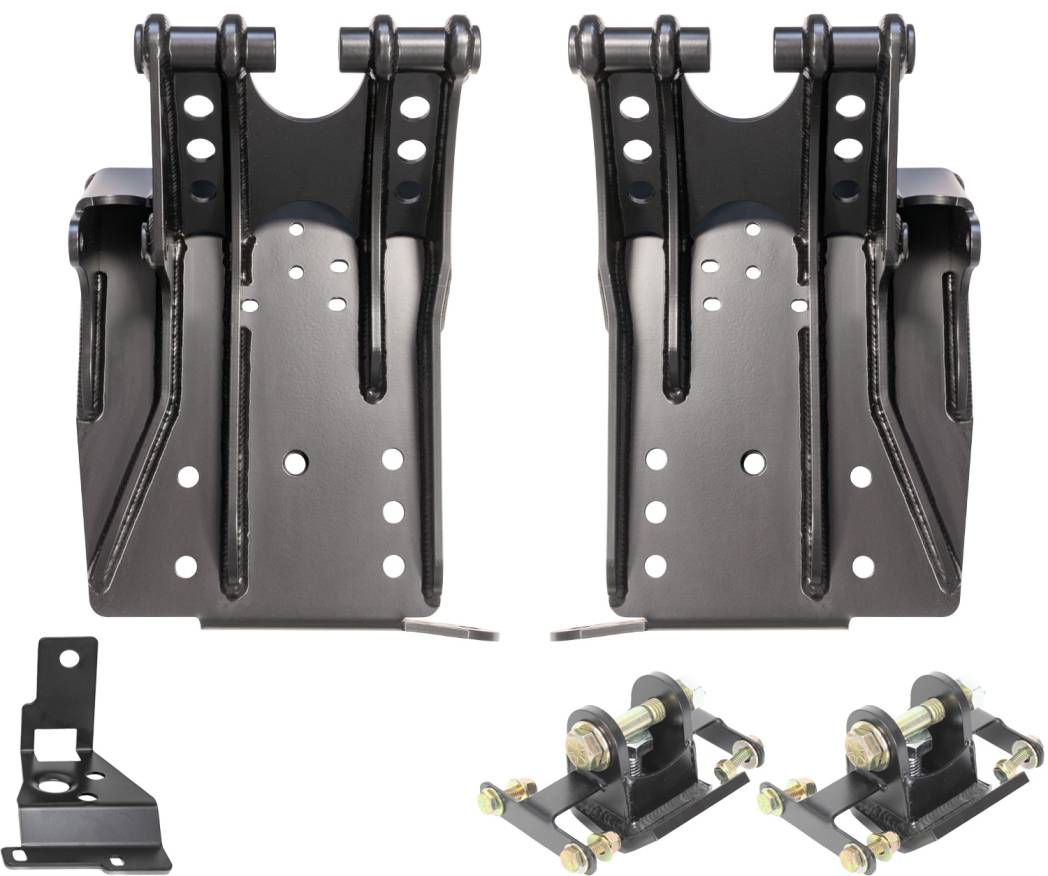

– Ford Coilover, Upper and Lower Mounts
– 1/4″ Cold Rolled Steel Construction
– Powder Coated for Finish Durability
– Bypass Shock Ready
– Fitment: 2005-2016 F250/F350

Application List

2005-2016 Ford F-250/F-350 4x4, Diesel

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 45.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
