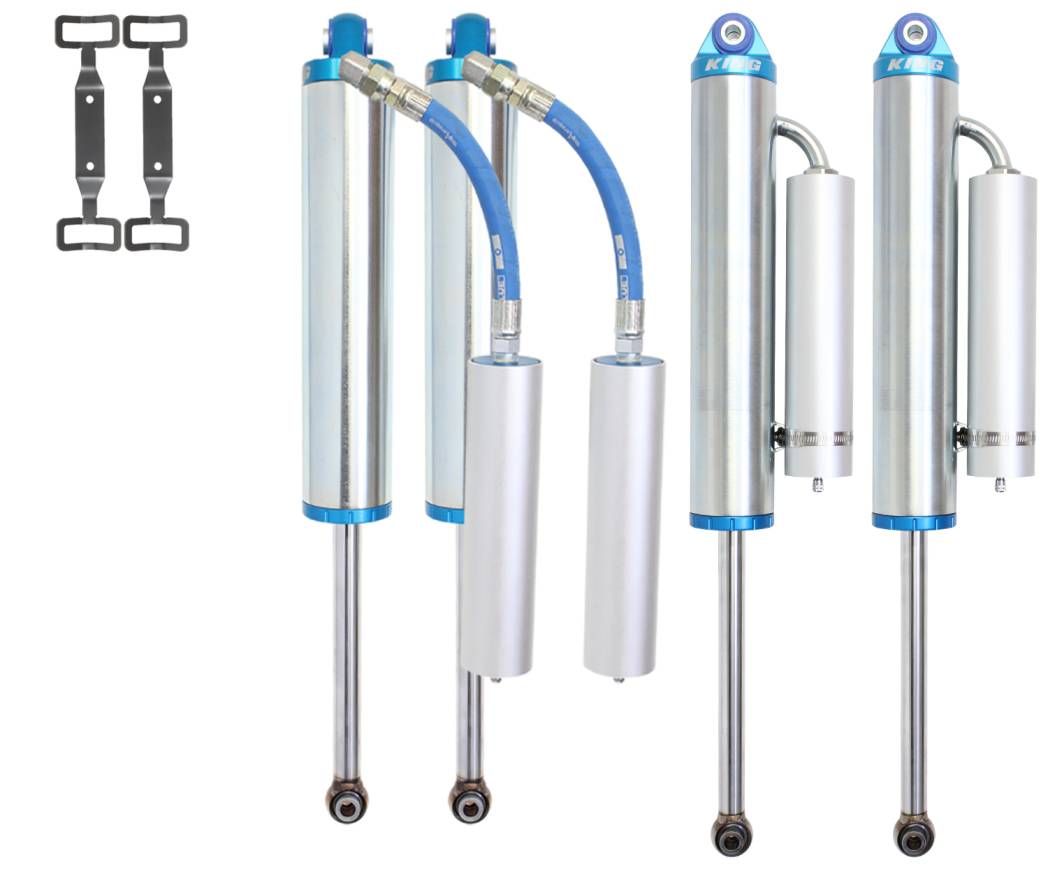

CS-FD30SPKG-LVL-05 | Carli Suspension Dominator Carli Tuned King 3.0" Remote Reservoir Shocks Package For Ford F-250/F350 4WD | 2005-2016 | 2.5" Lift

This is the true, Jack of all trades Shock Package offering the most wheel travel of any Carli system. The Dominator rides better than any other system on the road while boasting off-road manners to rival the Coilover Bypass. No tubes to adjust or user-tunability in this system; we’ve done the hard work for you.

- Carli Custom Pistons and Tuning
- 9" King 3.0" Remote Reservoir Shocks, Front
- 13" King 3.0" Piggyback Reservoir Shocks, Rear
- 17-4 Stainless Steel Shock Shafts
- Includes Short Reservoir Mounts
- Requires but Does NOT Include Fabricated Coil Buckets or Rear Shock Mounts
- Fitment: 2005-16 F250/350 4×4, Diesel with 2.5" Carli System

This is the true, Jack of all trades Shock Package offering the most wheel travel of any Carli system. The Dominator rides better than any other system on the road while boasting off-road manners to rival the Coilover Bypass. No tubes to adjust or user-tunability in this system; we’ve done the hard work for you.

This system boasts Carli Signature tuned, King 3.0” Remote Reservoir shocks so large, we needed to fabricate custom mounts to fit them; as the old adage goes, there’s no replacement for displacement. The 3.0” shock has a piston surface area 45% greater than a 2.5” King and 126% larger than a factory 2.0” shock making it far more efficient in all situations. The massive surface area also ensures we can achieve amazing off-road performance while offering the best on-road ride of any of our systems. To fit these shocks, we provide fabricated mounts that lift the upper mounting point and position the shock away from the frame. In an effort to provide customers with the best product, we designed a custom piston to determine proper base flow rates to ensure the shock works well in the heavy duty truck platform; we then tuned the shocks based on seat-of-the-pants feel. We round off ALL our King shocks with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King’s standard shafts, there is no coating to wear off, weather is far less likely to hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn’t damaged as they’re not brittle like the stock, hardened shafts. The shocks are finished with King oil good to -55° F. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a moisture barrier that’s replaceable.

Customization Information

Fabricated Shock (Coil) Buckets

*OPTIONAL*

05-07 FORD F250/350 4X4 DOMINATOR - FABRICATED COIL BUCKET

SKU: CS-FFCB-05
- 1/4" Cold Rolled construction
- 100% Bolt On
- Allows fitment of 3.0" Shocks
- Keeps coils within factory spec
- Fitment: 2005-07 F250/350 4x4

08-16 FORD F250/350 4X4 DOMINATOR - FABRICATED COIL BUCKET

SKU: CS-FFCB-08
- 1/4" Cold Rolled construction
- 100% Bolt On
- Allows fitment of 3.0" Shocks
- Keeps coils within factory spec
- Supports factory ABS Pump
- Fitment: 2008-16 F250/350 4x4

Rear Shock Mounts

*OPTIONAL*

05-07 FORD F250/350 4X4 REAR SHOCK MOUNTS

SKU: CS-FRSM-05
- 1/4" Steel Construction
- Bolt in to Factory Location
- Runs up to 3.0" Rear Shocks
- Massive Strength Increase
- Fitment: 2005-2007 F250/350 4x4

08-16 FORD F250/350 4X4 REAR SHOCK MOUNTS

SKU: CS-FRSM-08
- 1/4" Steel Construction
- Bolt in to Factory Location
- Runs up to 3.0" Rear Shocks
- Massive Strength Increase
- Fitment: 2008-2016 F250/350 4x4

Reservoir Rock Guard

*OPTIONAL*

UNIVERSAL - 2.5" DIAMETER SHOCK RESERVOIR GUARD

SKU: CS-RRG
- Shock Reservoir Protection
- Stainless Hose Clamps
- Sold Individually
- Recommended for Rear shock leaning forward from the axle
- Fitment: Any 2.5", 3.0" or 3.5" Shock with 2.5" Reservoir
