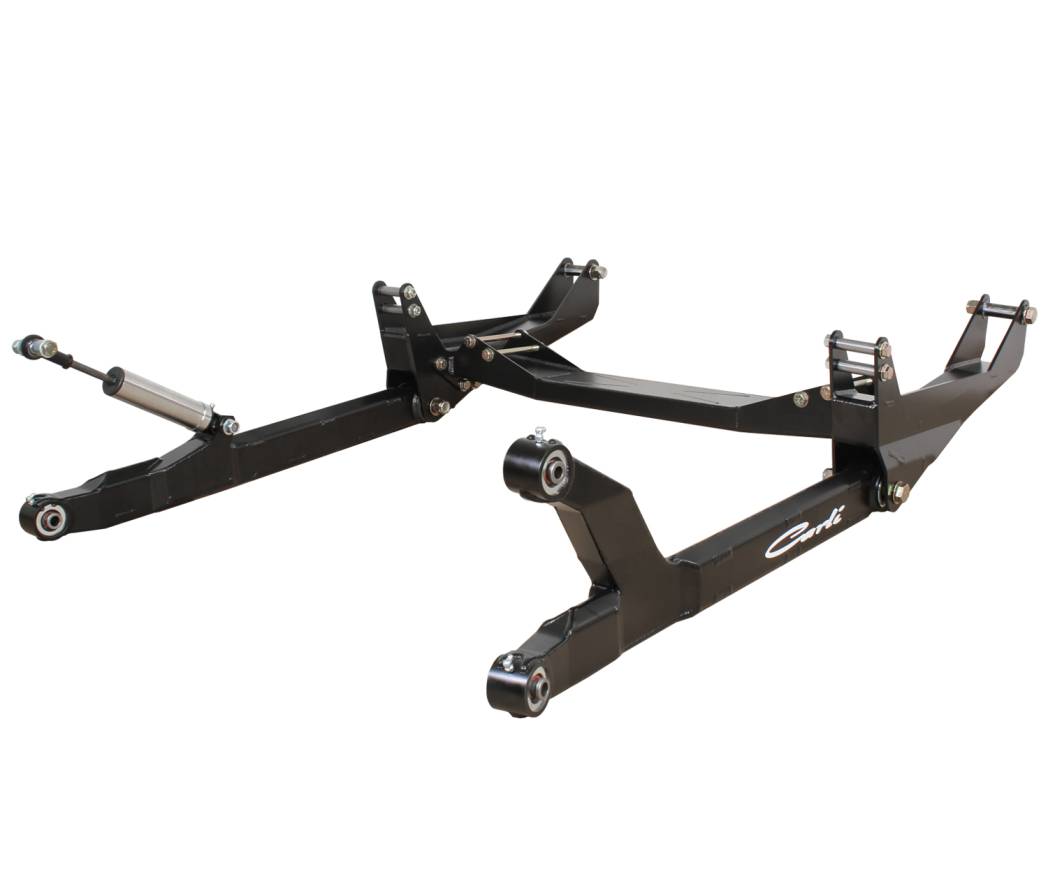

CS-DRA6-10-L | Carli Suspension Radius Arm System & HD X-Member For Ram 2500/3500 4WD | 2010-2012 | 6" Lift

Carli 6″ lift radius arms were engineered for exact geometry. The result is maximum strength 3/16″ construction with full-length 1/4″ internal gussets, zero-bind axle articulation thanks to the axle control shock, and maximum wheel travel given their length. The design is a 3 link with a custom axle control shock on the driver’s side arm. A custom built and tuned stainless plunger shock controls low-speed axle articulation movement maintaining precise suspension geometry offering the longest service life and most articulation of any long-arm conversion.

– 3 Link Design with Stainless Axle Control Shock for Max Articulation
– 1 piece crossmemeber for unmatched strength
– 3/16″ Construction, 1/4″ Internal Gusseting
– 17-4 Stainless Serviceable Spherical Bearings
– For 6″ Lift Systems
– Fitment: 2010-12 Ram 2500/3500 4×4
