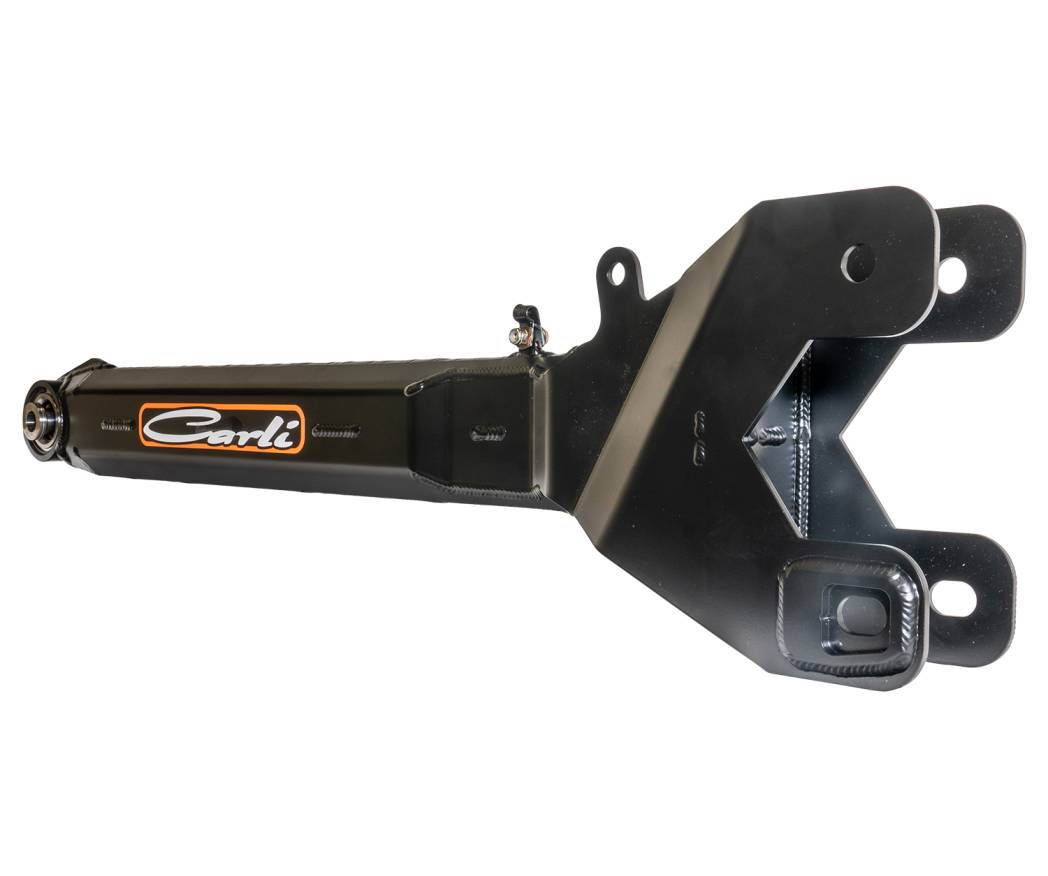

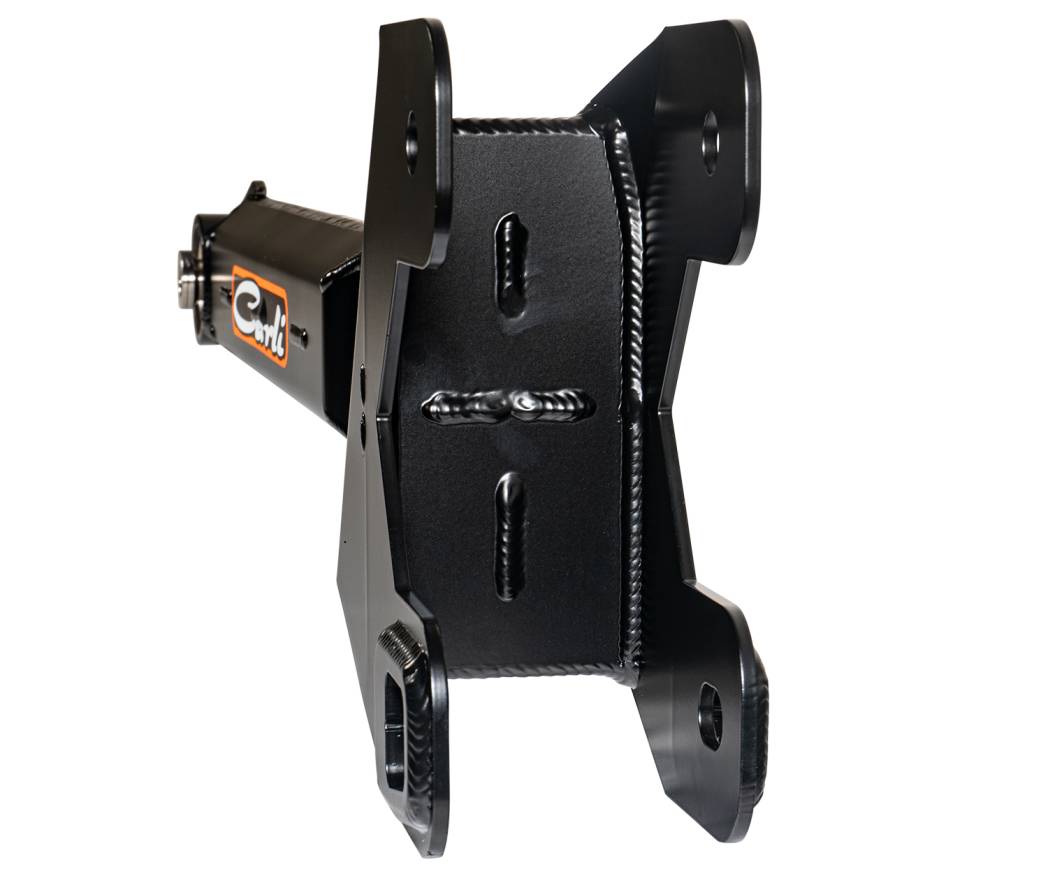

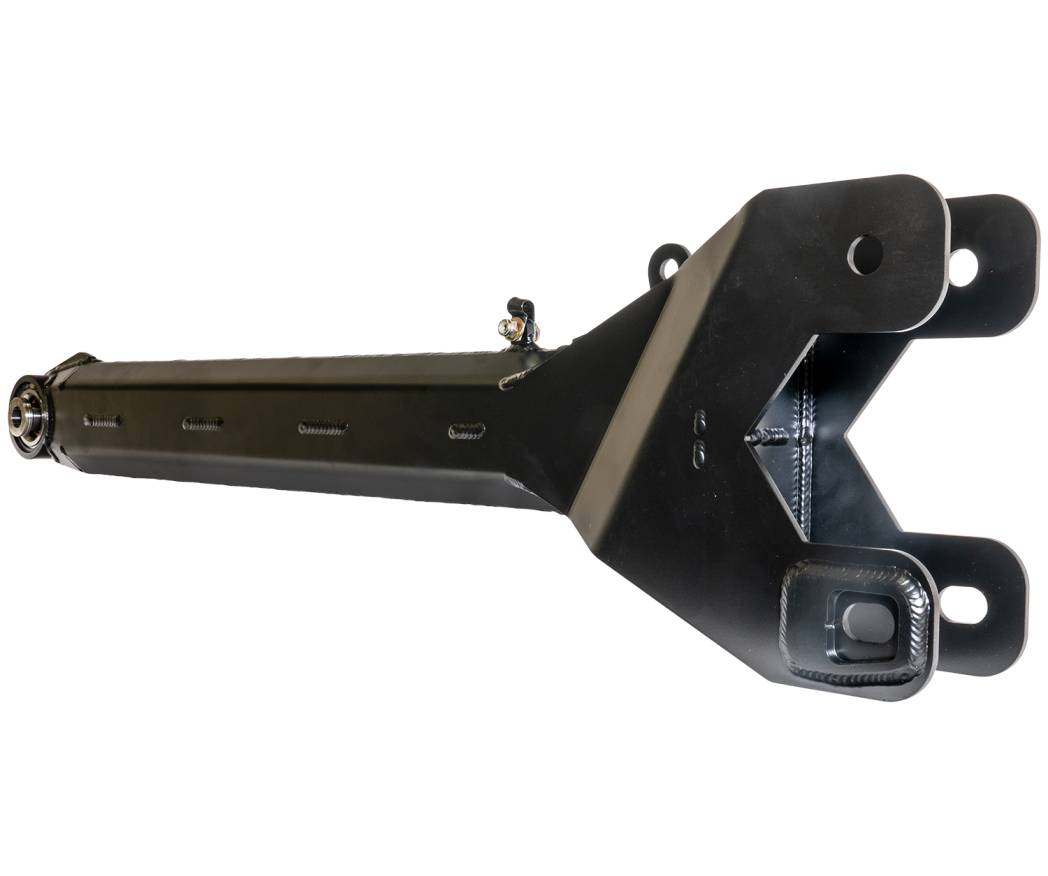

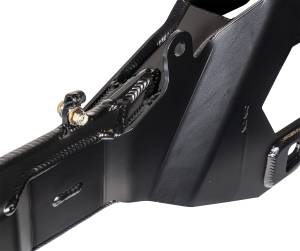

CS-FARA-45-05 | Carli Suspension Fabricated Radius Arms For 4.5"/5.25" Lift Ford F-250/F-350 Super Duty 4WD | 2005-2022

Fabricated Radius Arms For 4.5"/5.25" Lift Ford F-250/F-350 Super Duty 4WD | 2005-2022

CS-FARA-45-05
Pricing: $2,249.40
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Fully Boxed Construction boasting full-length internal gusseting makes them bulletproof, 3″ Serviceable 17-4 Stainless Spherical Joint ensures they cycle with no bind in the pivot, an engineered high-clearance cutout allows 37″ tire fitment when running near-stock Backspacing (5.5″) to keep rocks off the paint while Limit Staps prevent the shocks from limiting down travel.

The Carli arms correct 0.5°-2.5° of caster at the axle mount ensuring ANY Carli customer can achieve death-wobble-preventing positive caster.

– 1°-4° of adjustable Caster correction

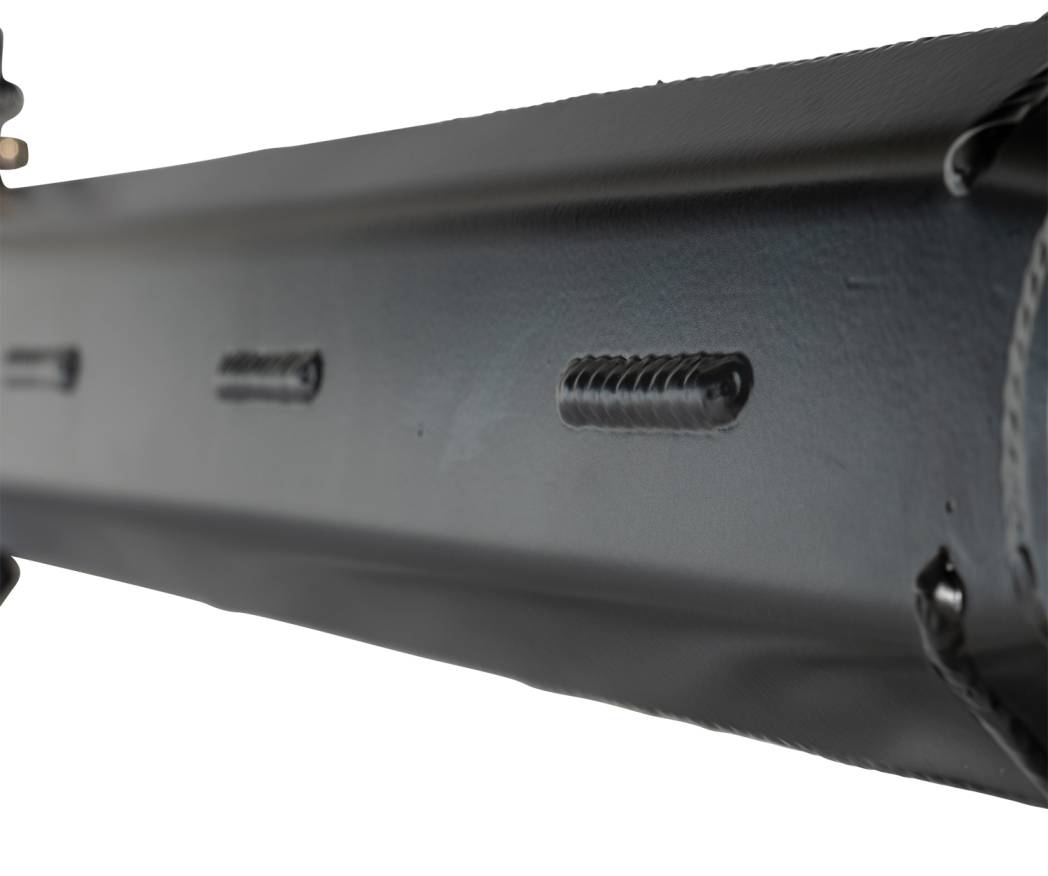

– 3/16 Construction, Fully Internal Gusseted with 1/2″ Additional Tire Clearance

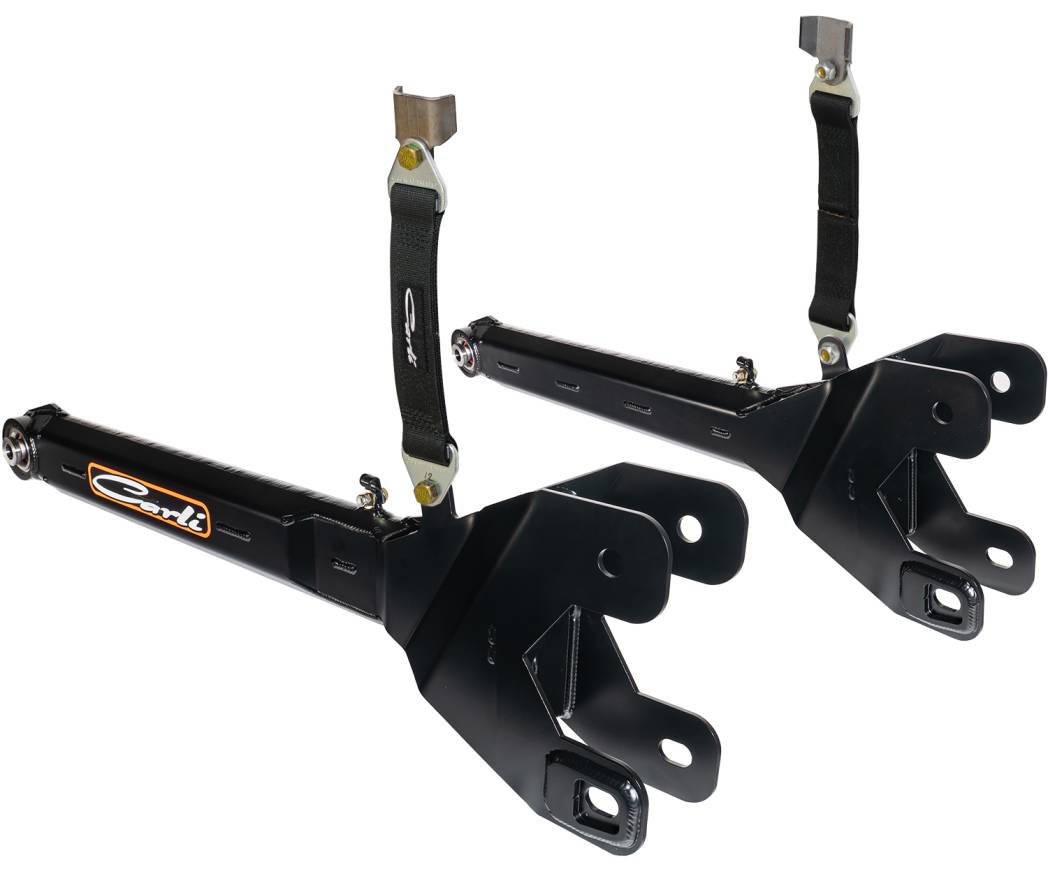

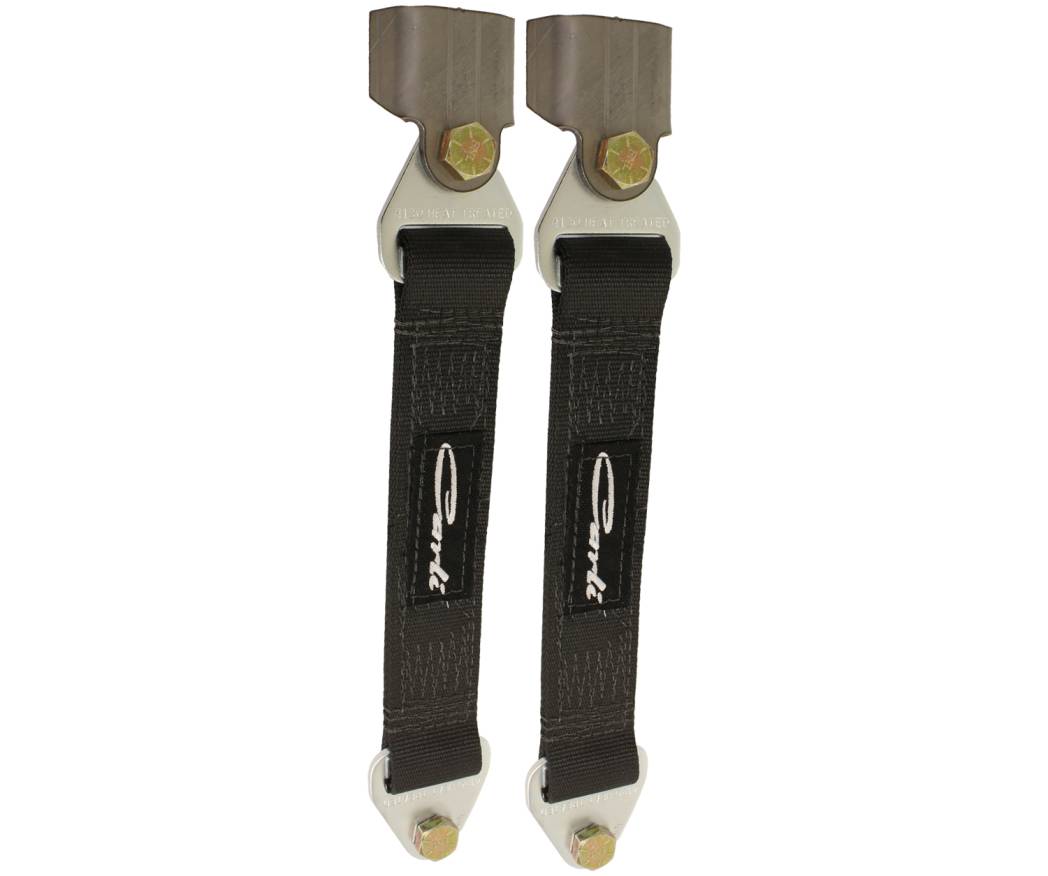

– Limit Straps Kit Included

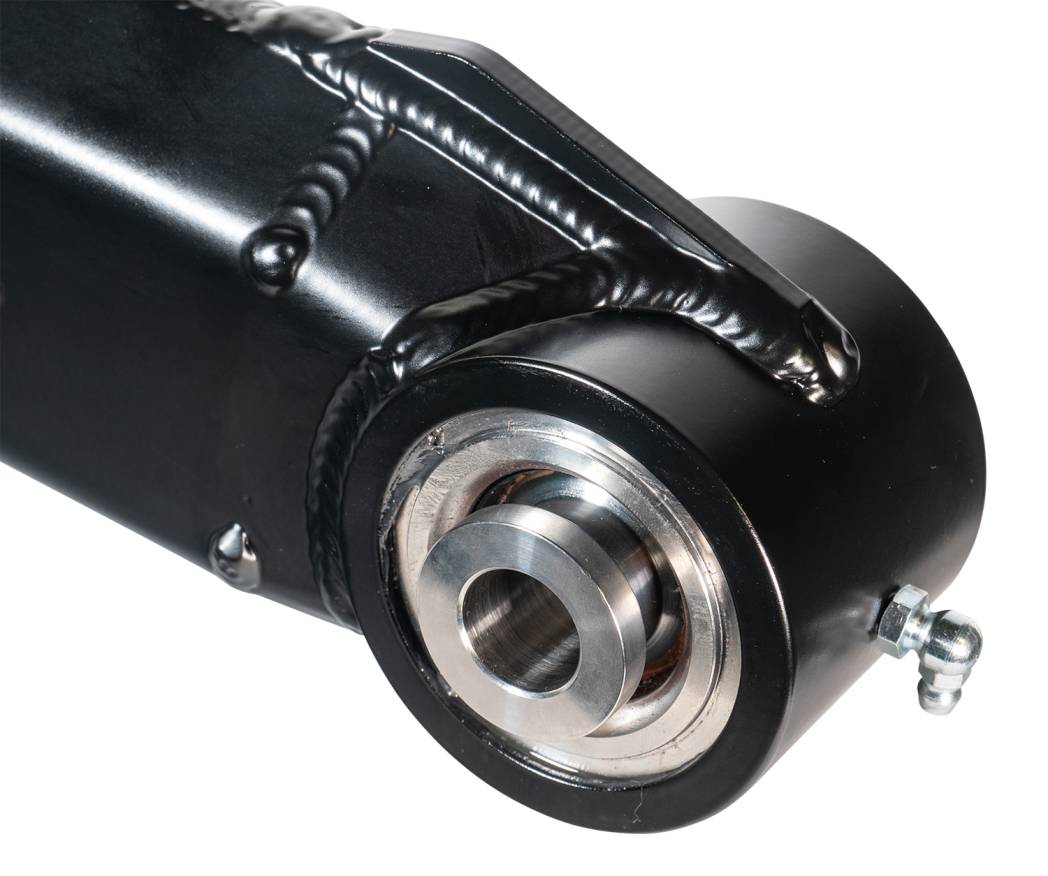

– Serviceable 17-4 Stainless Spherical Joint at Frame Connection for longevity and bind free Cycling
– Requires Radius Arm Drop Brackets for 4.5″-5.5″ Carli Systems
– Fitment: 2005-22 Ford F250/350 4×4

Application List

2005-2022 Ford F-250/F-350 4×4

Video


Details

Categories

Shipping Information

  • Item Requires Shipping
  • 92.0 lbs.
  • W48.0000” x H12.0000” x L4.0000”
  • Free Ground Shipping | Exclusions Apply*
