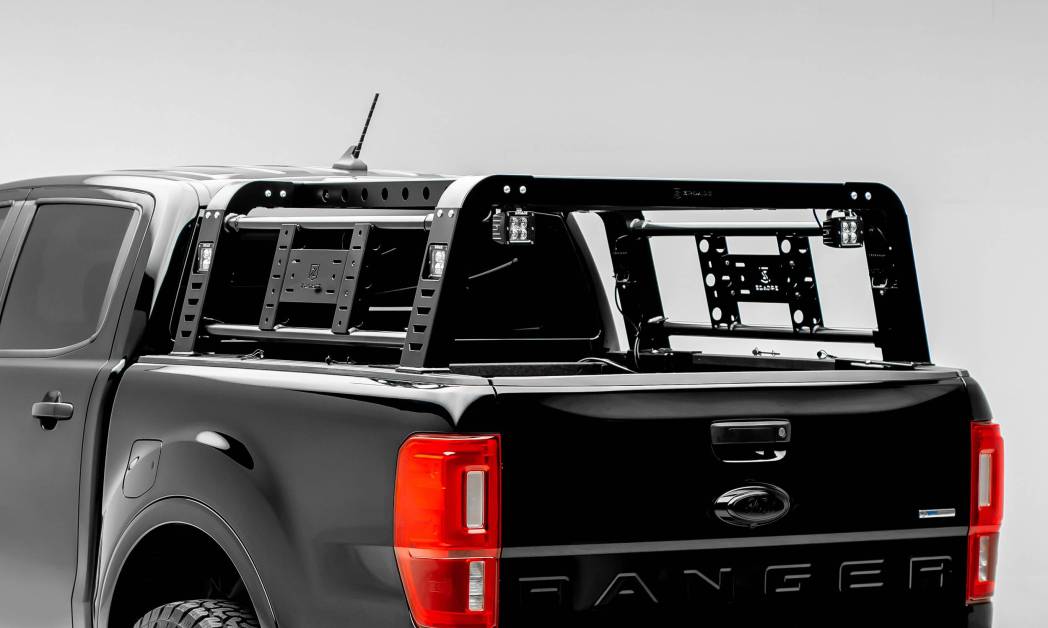

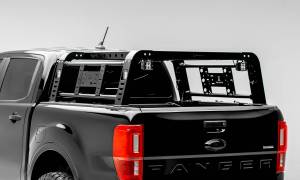

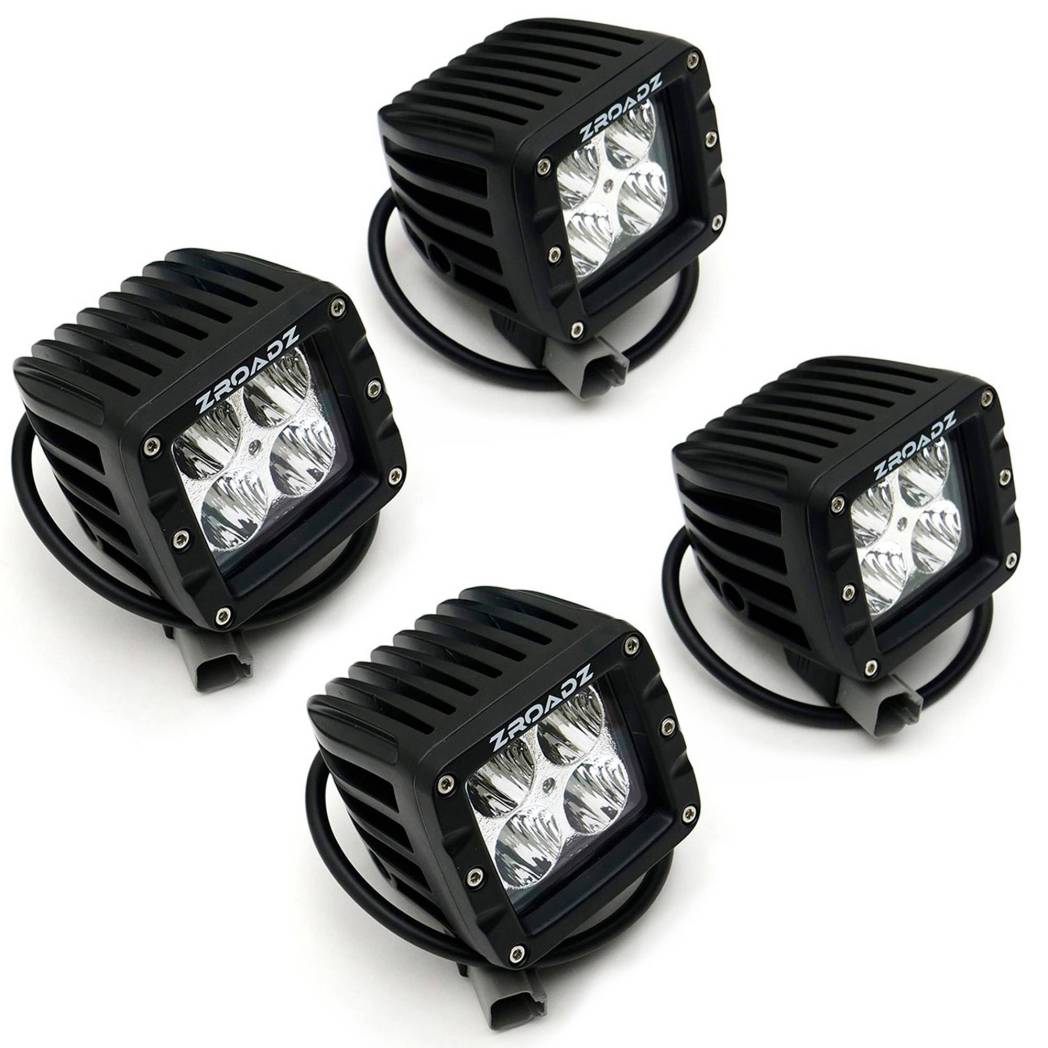

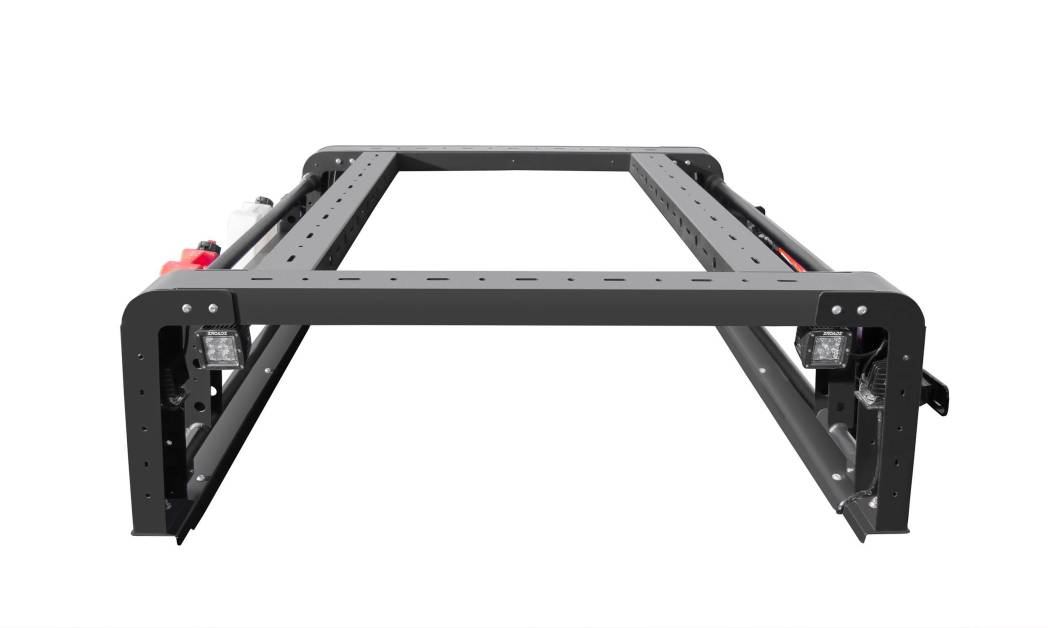

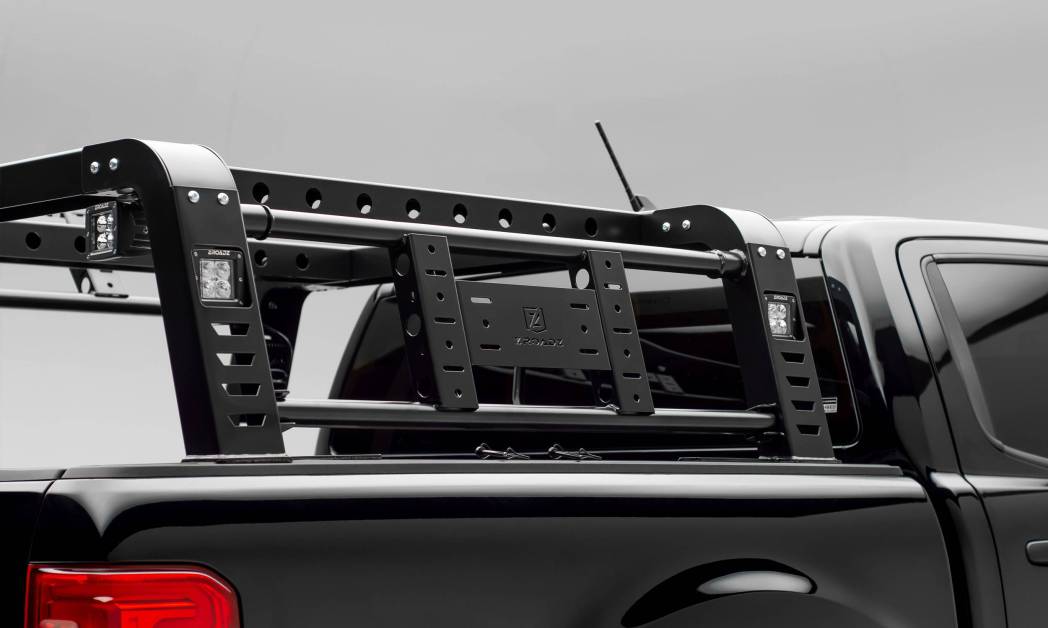

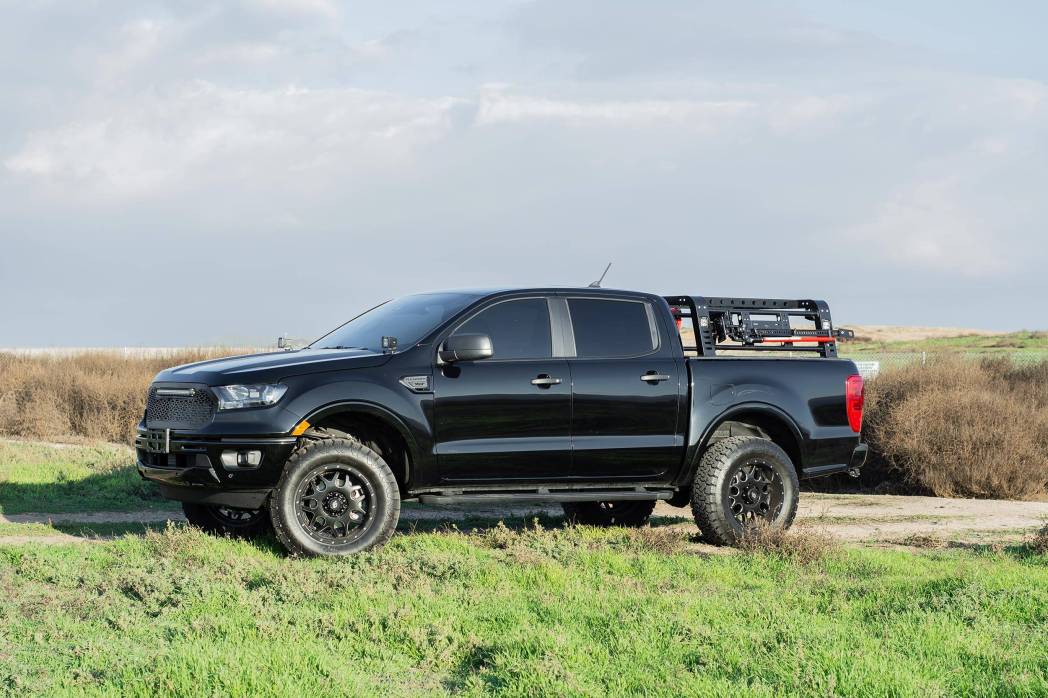

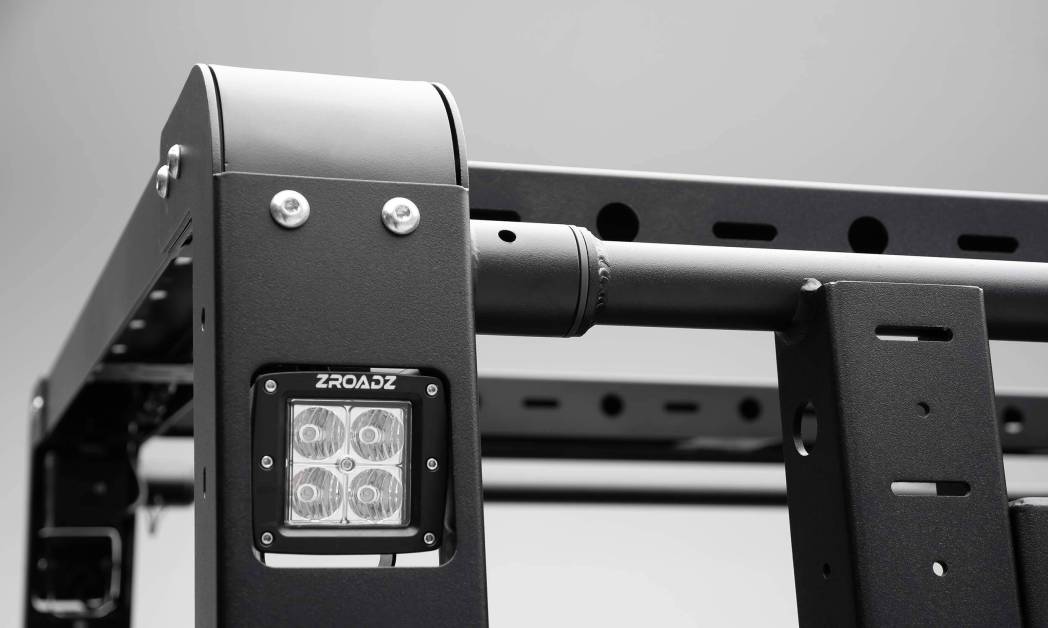

Z835101 | ZROADZ Overland Access Rack With Two Lifting Side Gates and (4) 3 Inch ZROADZ LED Pod Lights (2019-2023 Ranger)

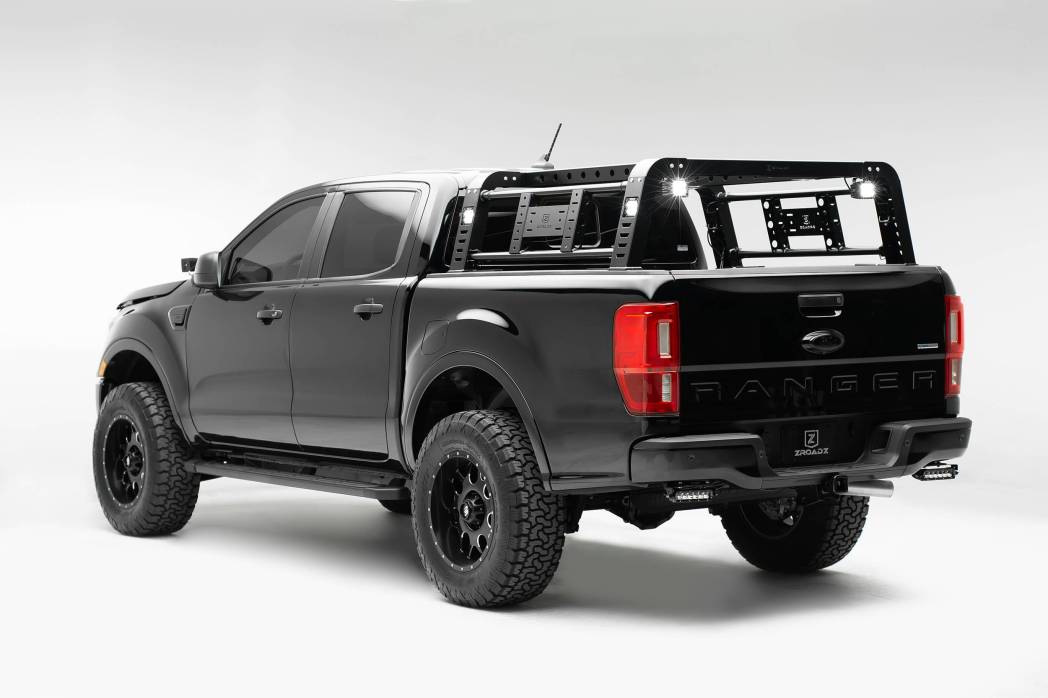

2019-2023 Ford Ranger Overland Access Rack With Two Lifting Side Gates and (4) 3 Inch ZROADZ LED Pod Lights - PN #Z835101

Features & Benefits:

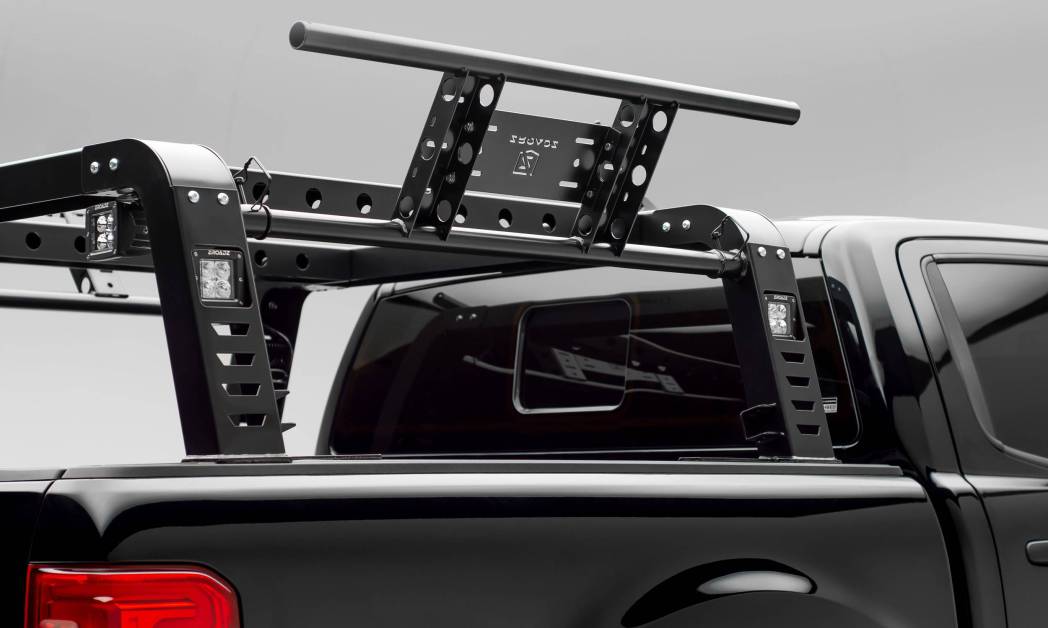

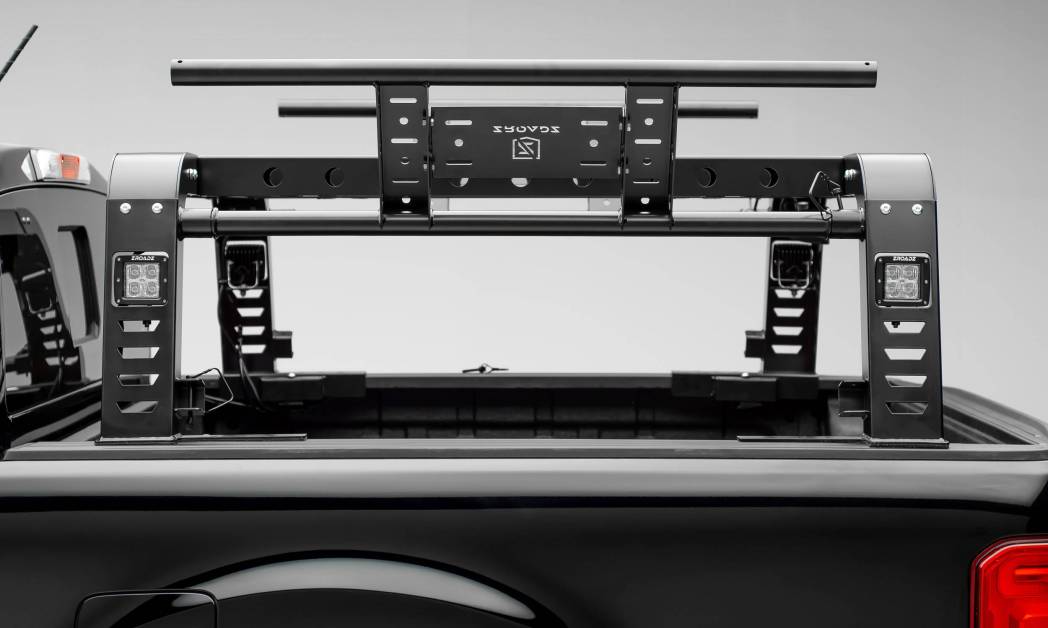

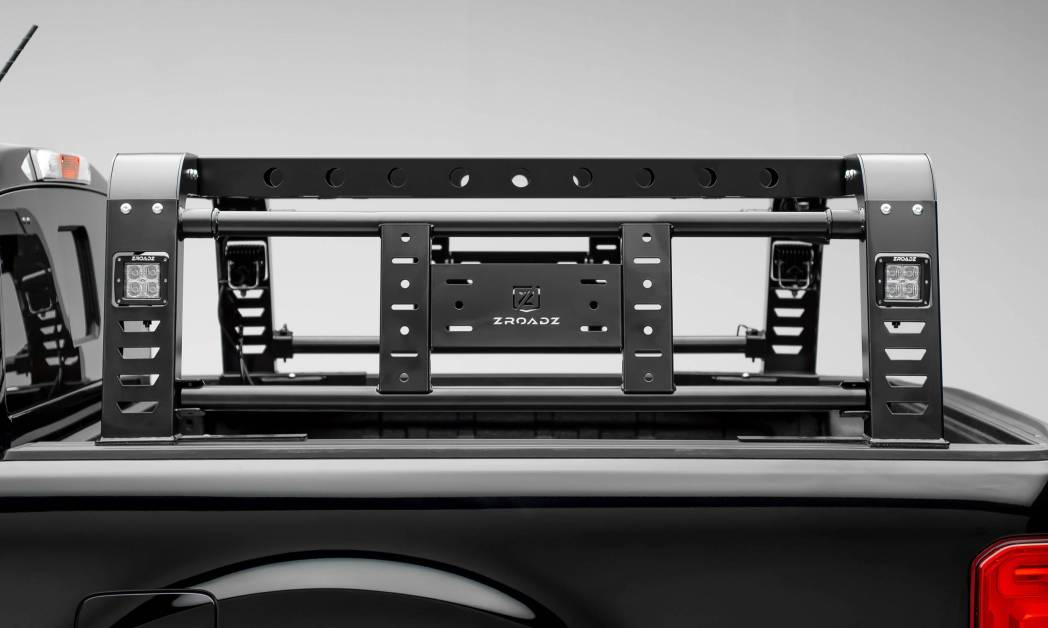

Includes Two Light Weight Aluminum Lifting Gates on Both Sides for Easy Access to the Truck Bed
Load capacity:
1500 lbs. static load capacity
800 lbs. on-road load capacity
400 lbs. off-road load capacity

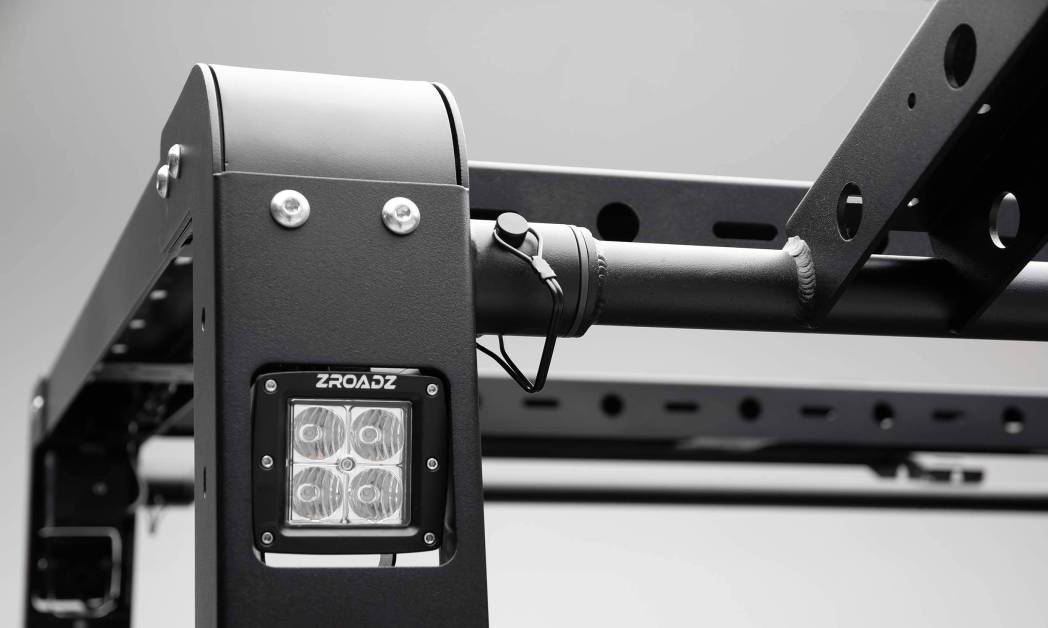

Sold with complete LED kit, Includes:
mounting brackets

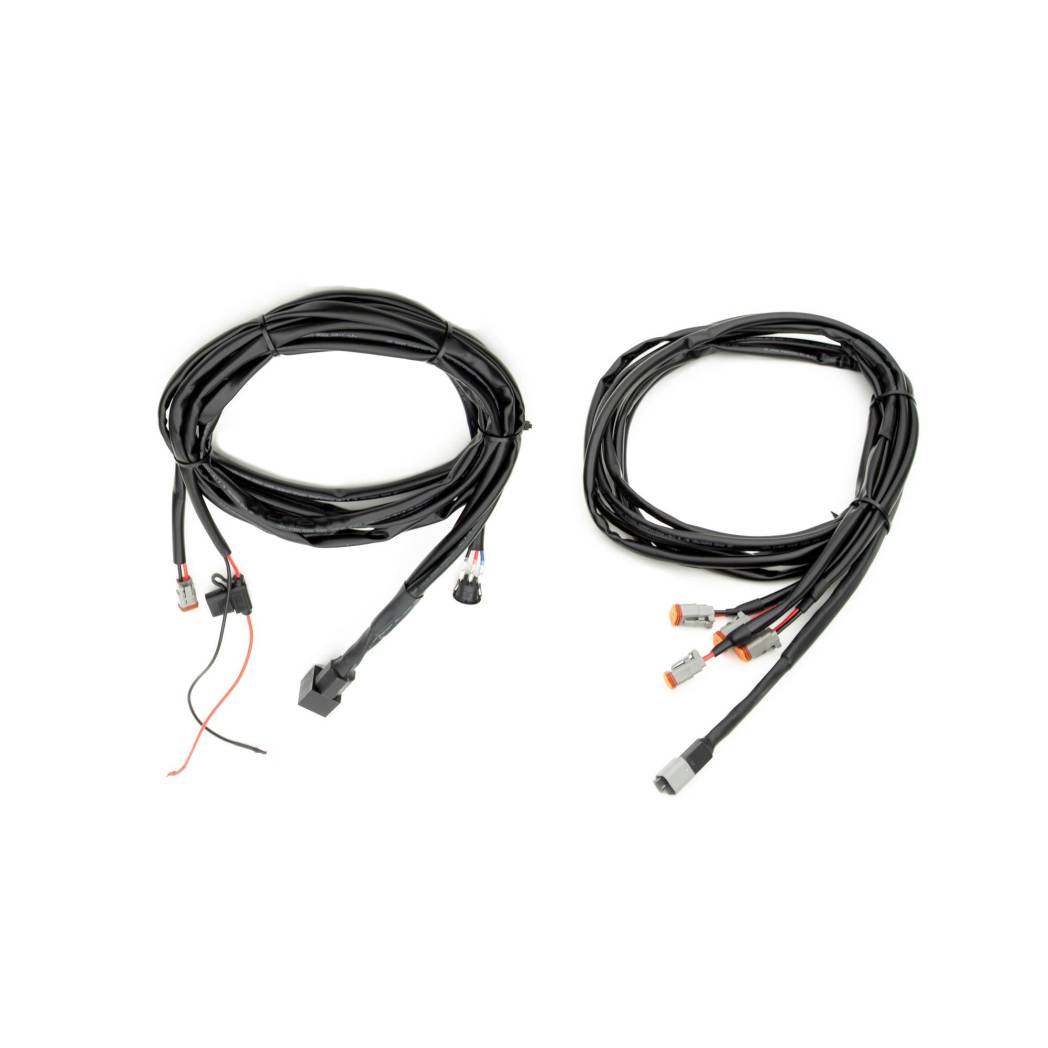

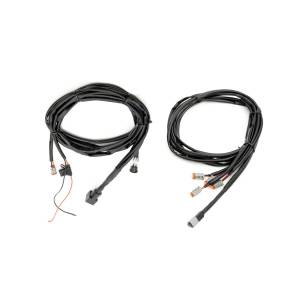

wiring harness with fusible link
relay
toggle switch
all necessary hardware

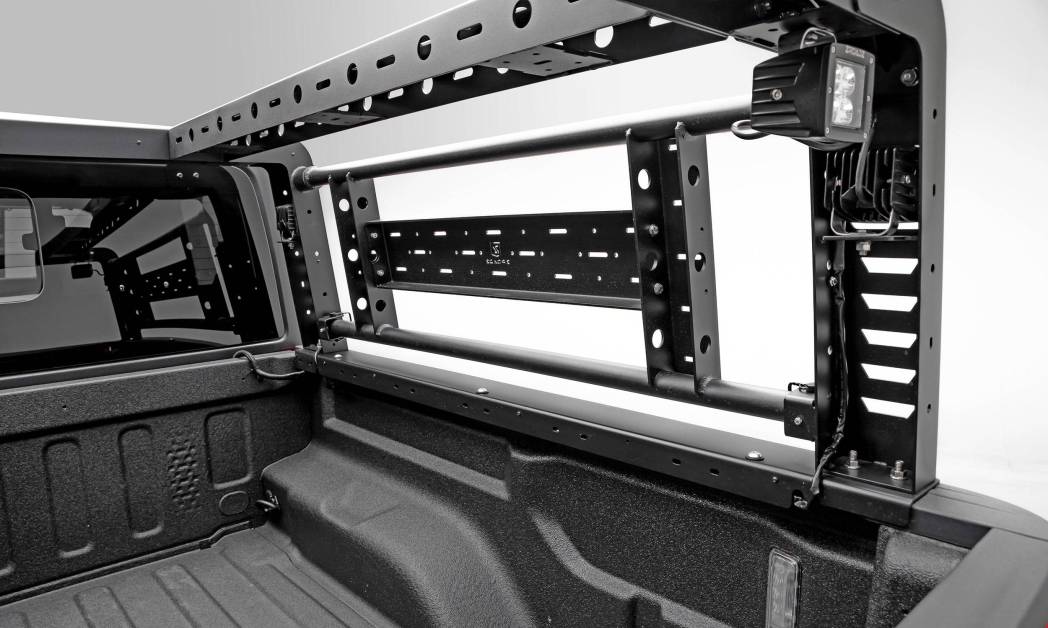

Multi Slot and Thru Hole Accessory Mounting Provisions
Steel Channel Primary Structural Support Members
Aluminum Channel Secondary Support Members
Three Step Powder Coating Process With Texture Black Finish

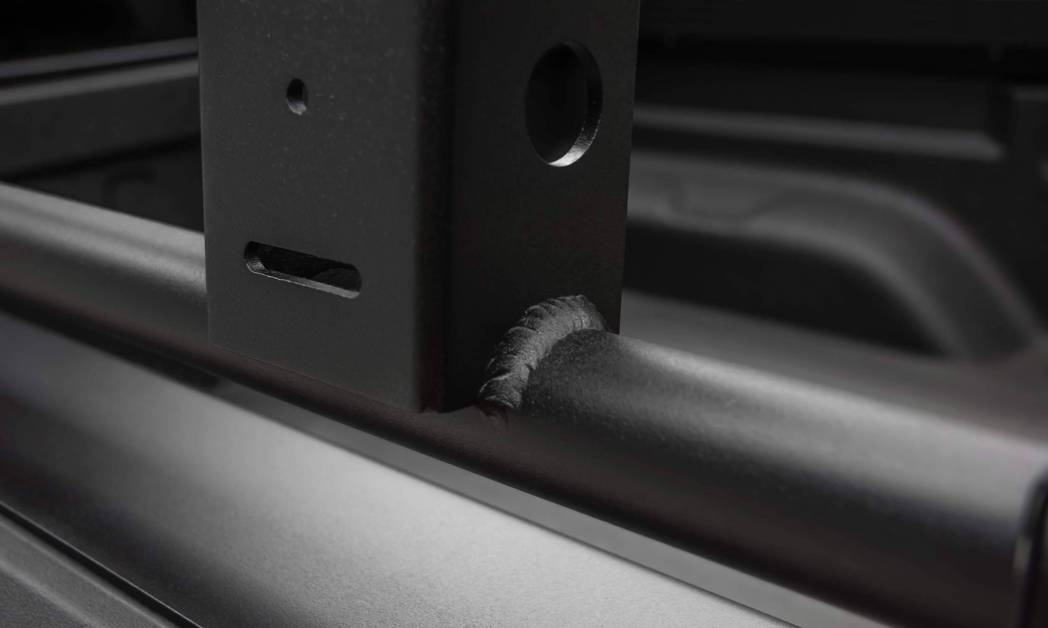

TIG Welded Construction, Accessory Mounting Plates Throughout Framework

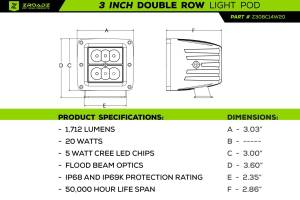

Accepts most 2 in. LED Pod Lights with provisions to cleanly route power wires
Designed and Manufactured in the USA by ZROADZ Offroad Products

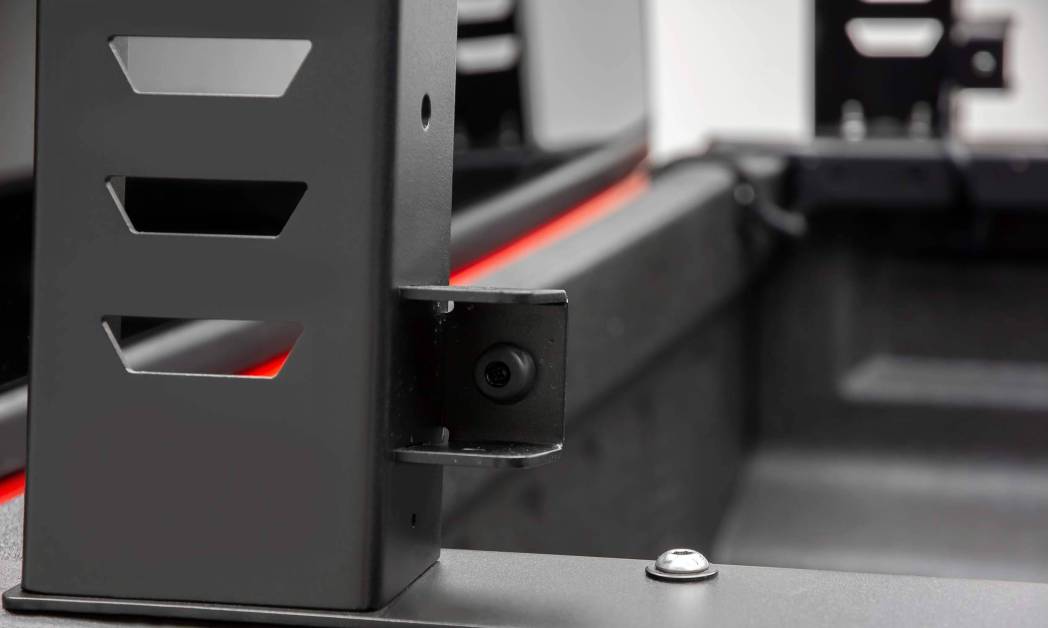

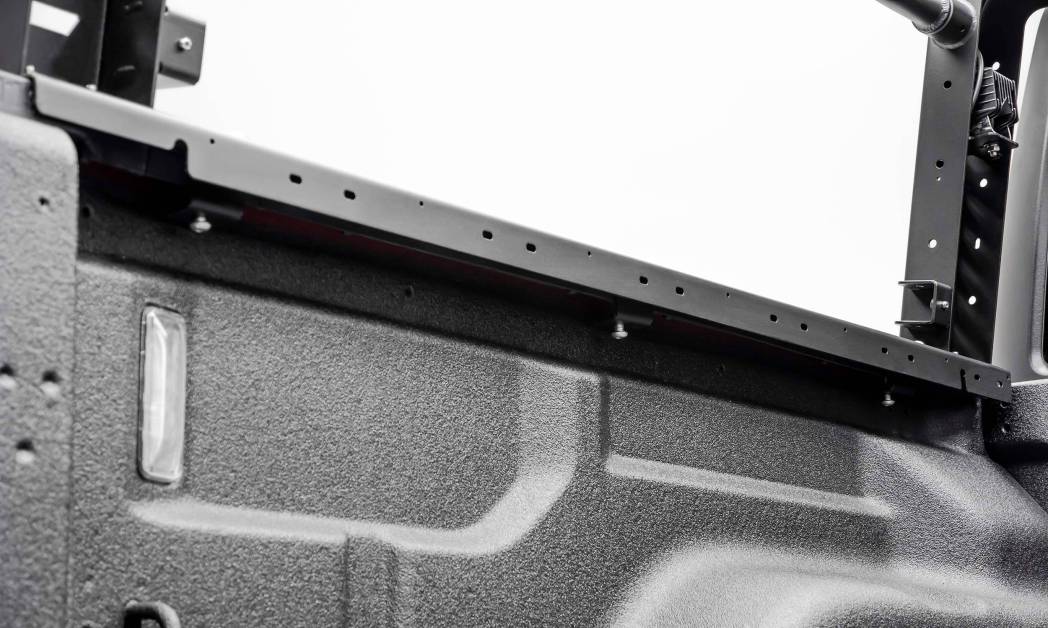

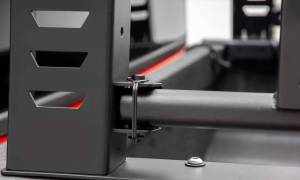

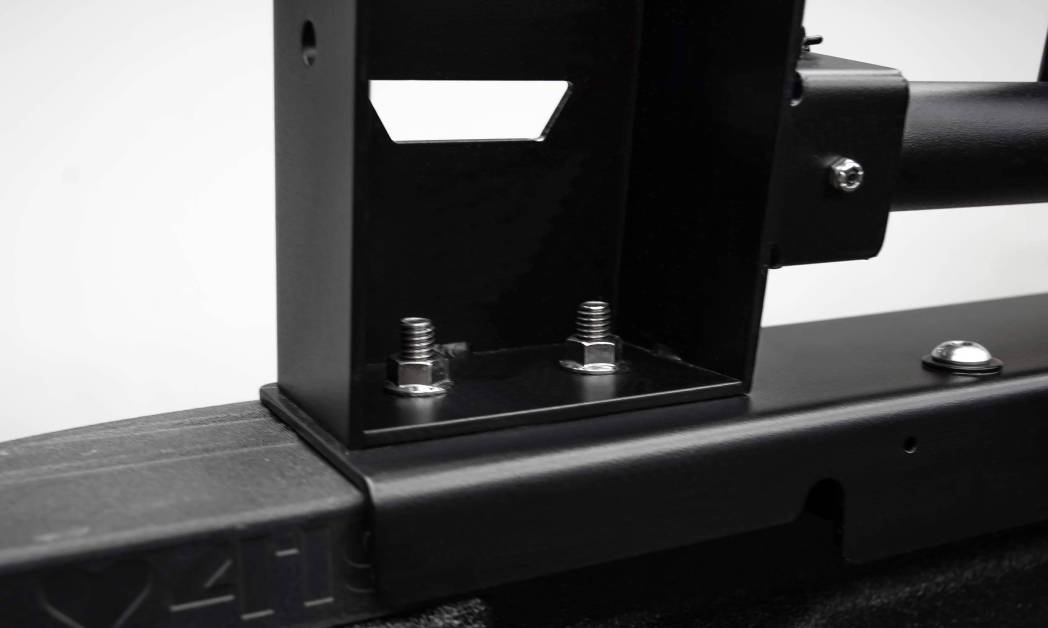

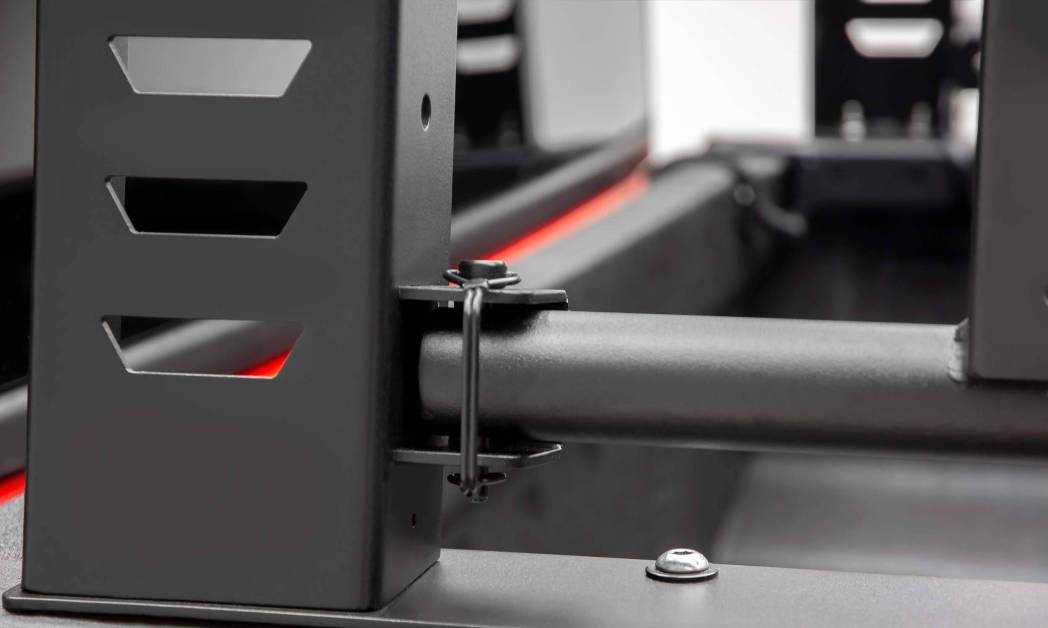

Bolt-On Installation with Clamping System , No Drilling Required
Limited lifetime product warranty, 3 year warranty on the finish
10 ga steel legs with transverse cross bars, 7 ga AL lateral cross bars and door assemblies with 304 stainless pivot collar
The rack is best suited for a closed size tent of 47"W x 55"L x 11.5"
Available with 3 lifting gates, see part number Z835201

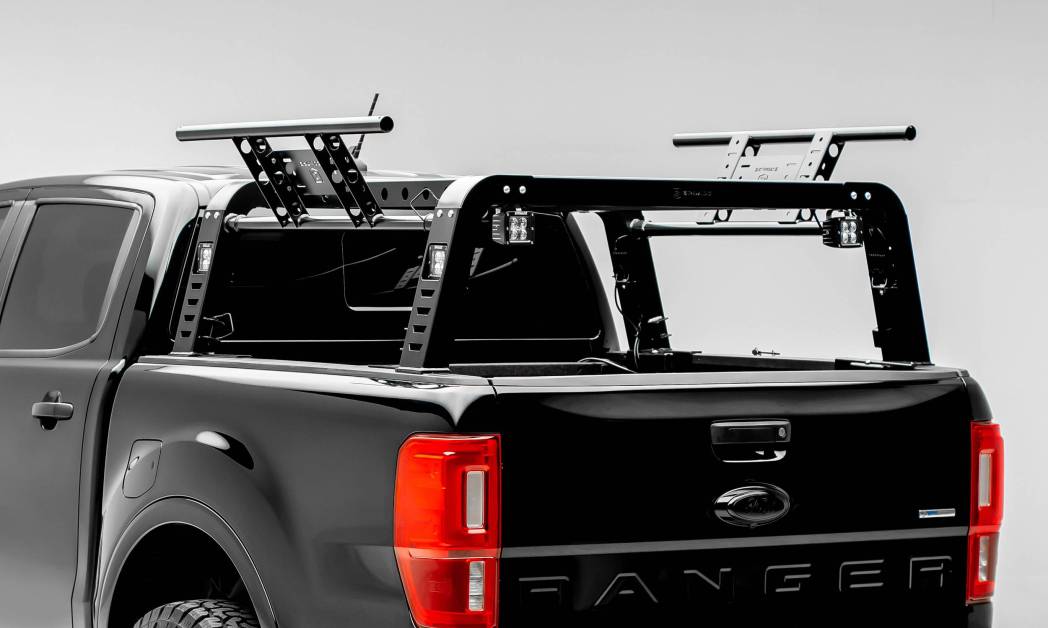

The ZROADZ Overland Truck Bed Rack is the first truck bed accessory mounting system engineered with bed access doors designed for lighter, larger accessories that are more efficiently stored in a way that does not take up valuable bed space and can be easily moved out of the way to gain access to the bed of your truck. Spare fluid containers, traction pads, or any items weighing up to 30 lbs. can be mounted and lifted out of the way on the aluminum door frames. Hybrid heavy gauge steel and aluminum construction give this truck rack the ultimate load carrying capacity.
