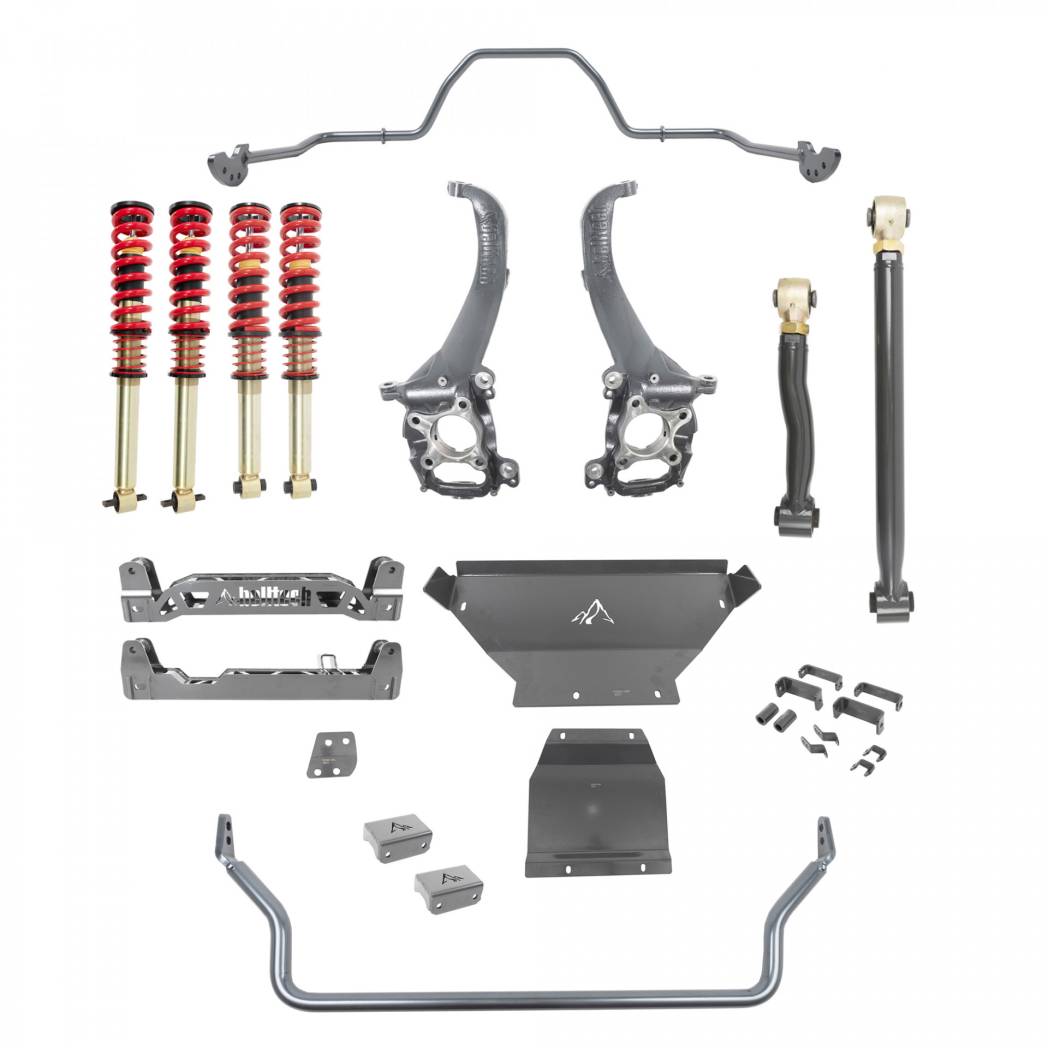

152602HK | Belltech 4-7.5" Lift Kit Inc. Front And Rear Trail Performance Coilovers
2021 - 2023 Ford Bronco
Description
Fits: 2021+ Ford Bronco 4WD without Sasquatch Package
With Belltech's new, brilliantly engineered, 4" to 7.5" complete lift kit, the Ford Bronco is back and better than ever! Our kit enhances your Bronco's ride quality and outperforms and out lifts other lift kits on the market. Belltech engineers have designed the 2021+ Ford Bronco lift kits to a T, improving ride quality and making advanced safety their number one priority.

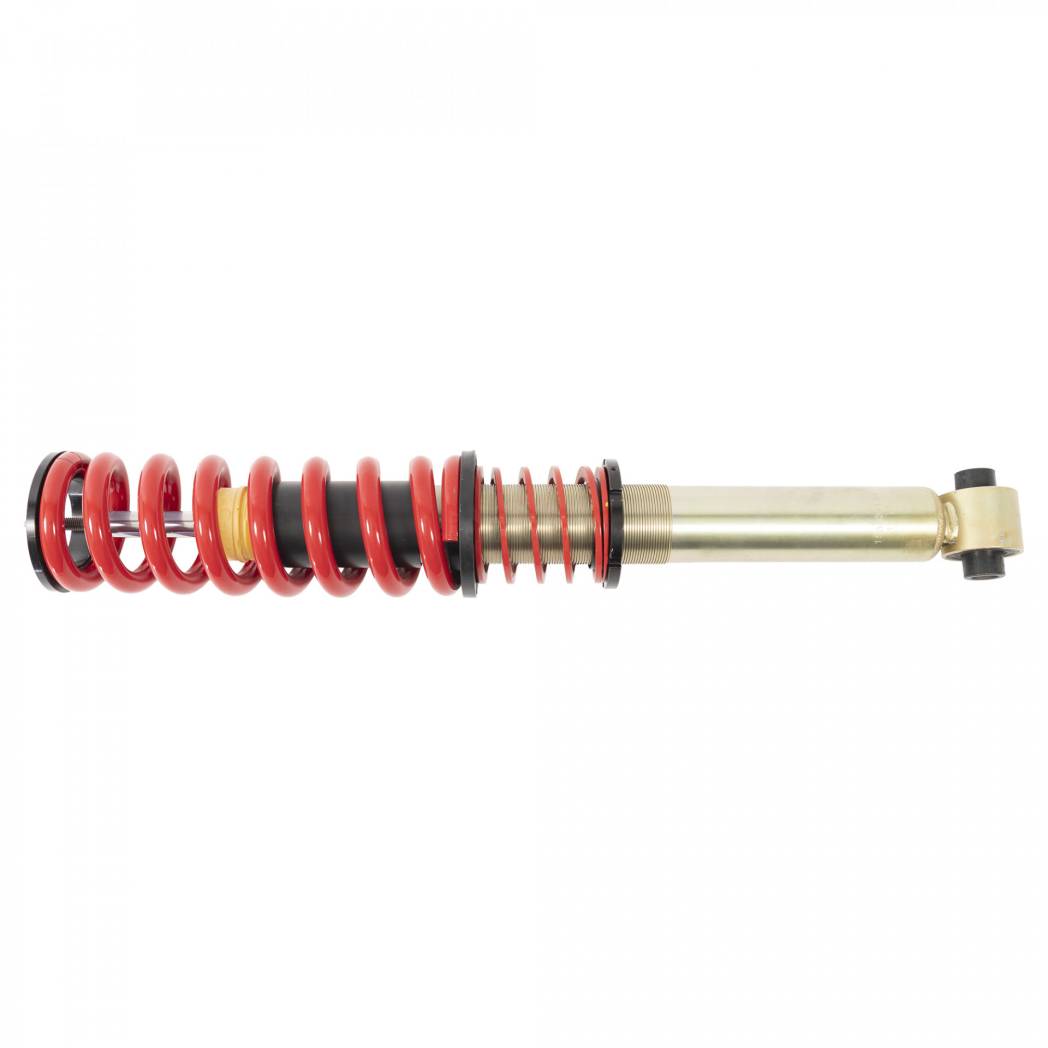

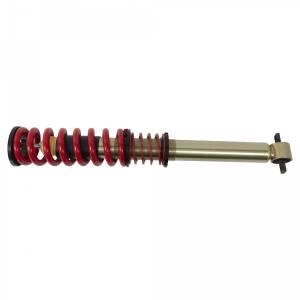

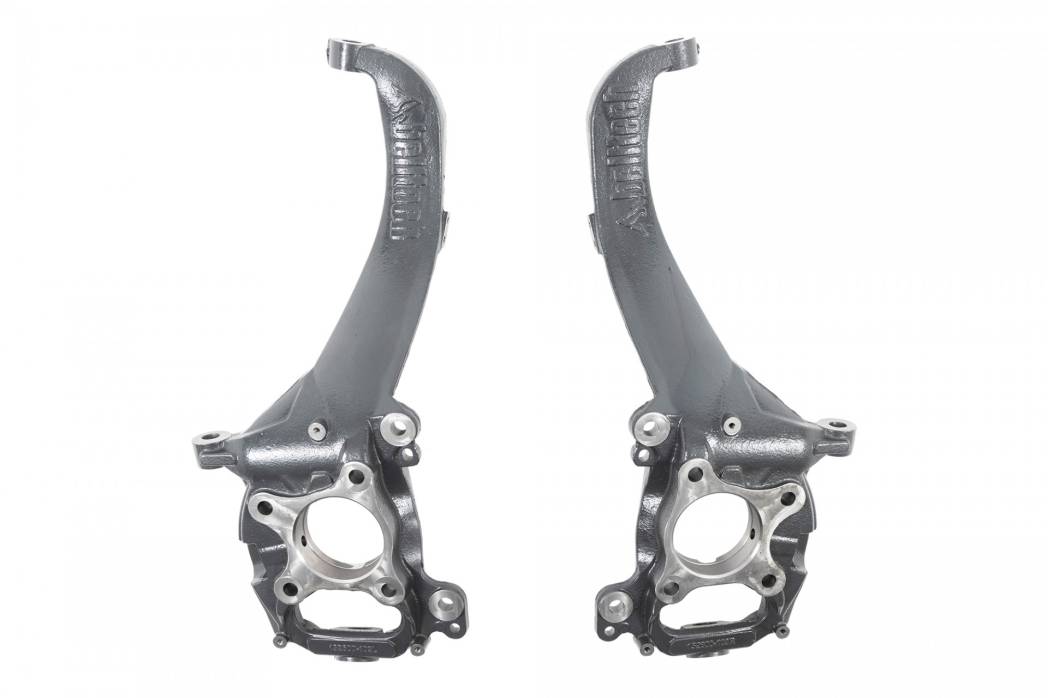

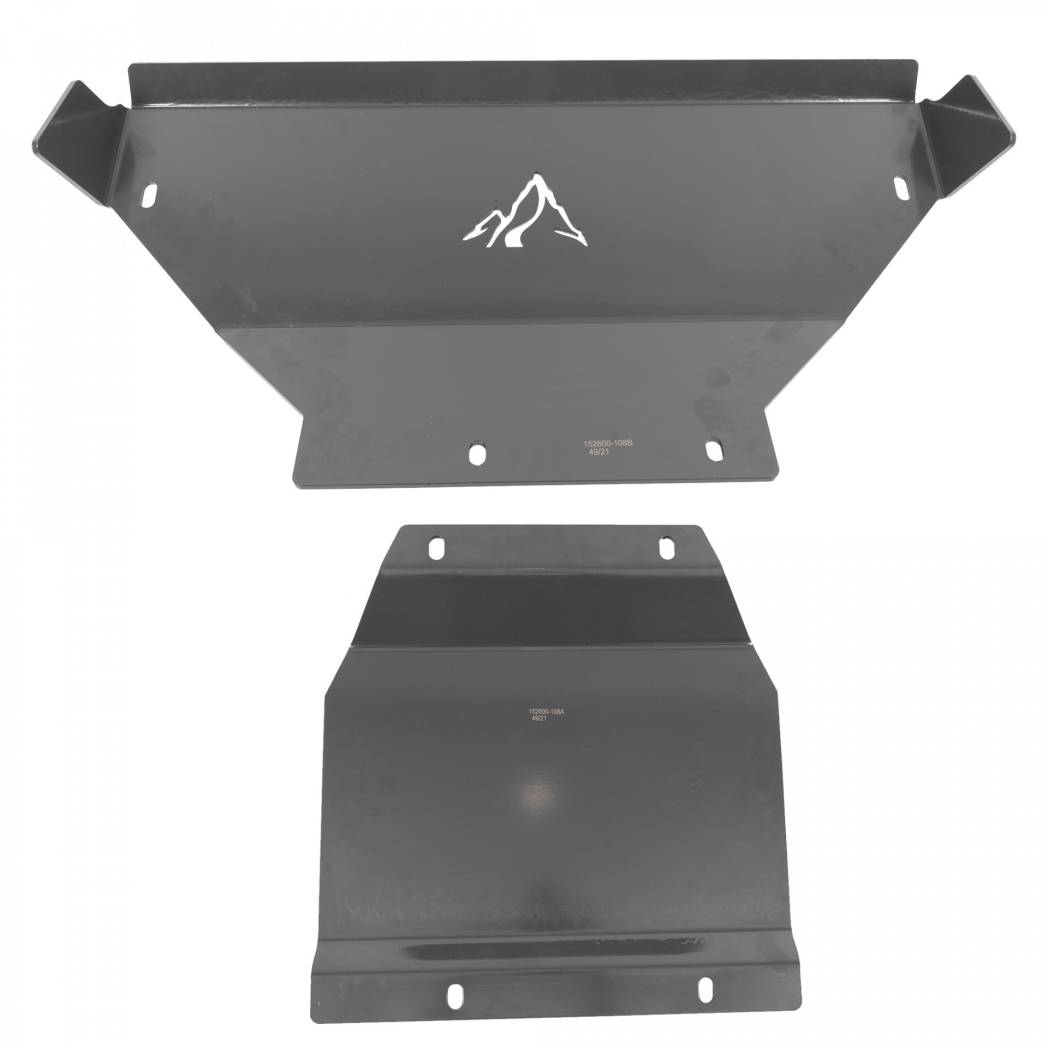

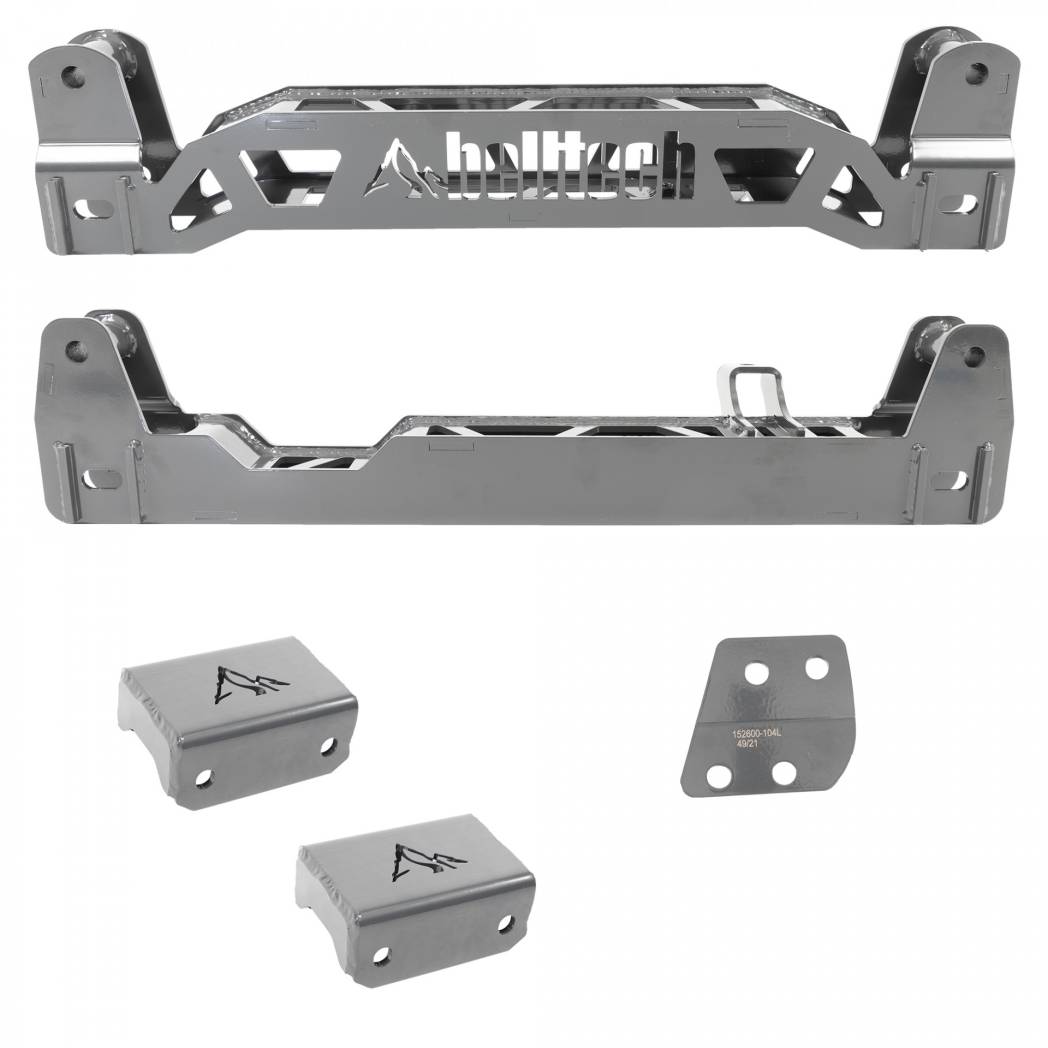

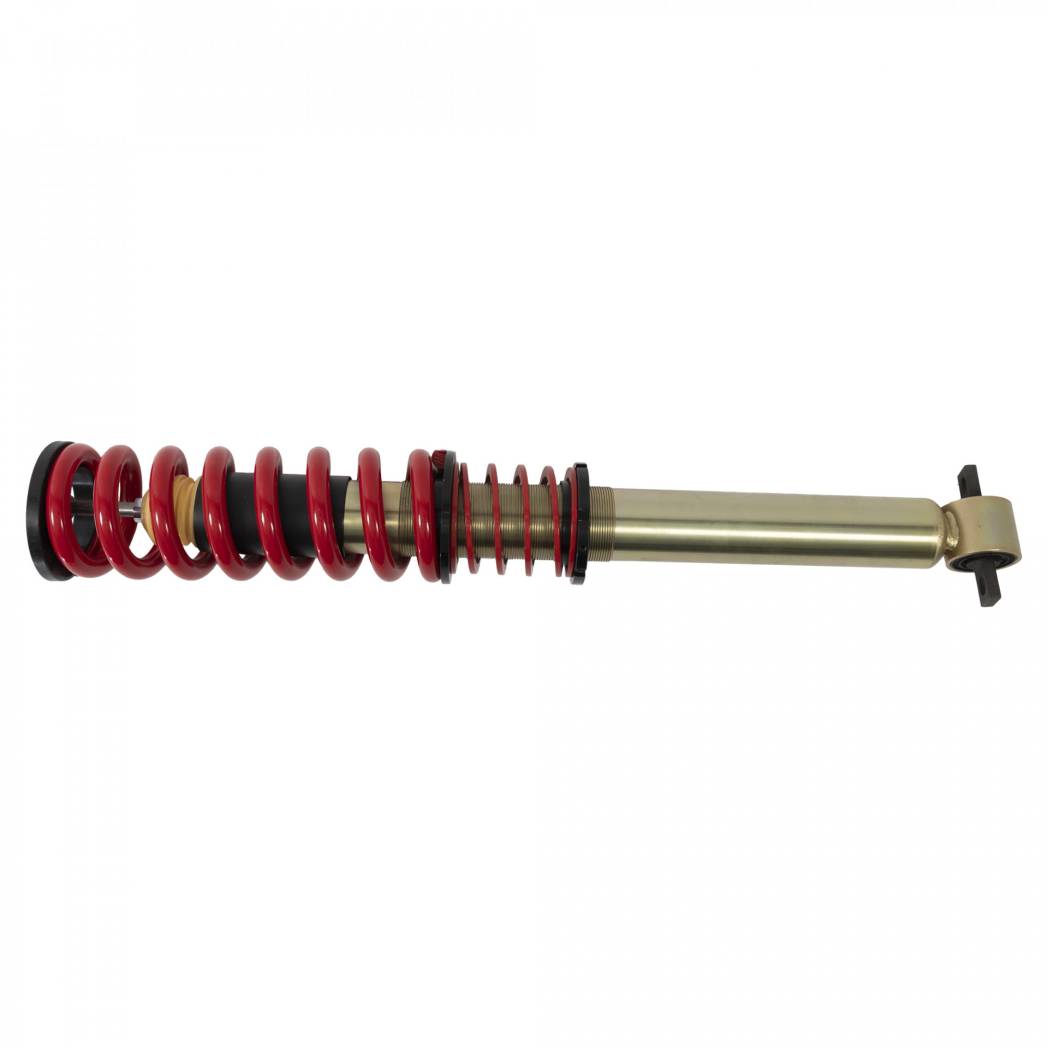

Factory struts are replaced with 2.4" (60mm) large-bodied, finely tuned, height-adjustable Trail Performance coilovers, which house increased amounts of oil and employ a low-friction design to give you perfect damping throughout your journey. The Ford Bronco lift kit's unique design uses two 1/4 inch thick skid plates. One plate protects the oil cooler and the other is built along with the Belltech crossmember to increase rigidity and shield the front differential without interfering with articulation. Belltech lift spindles and a differential drop kit retain factory suspension geometry. We pair sway bar drop-down brackets and a 1-3/8" solid steel sway bar with three settings for superb steering responsiveness on the road.
The rear setup includes precision tuned height adjustable Trail Performance lift coilovers with large, 2.4" (60mm) damper bodies that hold an increased volume of oil to keep it cool and produce ideal damping and consistent results. We use a robust, yet lightweight, roll center correction bracket that increases roll resistance and adds rigidity at the frame-side mounting point. We include an exceptionally sturdy 2" track bar without adding too much weight. To go further, we also add 2" upper and lower control arms for the rear, with fully serviceable and rebuildable 1-1/4" rod ends. For lateral control we feature three-setting adjustable, 7/8" cold-formed solid steel anti-sway bar giving your Bronco a sport-like ride quality.

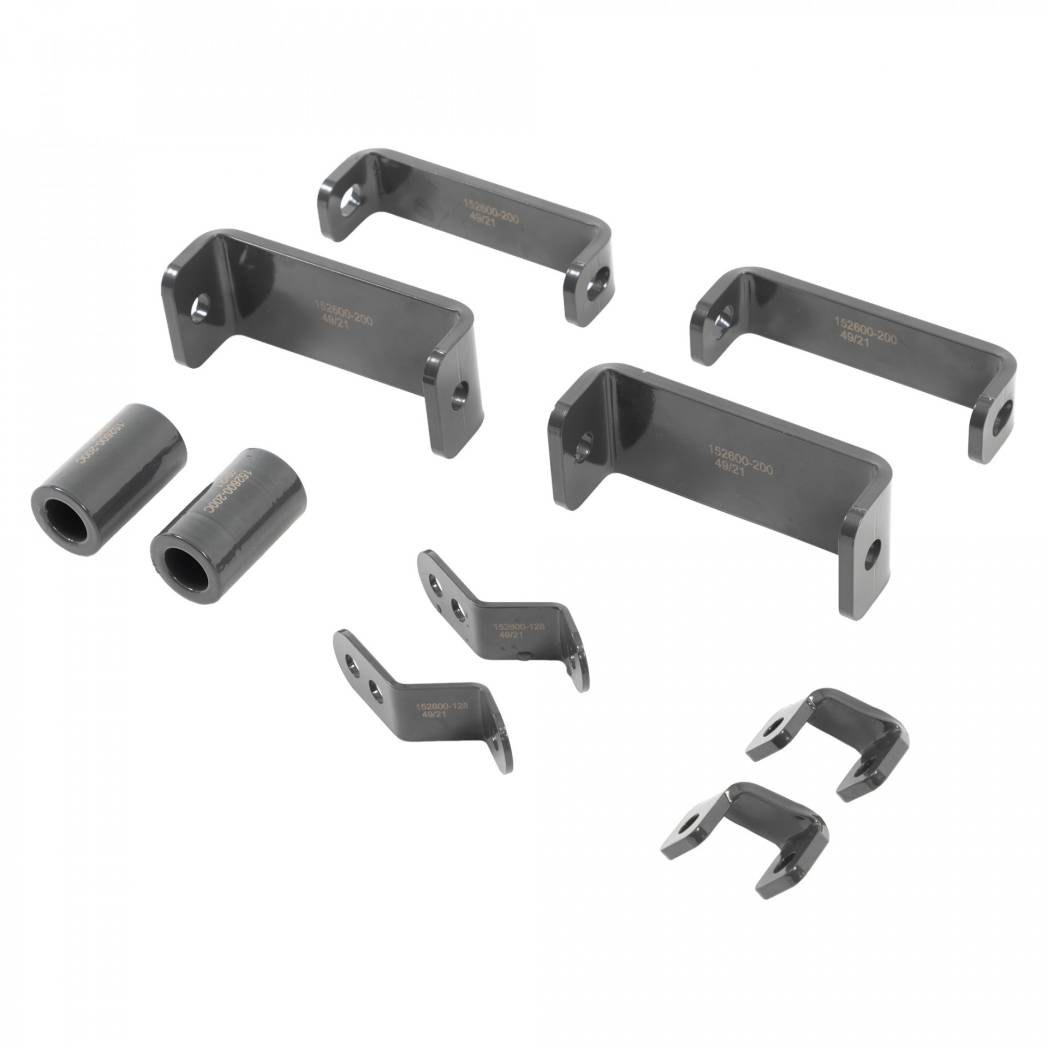

Belltech coilovers feature double-wall, high durometer, vulcanized rubber bushings which reduce noise, vibrations, and wear. The hardware is high-grade, and our brake-line relocation brackets keep your brake lines safe and away from other parts or components. We improve handling, add clearance, and add the option to use larger tires and wheels. All backed by a lifetime warranty - so you are covered, no matter what.
- Custom engineered front and rear height adjustable Trail Performance coilovers

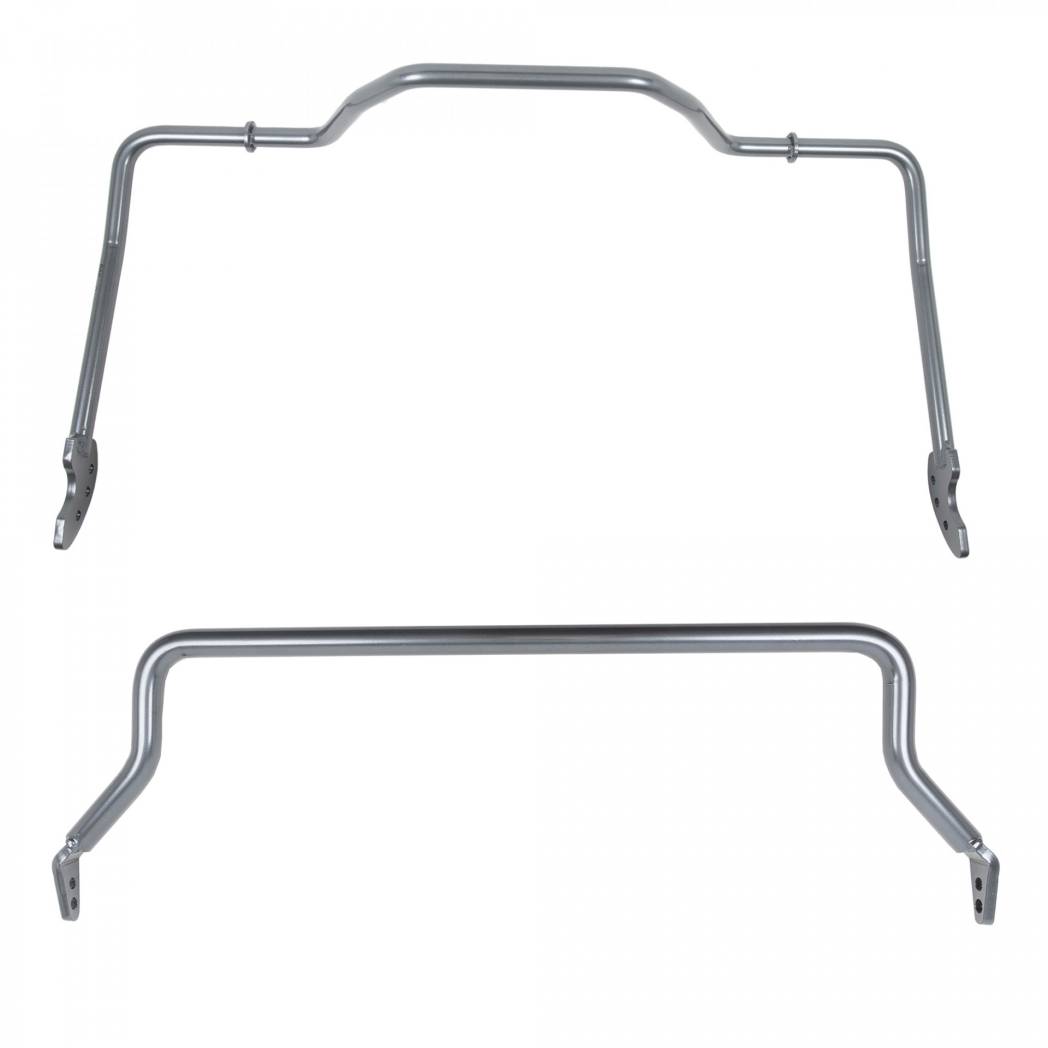

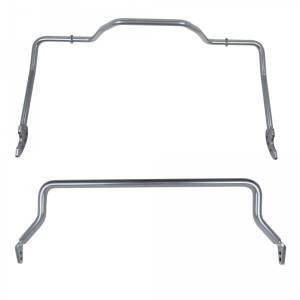

- Cold-formed solid steel front and rear anti-sway bars with three settings
- Two 1/4" thick skid plates to protect the vehicle undercarriage

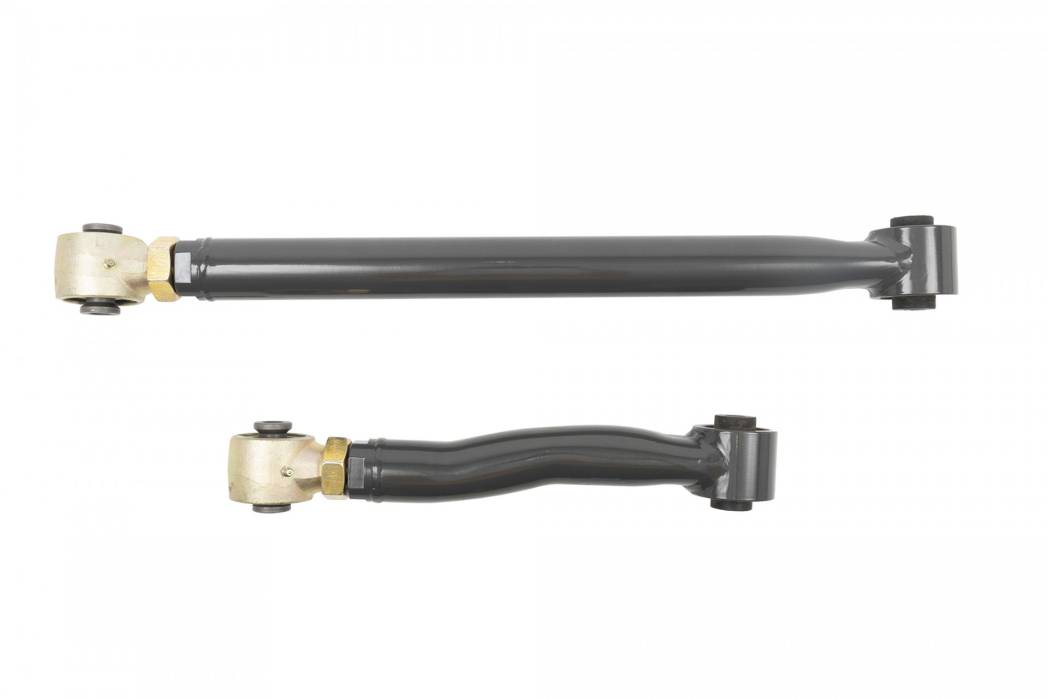

- 2" rear control arms and track bar
- Robust roll-center correction bracket to increase rigidity
- Retains factory alignment specifications
- Retains OE front differential geometry
- Retains factory turning radius and track width
- Precision designed and engineered in the USA
- Limited-Lifetime warranty
Wheel/Tire Fitment Information:
- Max tire size: 37 x 12.5 Wheels (6" BS) - 7.5" lift
- Trimming may be required.
Fitment Notes:
- Excludes: First Edition, Wildtrak, Raptor, Heritage Edition and Heritage Limited Edition.
- Does not fit models equipped with the hydraulic front sway bar disconnect.
- This kit will fit 40" tires, however inner fender and crash beam modification may be required, and it is not recommended.
Application List
2021 Ford Bronco Badlands 2.7l V6 99P 4WD Sport Utility
2021 - 2023 Ford Bronco Base 2.3l L4 99H 4WD Sport Utility
2021 - 2023 Ford Bronco Base 2.7l V6 99P 4WD Sport Utility
2021 - 2023 Ford Bronco Big Bend 2.3l L4 99H 4WD Sport Utility
2021 - 2023 Ford Bronco Big Bend 2.7l V6 99P 4WD Sport Utility
2021 - 2023 Ford Bronco Black Diamond 2.3l L4 99H 4WD Sport Utility
2021 - 2023 Ford Bronco Black Diamond 2.7l V6 99P 4WD Sport Utility
2022 - 2023 Ford Bronco Everglades 2.3l L4 99H 4WD Sport Utility
2021 - 2023 Ford Bronco Outer Banks 2.3l L4 99H 4WD Sport Utility
2021 - 2023 Ford Bronco Outer Banks 2.7l V6 99P 4WD Sport Utility
